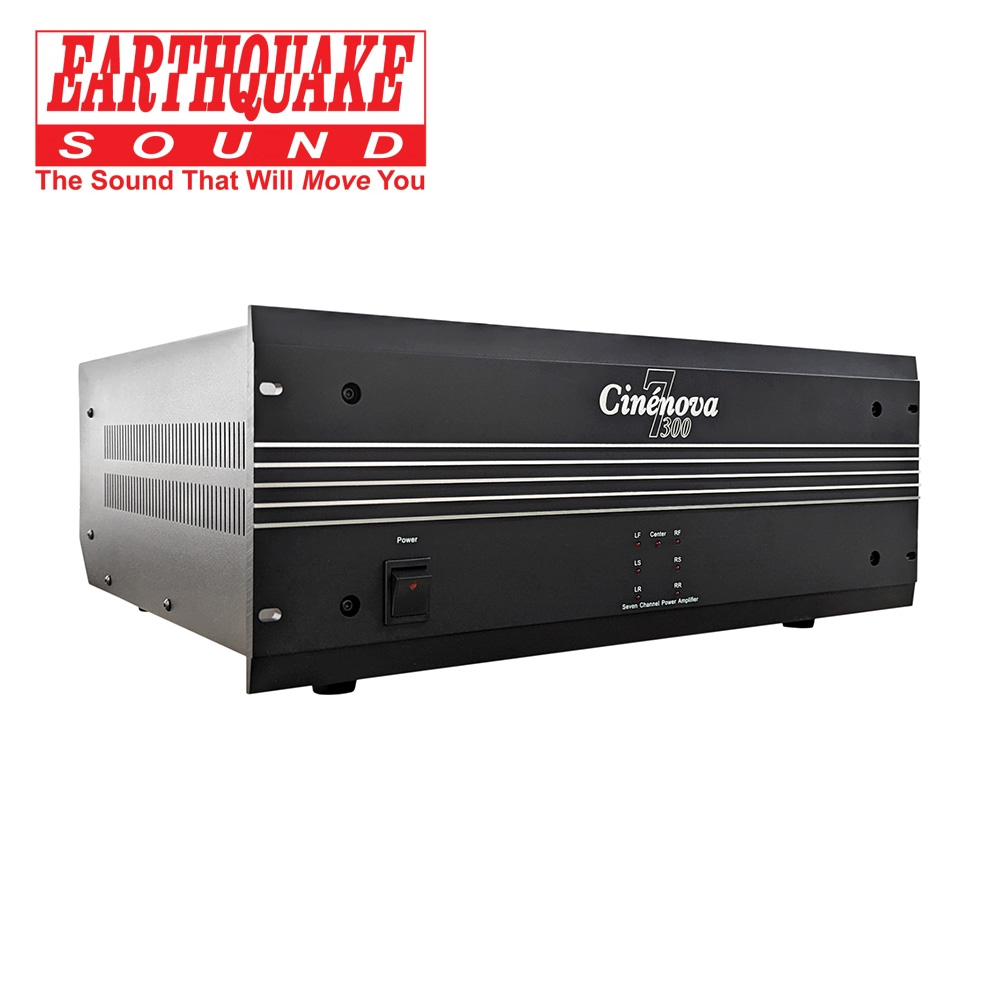

Amplifier Cinenova 7300

The Cinénova name represents the pinnacle of amplification regardless of price. Since its inception, the Cinénova design concept has been a tempered blend of traditional high-end virtues combined with innovative and novel circuitry design. Produced using in-house proprietary manufacturing techniques, his tradition lives on in the new Cinénova 7300 with a completely monaural design and enhanced class AB operation. The result is industry leading efficiency making the Cinénova 7300 a true green amplifier.

The Cinénova 7300 employs 8 massive output transistors per channel ensuring that even the most demanding speakers are held in an iron grip and any soundtrack is reproduced with dynamic precision and articulation.

  • Ultimate Sound Quality
  • Low Distortion
  • Monaural Design

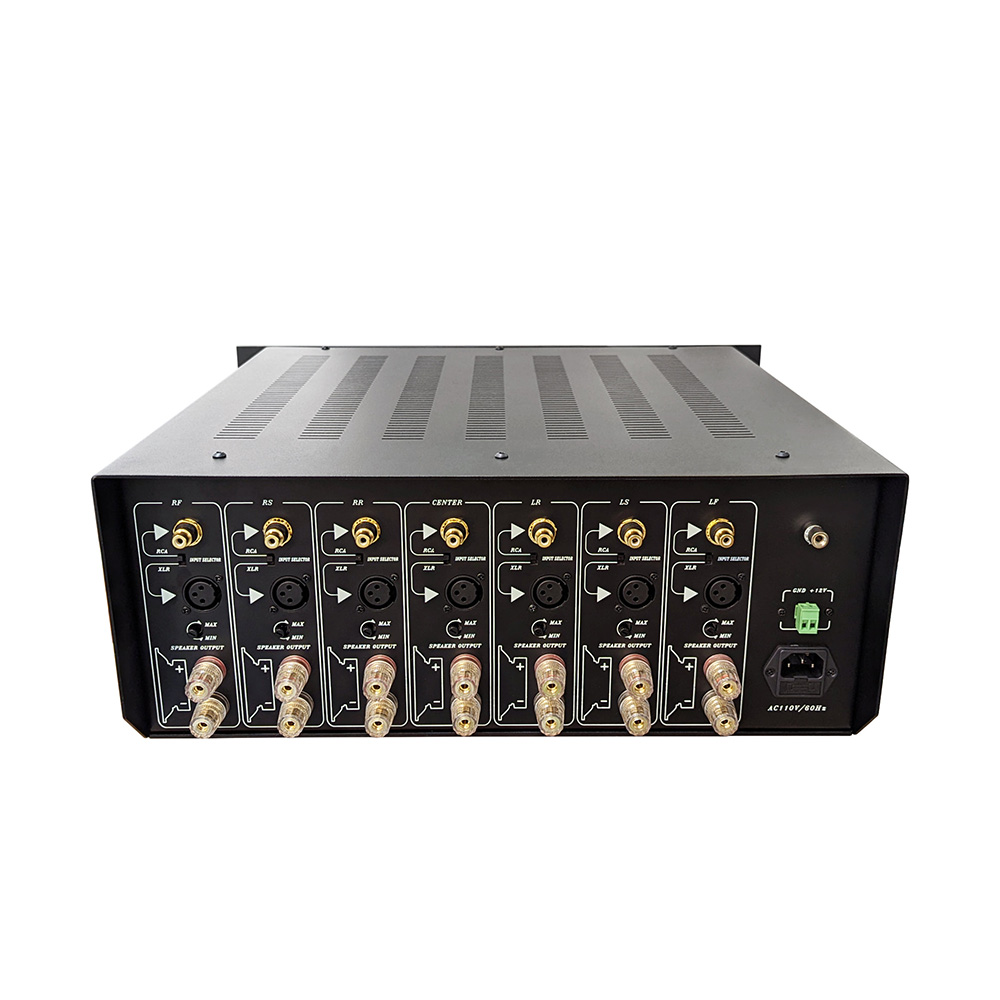

  • Fully Balanced XLR Inputs
  • 12VDC Trigger

Description

Number of Channels7
Power Rating Per Channel (All Channels Driven):(8-Ohm load) Rated: 180 WRMS
(4-Ohm load) Rated: 300 WRMS
(2-Ohm load) Rated: 550 WRMS
Input ImpedanceRCA: 28 kΩ
XLR: 48 kΩ
Input Sensitivity30 kΩ
Frequency ResponseUp to 30kHz ±0.1dB
Total Harmonic Distortion + Noise0.003% at 1W
S/N Ratio (A-Weighted)Greater than -111dB
Cross Talk / Channel SeparationGreater than -110dB from 17Hz to 40kHz
Slew Rate60V/microsecond
Damping Factor1600 at 8-Ohm
DC Output Offset0.004
Power Requirement120 VAC/240 VAC Factory Preset
Dimensions
Front Panel (H x W)178 x 483mm (7″ x 19″)
Mounting (H x W)102 x 467mm (4″ x 18.37″)
Chassis (H x W x D)178 x 432 x 435mm(7″ x 17″ x 17.12″)
Net Weight36.3kg (80 lbs)
