Architettura Sonora Cylinder Table

The AS Cylinder family now adds its most complete and versatile element, a new opportunity to enjoy music even on more convivial occasions

Description

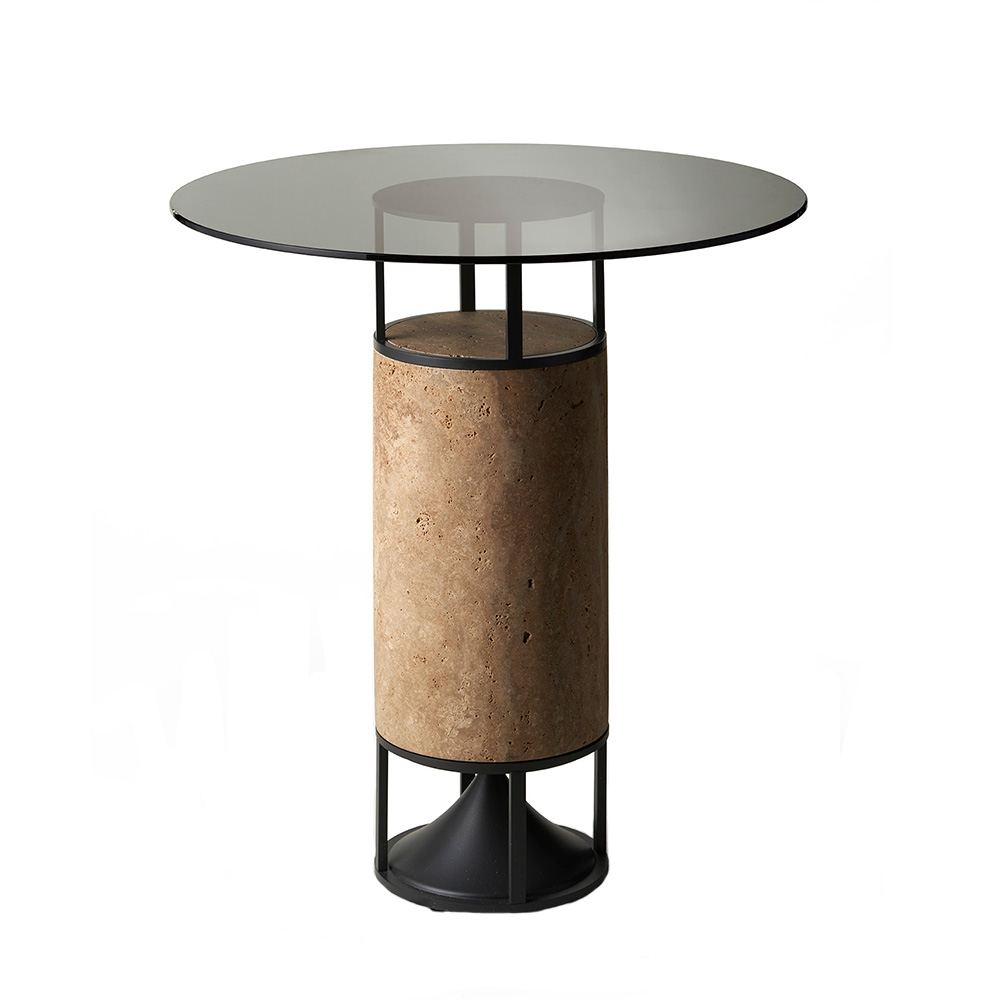

Cylinder Table

The AS Cylinder family now adds its most complete and versatile element, a new opportunity to enjoy music even on more convivial occasions

Architettura Sonora

s

LIGHTING MOOD SOLUTIONS

Light option, consisting of a Led Strip in a special notch around the loudspeaker area.

The Light spreads in the lower part of the product, due to the reflection of the deflector.

Lighting Mood designed by Giulia Archimede.

Lamp Specs

Light source: LED module: 1x7W

Rated output: 7W

Led colour temperature: 3000K

Power supply: 90-260V

Version Full range Subwoofer without crossoverSubwoofer with crossover on board
Speaker Type6″ coaxial (dual concentric)6″ woofer 6″ woofer
Nominal Impedance
Crossover2 ways on board Recommended DSP setting:
HP=35Hz; 12dB/oct
LP=120Hz; 12dB/oct
LP=150Hz; 12dB/oct
Frequency Range 54-20,000Hz _-6dB)50-150Hz (-6dB)
(recommended DSP setting)
50-150Hz (-6dB)
Sensitivity (1W – 1m)89dB89dB89dB
Speaker Peak Power300W300W300W
Speaker RMS Power 150W150W150W
Lighting Mood Optional Optional Optional
High-z Board Optional
(voltage: 70-100V
Power: 30-60W)
Optional
(voltage: 70-100V
Power: 30-60W)
Optional
(voltage: 70-100V
Power: 30-60W)
DimensionsØ 60 x 69 H cm
Weight31 Kg Concrete; 33 Kg Marble

Materials
