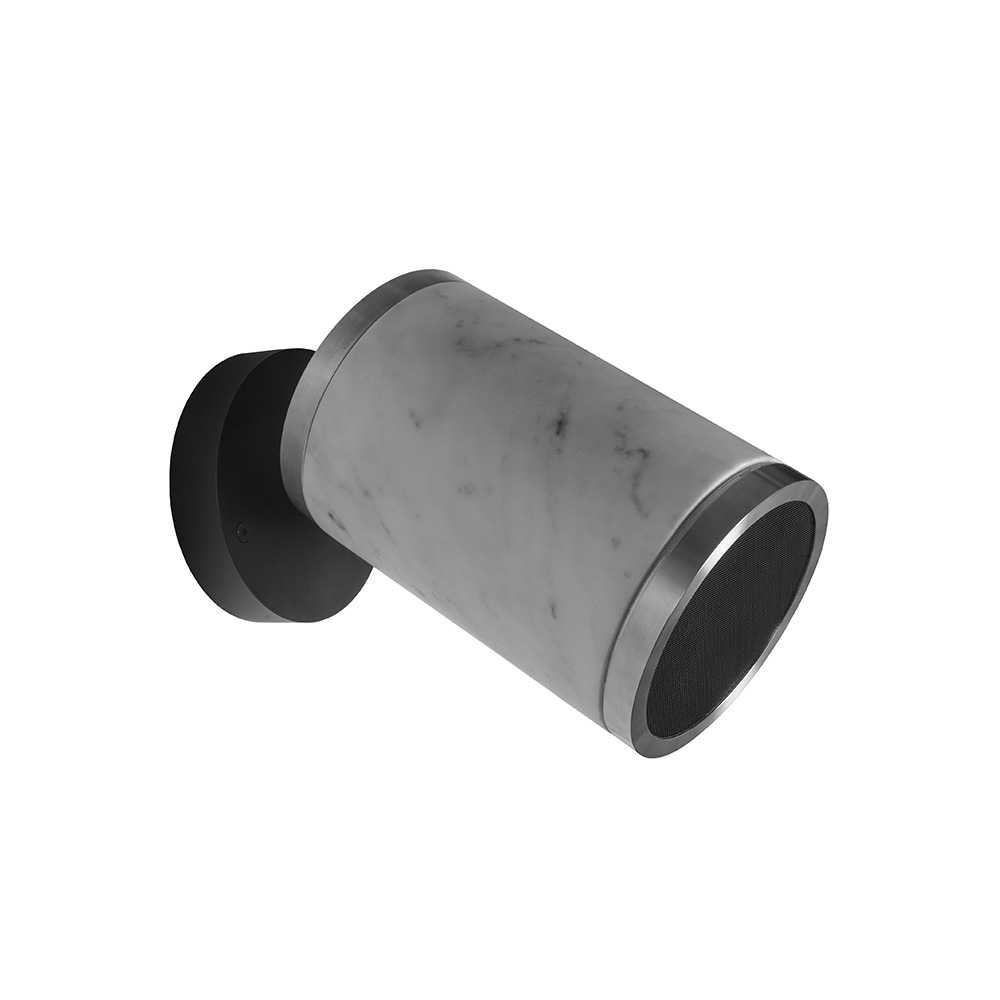

Architettura Sonora – Daedalus

The fist AS full range ceiling and wall-mounted satellite.

Thanks to a passive woofer, Daedalus offers excellent performances without needing a subwoofer.

Its side arm – clean and ergonomic – makes this model very ductile in terms of sound emission angle adjustment

Description

A three-sixty all-round sound

The fist AS full range ceiling or wall-mounted satellite.

Thanks to a passive woofer, Daedalus offers excellent performances without needing a subwoofer.

Its side arm – clean and ergonomic – makes this model very ductile in terms of sound emission angle adjustment

Architettura Sonora

versionCrossover on board
Speaker Type4″ Coaxial (Dual concentric) & Rear Passive Reflex System
Nominal Impedance
CrossoverHP = 40Hz, 12dB/oct
Crossover: 2kHz; 12dB/oct
Frequency Range:80-20,000Hz (-6db)
Sensitivity (1W – 1m)86dB
Speaker Peak Power200W
Speaker RMS Power50W
Lighting MoodN/A
High-z on Board Optional
(Voltage 70-100W
Power 30-60W)
Dimensions 21 x 14 cm diam.
Weight 4.1 Kg (each)

Materials
