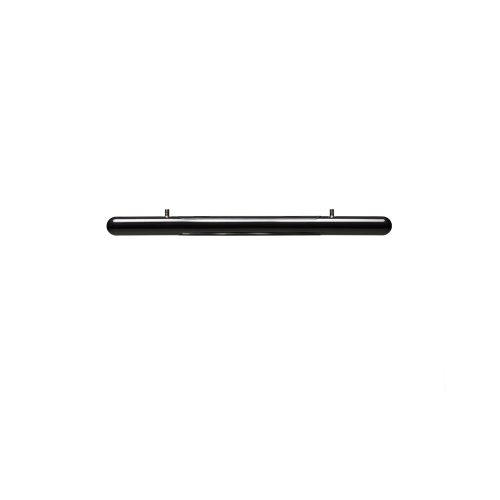

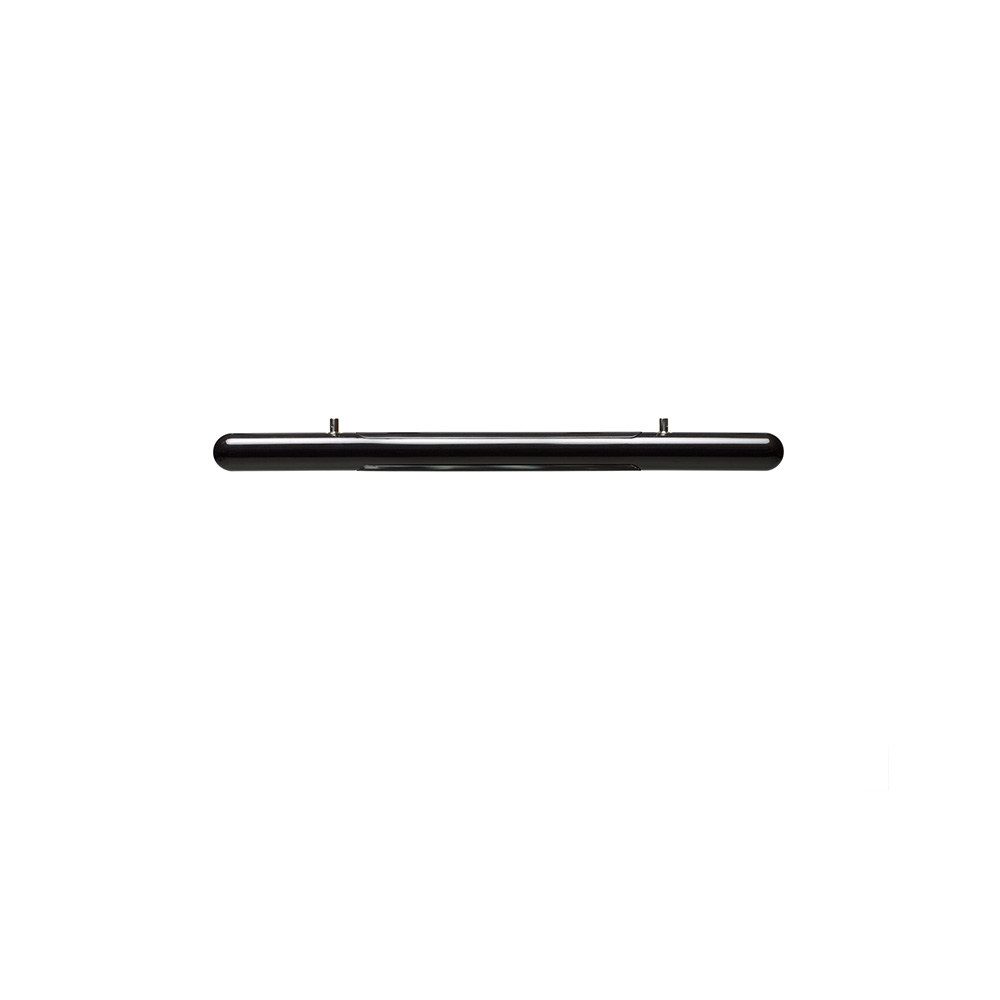

Architettura Sonora Pergola

Architettura Sonora Pergola

Clean Lines

The Pergola collection, simple and clean shapes harmonizing and blending in the architectural settings.

Clean lines and elegance distinguishes the Pergola collection, available in both Line-array and Point-source versions, either suspended or floor-standing.

Categories: ,

Description

Clean Lines

The Pergola collection, simple and clean shapes harmonizing and blending in the architectural settings.

Clean lines and elegance distinguishes the Pergola collection, available in both Line-array and Point-source versions, either suspended or floor-standing.

Architettura Sonora

Version Line Array without crossoverLine Array crossover on boardPoint Source without crossover Point Source crossover on board
Speaker Type9 x 2″ wide band9 x 2″ wide band6 x 2″ wide band – 1″ horn loaded driver6 x 2″ wide band – 1″ horn loaded driver
Nominal Impedance 4Ω4Ω4Ω4Ω
Crossoverrecommended DSP setting:
HP=220Hz; 12dB/oct		HP=220Hz; 12dB/octrecommended DSP setting:
HP=220Hz; 12dB/oct		HP=220Hz; 12dB/oct; 2 ways on board
Frequency Range 220-20,000Hz (-6dB)
(recommended DSP setting) 		220-20,000Hz (-6dB)220-20,000Hz (-6dB)
(recommended DSP setting) 		220-20,000Hz (-6dB)
(recommended DSP setting)
Sensitivity (1W – 1m)90 dB90 dB90 dB90 dB
Speaker Peak Power130W130W120W120W
Speaker RMS Power 65W65W60W60W
Lighting Mood N/AN/AN/AN/A
High-z Board N/AN/AN/AN/A
Dimensions82 Ø x 1212 mm
Weight5 Kg

Materials
