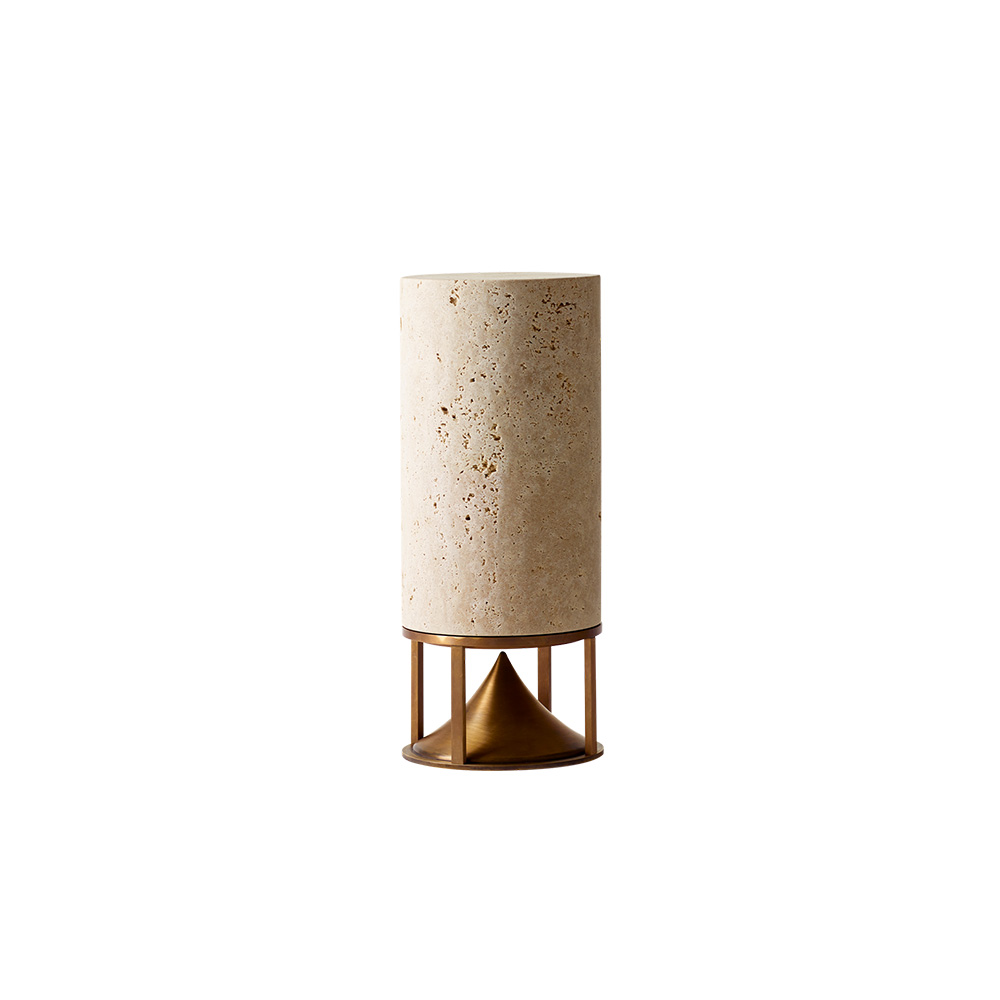

Architettura Sonora Tall Cylinder

Balanced and Pure

Tall Cylinder is part of the VDLine, designed in collaboration with landscape architect Vladimir Djurovic, which won the “A+ Architizer” Award in the “Product+Acoustic” category, an international definition of the quest for sound and design excellence

Description

Features
Specifications

	Balanced and Pure Tall Cylinder is part of the VDLine, designed in collaboration with landscape architect Vladimir Djurovic, which won the “A+ Architizer” Award in the “Product+Acoustic” category, an international definition of the quest for sound and design excellence
LIGHTING MOOD SOLUTIONS Light option, consisting of a Led Strip in a special notch around the loudspeaker area. The Light spreads in the lower part of the product, due to the reflection of the deflector. *Lighting Mood designed by Giulia Archimede.* Lamp Specs Light source: LED module: 1x7W Rated output: 7W Led colour temperature: 3000K Power supply: 90-260V

Version	Full range with crossover on board	Subwoofer without crossover	Subwoofer with crossover on board
Speaker Type	6″ coaxial (dual concentric)	6″ woofer	6″ woofer
Nominal Impedance	8Ω	8Ω	8Ω
Crossover	2 ways on board	recommended DSP setting: HP=35Hz 12dB/oct; LP=120Hz 12dB/oct	LP=150Hz 12dB/oct
Frequency Range	54-20,000Hz (-6dB)	50-150Hz (-6dB) (recommended DSP setting)	50-150Hz (-6dB)
Sensitivity (1W – 1m)	89 dB	98 dB	80 dB
Speaker Peak Power	300W	300W	300W
Speaker RMS Power	150W	150W	150W
Lighting Mood	Optional	Optional	Optional
High-z Board	Optional	Optional	Optional
Dimensions	220 Ø x 550 mm
Weight	23 Kg Concrete; 25 Kg Mable; 20 Kg Terracotta
