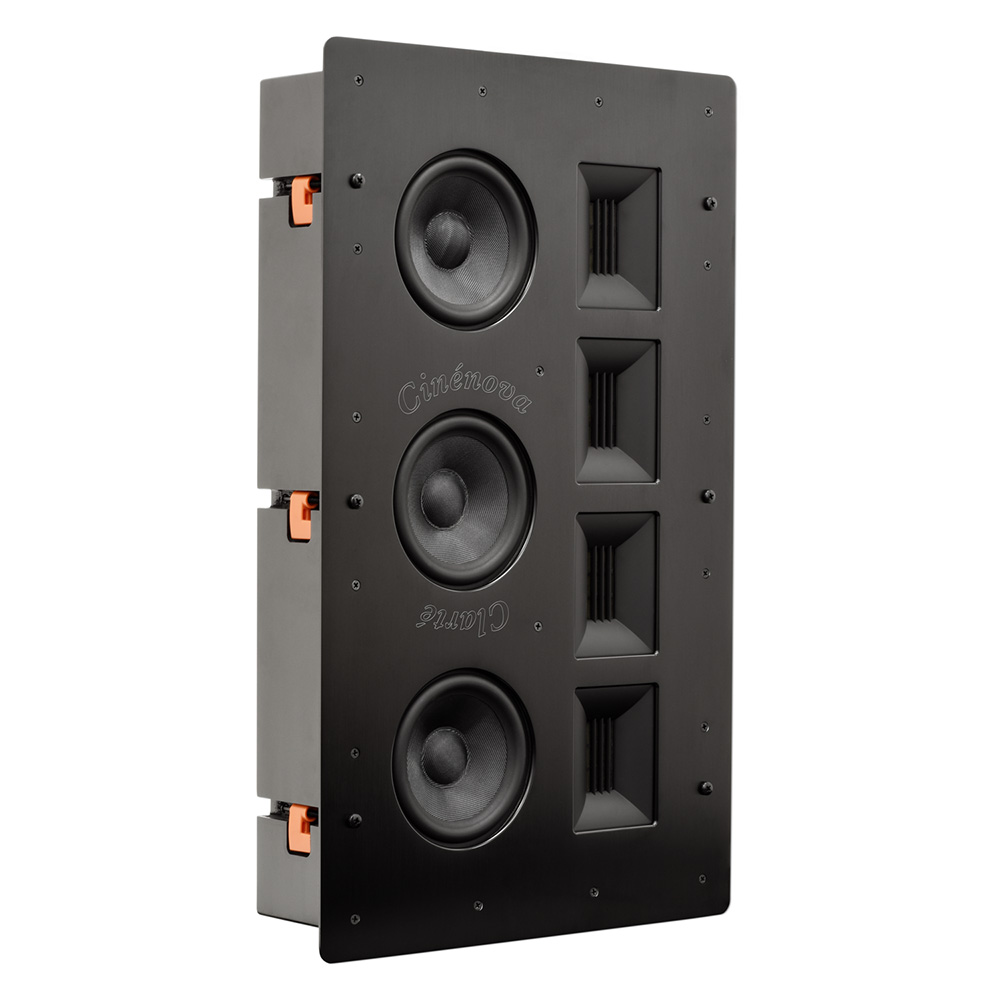

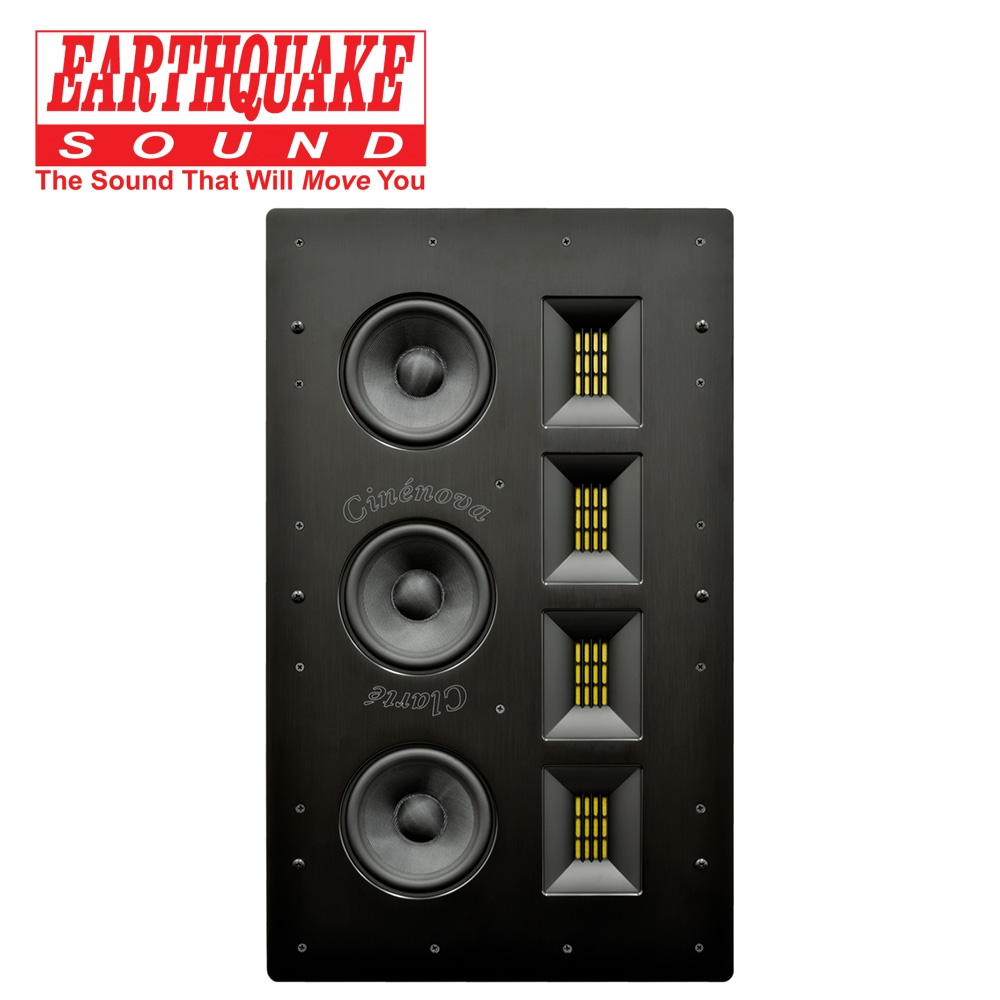

Cinenova Clarte In-Wall LCR Loudspeaker IW-C5

The Cinénova Clarté on-wall and in-wall LCR are Earthquake’s newest addition to the infamous Cinénova family of high fidelity products. The Clarté was designed to be mounted vertically or horizontally allowing it to be positioned for left, right, and center channels. This offers plenty of flexibility whether you are installing them for new or pre-existing home audio setups. Both the on-wall and in-wall Clarté speakers feature a combination of three 5.25″ glass fiber cone woofers for distortion-free bass and four 2″ ultra-fast ribbon tweeters for remarkable sound quality with pinpoint accuracy. With Earthquake’s Cinénova Clarté LCR, you will hear more details in music and movies with elegant sound reproduction and tonal balance.

Description

In-wall LCR loudspeaker
Used for left, right, and center channels
Great for 2-channel audio or complete home theater systems
Can be arranged to create line arrays
Four 2″ precision ribbon tweeters
Three 5.25″ glass fiber mid-bass drivers
Custom-built second order crossover network with polyswitch protection
Sonically neutral cabinet design

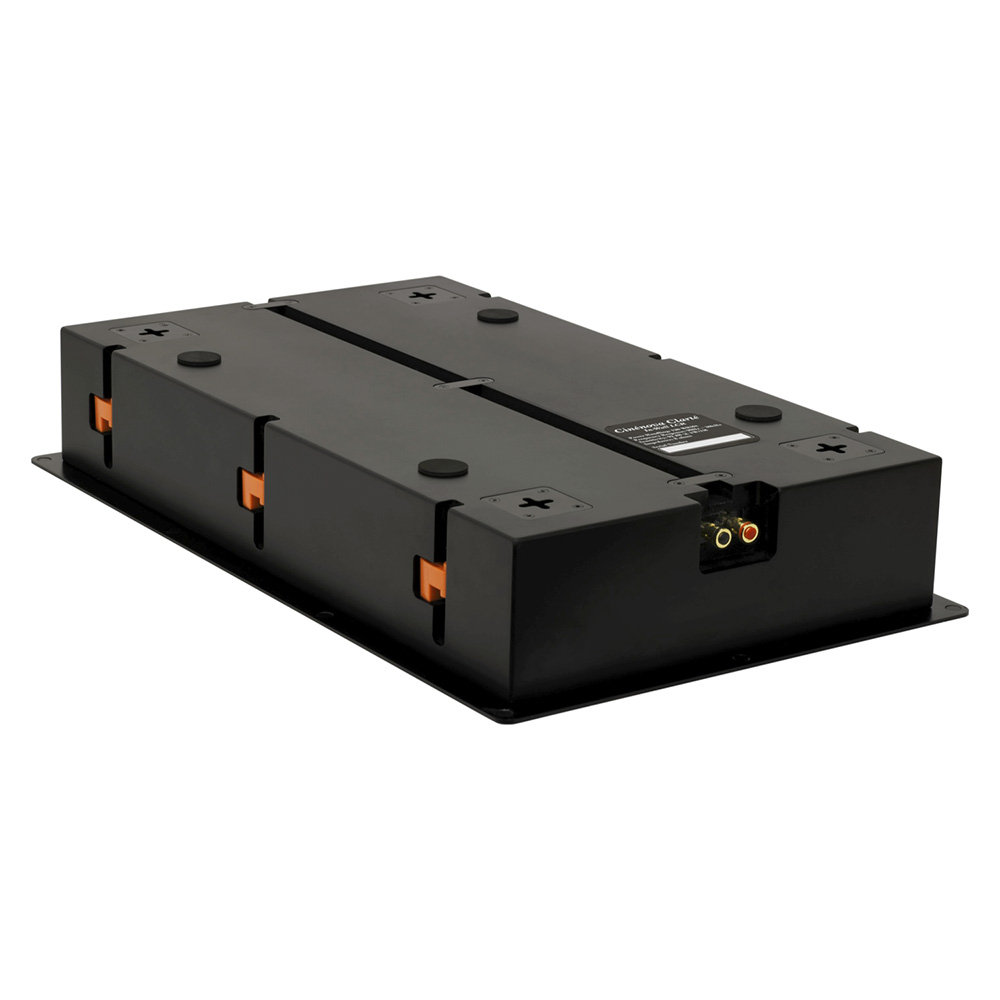

Cross style mounting brackets
Center wiring groove

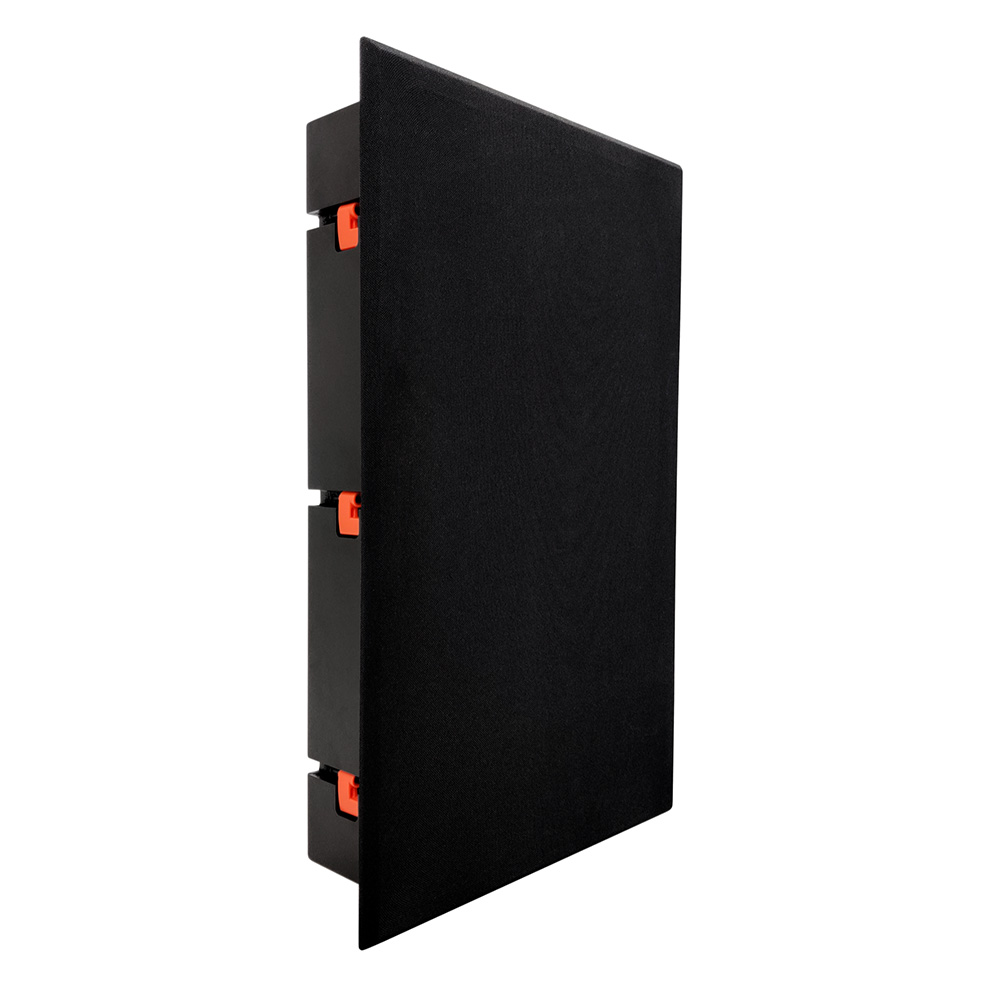

Magnetically Attached Grille
Turn-N-Lock™ Mechanism (In-Wall)
Power Handling600W MAX
Frequency Response40Hz–20kHz
Crossover Frequency2000Hz LP 12dB/Oct
2000Hz HP 12dB/Oct
SPL96dB ± 3dB
Impedance8 Ohm
Coverage Angles122° vertical, 122° horizontal
Product Dimensions (W x H x D)382 x 622 x 112.60mm (15.03″ x 24.48″ x 4.43″)
Mounting Dimensions
Cutout Width336mm (13.22″)
Cutout Height576mm (22.67″)
Mounting Depth99.40mm (3.91″)
