Control4 Decora Wired Keypad

Control4 Decora Wired Keypad

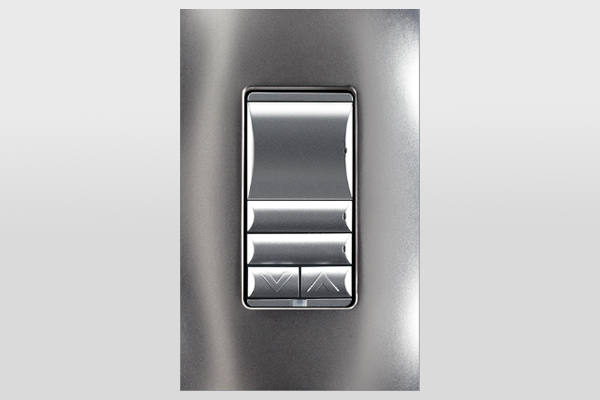

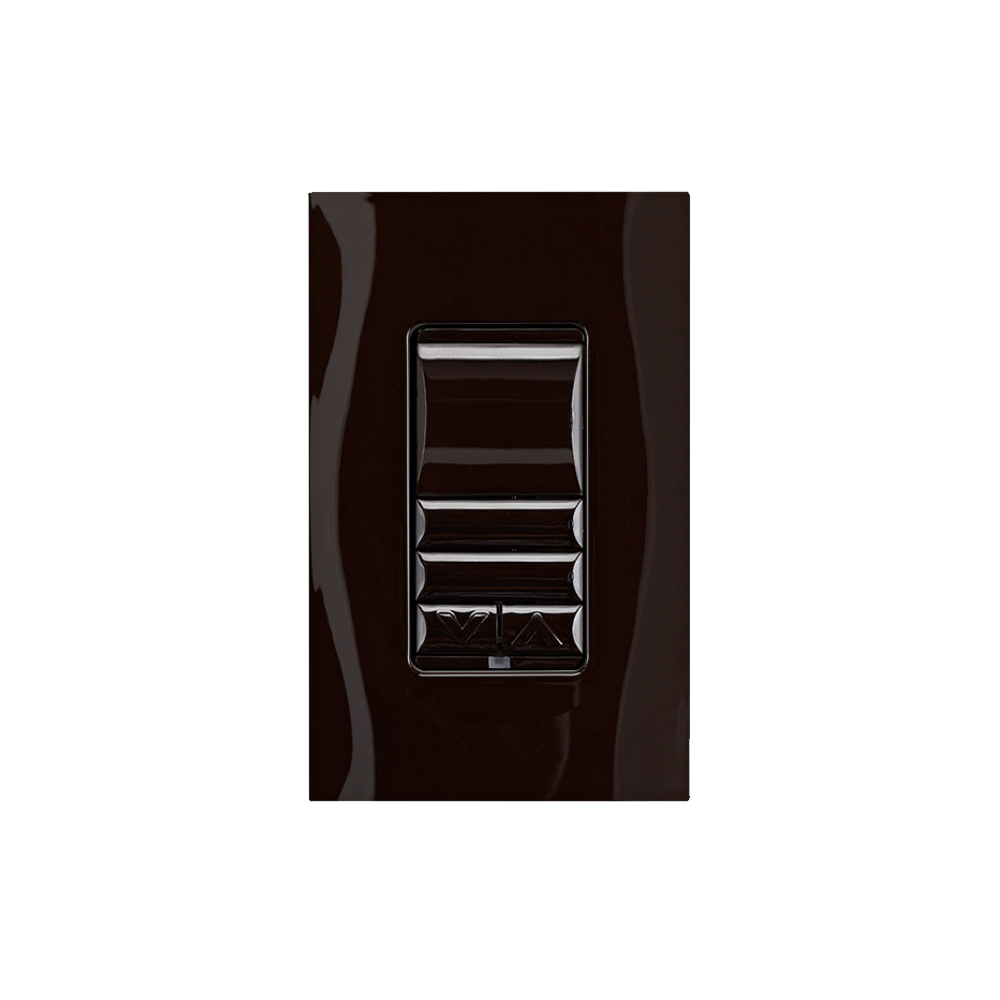

The Control4 Decora Wired Keypad combines beautiful aesthetics and flexible button configuration, providing a stunning user interface that elegantly controls any aspect of a Control4 system. Control lights, scene, music, security—the possibilities are endless. The keypad can be configured with two to seven buttons using four different button sizes for a total of 37 possible configurations. There’s no need to worry about how many buttons will be needed on a specific keypad prior to (or even after) installation. Available in 9 fashionable colors and finishes.

  • Programmable RGB LEDs provide status feedback for lighting and other devices in the system
  • Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
  • Available in a wide array of gloss and satin colors (See Available Colors)
  • Control4 screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
  • RS-485 Bus Communication
  • Compatible with the 48V bus power supply
  • Includes a button kit with every button necessary to make any of the 37 possible button configurations
  • Elegant, sophisticated design makes a beautiful addition to any home or business
  • Custom engraving available to clearly identify each button
  • Backlit buttons with programmable color control for easy readability regardless of time of day or light level
Categories: , , ,

Description

Product Brochure

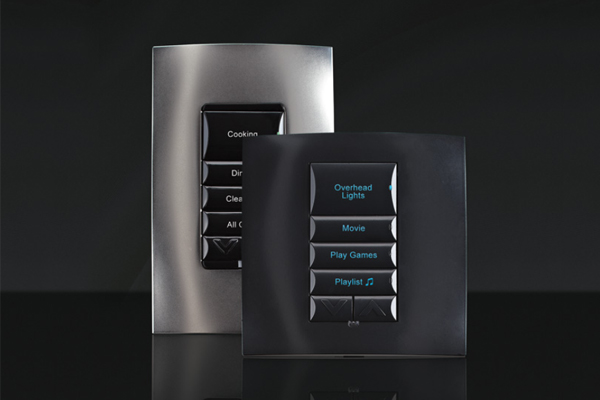

Control4 Keypads provide a stunning interface for your Control4 Smart Home system, combining flexible button configuration with beautiful aesthetics to complement the decor of your home. With the simple press of a button, you can activate a scene, allowing events to happen simultaneously.

  • Can include 1-6 LED backlit engraved buttons in various combinations. The bottom button can also include up and down volume arrows. Four different button sizes allow for a total of 38 possible configurations.
  • Mix-and-match engraved buttons and sleek, screwless faceplates with nine stylish colors and gloss and satin finishes.
  • Buttons allow for quick control of your favorite scenes. For example, a “Goodnight” button can be configured to shut off all the lights, lock the doors and arm the alarm, all at once.



Model NumberC4-KCB
Programmable Buttons2-7 depending on configuration
Button LED FeedbackOne RGB status LED per button
Power Requirements48 VDC
Maximum Power Consumption1.2W
Minimum Power Consumption0.7W
Recommended WiringSee “Keypad Bus Wiring Guide” document
Humidity5% to 95% non-condensing
Storage-4˚F – 158˚F (-20˚C – 70˚C)
Operational Temperature32˚F – 104˚F (0˚C – 40˚C)
Control CommunicationsRS-485
Weight0.1lb (0.045kg)
Shipping Weight0.3lb (0.14kg)
Available Colors
C4-KCB-xxWH, LA, IV, BR, BL, SW, MB, BI, AU
Available Accessories
Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKKC-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Gloss Colors:WH=White, LA=Light Almond, IV=Ivory, BR=Brown, BL=Black
Satin Colors:SW=Snow White, MB=Midnight Black, BI=Biscuit, AU=Aluminum
Metal Finishes:SN=Satin Nickel, SS=Stainless Steel, VB=Venetian Bronze
