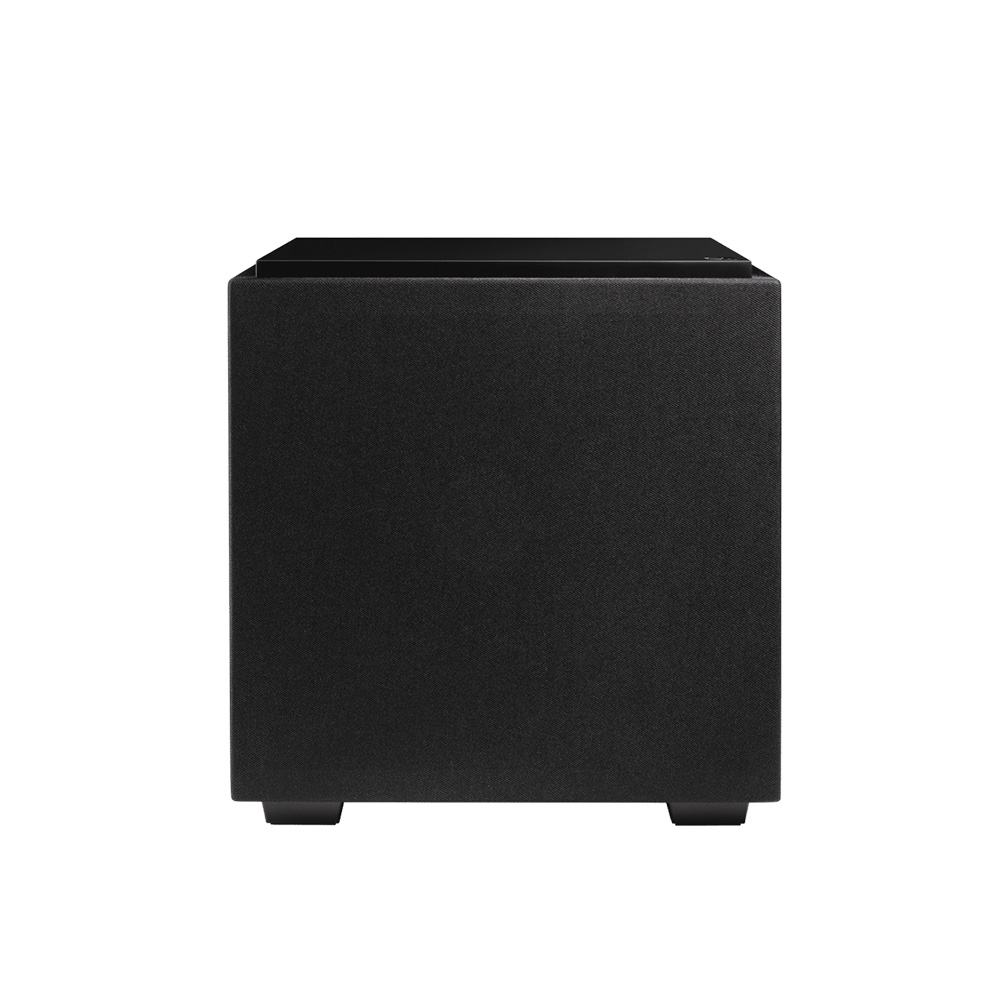

Definitive Technology DN15

Massive, uncompromised bass performance, from our most powerful subwoofer ever. Unique technologies add unprecedented clarity, power and seamless system integration.

  • Massive Performance
  • Loud & Clear
  • Precision Tuning

Description

3XR™ Architecture for as much bass as two ported 18” subwoofers

The DN15’s 3XR Architecture provides triple the bass-producing radiating surface area of a traditional 15” ported subwoofer. This extra surface area moves more air, enabling the DN15 to play as loud and low as a two similarly-sized 18” ported subwoofers. And because 3XR doesn’t use ports, DN15 also provides massive, crystal-clear bass with no port noise distortion.



Passive Radiators for louder, lower, cleaner bass

As the core technology behind Descend’s 3XR Architecure, its passive bass radiators enable the DN15 to play as loud and low as two 18” ported subwoofers without unwanted port noise distortion. Passive radiators also deliver a smooth frequency response like a sealed sub, but with the port-like ability to play louder and lower in a smaller enclosure.

What you get is the best of both worlds: louder, clearer bass than a ported sub from a smaller enclosure than a sealed sub.



Custom Class H Digital Amplification for pure, commanding performance down to 20Hz

The DN15’s advanced 1500W peak Class H digital amplifier delivers continuous power to cleanly reproduce sustained bass below 20Hz. With real-time monitoring and adjustments to the sliding rail voltage, the DN15 delivers considerably higher power during short, transient peaks such as bass drum kicks and on-screen artillery blasts.



Advanced 56-Bit DSP for distortion-free longevity and impact

The advanced 56-bit Digital Signal Processor (DSP) extends and improves the DN15’s bass response. The DSP tightly monitors and controls the woofer system to prevent distortion and woofer damage at ultra-high volumes with a minimum of audible artifacts.



Flat Mode

The DN15’s default setting out of the box, Flat Mode provides the most balanced performance, as determined by our acoustic experts, providing the perfect harmony between low end extension and full spectrum maximum output.



Deep Mode

Deep Mode provides additional low-end output but sacrifices some maximum SPL to do so. This makes Deep Mode excellent for music, where frequency range is so critical, so instruments like a pipe organ or an upright bass are fully and evenly reproduced.



Loud Mode

The opposite of Deep Mode, Loud Mode sacrifices some low-end output while gaining output in all other frequencies. Loud Mode is excellent for home theater, to most impactfully accentuate explosions and other special audio effects.



Intelligent Phase Control™ for flawless system blending

Intelligent Phase Control™ provides a full 360 degrees of customizable phase adjustment, always centered around the settings of the low-pass filter. This provides the ability to tune the subwoofer for minimal group delay between speakers and a flawless blending experience between your speakers and the subwoofer.



Remote Control with On-sub LED Display for adjustments on the fly

Easily adjust the DN15’s volume level, phase, and EQ with its slim remote control. There’s no need to constantly get up to manually change settings or wonder if you’ve gotten them right.

Multiple Subwoofers for smoother bass throughout the room

While a single subwoofer can add bass and
enhanced realism to any system, it may not provide
consistent frequency response throughout the room.

When two or more subwoofers are properly
employed throughout the room, sound waves
disperse more evenly, flattening the frequency
response. The result is smoother bass throughout
the room, helping to eliminate boomy locations or
dead spots.



Custom Integration Ready for complete controllability

With both 12V input and IR pass-through, you have the ability to pair the DN15 with most control systems and place the subwoofer wherever you want in the room and still experience full functionality.

Overall
ColorsMidnight Black
Transducers15″ Long-Throw woofer
Passive RadiatorsDual 15” XBR™ Configuration
Bass TypeBass Radiator
FeetPermanently Installed Feet with Rubber Pad (no leveling)
Dimensions612.6 x 594.4 x 632.7mm (24.14″ x 23.44″ x 24.91″)
Performance
Amplifier TypeClass H Digital
Peak Power1500W
Continuous (RMS)500W
Frequency Response (-/+ 3dB)20Hz → 150Hz
Low-Pass Crossover Frq40Hz → 120Hz
Phase Adjustment0 to 180 degrees (by 45 degree increments)
Power SupplyInternal
IEC 3 prong Jack
120V/240V switch
Inputs
LFESingle RCA
SpeakerLeft/Right 5-Way binding posts
Controls
Main PowerOn/Off
Volume Control+/-/ Mute Buttons
Low Pass Control+/- Buttons
Phase ControlToggle Button
Status RGB LEDYes
