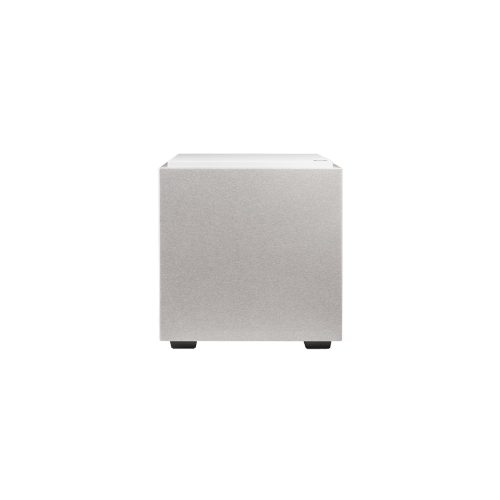

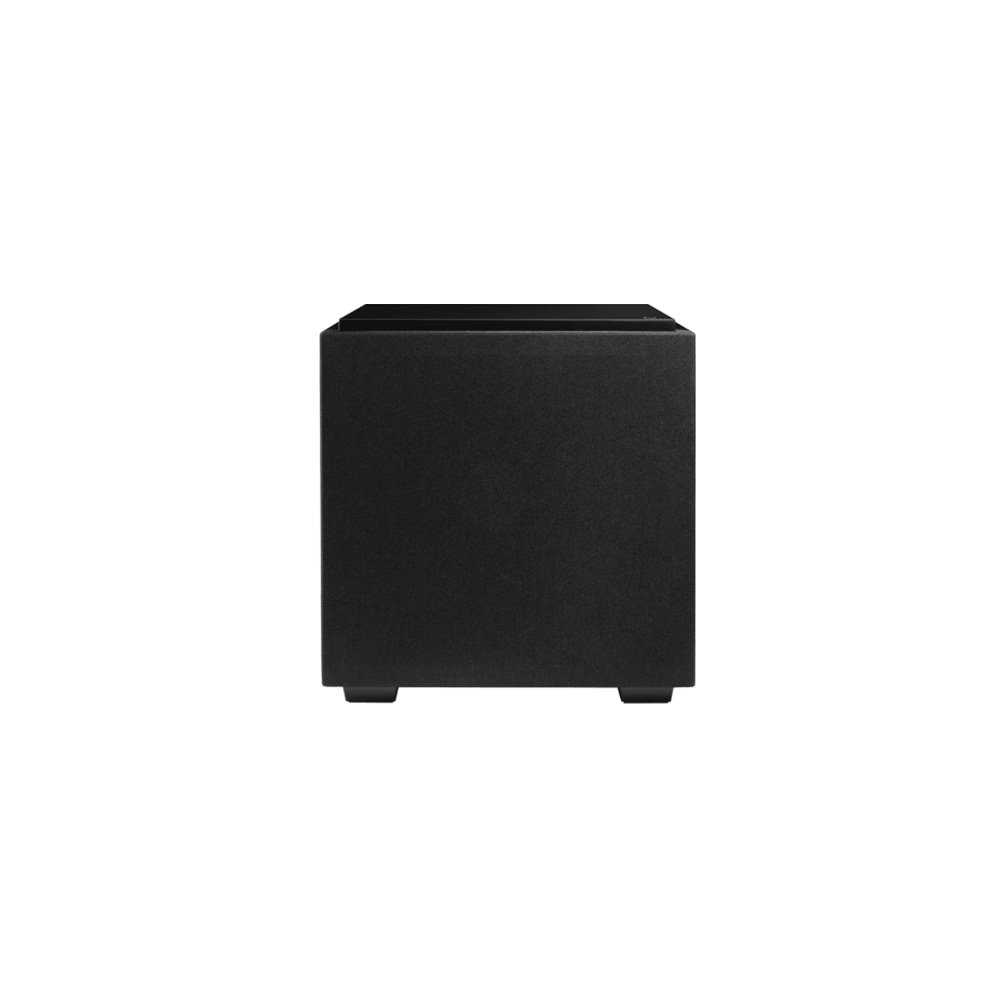

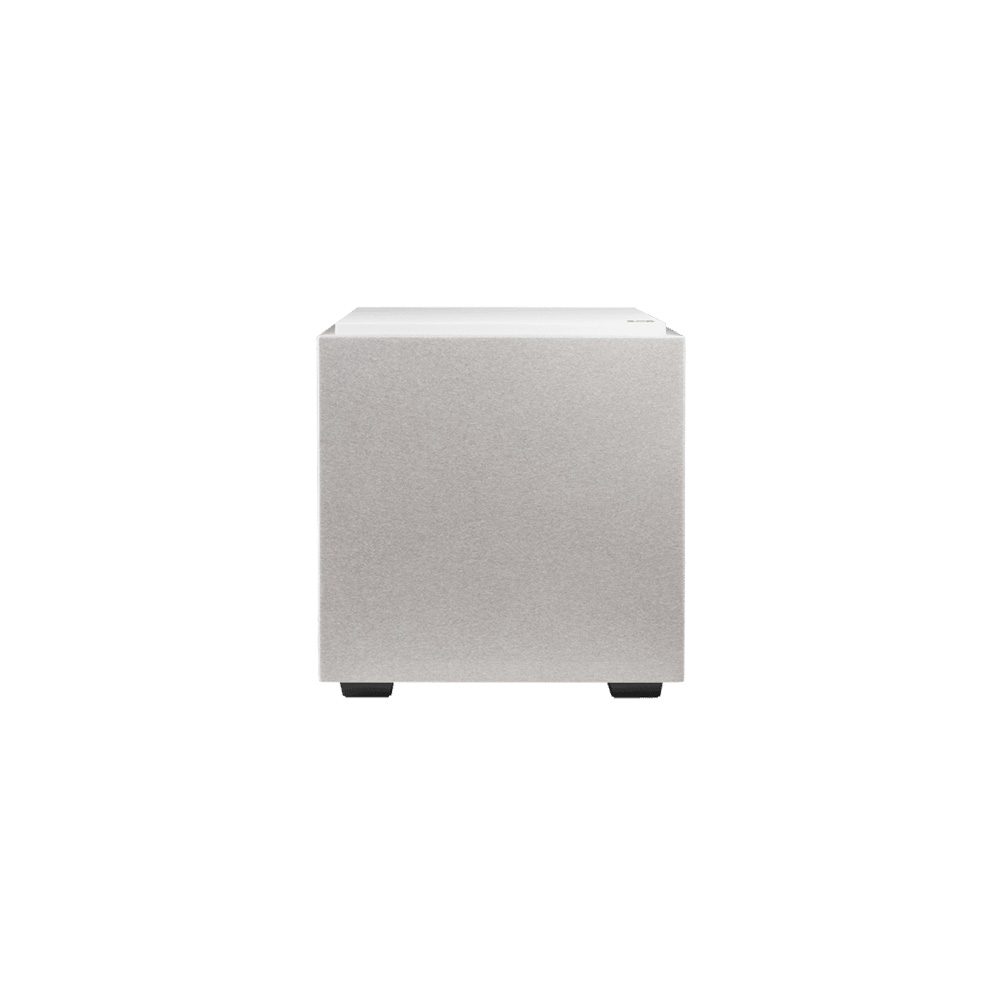

Definitive Technology DN8

DN8’s unique 3XR Architecture™ means it performs louder and clearer than other 8” subwoofers.

  • Fits Anywhere
  • Loud & Clear
  • More Bass
  • Available in Black and White

Description

Passive Radiators for louder, lower, cleaner bass

As the core technology behind Descend’s 3XR Architecure, its passive bass radiators enable the DN8 to play as loud and low as a 10” ported sub without unwanted port noise distortion. Passive radiators also deliver a smooth frequency response like a sealed sub, but with the port-like ability to play louder and lower in a smaller enclosure.

What you get is the best of both worlds: louder, clearer bass than a ported sub from a smaller enclosure than a sealed sub.

3XR Architecture™

for as much bass as a ported 10” subwoofer.

Custom Class D Digital Amplification for immediate impact

Because the DN8 Class D amplifier is so efficient, little power is wasted as heat, and its entire output is dedicated to providing significantly smoother bass and greater impact. This allows the DN8 subwoofer to blend naturally into any audio system while producing greater volume and impact than competitive designs.

Back Panel Controls for optimized bass levels

Manually adjust DN8’s variable volume, low pass filter, and phase so it always sounds perfect within your system.

Variable Volume

Adjust the volume level of your subwoofer to ensure perfectly proportioned bass for your audio system and your room.

Low Pass Filter

Keep the bass clean by activating the DN8’s Low Pass Filter. The Low Pass Filter ensures that only the frequencies intended to be reproduced by the DN8 get through to the woofer. 100% of the DN8’s prodigious power goes to reproducing bass, and 100% of your amplifier’s power goes to vocals, instruments, and high frequencies. It doesn’t get cleaner than that.

Phase

Adjusting the DN8’s phase control ensures subwoofer timing is tightly synced with the rest of the speakers, presenting pinpoint-accurate audio for movies and music.

One, two, or four subs for smoother bass throughout the room

While a single subwoofer can add bass and enhanced realism to any system, it may not provide consistent frequency response throughout the room.

When two or more subwoofers are properly employed throughout the room, sound waves disperse more evenly, flattening the frequency response. The result is smoother bass throughout the room, helping to eliminate boomy locations or dead spots.

Overall
ColorsGlacier White & Midnight Black
Transducers8″ Long-Throw woofer
Passive RadiatorsDual 8” 3XR™ Configuration
Bass TypeBass Radiator
FeetPermanently Installed Feet with Rubber Pad
Dimensions324.8 x 305.8 x 331.6 mm (12.8″ x 12.0″ x 13.1″)
Performance
Amplifier TypeClass D
Peak Power500W
Continuous (RMS)200W
Frequency Response (-/+ 3dB)35Hz → 200Hz
Low-Pass Crossover Frq60Hz → 120Hz
Phase Adjustment0 / 180°
Power SupplyInternal
IEC 3 prong Jack
120V/240V switch
Inputs
LFESingle RCA
SpeakerLeft/Right 5-Way Binding posts
Controls
Main PowerAuto/Off
Volume ControlPotentiometer w/ center detent
Low Pass ControlPotentiometer w/ center detent
Phase Control2-way Switch
Status RGB LEDYes
