Definitive Technology ProCinema 6D

Definitive Technology ProCinema 6D

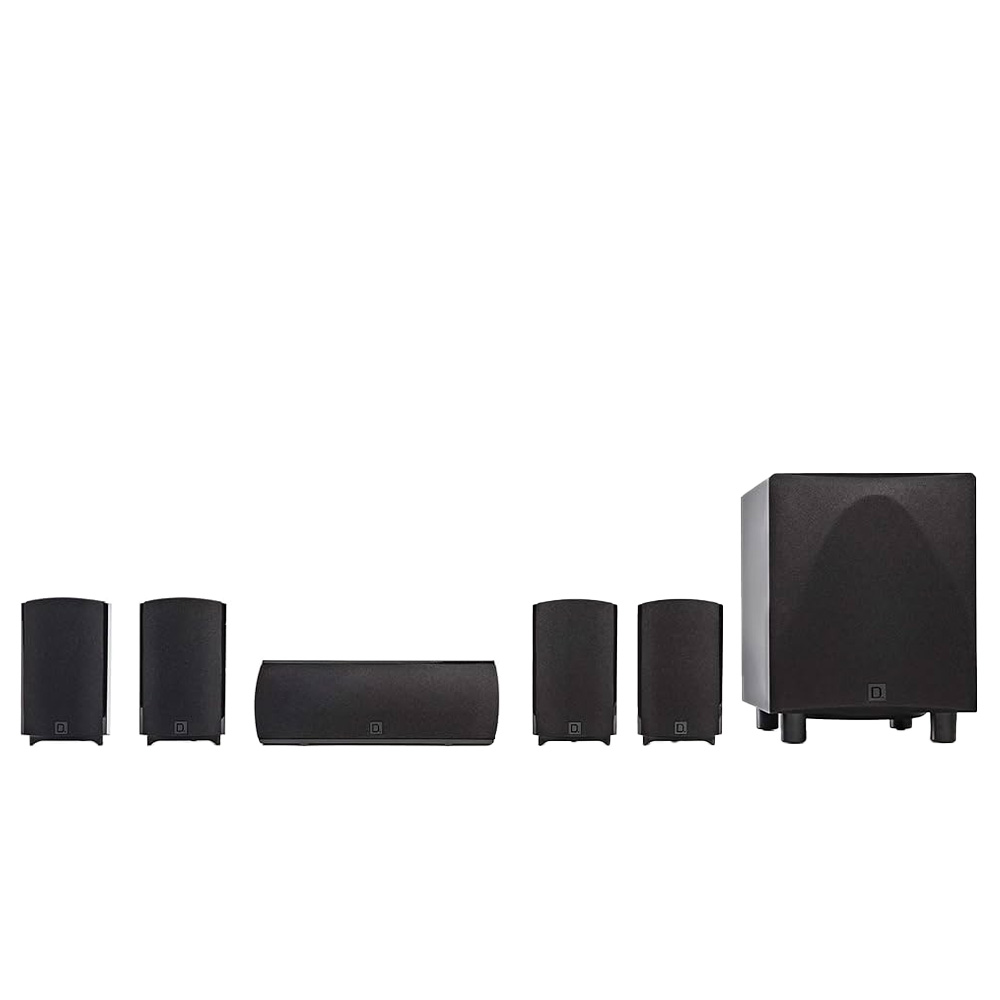

Fill your listening space with premium audio from the ProCinema 6D Surround Sound System. With an upgraded array of theater-quality components plus a 250-watt powered subwoofer, this compact solution packs plenty of power to take your home entertainment to stunning new heights.

  • Compact Size, Full Surround Sound
  • Smooth Midrange, All-Natural Imaging
  • Clear Highs, Massive Lows
Categories: ,

Description

Compact Center Channel for clear cinematic sound

The 6D’s center channel speaker features a 1” aluminum dome tweeter, two 3.25” midrange/ woofers with BDSS technology, and two 3.25” bass radiators. It’s a potent combination of components for best-in-class center imaging and dialogue clarity.



Compact Satellite Speakers for full surround sound

Place the 6D’s four satellites as front left and right, and surround left and right speakers. Each satellite speaker includes a 1” aluminum dome tweeter, a 3.25” woofer with our patented Balanced Double Surround System (BDSS™), and a 3.25” bass radiator. Envelop yourself in detailed, immersive, room-filling sonic detail.



Compact 250W Powered Subwoofer for big-time bass

The ProCinema 6D’s subwoofer unleashes soul-shaking bass thanks to its internal 250-watt amplifier, 8” woofer, and 8” bass radiator. It also features high-level and low-level inputs and an easy-access side volume knob, giving you enhanced flexibility with both connectivity and control.



Wrapped in Performance non-resonant enclosures

The PC6D subwoofer features a non-resonant monocoque enclosure and low-diffraction construction. The tank-like construction lets the drivers play sweet bass into the room with no cabinet vibration.



Pure Aluminum Dome Tweeters

ProCinema PC6D satellite and center channel speakers utilize the same aluminum tweeter material as our top floorstanding speakers. Aluminum is light and stiff, making it the ideal material for a driver that must move beyond 20,000 times per second to reproduce the highest frequencies we can hear. You’ll hear clean, detailed highs that produce “air” and dimension in the room.



3.25” BDSS Woofers

In the PC6D satellite and center channel speakers, the 3.25″ woofers feature our patented Balanced Double Surround System (BDSS). The dual surrounds allow for greater cone excursion, enabling the smaller ProCinema midrange woofers to produce the bass of larger drivers, while remaining an ideal size for detailed, silky-smooth midrange. Plus, their Linear Response Waveguide extends both on- and off-axis frequency response, while improving dispersion imaging.



Passive Bass Radiators

Each PC6D satellite speaker features a 3.25″ passive bass radiator (the center channel speaker has two), pressure-coupled to the BDSS woofers. This novel setup significantly increases the bass-generating surface area without increasing cabinet size. The result: small speakers that sound anything but.



Wall-Mount Keyhole for expanded placement choices

PC6D satellite speakers feature built-in keyhole mounts, enabling them to be wall-mounted with a single screw (not included).

Overall
Total Pieces6
Total Frequency Response22 Hz → 30,000 Hz
Nominal Impedance Range4ohms → 8ohms
Satellite Speakers
Qty Included4
Dimensions (W x H x D)101.6 x 177.8 x 108.00mm (4″ x 7″ x 4.25″)
Weight1.13kg (2.5 lbs)
Driver Enclosure TypeSealed MDF
Total Frequency Response65 Hz → 30,000 Hz
Nominal Impedance Range4ohms → 8ohms
Max Sensitivity (1W @ 1m)88dB
Recommmended Amplifier Power Per Channel10W → 150W
Audio Inputs–
Speaker Inputs5-way Binding Posts – Nickel-Plated
Center Channel Speaker
Qty Included1
OrientationHorizontal
Dimensions (W x H x D)266.7 x 101.6 x 108.00mm (10.5″ x 4″ x 4.25″)
Weight1.95kg (4.3 lbs)
Front Array Driver EnclosureSealed MDF
Total Frequency Response55Hz → 30,000Hz
Nominal Impedance Range4ohms → 8ohms
Sensitivity (1W @ 1m)89dB
Recommmended Amplifier Power Per Channel10W → 175W
Audio Inputs–
Speaker Inputs5-way Binding Posts – Nickel-Plated
Powered Subwoofer
Total Pieces1
Dimensions (W x H x D)263.7 x 330.2 x 330.2mm (10.38″ x13″ x 13″)
Weight7.53kg (16.6 lbs)
Subwoofer Array Driver EnclosureSealed MDF
High Pass Filter6dB/octave speaker level at 100 Hz
Low Pass Filter24dB/octave continuously variabel (40 Hz-150Hz)
Total Frequency Response22 Hz → 150 Hz
Power250W
Amplifier ClassClass D
Audio InputsLFE (Filtered)
Speaker Inputs5-way Binding Posts – Nickel-Plated
Crossover
A/V Receiver Crossover SettingsSmall (120Hz)
