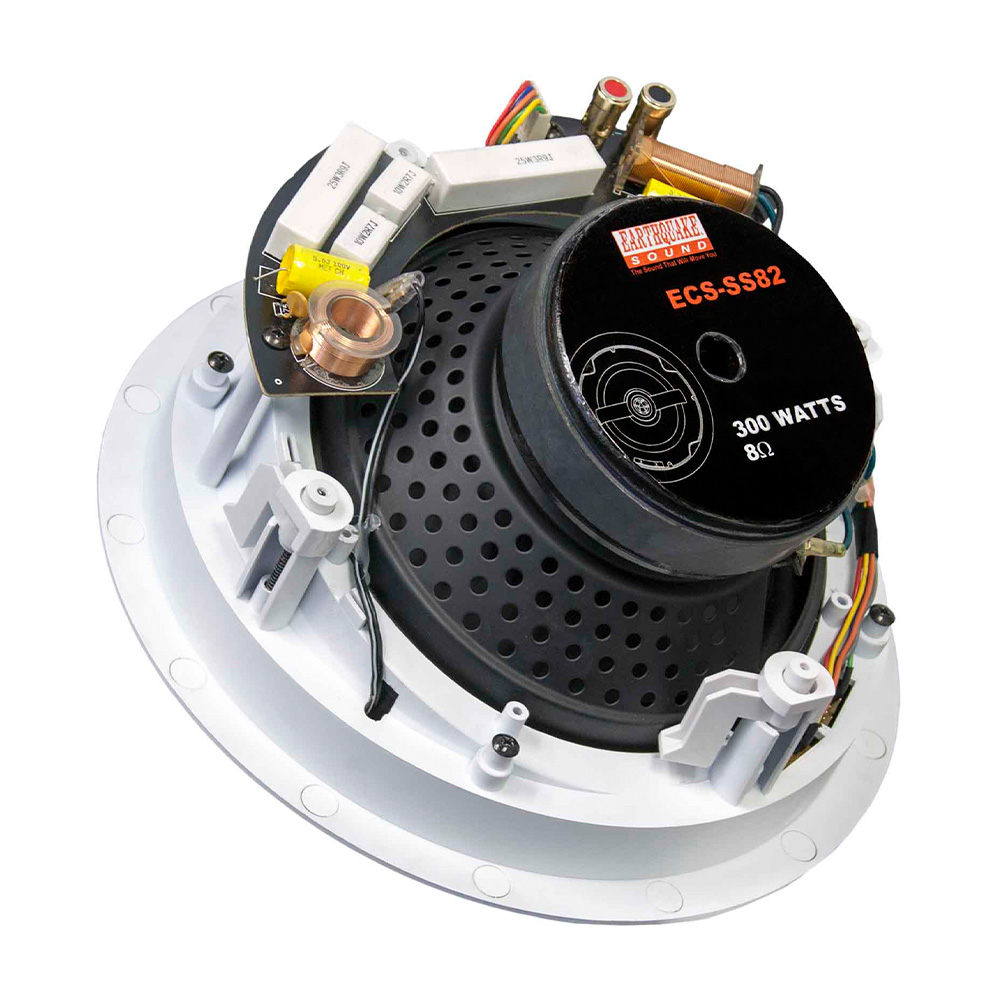

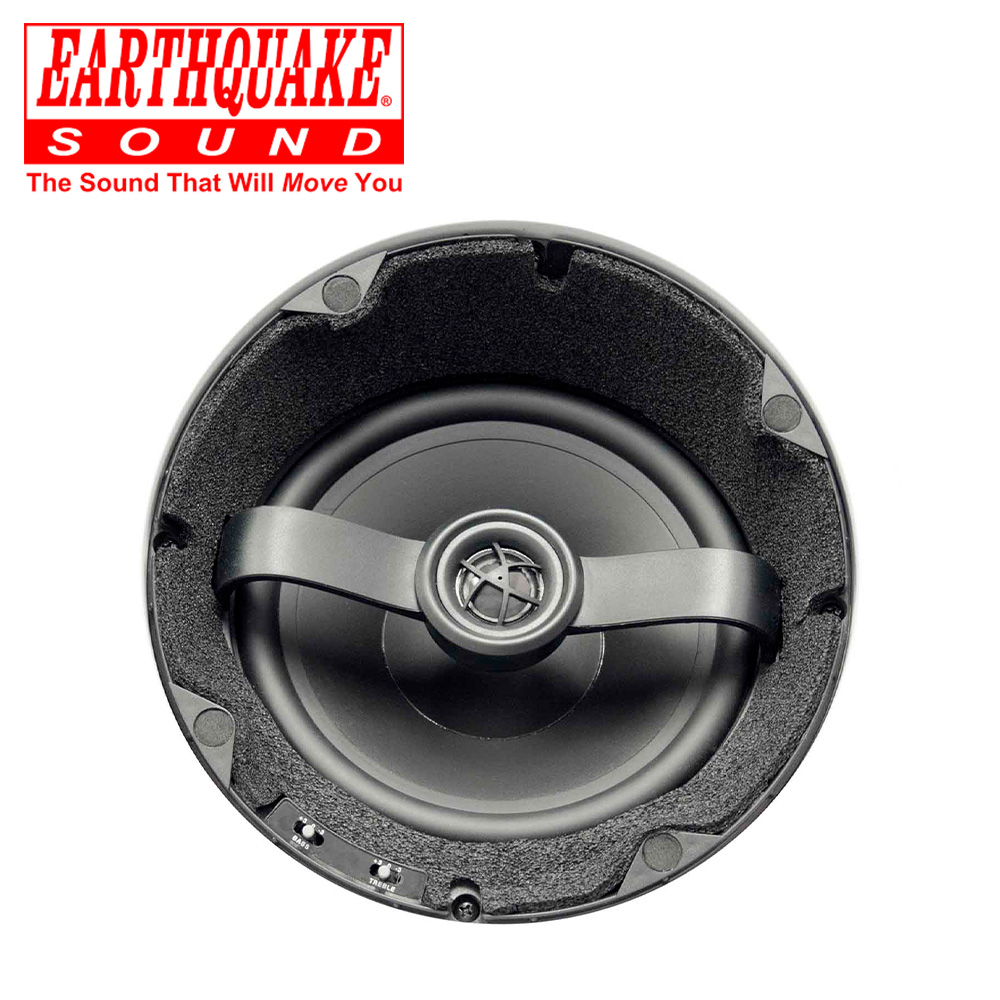

ECS-SS82

Advanced Sound Solutions for Installers and Consumers – Now Edgeless

Whether you are an active custom installer or an avid listener, Earthquake new Edgeless SweetSpot angled in-ceiling speakers have what you need. These speakers offer precision angling to meet you right in your sweet spot a.k.a. favorite listening position. In addition to the ability to control the direction of the woofer’s sound, you can also adjust the angle of the high quality resin coated silk dome tweeter for uncompromised sound quality and staging. And if that is not enough detail for you, Earthquake engineers have also included an in-depth tonal control center for the many different listening preferences among end users.

In addition to the fantastic control, the SweetSpot speakers are also equipped with R435 echo control dampening material that is used to eliminate damaging reflections and refractions caused by sound waved that bounce off hard surfaces. Furthermore, since almost every room is different in size and shape, the R435 material also eliminates echoes that can completely mock a high-end system’s integrity.

  • Wide rubber surround for extended bass response and more piston
  • Adjustable bass and treble tonal controls

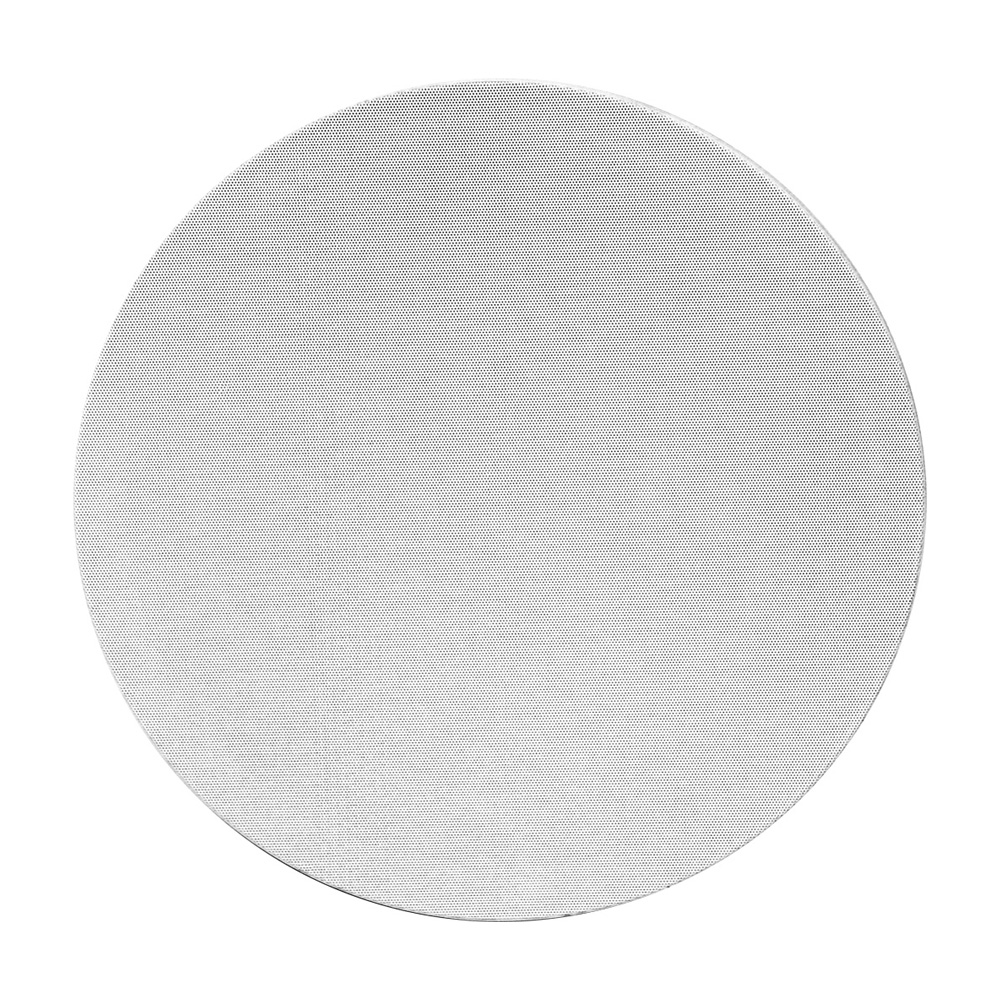

  • Magnetically attached & paintable speaker grilles
  • Easy install Turn-N-Lock™ installation mechanisms
  • Impact resist ABS plastic enclosure
  • Elaborate crossover networks
  • Gold plated spring loaded speaker terminals
  • Up to 20° angled SweetSpot for total dispersion flexibility
  • Perfect for all sub applications

Description

Power Handling30-300W
Frequency Response30Hz–30kHz
Nominal Impedance8 Ohm
Sensitivity91dB @ 1W/1M
Wire Gauge Recommended12
Voice CoilSingle
Overall Diameter285mm (11-1/4″)
Cutout Diameter245mm (9-11/16″)
Mounting Depth147.5mm (5-13/16″)
Weight3.46 kg (7.64 lbs)
