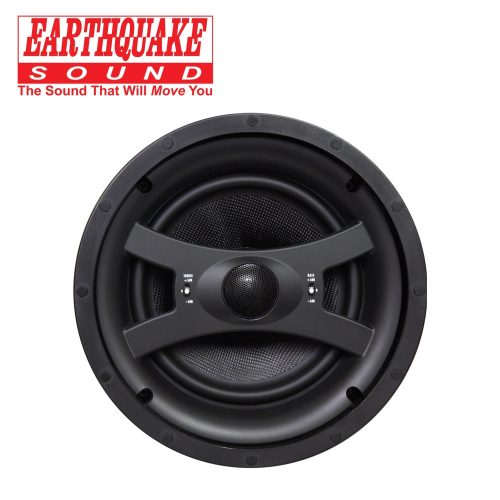

ECS8.0

The Earthquake  EDGELESS Series of In-Ceiling Speakers is one of Earthquake Sound’s most valued speaker lines. Designed with aesthetics (WAF – Wife Approval Factor) and sound quality in mind, these speakers seamlessly blend into their surrounding as they provide a lifetime of durability and high-end performance.

Designed like no other, the EDGELESS series is a prime example of Earthquake’s continuing pursuit of audio excellence: “the goal is to seamlessly blend into any interior decor and to reproduce the sound of a concert hall or the sound of a movie sound track in any room with these speakers; with seamless super low profile, these speakers blend perfectly with any décor.”

The EDGELESS speakers deliver deep, natural response from the design of their advanced cones and surrounds. Superb sonic accuracy is guaranteed by the utilization of stiff light weight Kevlar cones in the woofer and silk NEO tweeters. Additionally, you can customize the sound of the speakers with +/- 3dB adjustment switches that optimize the sound to the acoustics of the room and end user’s own personal preference.

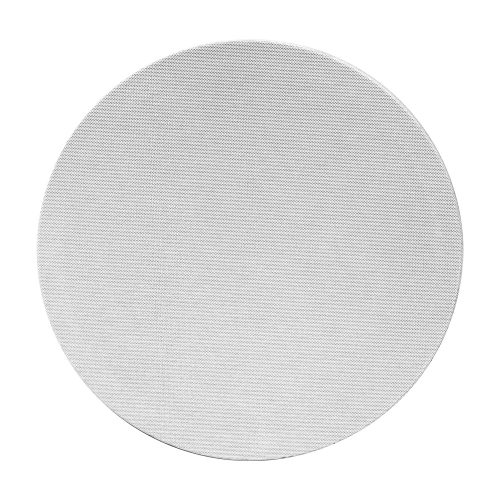

  • Round magnetically attached and paintable grilles

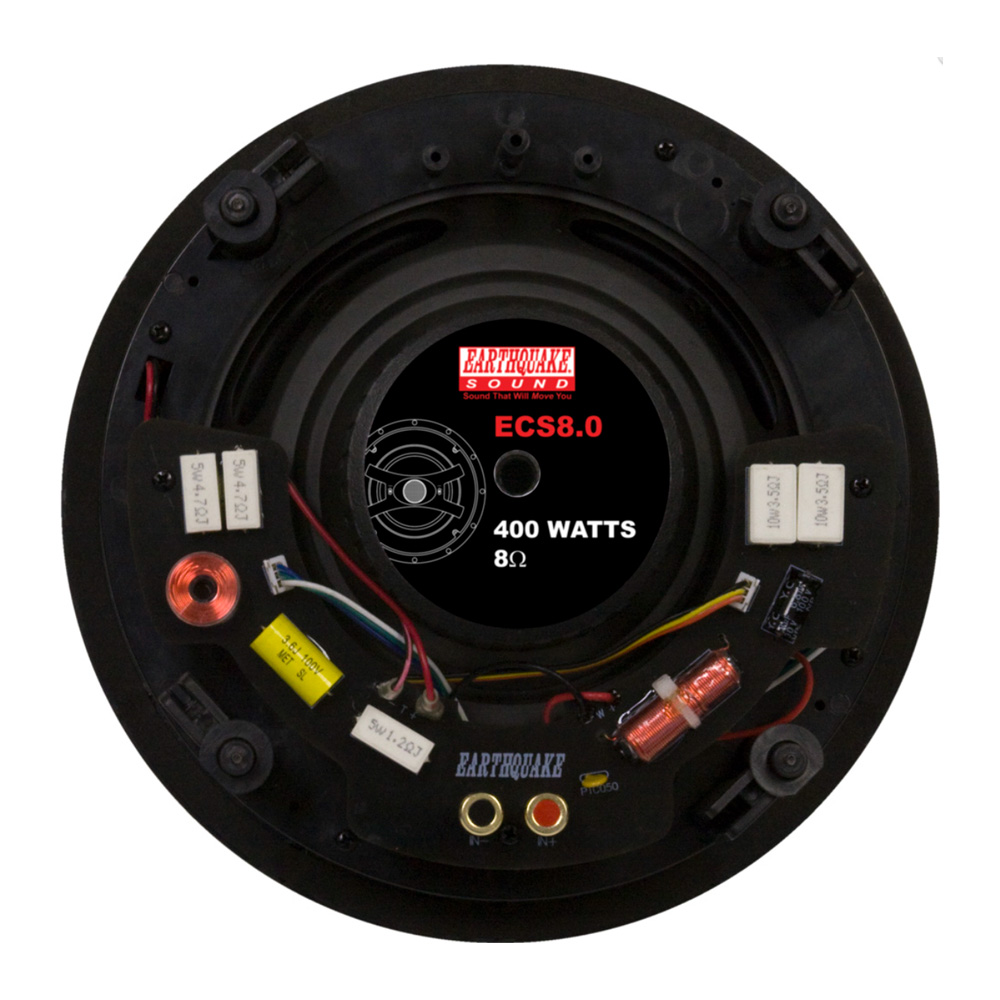

  • 12dB/Octave with polyswitch protection
  • Gold plated spring loaded terminals
  • Easy install “Turn-N-Lock™” mechanism
  • Optional square grilles sold separately

Description

Power Handling400W MAX
Frequency Response30Hz–20kHz
Impedance8 ohm
Sensitivity88dB 1W/1M
Overall Diameter267mm (10-1/2″)
Cut out Dimensions240mm (9-1/2″)
Mounting Depth124mm (4-7/8″)
Weight1.95kg (4.3 lbs)
