Episode CORE 3 Series In-Wall Speaker (Pair) – 6″

The all-new Episode CORE Series delivers stunning sound at a great price without sacrificing performance. With a comprehensive line of in-wall and in-ceiling speakers, including all-weather and dual voice coil/surround hybrid models, you can deliver an immersive audio experience and excellent value. Our competitive pricing combined with our award-winning programs, service & support, plus online and local shopping experience make the Episode CORE Series the perfect choice for your business.

Description



SOUND BACKED BY SCIENCE

We designed the CORE Series based on NRC (National Research Council) scientific principles that adhere to three philosophies for true and accurate sound: low distortion, wide dispersion, and flat frequency response. These design goals combined with the excellent value of the CORE series let you install an immersive soundstage for more customers than ever before, transforming their listening experience at an excellent price.



A COMPREHENSIVE PRODUCT LINE

The CORE Series offers a comprehensive line of speaker options, providing plenty of solutions for every install. With three different individual series, in-wall and in-ceiling options, and even all-weather solutions, the Episode CORE Series is a great line for expanding your audio business.



HIGH-VALUE PERFORMANCE

Episode is an integrator-driven speaker brand aimed at making you profitable without sacrificing quality. Episode CORE speakers reinforce this goal by providing outstanding sound with proven scientific engineering at a price point that protects your margins with integrity.



POLYPROPYLENE WOOFER

The CORE 3 series features a vacuum-formed polypropylene woofer that delivers impeccable clarity and punchy bass for high-performance sound in any room.

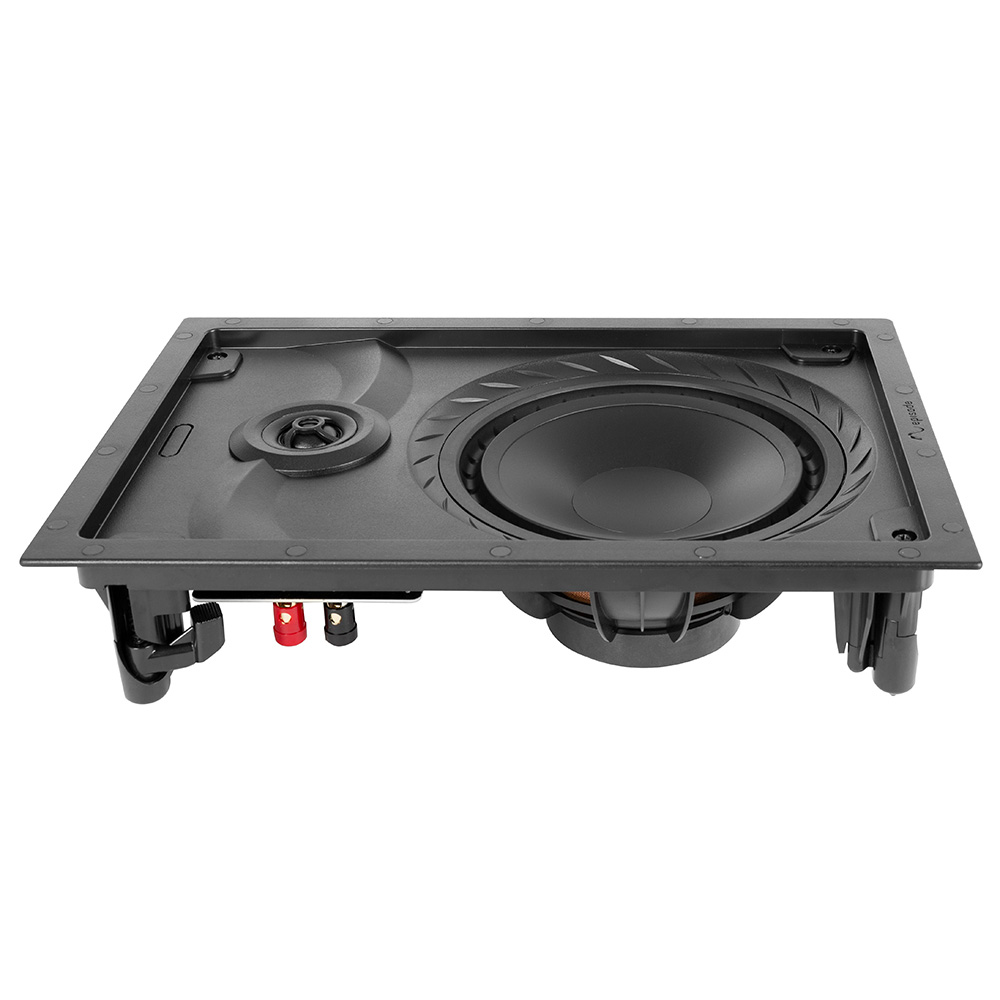

PIVOTING FABRIC DOME TWEETER

This soft-dome tweeter produces a smooth frequency response, a wide dispersion to higher frequencies, and low distortion. It also pivots for perfect sound placement.

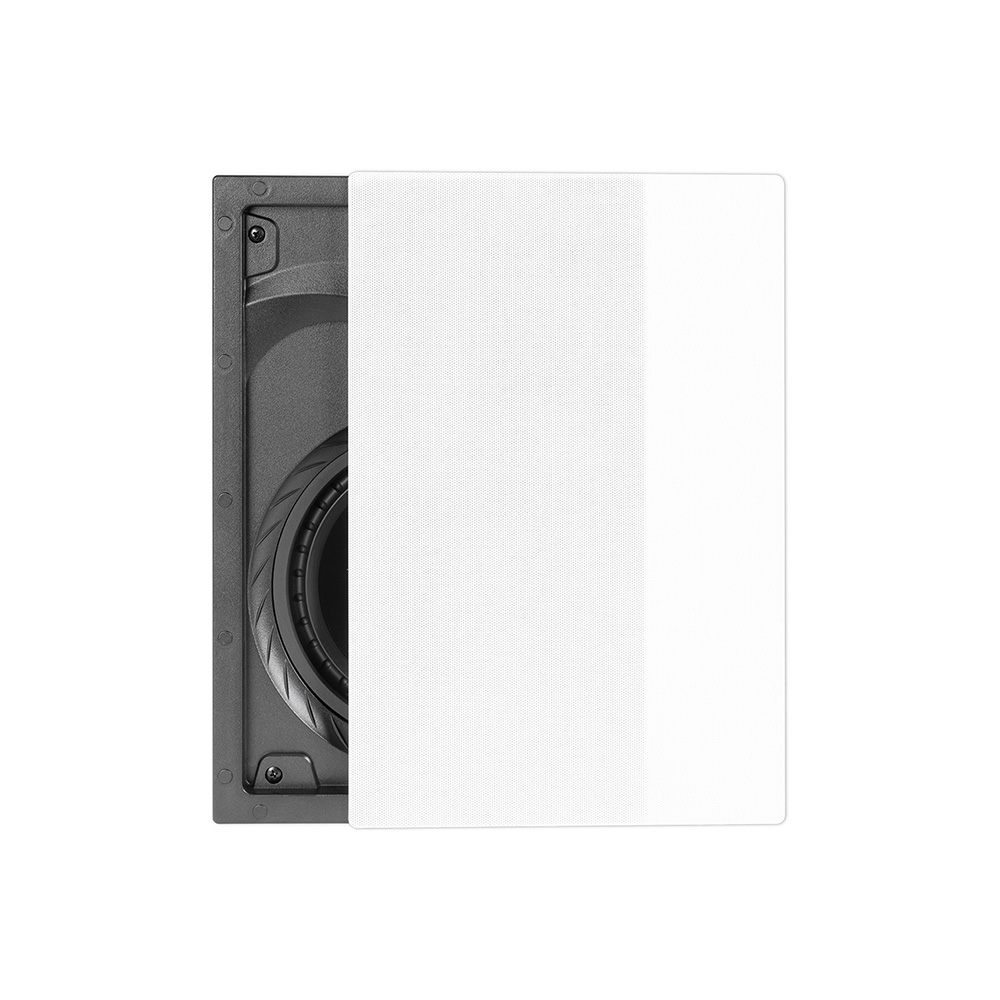

BEZEL-LESS GRILLE

This speaker features a bezel-less grille to provide a smooth, clean finish when installed. Episode also offers a wide variety of other grille options to give you a seamless solution for any install.



NEW CONSTRUCTION BRACKETS

All Episode speakers share the same cut out dimensions and new-construction brackets, allowing you to reserve your spot in the ceiling or wall for trouble-free installs. They also work with all Signature by Episode speakers, giving you the option to upgrade your customers at any time!

Connector TypeGold Plated Push Terminals
Frequency Response52Hz – 20kHz
AdjustmentsPivoting Tweeter
Mounting Depth3.7″ (93.98 mm)
Crossover Frequency2.9kHz
Impedance8Ω Nom
4.5Ω Min
Power RMS10 – 120W
Power Peak100W
Sensitivity89dB
Tweeter3/4″ Silk Dome
Woofer6.5″ Vacuum Polypropylene
Dimensions (W x H xD)12.5 x 8.5″ x 3.7″
(317.5 x 215.9 x 93.98 mm)
Cutout Diameter (W x H)11.6″ x 7.5″ (294.64 x 190.5 mm)
Dog Ear Clamping Range0.25″ to 1.25″ (6.35mm to 31.75mm)
Speaker GrillePowder Coated Micro-perf Steel
Weight3.09 lbs (1.40 kg)
Speaker Dispersion Angle90 Degree
Weather ResistanceN/A
