Episode CORE 5 Series In-Ceiling Speaker (Pair) – 8″

The all-new Episode CORE Series delivers stunning sound at a great price without sacrificing performance. With a comprehensive line of in-wall and in-ceiling speakers, including all-weather and dual voice coil/surround hybrid models, you can deliver an immersive audio experience and excellent value. Our competitive pricing combined with our award-winning programs, service & support, plus online and local shopping experience make the Episode CORE Series the perfect choice for your business.

Description



SOUND BACKED BY SCIENCE

We designed the CORE Series based on NRC (National Research Council) scientific principles that adhere to three philosophies for true and accurate sound: low distortion, wide dispersion, and flat frequency response. These design goals combined with the excellent value of the CORE series let you install an immersive soundstage for more customers than ever before, transforming their listening experience at an excellent price.



A COMPREHENSIVE PRODUCT LINE

The CORE Series offers a comprehensive line of speaker options, providing plenty of solutions for every install. With three different individual series, in-wall and in-ceiling options, and even all-weather solutions, the Episode CORE Series is a great line for expanding your audio business.



HIGH-VALUE PERFORMANCE

Episode is an integrator-driven speaker brand aimed at making you profitable without sacrificing quality. Episode CORE speakers reinforce this goal by providing outstanding sound with proven scientific engineering at a price point that protects your margins with integrity.



IMG WOOFER

The CORE 5 series features an injection-molded polypropylene cone that provides an audible difference in sound performance with increased audio dispersion.



TETERON DOME TWEETER

Made of durable Teteron material, these tweeters allow for increased sound clarity at higher volumes. They also pivot for perfect sound placement.



TWEETER ADJUSTMENT SWITCH

Tune the speaker to the room by +/- 3dB using the easily accessible tweeter adjustment switch.



TWEETER BRIDGE HANDLE

The tweeter bridge doubles as a handle to help installations go smoothly.

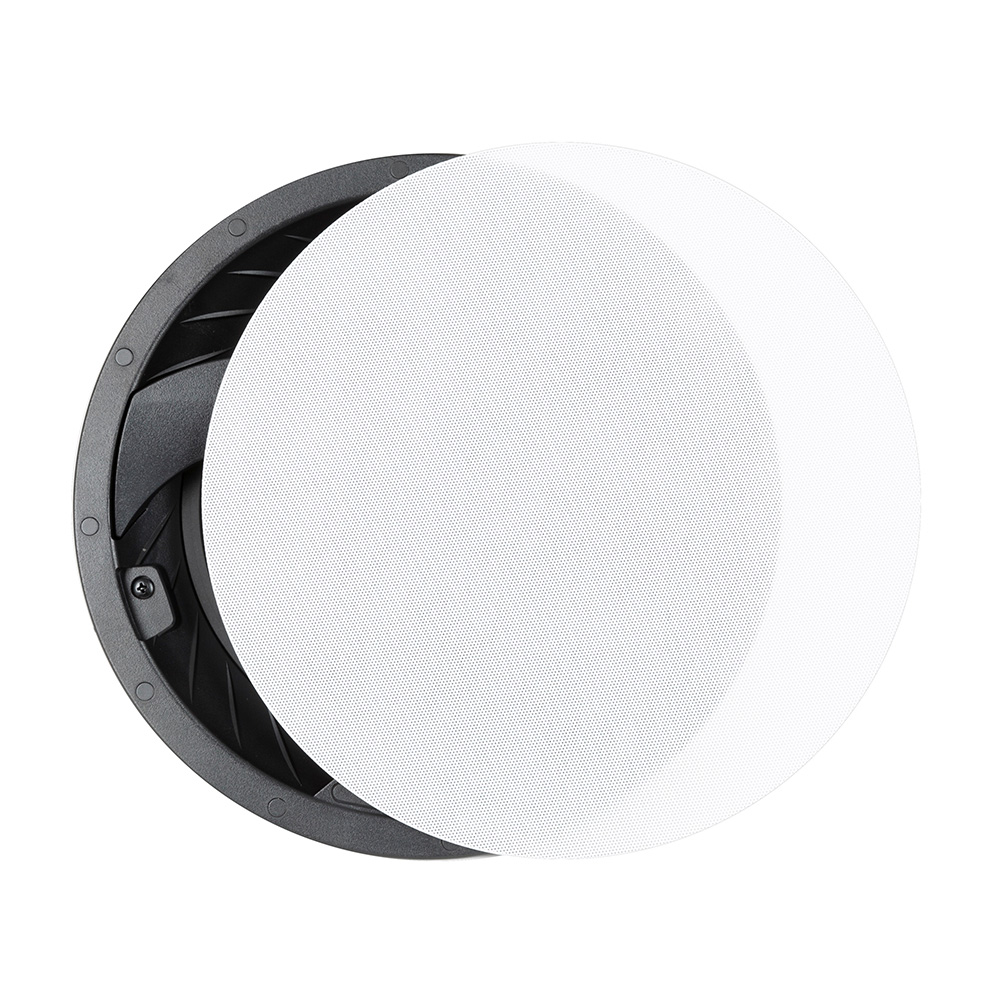

BEZEL-LESS GRILLE

This speaker features a bezel-less grille to provide a smooth, clean finish when installed. Episode also offers a wide variety of other grille options to give you a seamless solution for any install.



NEW CONSTRUCTION BRACKETS

All Episode speakers share the same cut out dimensions and new-construction brackets, allowing you to reserve your spot in the ceiling or wall for trouble-free installs. They also work with all Signature by Episode speakers, giving you the option to upgrade your customers at any time!

Connector TypeGold Plated Push Terminals
Frequency Response45Hz – 20kHz
AdjustmentsPivoting Tweeter with +/- 3dB Compensation Switch
Mounting Depth4.5″ (114.3 mm)
Crossover Frequency2.1kHz
Impedance8Ω Nom
4.5Ω Min
Power RMS15 – 150W
Power Peak125W
Sensitivity91dB
Tweeter1″ Teteron Dome
Woofer8″ IMG Cone
Dimensions (H xD)10.6″ x 4.5″
(269.24 x 114.3 mm)
Cutout Diameter9.6″ (243.84 mm)
Dog Ear Clamping Range0.25″ to 1.25″ (6.35mm to 31.75mm)
Speaker GrillePowder Coated Micro-perf Steel
Weight4.1lbs (1.86 kg)
Speaker Dispersion Angle100 Degree
Weather ResistanceN/A
