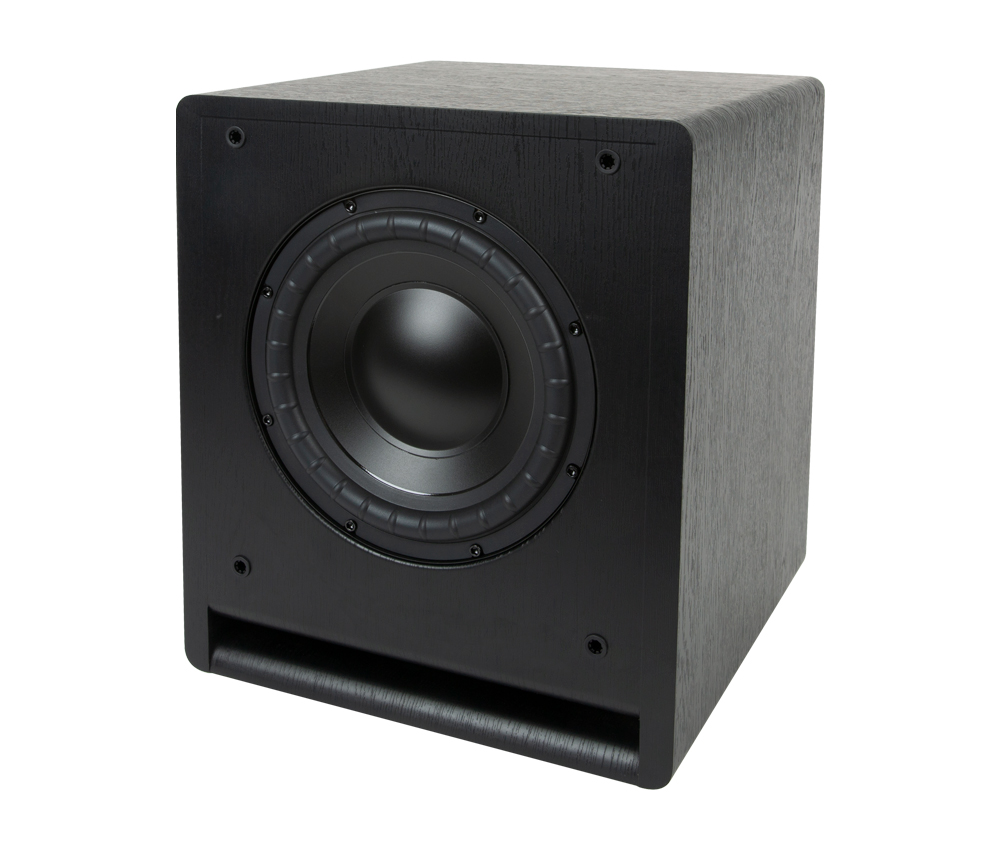

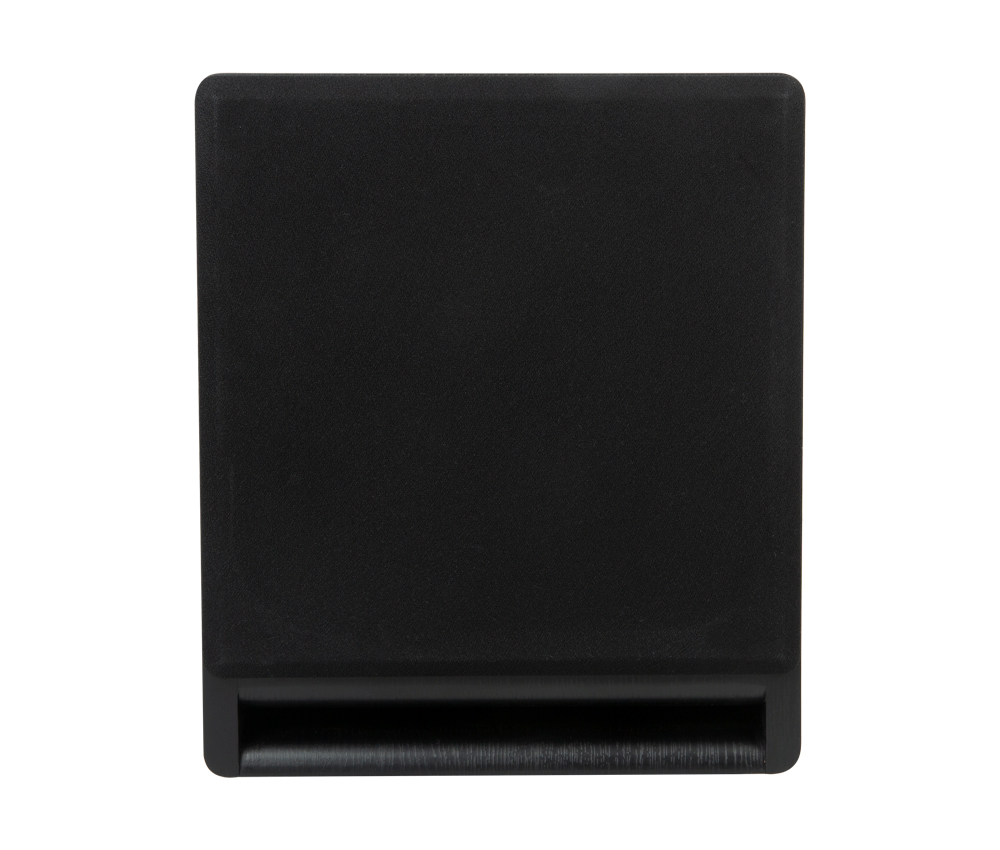

Episode Element Series 10″ Ported Subwoofer

This powerful little sub produces less port noise due to the even flow of air through its slot port design. Featuring a highly-efficient DRiVE™ Class-D amplifier, this sub is also 60% more efficient than conventional analog designs. Top it off with our signature LFEQ technology, and you get a sub with max bass performance for its modest enclosure size.

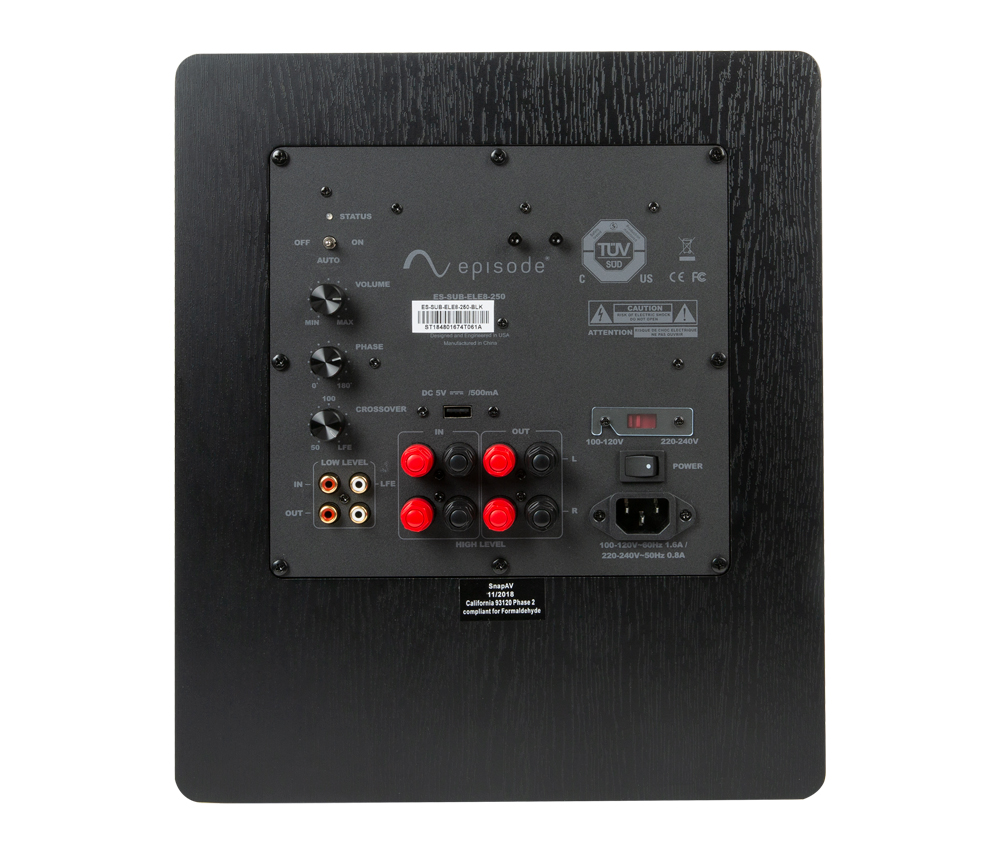

High/Low Level Inputs & Outputs
This subwoofer has the versatility to get the job done in all kinds of applications! For home theater installs, simply hook your receiver’s subwoofer output to the LFE input – and you’re good to go. And if your receiver only has speaker outputs, no problem! Just connect to the high-level inputs and then on to the speakers.

Categories: , Tag:

Description

Frequency Response: 21Hz – 200Hz
Adjustment: Volume, Crossover Frequency, Phase Control, Auto On/Off
Color: Black Ash
Connector: RCA Inputs & Gold Plated 5-Way Binding Posts
Dimension: 14.2″ x 17″ x 15.5″
Power Consumption: 100-120V AC 60Hz: 4A
220-240V AC 50Hz: 2A
Line Voltage: 100-240V AC (Switchable 100-120 or 220-240V AC)
Weight: 37.8 lb
Crossover Frequency: 50Hz – 200Hz
Power Peak: 480W
Power RMS: 200W RMS @ 0.2% THD
Woofer: 10″ Mica loaded Polypropylene Cone, High Temp 1.5″ Voice Coil
Fuss Type: T4AL/250V
