Epson EB-805F Ultra-short Throw Full HD Laser Projector

Epson EB-805F Ultra-short Throw Full HD Laser Projector

Create Your Own Customer Experience.

Wow your customers and strengthen marketing messages with Epson EB-805F Full HD1 ultra-short throw laser projector! Create stunning video content easily and instantly project your information wirelessly to your audience. EB-800 series projectors’ laser light source allows it to be placed in any orientation, even in tight spaces, and are the ideal companion for your digital signage needs.



Categories: , ,

Description

Product Brochure

Remarkable Image Quality
With an optimum brightness of 5,000 lumens and dynamic contrast of over 2,5000,000:1, be assured that your images will be vivid and attention-grabbing even under a variety of ambient lightings. The ultra-short-throw laser projector is able to project beautiful and sharp images even in the tightest retail spaces up to a maximum of 130-inch.

Epson
Multi-directional Projection
Thanks to its laser light source, EB-800 series projectors can rotate 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness and quality. An ideal companion to businesses that require vivid projections on a variety of surfaces such as floors and ceilings.
Epson
Flexible Projection Image
The black background in images will not be projected on surface, allowing non-rectangular images. This allows flexibility and great creativity in creating content. Thus, this gives users the ability to form sleek and eye-catching designs, without being confined to a rectangular image.
Epson
SKU NumberV11H923652
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.62” (C2Fine)
Resolution1080p (1366 x 768 x 2)
Projector LensTypeFocus (Manual) / No Optical Zoom
F-Number1.50
Focal Length3.90 mm
Zoom Ratio1 – 1.35 (Digital Zoom)
Throw Ratio0.27 – 0.37 (Wide to Tele)
LightsourceTypeLaser Diode
Life (Normal / Extended)20,000 / 30,000 hours
Zoom: Wide65” – 130” [39.2 – 80.3 cm] @ 16:9 / 61” – 120” [39.5 – 79.6 cm] @ 16:6
Zoom: Tele48” – 96” [39.2 – 80.3 cm] @ 16:9
Standard80” [48.7 cm]
White Light Output (Normal / Extended)5,000 lm / 3,500 lm
Colour Light Output (Normal / Extended)5,000 lm / 3,500 lm
Contrast RatioOver 2,500,000:1
Sound Output8W x 8W [Stereo]
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes

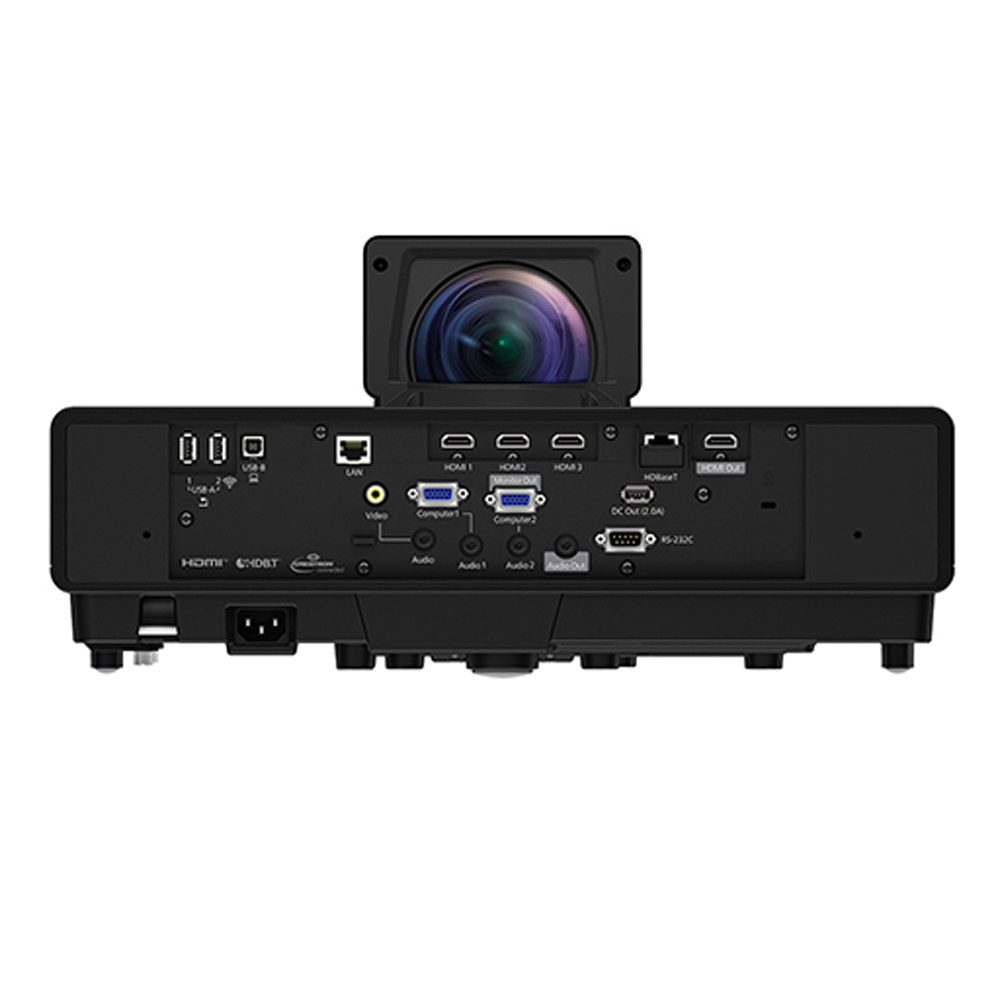

Analog InputD-Sub 15Pin2
CompositeRCA x 1 (Yellow
Digital InputHDMI3 (HDCP2.3)
HDBaseT1 (HDCP2.3)
Output TerminalD-Sub 15Pin1 (Black)
HDMI1
Audio InputStereo Mini Jack3
Audio OutputStereo Mini Jack1
Control I/ORS-232CD-Sub 9pin x 1
USB I/OType A2 (for Saving and Reading* data via USB Memory, USB Document Camera)
Type B1 (for USB Display, mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings)
NetworkWired LANRJ45 x 1
Wireless LAN1 x USB Type A (In common with Memory I/O)
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless LAN SecurityInfrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES)
Operating TemperatureSingle use: 0 – 45 °C <41 - 113 °F> [20% – 80% Humidity, No Condensation]
Operating Altitude (Base on low altitude)Single use: 0 – 45 °C <41 - 113 °F> [20% – 80% Humidity, No Condensation]
Multi Projection use: 0 – 40 °C <41 - 104 °F> [20% – 80% Humidity, No Condensation]
Direct Power On / OffYes
Start-Up PeriodLess than 8 – 10 seconds (Epson Logo), Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterMaintenance Cycle20,000 hours
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Laser Diode ON (Normal / Extended)366W / 262W
Standby (Network / Energy Saving)2.0W / 0.5 W
Dimension Excluding Feet (D X W X H)375 x 458 x 209.5 mm
WeightApprox. 9.4 kg (Without Cable Cover) / Approx. 9.7 kg (With Cable Cover)
Fan Noise (Normal / Quiet)36dB / 27dB
