Epson EB-L200SX Short-Throw Projector XGA

Epson EB-L200SX Short-Throw Projector XGA

Bring bright, easy-to-read images up to 112″ to the classroom with this XGA projector.

Easily project bright, easy-to-read images from nearly anywhere in the classroom with the EB-L200SX XGA 3LCD short-throw laser projector. Delivering 3,600 lumens of brightness*1 and high-quality images of up to 112”, the EB-L200SX maximizes readability and collaboration. Designed with ease of use in mind, this durable, reliable projector offers a virtually maintenance-free, 20,000-hour laser light source*2 with no lamps to replace and built-in wireless for added convenience. With split screen*3 for up to four connected devices and built-in Miracast®, the EB-L200SX makes sharing engaging lesson plans easier than ever before.

  • 3,600 lumens of colour/white brightness*1
  • 20,000 hours laser light source
  • XGA Resolution for images up to 112”
  • Quick Start-up Mode
  • Short throw ratio of 0.55-0.74 (Wide-Tele)
Categories: , , ,

Description

Product Brochure

Laser Light Technology
With up to 20,000 hours of maintenance free laser light source, save on manpower and lamp replacement cost with the EB-L200SX laser projectors, allowing overall lower total cost of ownership.

Epson

Quick Start-up
No longer do you need to warm up the projectors before presentations, start your conferences in just 5 seconds* with the EB-L200SX thanks to its laser light source.

Epson

Get Creative With Projection Signages
Together with the Epson Creative Projection app, which allows free and easy creation of contents, project short throw projectors signages using the EB-L200SX to re-define your customer’s experience.

Epson

Projection TechnologyRGB liquid crystal shutter projection system
LCDSize0.55″ (C2 Fine
ResolutionXGA
Projection LensTypeNo Optical Zoom / Focus (Manual)
F-Number1.60
Focal Length6.4mm
Zoom Ratio1.0 – 1.35 (Digital Zoom)
Throw Ratio0.55 – 0.74 (Wide – Tele
Light SourceTypeLaser Diode
Life20,000 hours (Normal) / 30,000 hours (Extended)
Zoom: Wide / Zoom: Tele50″ – 112″ [0.54 – 1.26 m] / 82″ [0.91 m]
White Light Output (Normal / Eco)3,600lm / 2,520lm
Colour Light Output3,600lm
Contrast RatioOver 2,500,000:1
Sound Output16W Monaural
Vertical / Horizontal Keystone±15º / ±15º
Horizontal Slide Keystone CorrectionYes

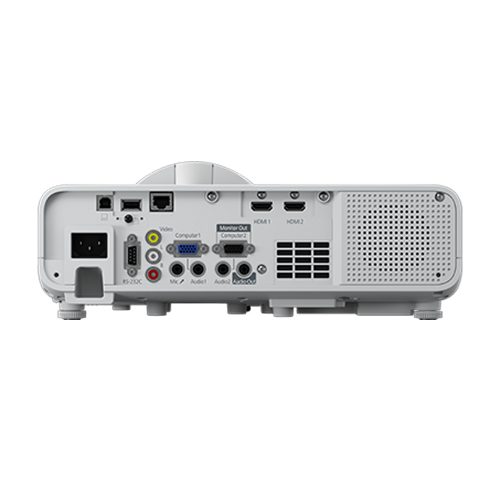

Analog RGB InputD-Sub 15Pin2 (Blue)
CompositeRCA x 1 (Yellow)
Digital InputHDMI2 (HDCP 2.2)
Audio InputRCA (White/Red)1
Stereo Mini Jack2
USB InputUSB Type A1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B1 (For Firmware Update and Copy OSD Settings
Control I/ORS-232CD-Sub 9pin x 1
Video OutputD-Sub 15Pin1
Audio OutputStereo Mini Jack1
Mic InputStereo Mini Jack1
NetworkWired LANRJ45 x 1 (100Mbps
WirelessBuilt -in ; Optional wireless (ELPAP11)
Supported Speed for Each modeInfrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps*3, IEEE 802.11g (2.4GHz): 54 Mbps*3, IEEE 802.11n (2.4GHz): 72.2 Mbps*3,
IEEE 802.11a (5GHz): 54 Mbps*3, IEEE 802.11n (5GHz): 150 Mbps*3, IEEE 802.11ac (5GHz): 325 Mbps*3
Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*3, IEEE 802.11n (2.4GHz): 72.2 Mbps*3, IEEE 802.11a (5GHz): 54 Mbps*3,
IEEE 802.11n (5GHz): 150 Mbps*3, IEEE 802.11ac (5GHz): 325 Mbps*3
Supported Modenfrastructure, Access Point (Wi-Fi Direct)
Operating TemperatureSingle UseLow Altitude: 0 – 40 °C <32 - 104 °F>
High Altitude: 0 – 35 °C <32 - 95 °F>
20% – 80% Humidity, No Condensation
Multi-projection UseLow Altitude: 0 – 35 °C <32 - 95 °F>
High Altitude: 0 – 30 °C <32 - 86 °F>
20% – 80% Humidity, No Condensation
Operating Altitude0 – 3,048 m <0 - 10,000 ft>
Direct Power On / OffYes
Start-Up PeriodLess than 8 seconds, Less than 5 seconds (Quick Startup), Warm-up period: 30 seconds
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle20,000 hours
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Laser Diode On (Normal / Extended)254W / 193W
Standby (Network On / Off)2.0W / 0.5W
Dimension Excluding Feet (D x W x H)337 x 325 x 90 mm
Weight (with cable cover)4.5kg
Fan Noise (Normal / Eco)36dB / 26dB
