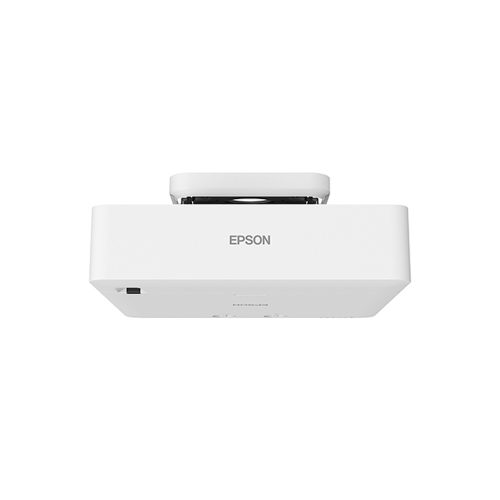

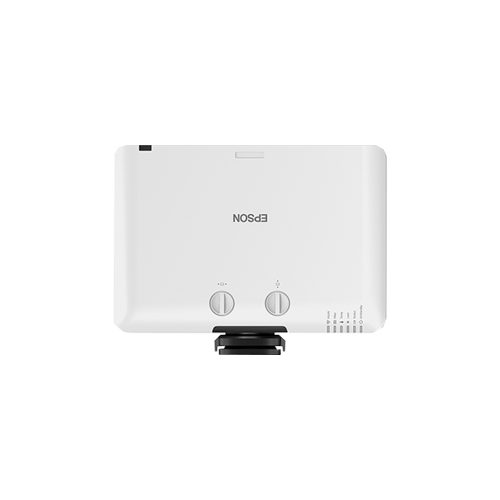

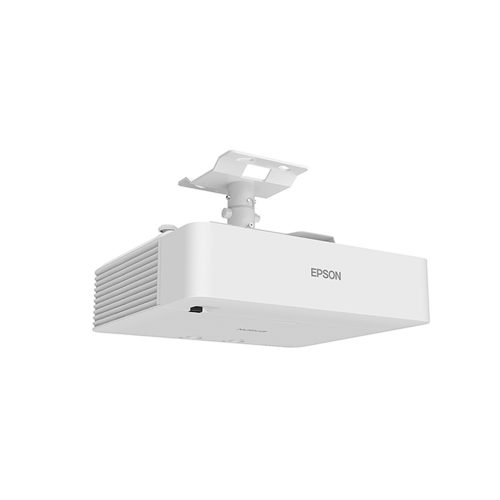

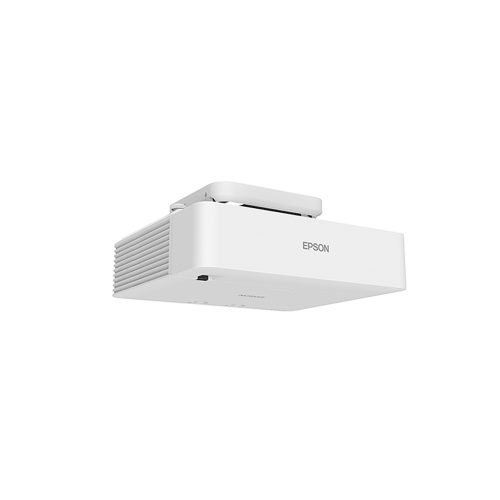

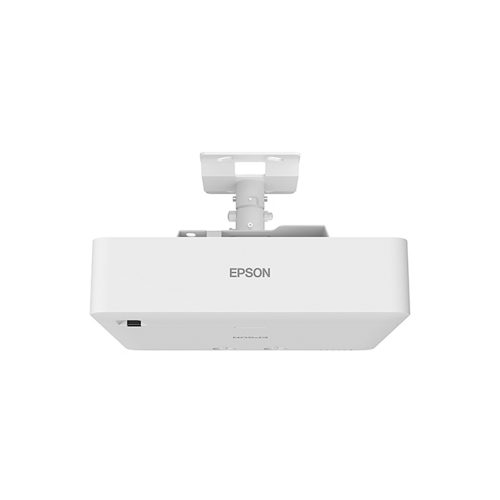

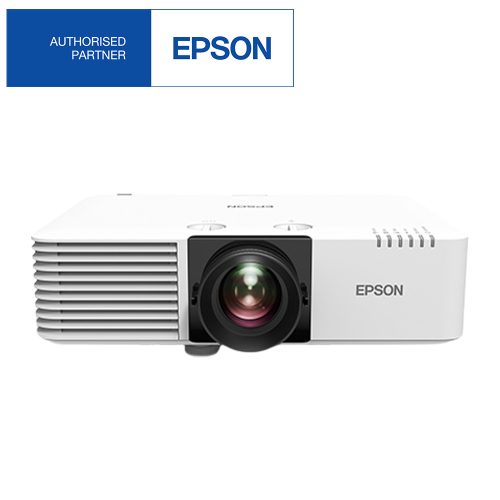

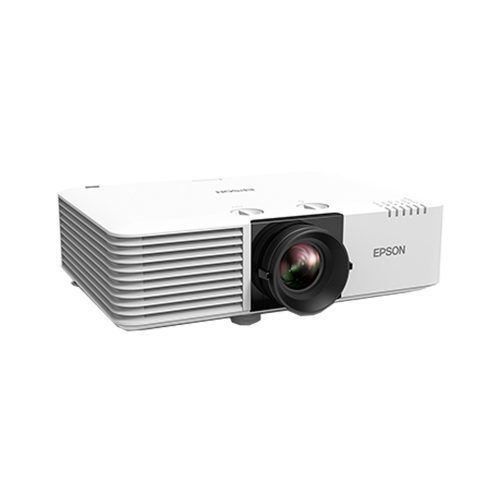

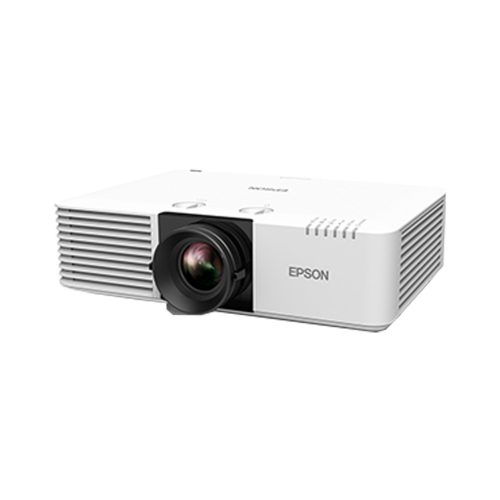

Epson EB-L630SU WUXGA 3LCD Short Throw Laser Projector

Epson EB-L630SU WUXGA 3LCD Short Throw Laser Projector

A Compact WUXGA Short Throw Laser Projector with 6,000 Lumens for Projecting Sharp and Vivid Images at a Shorter Distance

 Project amazingly bright, vivid images with 6000 lumens of white & colour brightness. This robust projector also offers WUXGA resolution. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours and offers virtually maintenance-free operation with no lamps. Designed with short throw capability, space constraint is no longer a concern for customers. It also supports wide lens shift for greater flexibility. It is compatible with the Epson Wireless Presentation System which enables hassle-free connectivity for better productivity.

  • 6000 lumens of color and white brightness
  • 20,000-hour laser light source with no lamps
  • WUXGA resolution
  • Short Throw Ratio of 0.80 – 1.07
  • Built-in Wireless
Categories: , , , ,

Description

Download Brochure
Higher Energy Efficiency & Eco-friendly

New laser diode and optical parts quality improvement ensure improved light source output while reducing electricity consumption and other natural resources during use.

Epson

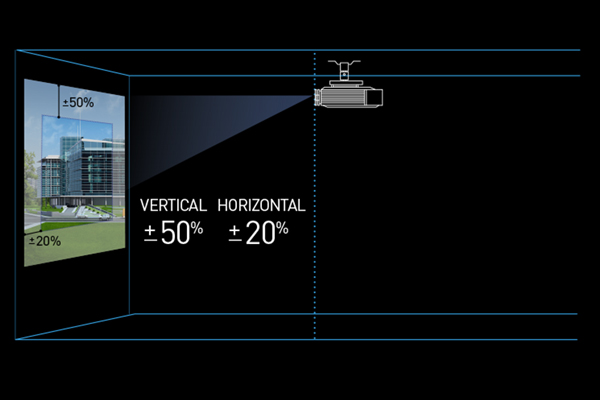

 Wide Lens Shift

Wide lens shift of V : ±50%, H : ±20% for a great deal of flexibility when installing projectors and avoid image quality deterioration by using keystone correction.

Epson

Super Resolution & Detail Enhancement

Flexible settings for image enhancement to sharpen image resolution to your preference

Epson

SKU NumberV11HA29040
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.67″ (C2 Fine)
ResolutionWUXGA
Aspect Ratio16:10
Projection LensTypeNo optical zoom / Focus (Manual)
F-Number1.70
Focal Length11.76 mm
Zoom Ratio1.0 – 1.35 (Digital Zoom)
Throw Ratio0.80 – 1.07 (Wide – Tele)
LightsourceTypeLaser Diode
Life20,000 hours (Normal) / 30,000 hours (Extended)
Zoom: Wide50” – 200” [0.85 – 3.49 m]
Zoom: TeleN/A
White Light Output (Normal / Extended)6,000lm / 4,200lm
Colour Light Output (Normal)6,000lm
Contrast RatioOver 2,500,000:1
Projection Orientation360º Free
Vertical / Horizontal±30º / ±30º

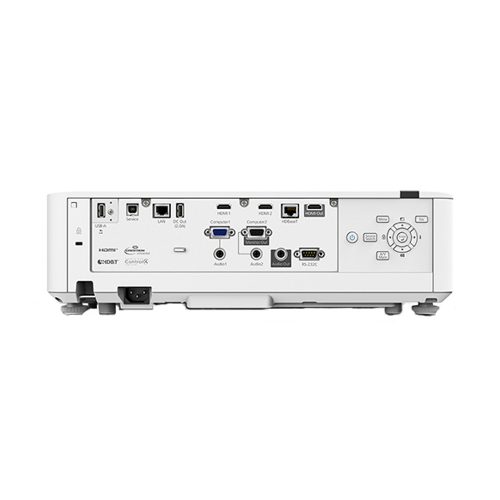

Analog RGB InputD-Sub 15Pin2
Digital InputHDMI2 (HDCP 2.3)
HDBaseT1 (HDCP 2.3)
Audio InputStereo Mini Jack2
USB InputUSB Type A2 (Port1 for PC Free, Firmware Update, Copy OSD Settings;
USB Type B1 (For Mouse, Keyboard, Control, Firmware Update)
Control I/ORS-232CD-Sub 9pin x 1
Analog Video OutputD-Sub 15Pin1
Digital Video OutputHDMI1 (HDCP 2.3)
Audio OutputStereo Mini Jack1
NetworkWired LANRJ45 x 1 (100Mbps)
WirelessBuilt-in
Wireless LAN (In-Built) and Screen MirroringSupported Speed for Each modeInfrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps*2, IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2,
IEEE 802.11a (5GHz): 54 Mbps*2, IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2
Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2,
IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Supported Security Typenfrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Wireless LAN (Using Optional ELPAP11)Supported Speed for Each modeAccess Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2,
IEEE 802.11n (5GHz): 150.0 Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeAccess Point (Wi-Fi Direct)
Supported Security TypeAccess Point (Wi-Fi Direct): WPA2-PSK (AES)
Operating TemperatureSingle UseLow Altitude (0 – 2,286m/7,500ft): 0 – 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 40 °C <32 - 104 °F>
20% – 80% Humidity, No Condensation
Multi-projection UseLow Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 35 °C <32 - 95 °F>
20% – 80% Humidity, No Condensation
Operating AltitudeOver 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
Direct Power On / OffYes
Start-Up Period8 seconds (Epson Logo); Warm-up Period: 30 sec
Quick Start-UpLess than 5 seconds (Display)
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle^{*3}20,000 hours (Normal) / 30,000 hours (Extended)
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Laser Diode On (Normal / Extended)345 W / 258W
Standby (Normal / Eco)2.0W / 0.3W
Dimension Excluding Feet (D X W X H)304 x 440 x 122 mm
WeightApprox. 8.4kg
Fan Noise (Normal / Eco)38dB / 27dB
