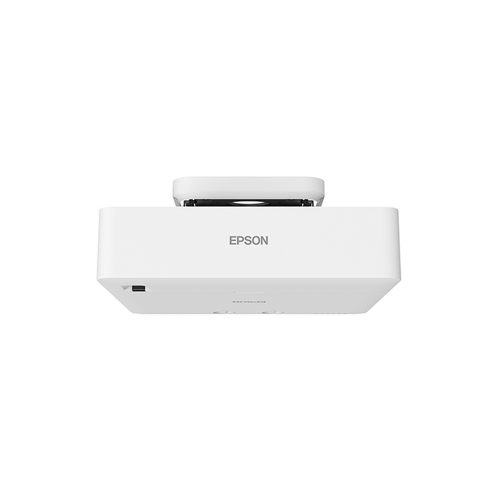

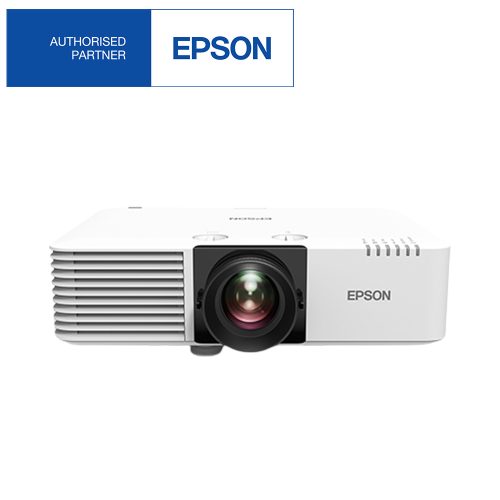

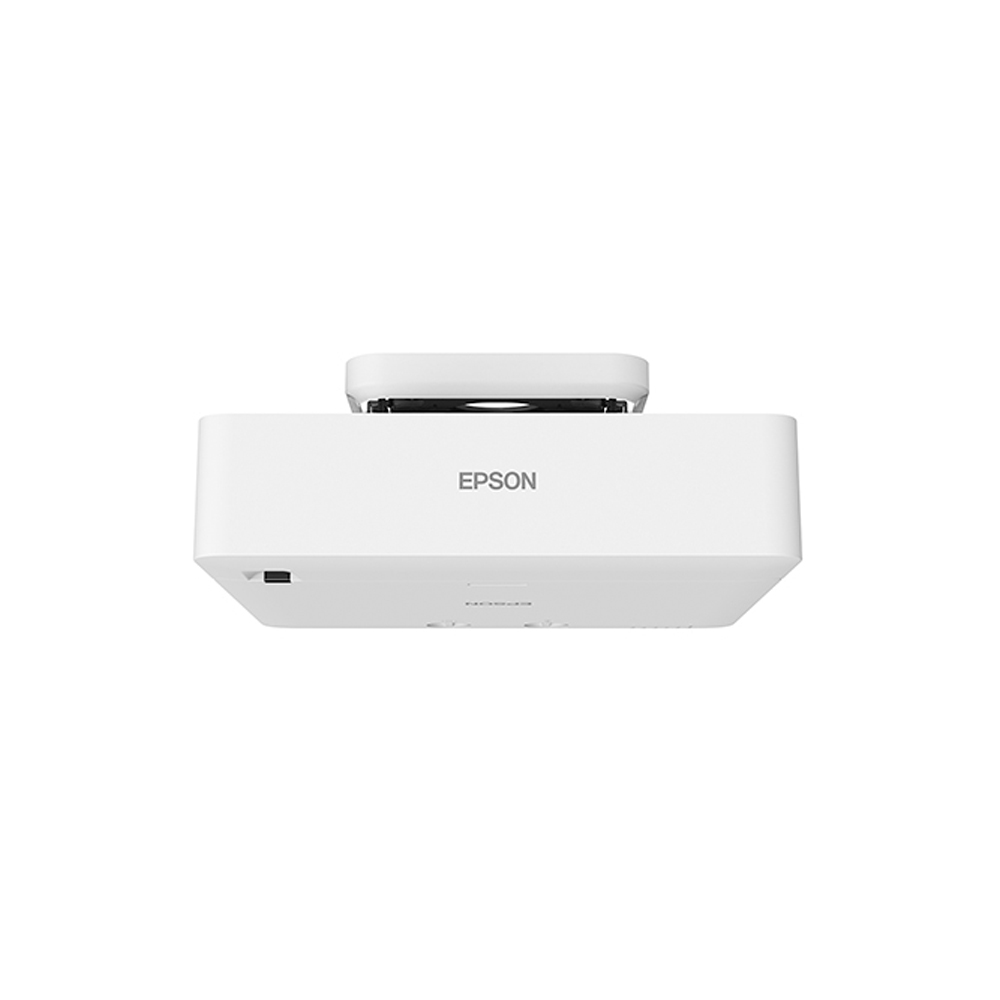

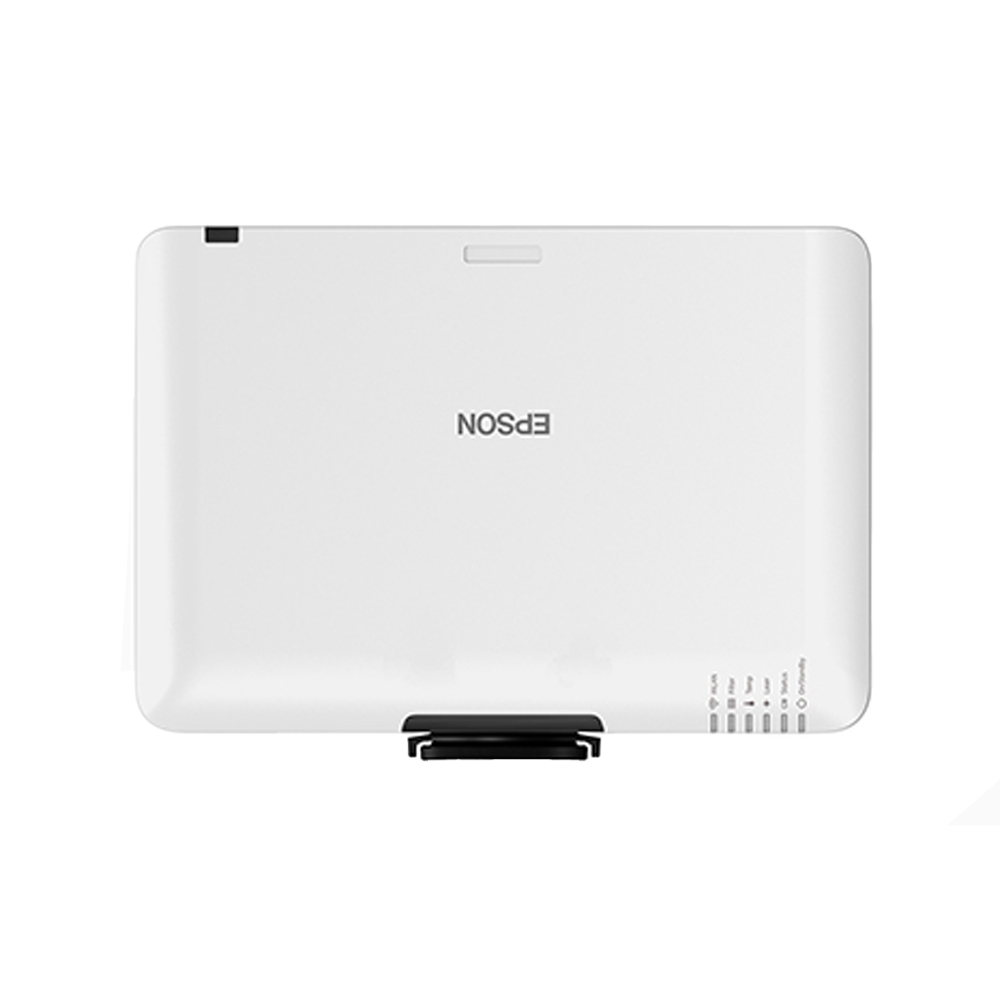

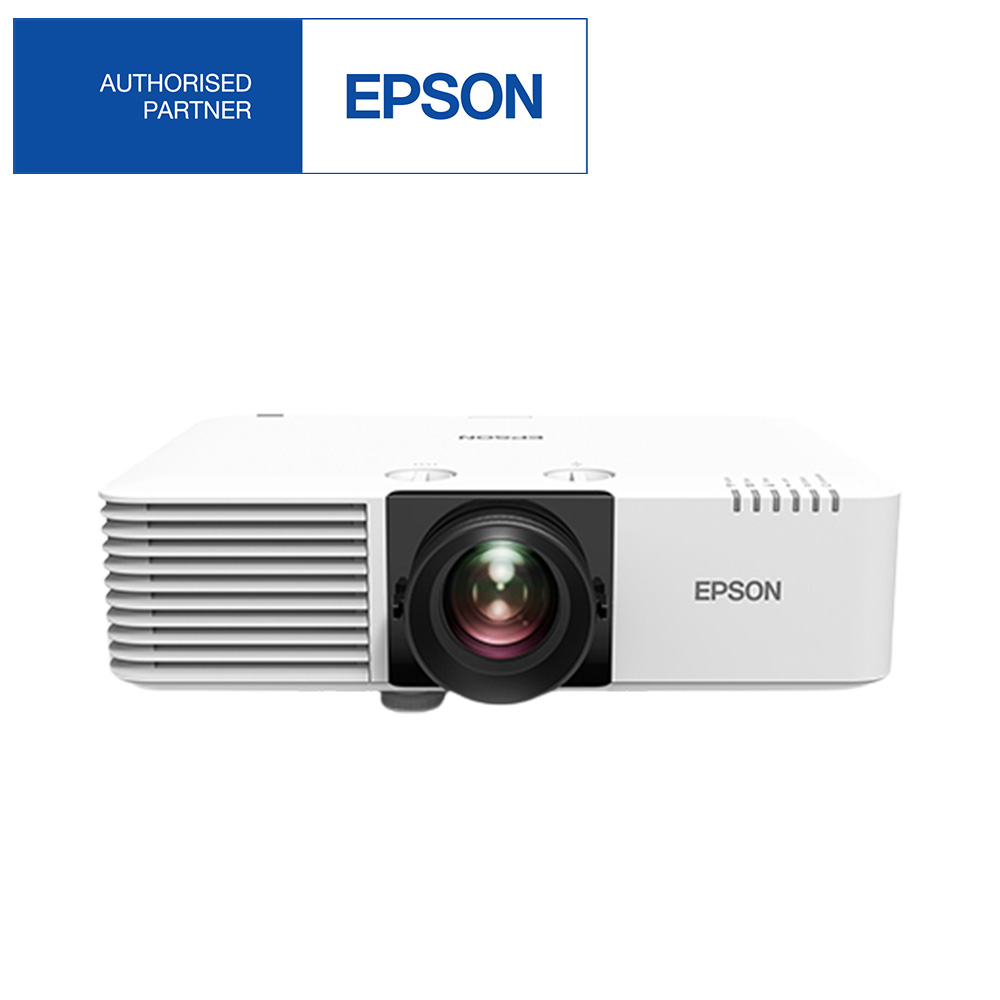

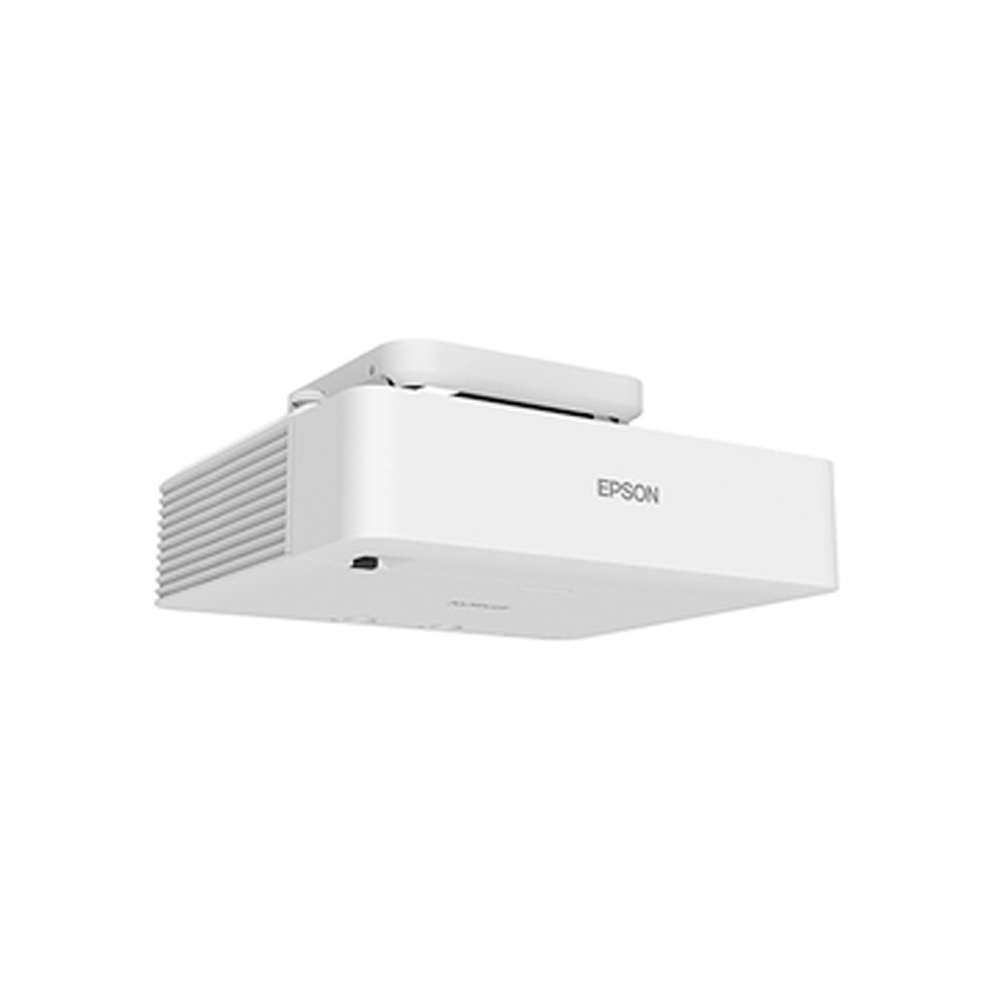

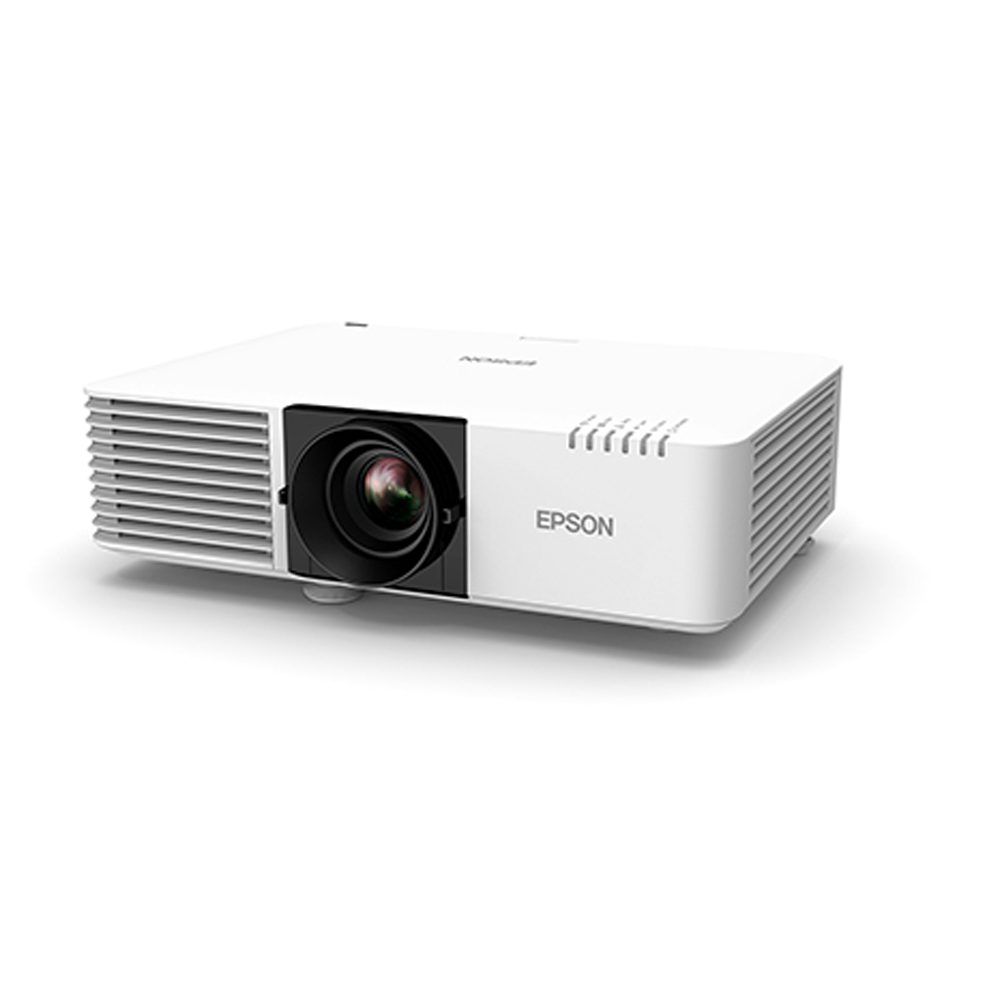

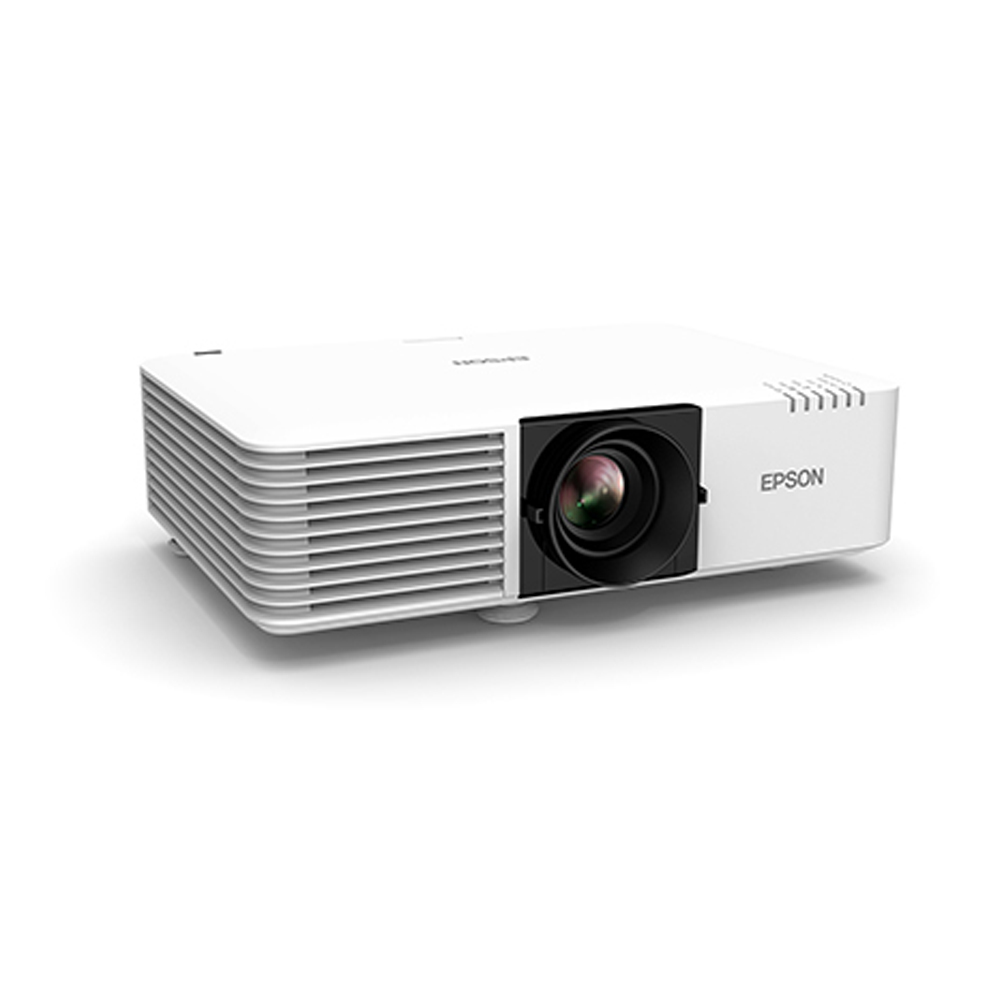

Epson EB-L730U WUXGA 3LCD Laser Projector

Epson EB-L730U WUXGA 3LCD Laser Projector

A Compact and Robust WUXGA Laser Projector with 7000 Lumens and Built-In Wireless Function for Projecting Sharp and Vivid Images

Project amazingly bright, vivid images with 7000 lumens of color and white brightness. This robust projector also offers WUXGA resolution. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours and offers virtually maintenance-free operation with no lamps. Plus, it features an optical zoom of up to 1.6x. It also supports split screen function of up to 4 screens enabling better information sharing and wide lens shift for greater flexibility. Besides this, it also comes with flexible settings for image enhancement to further sharpen image resolution to your preferences. It is compatible with the Epson Wireless Presentation System which enables hassle-free connectivity for better productivity.

  • 7000 lumens of color and white brightness
  • 20,000-hour laser light source with no lamps
  • WUXGA resolution
  • Built-in Wireless
  • 1.6x Optical Zoom
  • Screen size of up to 500″
Categories: , ,

Description

Product Brochure

Impressive Brightness that Creates an Impression

Maximum light output of 7,000lm that allows high visibility even under bright lighted environment.

Epson



Higher Energy Efficiency & Eco-friendly

New laser diode and optical parts quality improvement ensure improved light source output while reducing electricity consumption and other natural resources during use.

Epson



Super Resolution & Detail Enhancement

Customize settings for image enhancement to sharpen image resolution to your preference

Epson

SKU NumberV11HA25040
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.67″ (C2 Fine)
ResolutionWUXGA
Aspect Ratio16:10
Projection LensTypeOptical Zoom (Manual) / Focus (Manual)
F-Number1.50 – 1.70
Focal Length20 – 31.8 mm
Zoom Ratio1.0 – 1.60
Throw Ratio1.35 – 2.20 (Wide – Tele
LightsourceTypeLaser Diode
Life20,000 hours (Normal) / 30,000 hours (Extended)
Zoom: Wide50” – 500” [1.44 – 14.76 m]
Zoom: Tele50” – 500” [2.35 – 23.84 m]
White Light Output (Normal / Extended)7,000lm / 4,900lm
Colour Light Output (Normal)7,000lm
Contrast RatioOver 2,500,000:1
Projection Orientation360º Free
Vertical / Horizontal±30º / ±30º

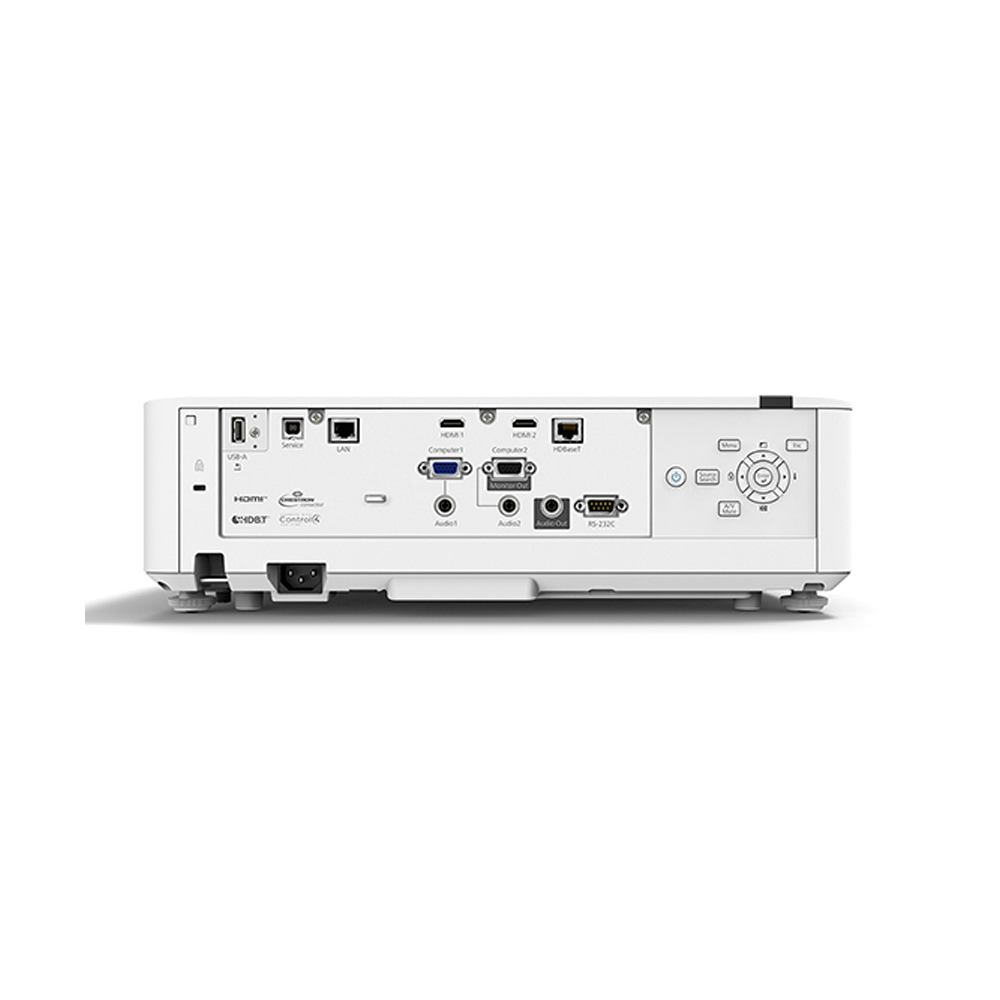

Analog RGB InputD-Sub 15Pin2
Digital InputHDMI2 (HDCP 2.3)
HDBaseT1 (HDCP 2.3)
Audio InputStereo Mini Jack2
USB InputUSB Type A2 (Port1 for PC Free, Firmware Update, Copy OSD Settings;
USB Type B1 (For Mouse, Keyboard, Control, Firmware Update)
Control I/ORS-232CD-Sub 9pin x 1
Analog Video OutputD-Sub 15Pin1
Digital Video OutputHDMI1 (HDCP 2.3)
Audio OutputStereo Mini Jack1
NetworkWired LANRJ45 x 1 (100Mbps)
WirelessBuilt-in
Wireless LAN (In-Built) and Screen MirroringSupported Speed for Each modeInfrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps*2, IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2,
IEEE 802.11a (5GHz): 54 Mbps*2, IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2
Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2,
IEEE 802.11n (5GHz): 150 Mbps*2, IEEE 802.11ac (5GHz): 325 Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Supported Security Typenfrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Wireless LAN (Using Optional ELPAP11)Supported Speed for Each modeAccess Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*2, IEEE 802.11n (2.4GHz): 72.2 Mbps*2, IEEE 802.11a (5GHz): 54 Mbps*2,
IEEE 802.11n (5GHz): 150.0 Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeAccess Point (Wi-Fi Direct)
Supported Security TypeAccess Point (Wi-Fi Direct): WPA2-PSK (AES)
Operating TemperatureSingle UseLow Altitude (0 – 2,286m/7,500ft): 0 – 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 40 °C <32 - 104 °F>
20% – 80% Humidity, No Condensation
Multi-projection UseLow Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 35 °C <32 - 95 °F>
20% – 80% Humidity, No Condensation
Operating AltitudeOver 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)
Direct Power On / OffYes
Start-Up Period8 seconds (Epson Logo); Warm-up Period: 30 sec
Quick Start-UpLess than 5 seconds (Display)
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle20,000 hours (Normal) / 30,000 hours (Extended)
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Laser Diode On (Normal / Extended)345 W / 258W
Standby (Normal / Eco)2.0W / 0.3W
Dimension Excluding Feet (D X W X H)304 x 440 x 122 mm
WeightApprox. 8.4kg
Fan Noise (Normal / Eco)38dB / 27dB
