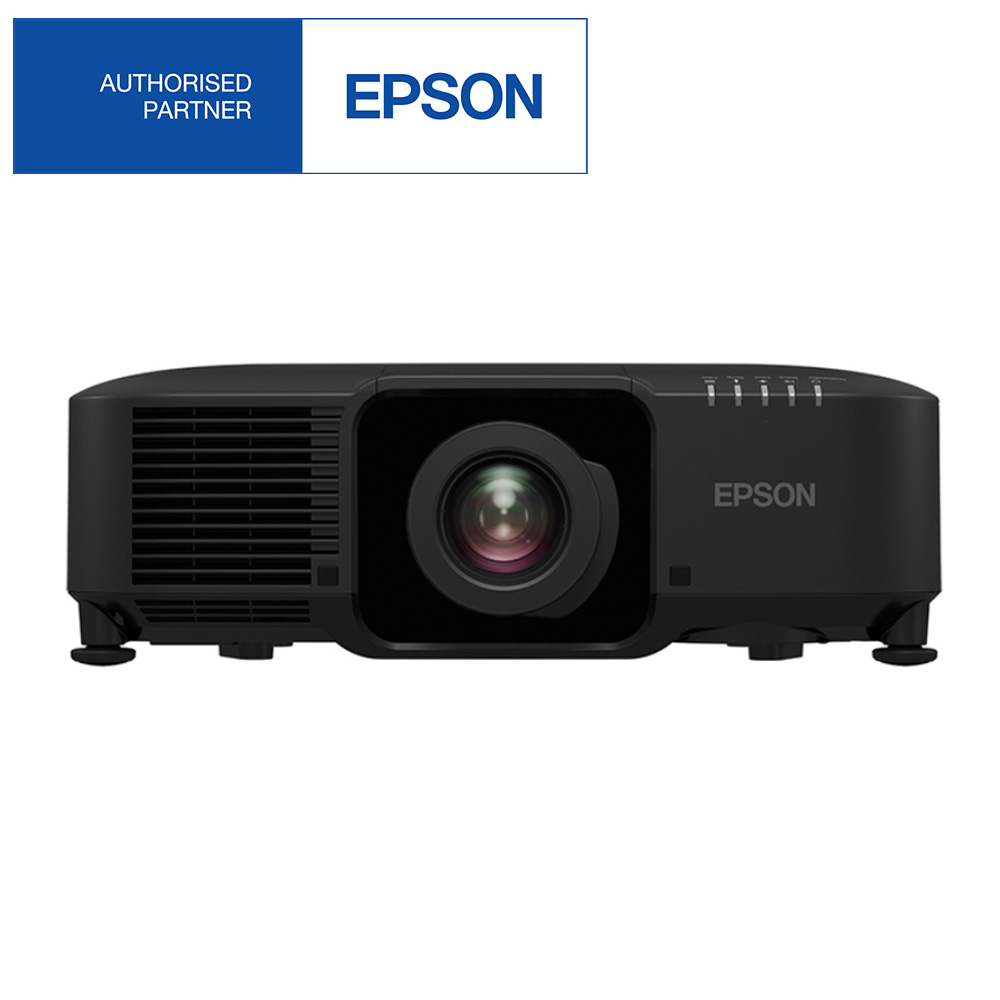

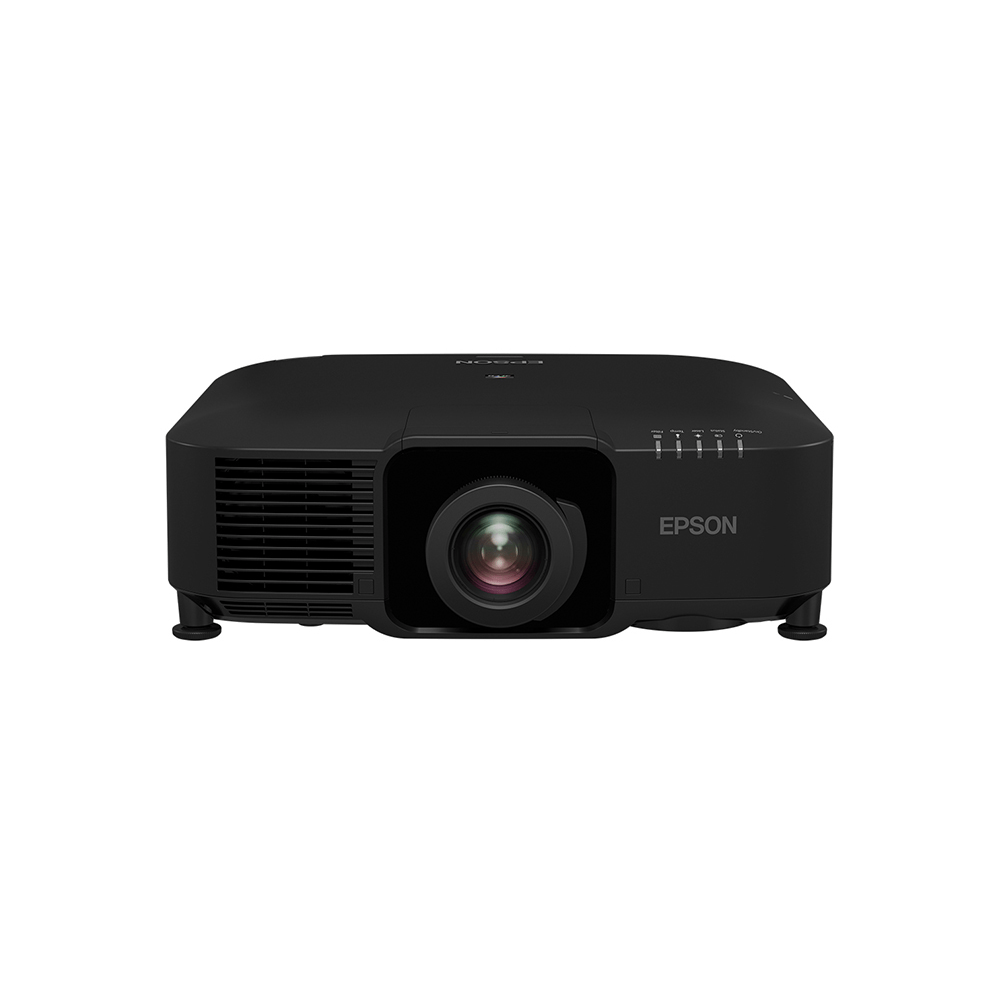

Epson EB-PU1008B WUXGA 3LCD Laser Projector

Premium, compact large venue laser projector with 4K Enhancement1.

This compact and versatile high brightness projector with optional interchangable lens including a zero-offset ultra short throw lens allows offers flexibility in a wide variety of environments. With its beyond Full HD WUXGA resolution and 4K Enhancement Technology1 (1920 x 1200 x 2), expect stunning, crystal-clear, true to life images with exceptional image detail and clarity. With the Built-in NFC function4, diagnostics and installations is made easier using the Epson Projector Config Tool, reducing the time spent even for the setting up of multiple projectors. The optional external camera module allows access to powerful automated tools including auto color calibration5, screen matching of multiple projectors6, Geometry Correction Assist for Tilting for Edge Blending7, and the Geometry Correction Assist for Stacking function6.

Description

  • 8500 lumens Colour and White brightness2
  • 4K Enhancement Technology1with HDR support
  • Laser light source — up to 20,000 hours3 of use
  • Compatible with wide range of up to 11 optional powered lenses
  • Advanced installation tools : Free software tools and optional ELPEC01 external camera module

Revolutionary 4 in 1 Laser Package
Equipped with this new laser package, EB-PU1008B delivers 8500 lumens of equal white and colour brightness in a compact, lightweight chassis. This allows for easier and more discreet installations as well as increased transportability.

Epson

Borderless Multi Projection
With a wide variety of functions available for multi-projector installations, you can adjust the brightness, colour and position of overlapping areas for seamless, beautiful displays with the PU-series of projectors.

Epson

Optional ELPAF63 External Air Filter
Coupled with the external air filter, the PU-series will reduce the maintenance intervals even in high dust environments such as shopping malls and exhibitions.

Epson

Benefits Geometry Correction Assist for Stacking with Optional ELPEC01 camera
The ELPEC01’s flexible mounting positions allow for quick adjustments to the camera, as well as usage with ultra short throw lens, thanks to its small size. When used together with the Epson Professional Tool software, both setup and usage for multiple projectors will be a fuss-free process.

Epson

Epson Projector Config Tool for Easy Set Up
Using NFC wireless communications technology to change projector settings and check equipment information, the Epson Projector Config Tool is an app that allows you to configure network and projection settings in advance, even when the projector is switched off. Allowing management across your fleet of projectors, this tool helps to reduce time and effort required, increasing efficiency.

Epson

Specification
White Brightness8,500lm
Color Brightness8,500lm / 5,950lm
ContrastOver 2,500,000:1
Light SourceLaser Diode
Laser Life20,000 hours (Normal) / 30,000 hours (Extended)
Aspect Ratio:1970-01-01 16:10:00
Resolution:WUXGA (Support 4K Enhancement)
Lens ShiftVertical: ±67% (Powered)
Horizontal: ±30% (Powered)
Dimension (DxWxH)545 x 164 x 436 mm
WeightApprox.16.3kg

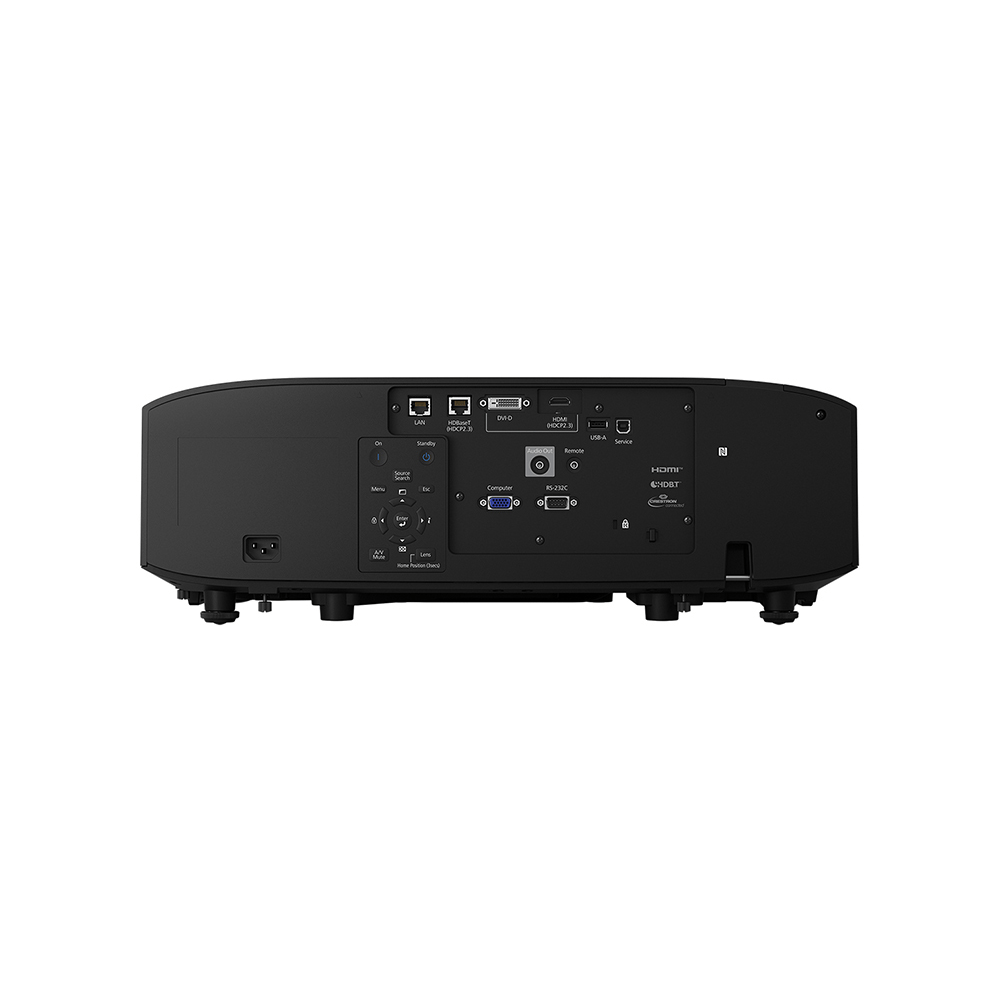

NetworkWired LAN: RJ45 x 1 (100Mbps)
Optional Wireless: ELPAP11
Analog InputD-Sub 15Pin: 2 (Blue)
Composite: RCA x 1 (Yellow)
Digital InputHDMI: 1 (HDCP 2.3)
DVI-D: 1 (HDCP 1.4)
HDBaseT: 1 (HDCP 2.3)
Control I/ORS-232C: D-Sub 9pin x 1
Remote: Stereo Mini x 1
WirelessOptional
