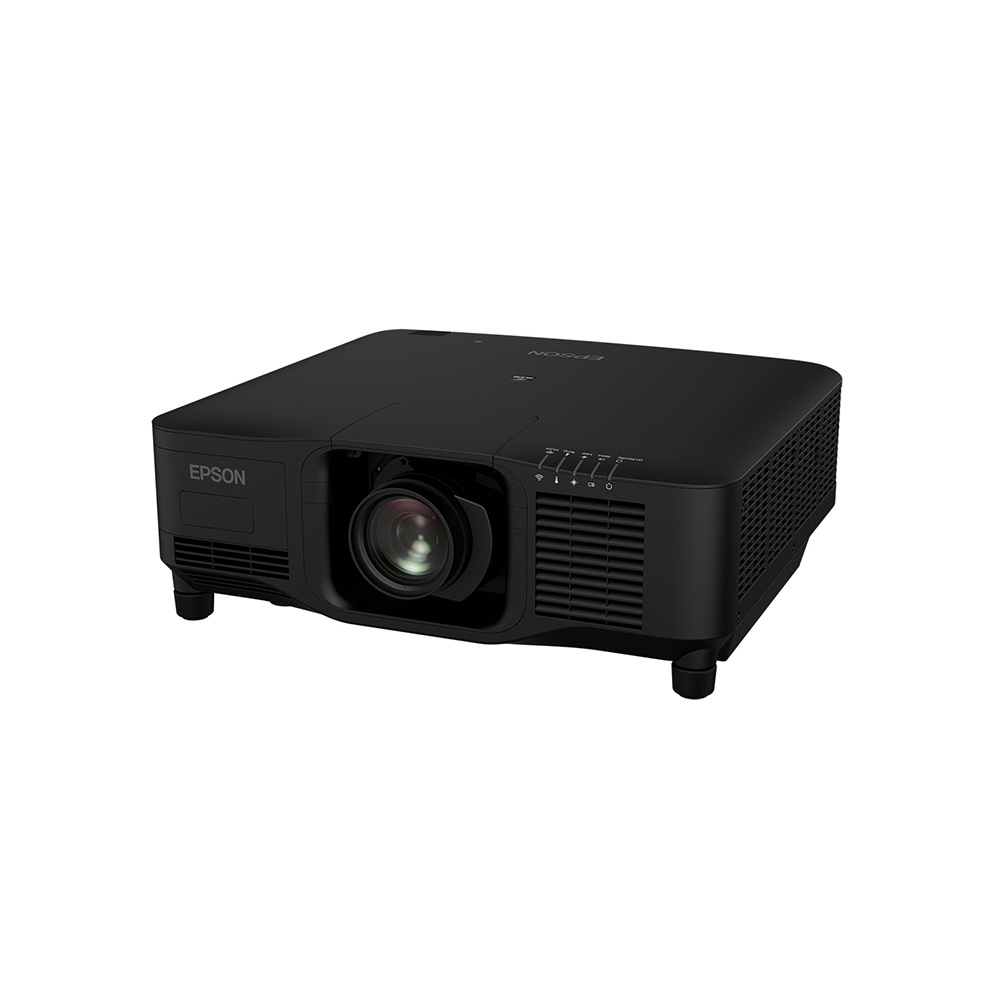

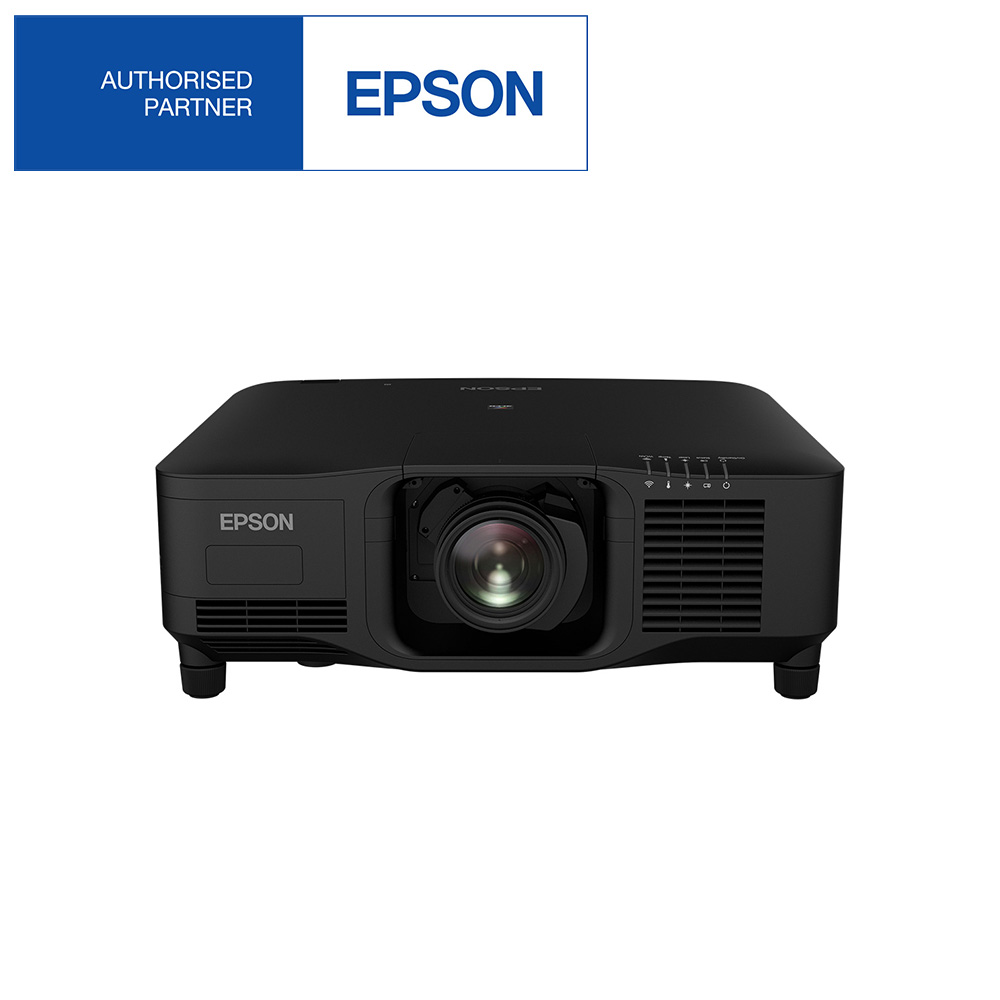

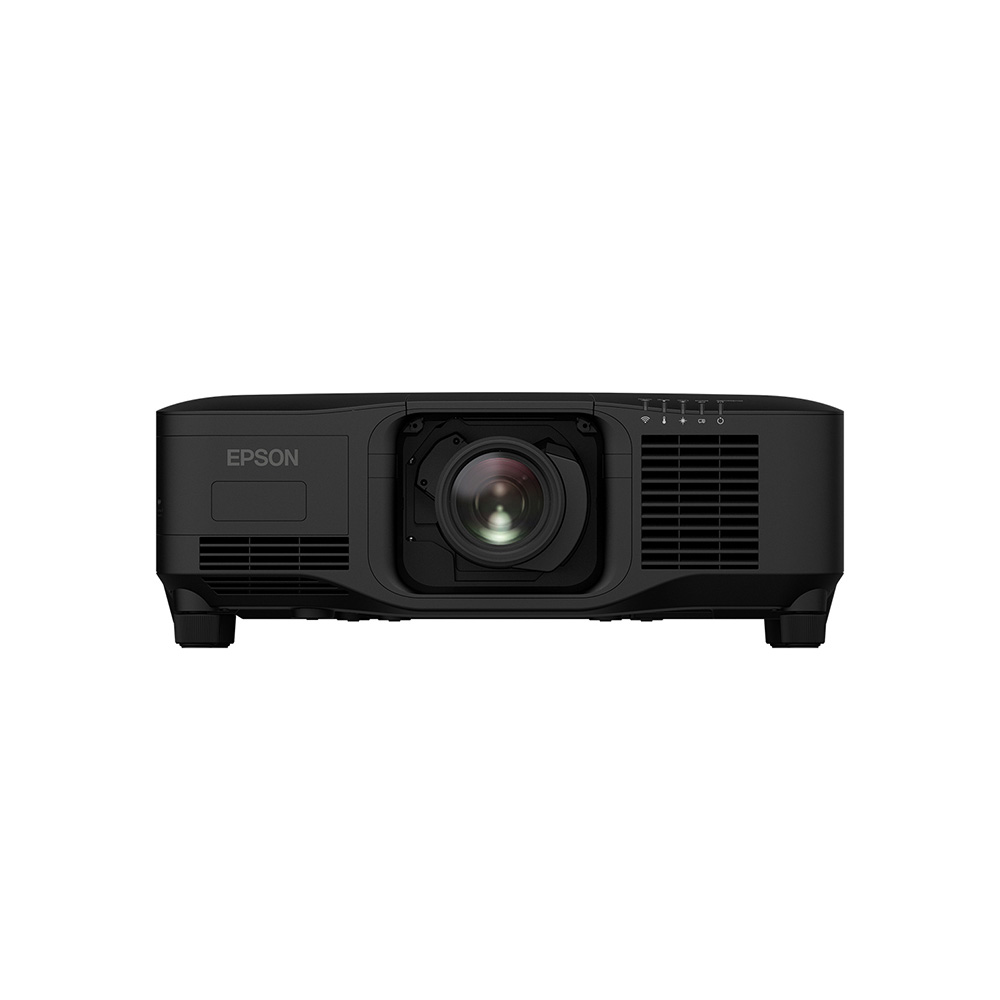

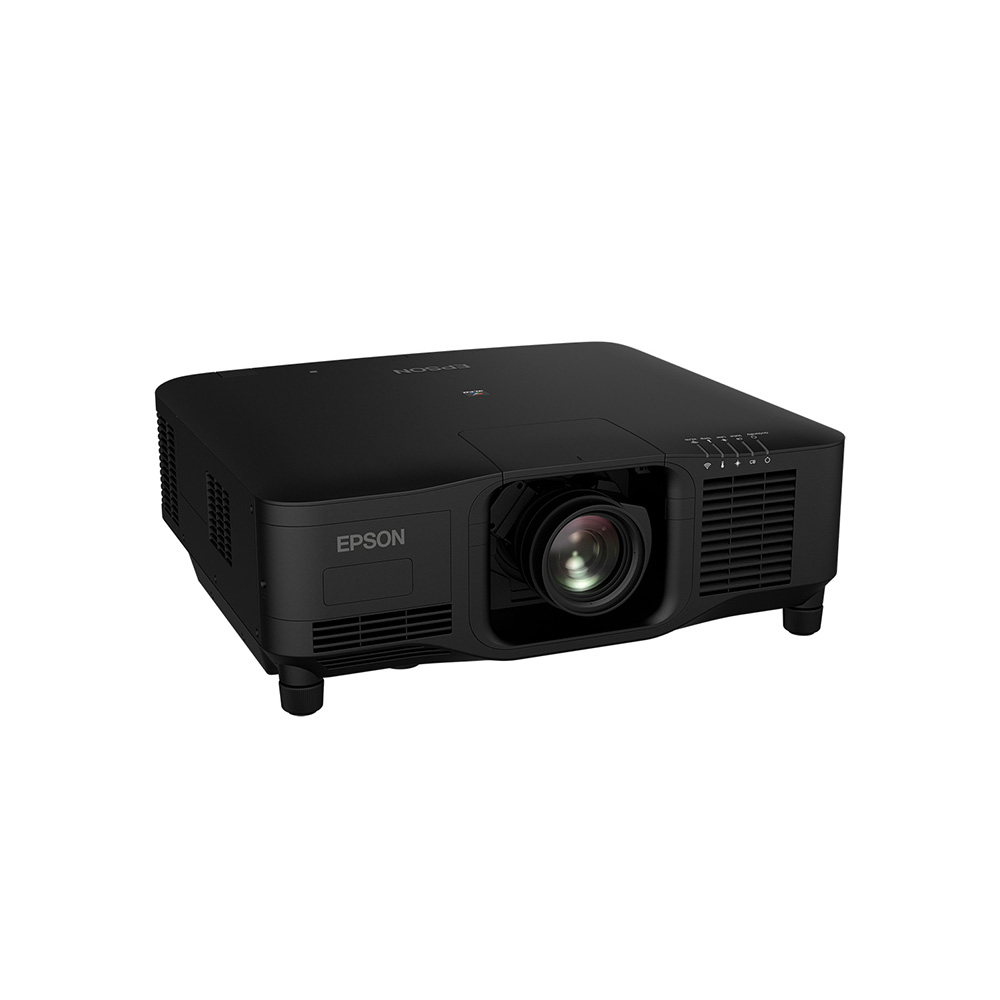

Epson EB-PU2216B 3LCD Large Venue Laser Projector

Epson EB-PU2216B 3LCD Large Venue Laser Projector

Premium large venue laser projector with 4K enhancement

Experience the power and flexibility of the EB-PU2216B 16,000-lumen large venue laser projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2216B uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable camera to streamline multi-projector setups.

NOTE: Camera, lens, frame, and mount accessories sold separately.

  • 16,000 lumens of equal white and color brightness
  • WUXGA with 4K Enhancement
  • 20,000-hour virtually maintenance-free laser light source
  • 9 optional powered lenses (sold separately)
Categories: , ,

Description

Product Brochure

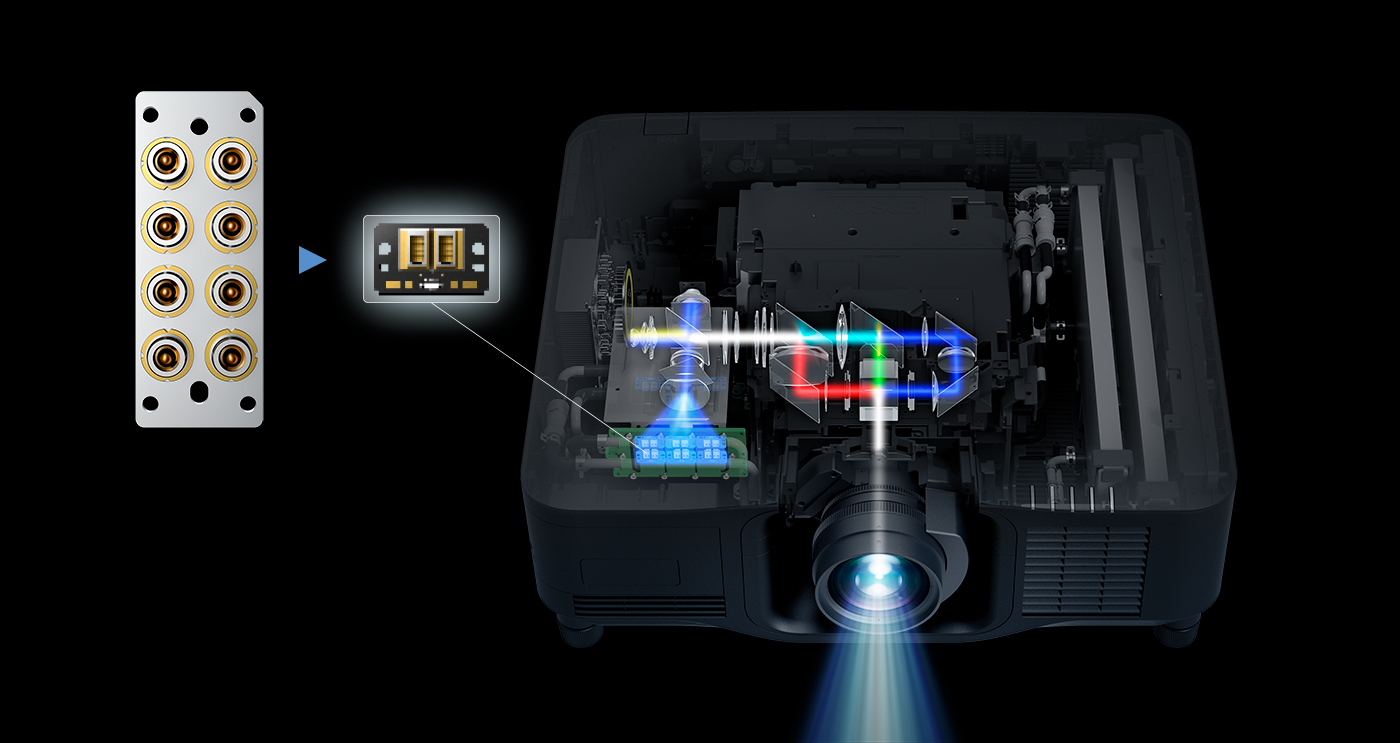

Incredible Color
Epson 3-chip 3LCD technology produces 16,000 lumens of equal white and color brightness. The EB-PU2216B is also equipped with the new and more efficient 4-in-1 laser light source technology.

WUXGA with 4K Enhancement
Accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image.

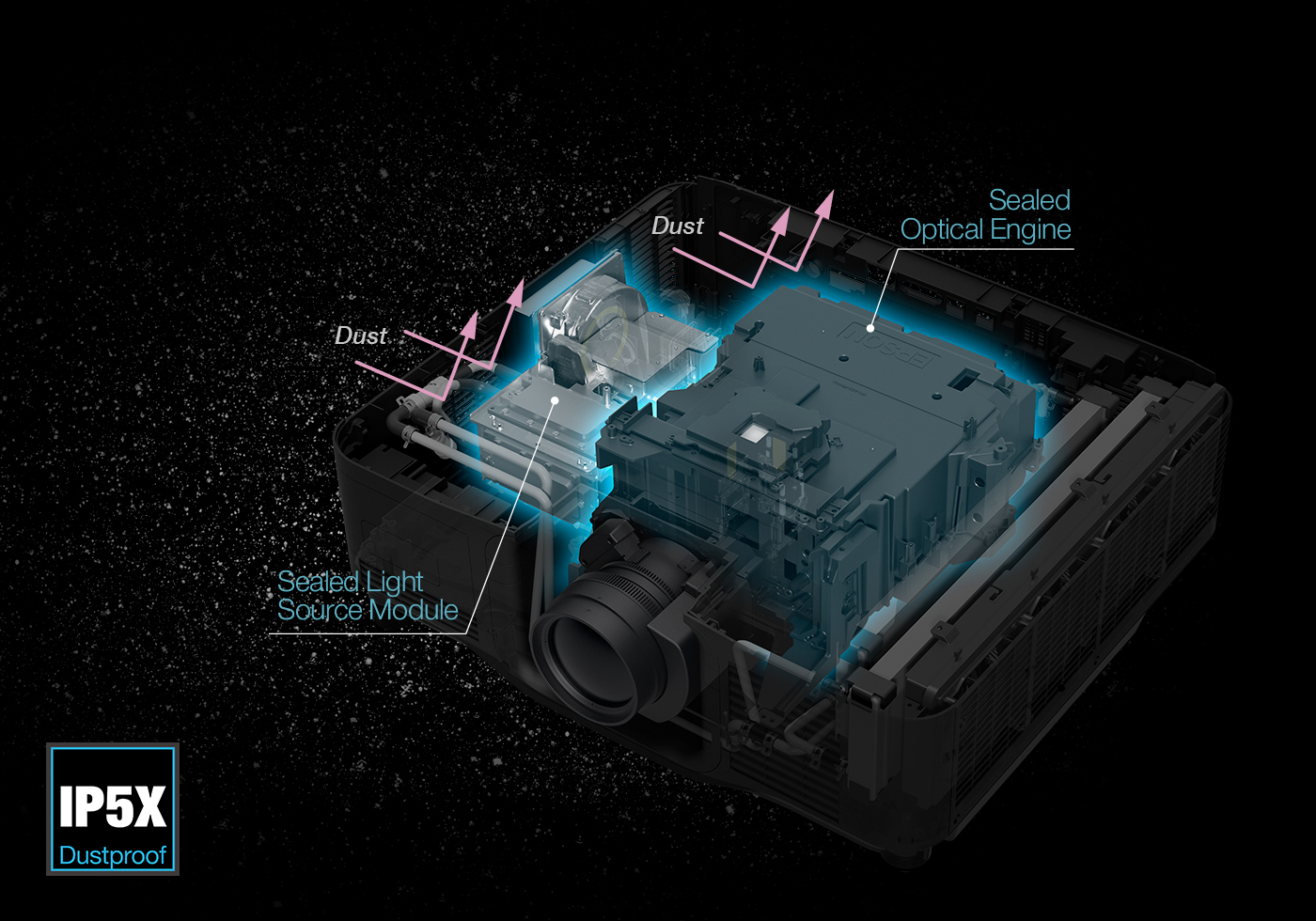

Engineered for reliability
Hermetically sealed IP5X certified optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation.

Epson Projector Config Tool for Easy Set Up
Using NFC wireless communications technology to change projector settings and check equipment information, the Epson Projector Config Tool is an app that allows you to configure network and projection settings in advance, even when the projector is switched off. Allowing management across your fleet of projectors, this tool helps to reduce time and effort required, increasing efficiency.

Specification
White Light Output (Normal/Eco)16,000 lm / 11,200 lm
Colour Light Output16,000 lm
Light Output (Center)16,900 lm
ContrastOver 2,500,000:1
Light SourceLaser Diode
Laser Life20,000 hours (Normal) / 30,000 hours (Extended)
Zoom : Wide60” – 1,000” [1.99 – 34.43 m]
Zoom : Tele60” – 1,000” [3.26 – 55.63 m]
ResolutionWUXGA (Support 4K Enhancement)
Lens ShiftVertical: ±60% (Powered)
Horizontal: ±18% (Powered)
Dimension Excluding Feet (W x H x D)492 x 586 x 185 mm
WeightApprox. 24.2kg
Fan Noise: Normal / Quiet38dB / 34dB
NetworkWired LAN: RJ45 x 1 (100Mbps)
Optional Wireless: ELPAP11
Analog InputD-Sub 15Pin: 1 (Blue)
Digital InputDVI-D: 1 (HDCP 1.4)
HDMI: 1 (HDCP 2.3)
BNC (SD/HD/3G-SDI): 1
HDBaseT (RX): 1 (HDCP 2.3)
Audio OutputStereo Mini Jack: 1
Control I/ORS-232C: 1 (D-Sub 9pin)
Remote: 1 (Stereo Mini)
OthersUSB Type A: 2 (For ELPEC01, Firmware Update, Copy OSD settings or 5V/2A power supply, Content Playback, Wireless LAN)
USB Type B: 1 (For service)
