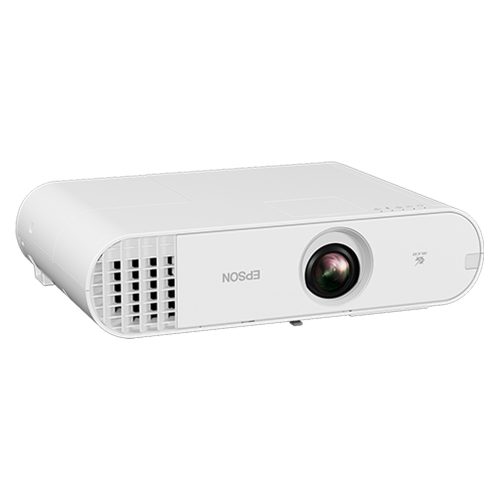

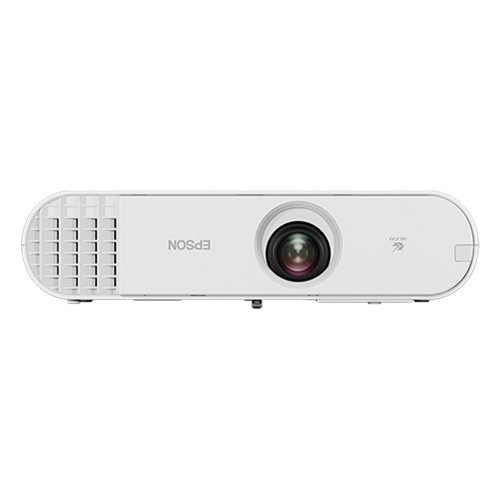

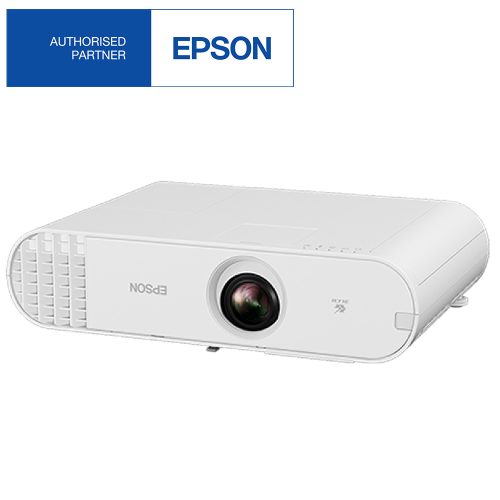

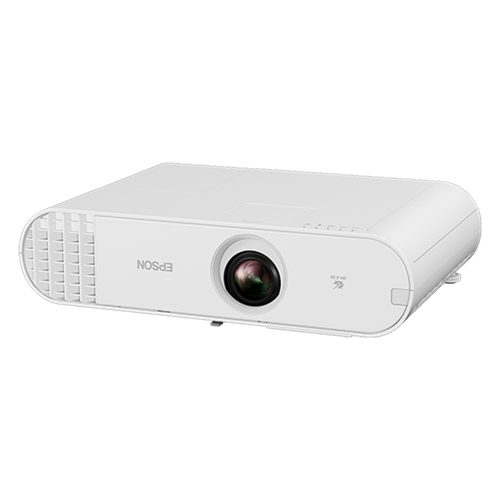

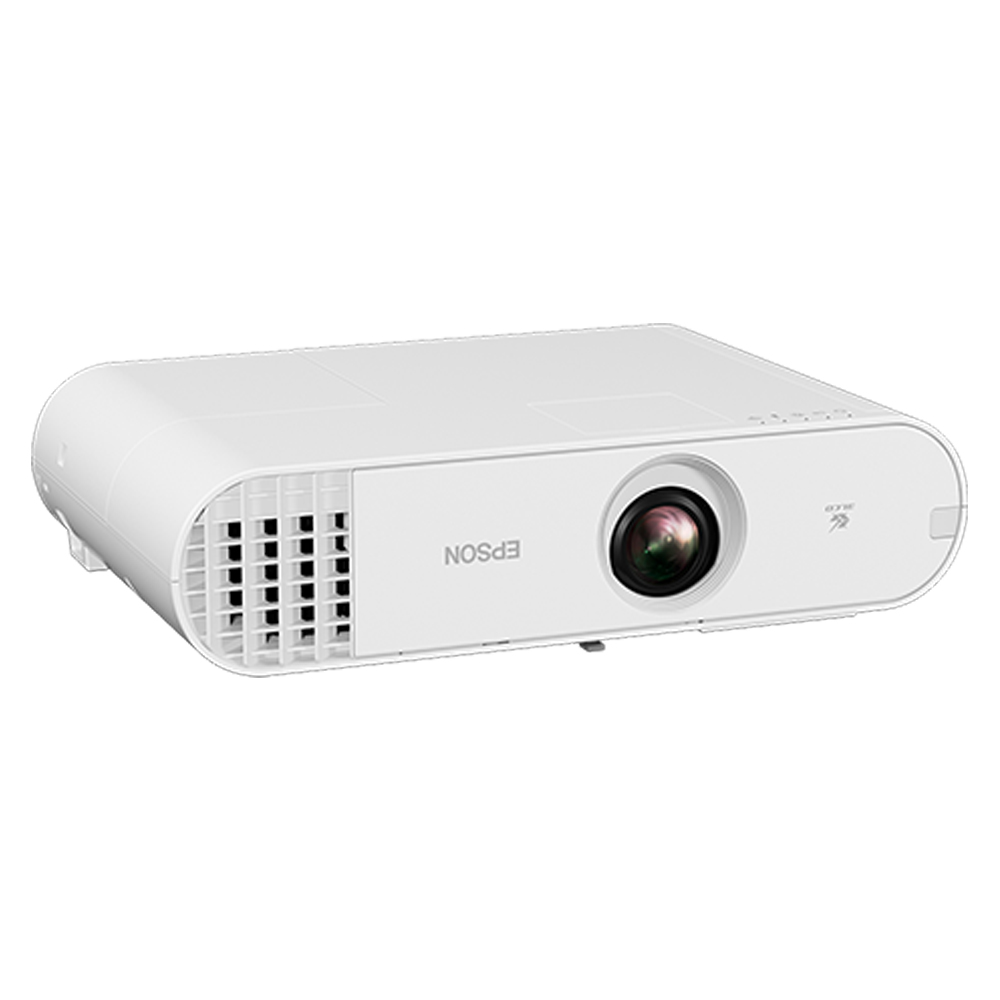

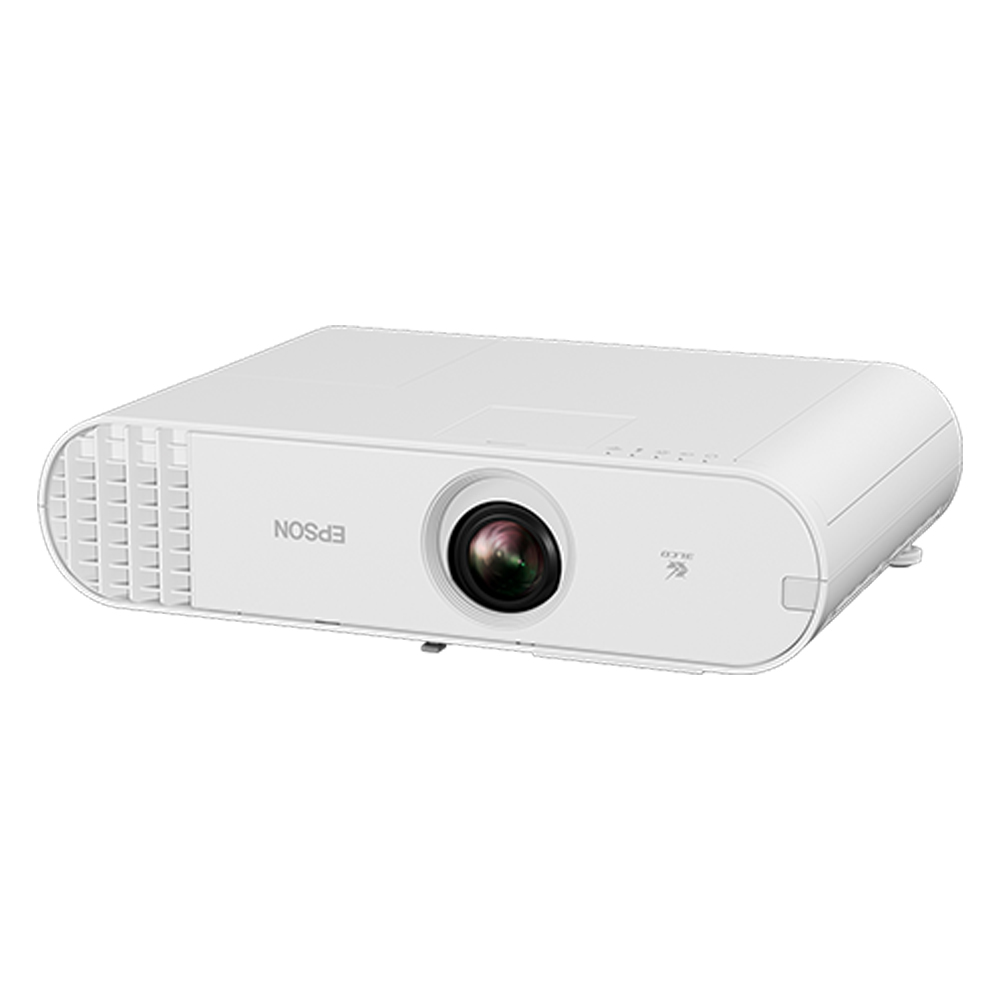

Epson EB-U50 WUXGA 3LCD Projector

Weaving Mesmerising Stories Through Projections.

Redefine retail digital solutions with vivid images and enhance the customer experience with Epson’s EB-U50 projector. With advanced network security and the ability to content share on multiple devices simultaneously, these highly affordable projectors are the best projector for retail, corporate, and educational usage.

Description

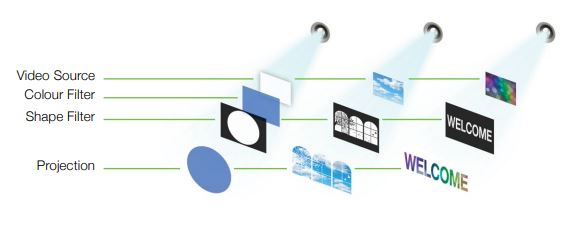

Enhancing visuals with overlay effects
Give your images a personalised touch with customisations such as colour and shape filters. Deliver a diverse range of visual effects that best suit your needs.
Epson

Advance networking security
Utilising enterprise-level security connectivity via wireless networking, the Epson EB-U50 projector safeguards the simultaneous content sharing experience, making it the perfect choice for sharing confidential contents during meetings.
Epson

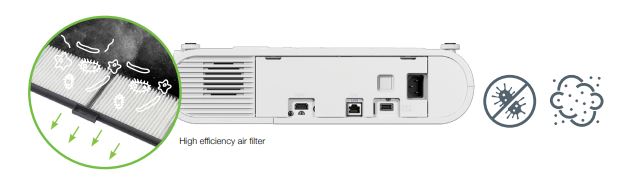

Advanced dust prevention
The Epson EB-U50 projector is highly protected against dust and intrusion, enhancing its durability and resistance, with the advanced filter design and a dust-proof structure housing. The filter compartment, combined with an electrostatic charge, will effectively traps dust and chalk particles before they can enter the projector. This helps to ensure that the air circulating inside the projector is clean, allowing a longer lasting optical compartment. The filters are designed so that they can be easily and quickly changed by you.
Epson
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.67”
Native ResolutionWUXGA (1920 x 1200)
LightsourceType200W UHE
Life (Normal / Eco)10,000 / 17,000 hours
Aspect Ratio16:10
Projection Lens (Using Optional ELPLM15)TypeOptical Zoom (Manual) / Focus (Manual)
F-Number1.50 – 1.71
Focal Length20.42 – 24.50 mm
Zoom Ratio1 – 1.2
Throw Ratio1.38 – 1.68 (Wide to Tele)
Screen Size (Projected Distance)StandardTele: 30” to 300” [0.87 to 9.02 m]
Wide: 30” to 300” [1.07 to 10.98 m]
White Light Output (Normal / Extended)3,700 lm
Colour Light Output3,700 lm
Contrast Ratio16,000:1
Vertical / Horizontal Keystone±30° / ±30° (Auto Vertical Keystone only)
Quick CornerYes
ArcNA
Curve SurfaceNA
Point CorrectionNA
Corner WallNA
Geometry Correction MemoryNA

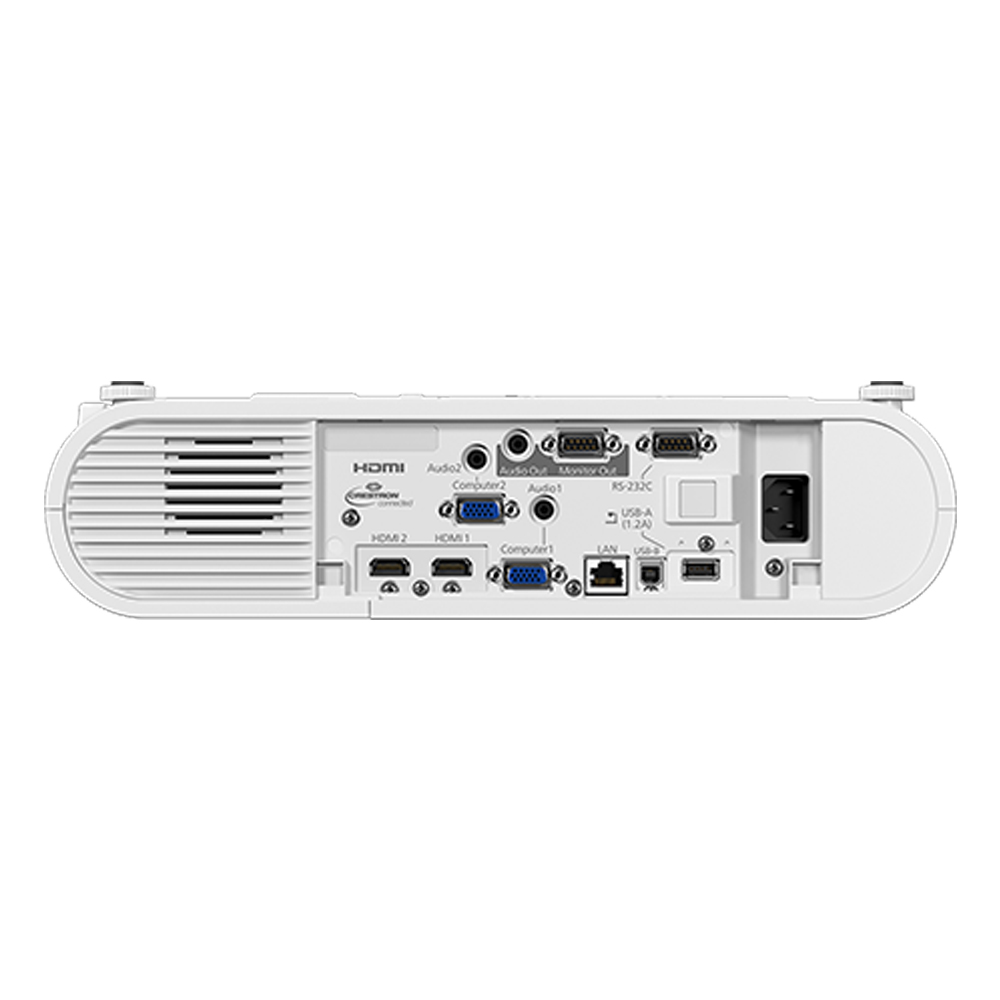

Analog InputD-Sub 15Pin2
5BNCNA
Digital InputDVI-DNA
HDMI2
SDINA
HDBaseTNA
Output TerminalD-Sub 15Pin1
Audio InputStereo Mini Jack2
Audio OutputStereo Mini Jack1
OthersUSB Type A1 (for USB Memory, USB Document Camera, Wirelss LAN unit, Firmware Update)
USB Type B1 (for USB Display, Control, Firmware Update)
Control I/ORS-232CD-Sub 9pin x 1
Remote Control InputNA
NetworkWired LANRJ45 x 1
WirelessBuilt-In
Supported Speed For Each ModeIEEE 802.11b (2.4GHz): 11 Mbps^{*2}
IEEE 802.11g (2.4GHz): 54 Mbps^{*2}
IEEE 802.11n (2.4GHz): 130.0 Mbps^{*2}
Wireless LAN SecurityQuick Mode: OPEN, WPA2-PSK
Operating Temperature (Base on low altitude5 – 40 °C <41 - 104 °F>
[When environment temperature becomes high, the brightness becomes dark automatically
Operating Altitude0 – 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)
Direct Power On / OffYes
Start-Up PeriodUp to 6 seconds, Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterTypeHigh Efficiency Filter
Maintenance Cycle (Normal / Eco)10,000 / 20,000 hours^{*3}
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Lamp (Normal / Extended)285W / 218W
Standby (Network / Energy Saving)2.0W / 0.3 W
Dimension Excluding Feet (D X W X H)248 x 364 x 87 mm
Weight (Including Standard Lens)Approx. 3.1 kg
Fan Noise (Normal / Quiet)37dB / 28dB
