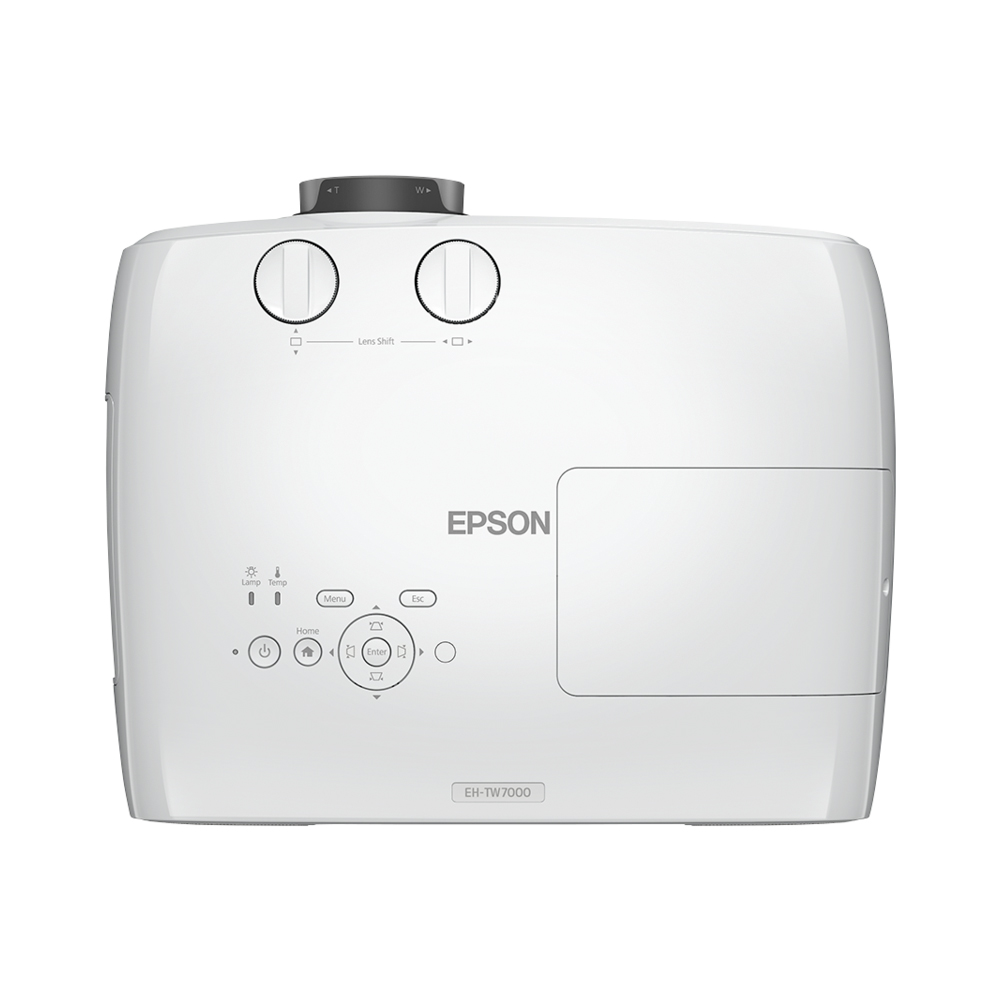

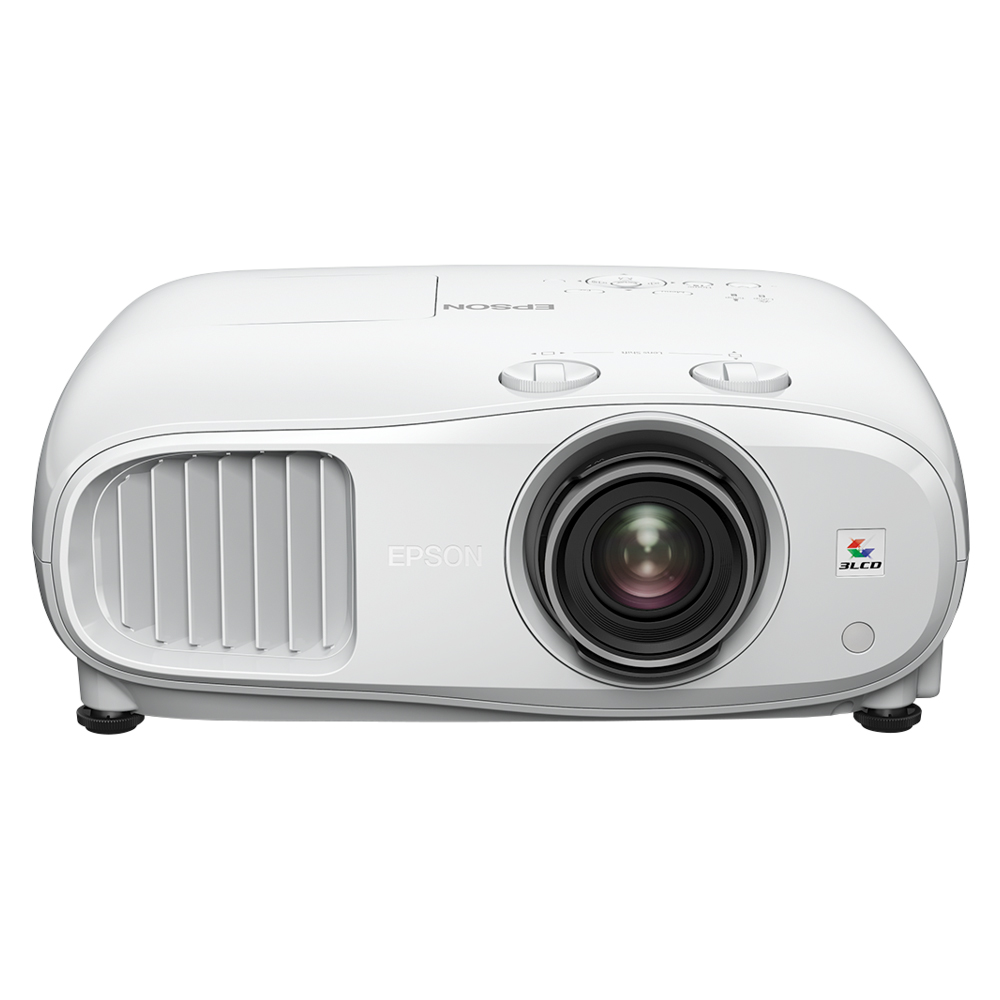

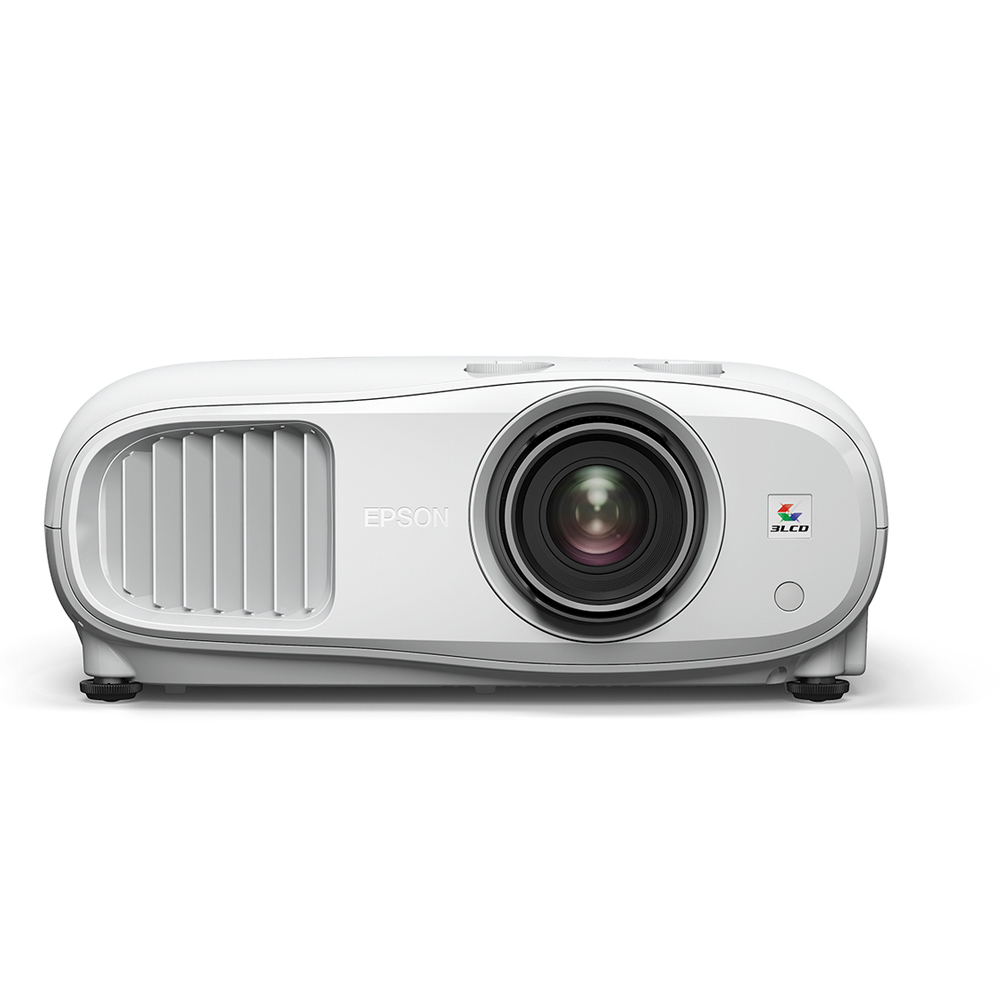

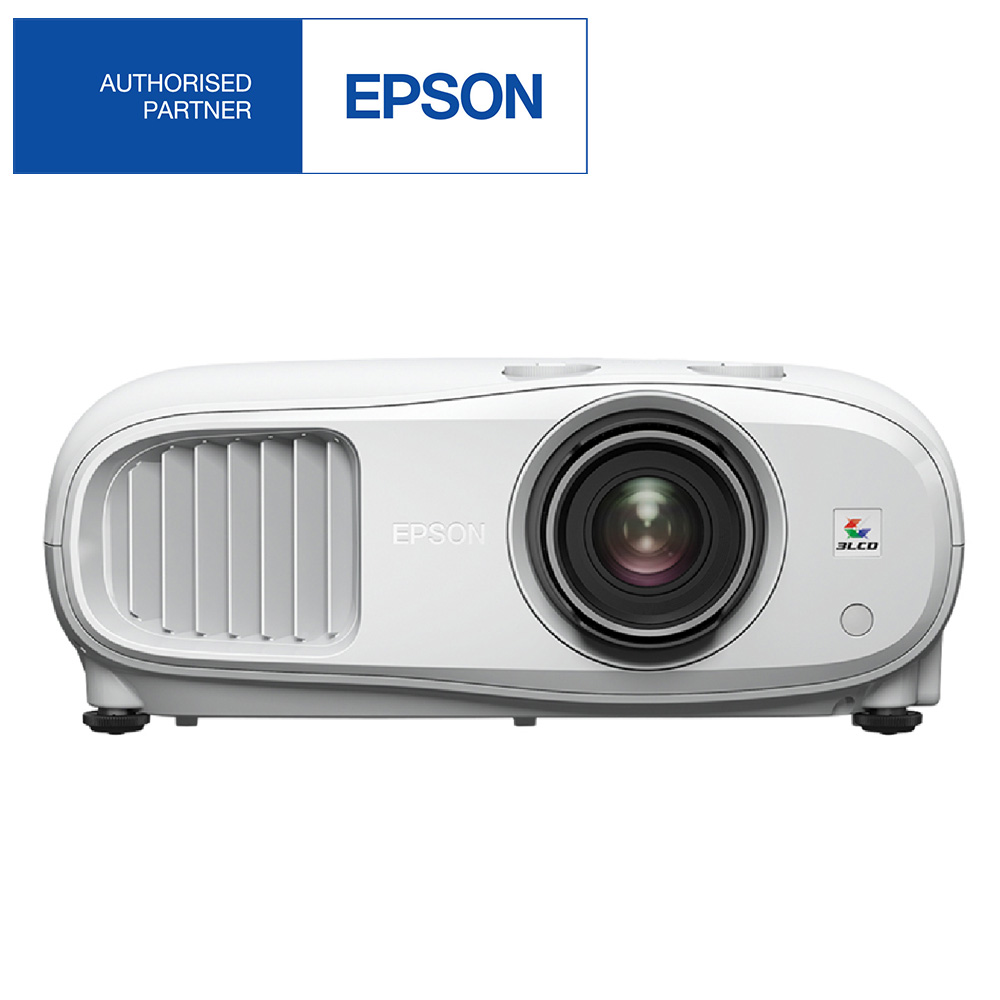

Epson EH-TW7000 Home Theatre Projector 4K PRO-UHD 3LCD

Epson EH-TW7000 Home Theatre Projector 4K PRO-UHD 3LCD

Projecting every detailed moment

Level up your home entertainment experience with EH-TW7000. With equal colour and white brightness of 3,000 lumens and 4K PRO-UHD1 technology, enjoying crisp and clear images is now made possible, right in the comfort of your home.

  • White Light Output (Normal/Eco): 3,000 lm / 2,000 lm
  • Colour Light Output:3,000 lm
Categories: , , Tags: ,

Description

Product Brochure

Remarkable Colour Expression

With 3LCD technology, EH-TW7000 is able to achieve a 100% balanced colour and white brightness of 3,000 lumens to deliver a vibrant and rich colour projection, with no rainbow effects.

Brilliant Brightness. Crisp Colour. Dramatic Detail.

Revolutionise the way you experience projections with Epson’s 4K PRO-UHD. With the delivery of well-defined, brighter and vibrant images that are projected to the last detail, you will be captivated by the dramatic breakthrough in quality and enjoy a truly reel-life cinematic adventure.

Lens Shift & 1.6 Zoom Lens

Wide range of placement possibility with a broad vertical shift ranging between 60% and 24% horizontally. With the in-built 1.6x zoom lens, you can place the projector from 295cm to 478cm away from the screen, to achieve a 100-inch screen size.

Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.61” wide panel (C2 Fine, 10 Bit)
Native Resolution1080p
LightsourceTypeLamp: 250W UHE
LifeHigh: 3,500 / Medium: 4,000 / Eco: 5,000 hours
Projection Lens TypeOptical Zoom (Manual) / Focus (Manual)
F-Number1.49 – 1.77
Focal Length18.2 – 29.2 mm
Zoom Ratio1 – 1.62
Throw Ratio1.32 – 2.15
Zoom: Wide40” to 500” [1.16 to 14.87 m]
Zoom: Tele40” to 500” [1.89 to 24.01 m]
Standard Size100” screen 2.95 to 4.77 m
Colour Light Output3,000 lm
White Light Output (Normal / Eco)3,000 lm / 2,000 lm
Contrast Ratio40,000:1
Vertical / Horizontal Keystone±30° / ±30°
4K EnhancementYes (On/Off)
Picture In PictureN/A
Aspect Mode Yes (Auto / Normal / Full / Zoom)
Frame InterpolationOff / Low / Normal / High (2D and 3D Mode)
Image Preset Mode Yes
MPEG Noise Reduction Yes
Super Resolution Yes
Detail Enhancement Yes
3D Display Yes
2D – 3D Conversion N/A
3D FormatSide by Side / Top and Bottom
3D Depth-10 to +10
Analog InputD-Sub 15PinN/A
5BNCN/A
Digital InputDVI-DN/A
HDMI2 (HDCP 2.2)
Output TerminalD-Sub 15PinN/A
Audio InputStereo Mini JackN/A
Audio OutputStereo Mini Jack1
OthersUSB Type A 2
(Port1: Wireless LAN, Firmware Update, Copy OSD Settings)
(Port 2: For Streaming Media Player with 2,000 mA Power Supply)
USB Type Mini-B1 (For Firmware Update)
Control I/ORS-232CN/A
Remote Control InputN/A
NetworkWired LANN/A
WirelessOptional (ELPAP10)
Supported Connection ModeInfrastructure, Access Point
Supported Speed For Each ModeIEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 130.0 Mbps*3
Wireless LAN SecurityQuick Mode: WPA2-PSK
Advanced Mode: WPA/WPA2-PSK
Operating Temperature5 – 35 °C <41 - 95 °F> (0m / 0ft – 2,286m / 7,500ft)
5 – 30 °C <41 - 86 °F> (Over 2,286m / 7,500ft)
(20% – 80% Humidity, No Condensation)
Operating Altitude0 m to 3,048 m <0 ft to 10,000 ft>
Direct Power On / OffYes / N/A
Start-Up Period#colspan# Up to 19 seconds, Warm-up Period: 30 seconds
Cool Down PeriodUp to 7 seconds
Power Supply Voltage100 – 240 V AC ±10%, 50/60 Hz
Power Consumption (220 – 240V)Lamp (Normal / Eco)368W / 280W
Standby (Network On / Off2.0W (Optional Wireless LAN) / 0.5 W
Dimension Excluding Feet (D X W X H) 310 x 410 x 157 mm
Weight Approx. 6.6 kg
Fan Noise (Normal / Eco) 35dB / 24dB
