JBL 4312G

JBL 4312G

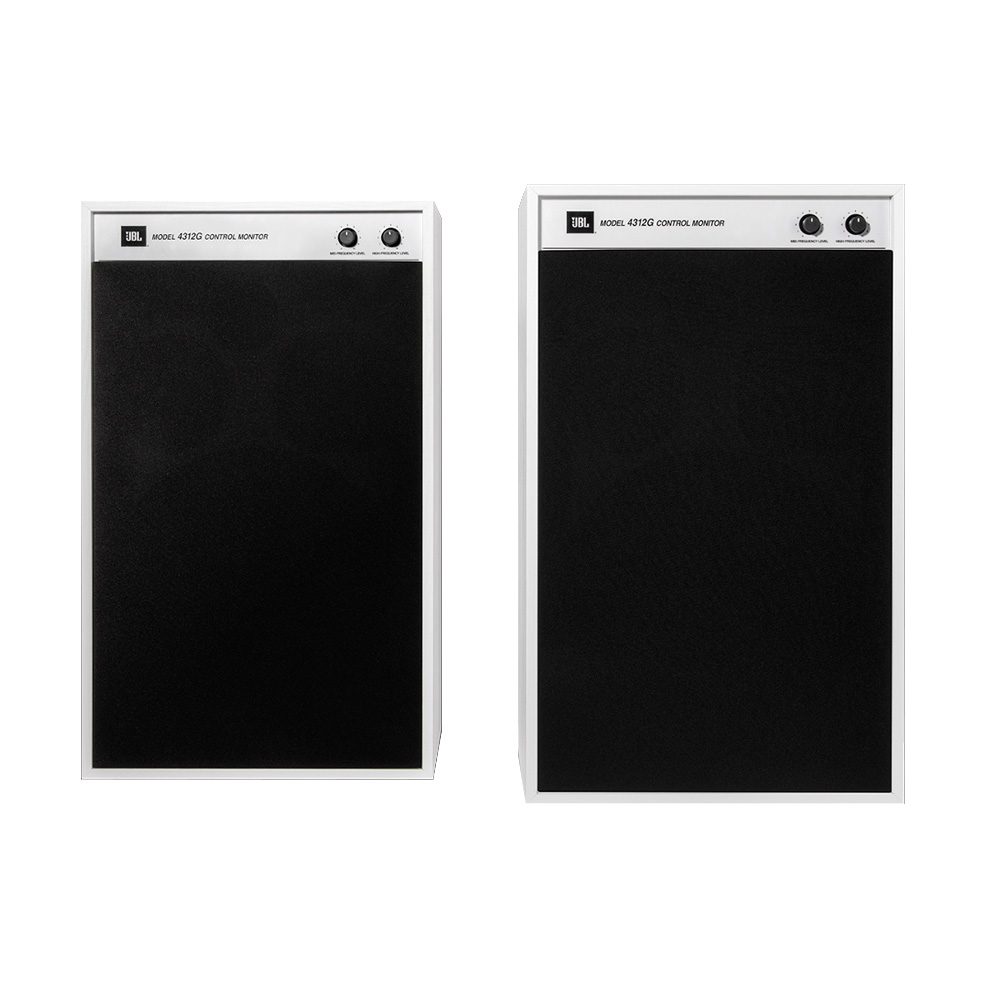

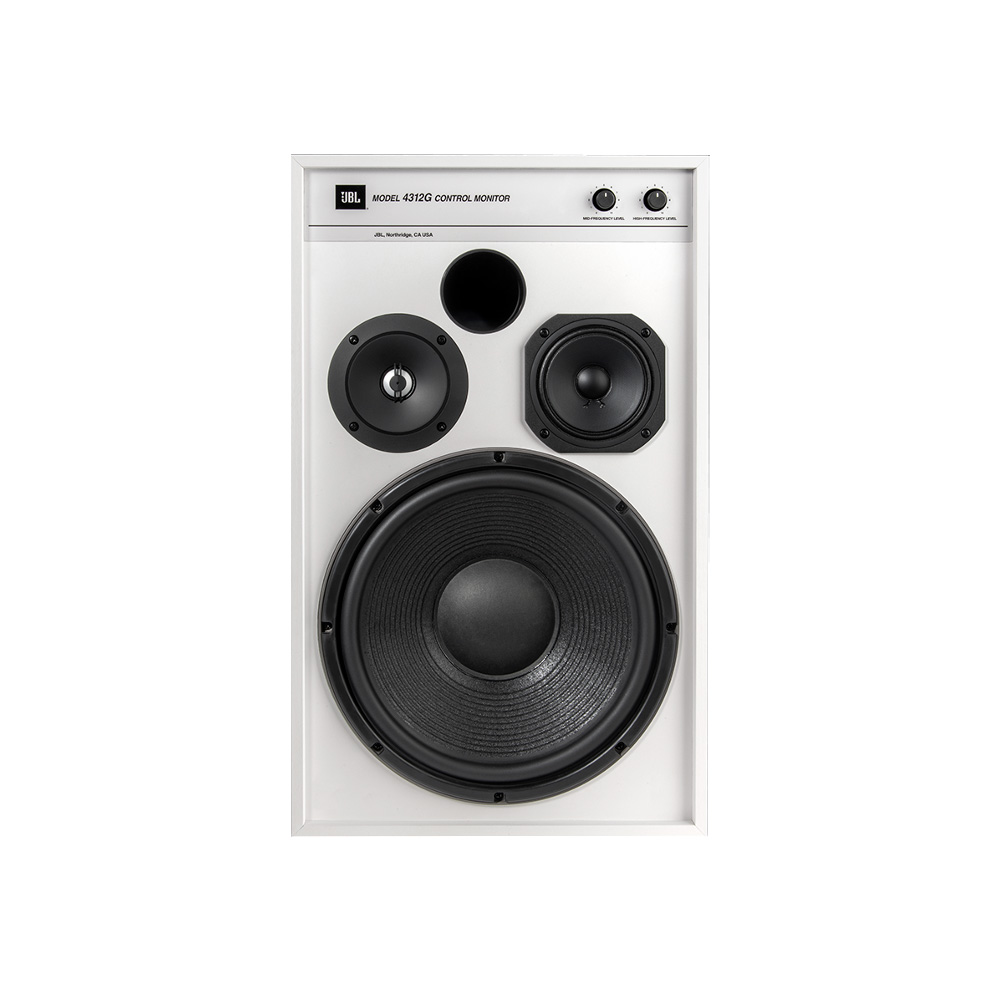

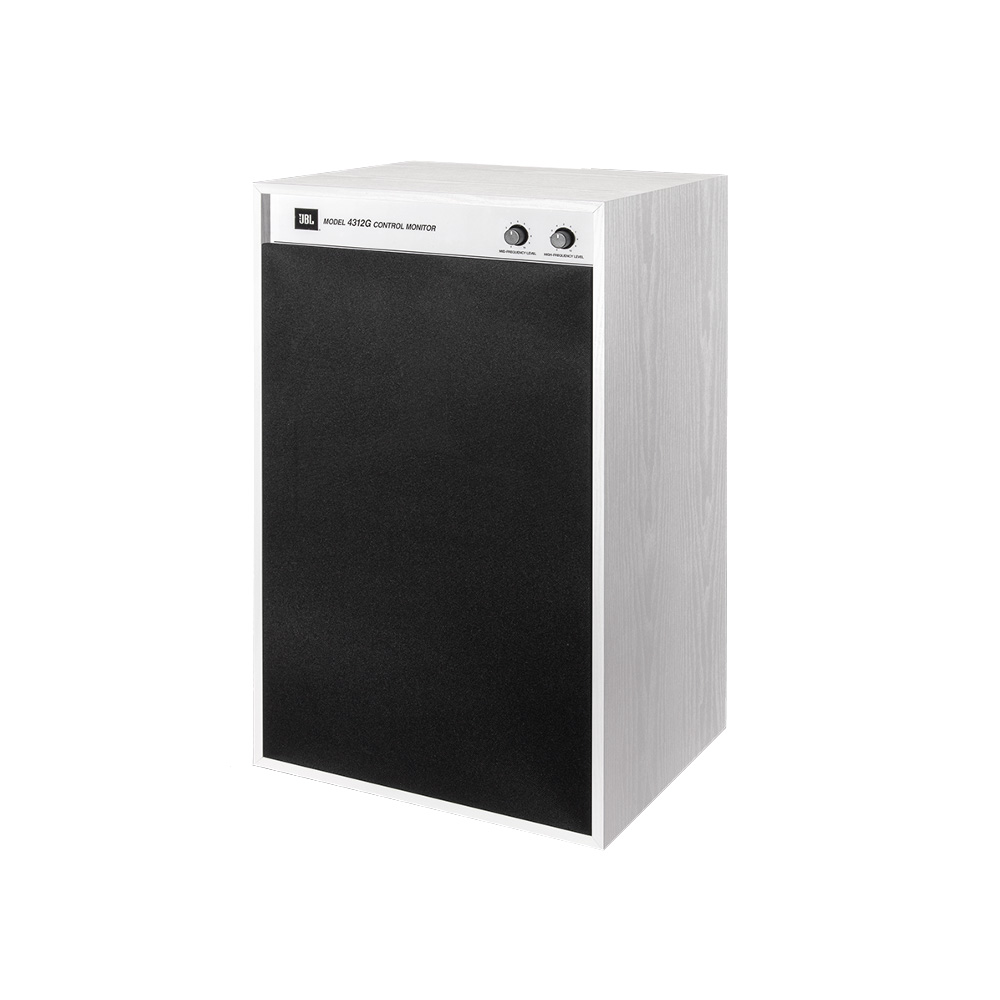

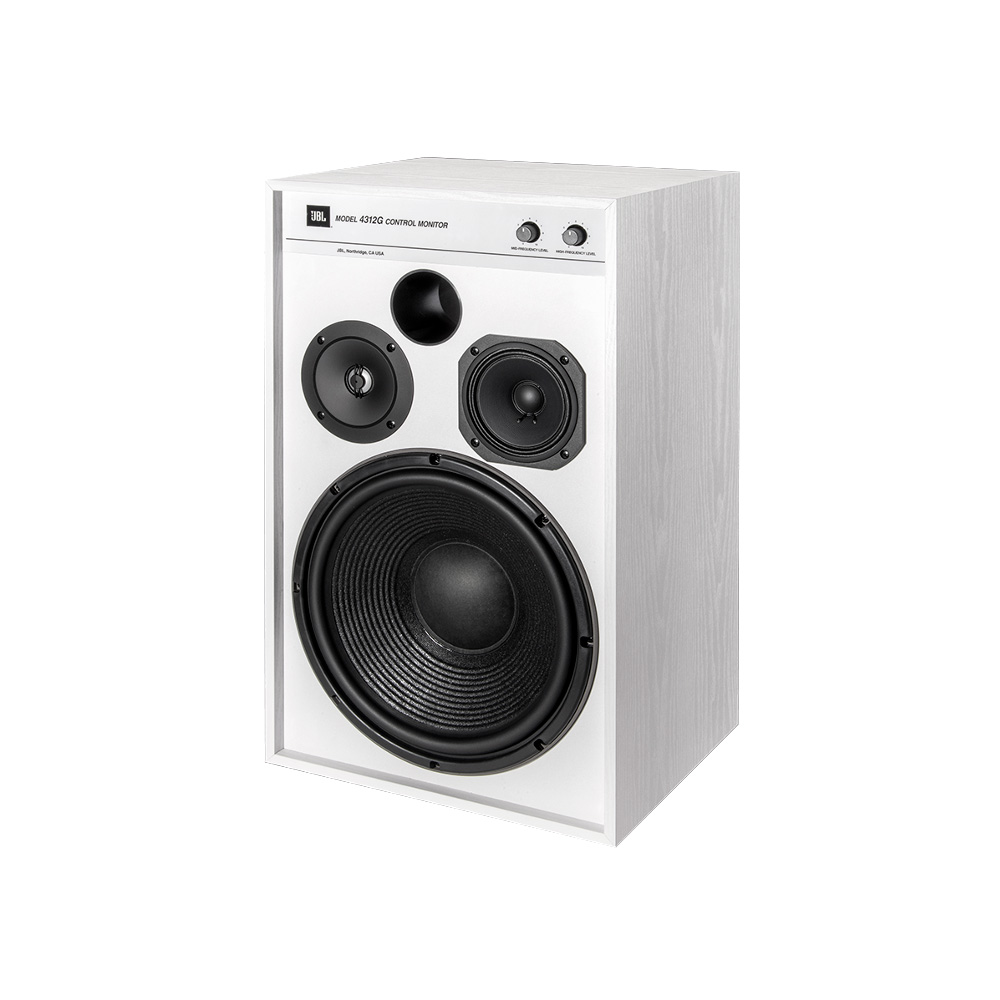

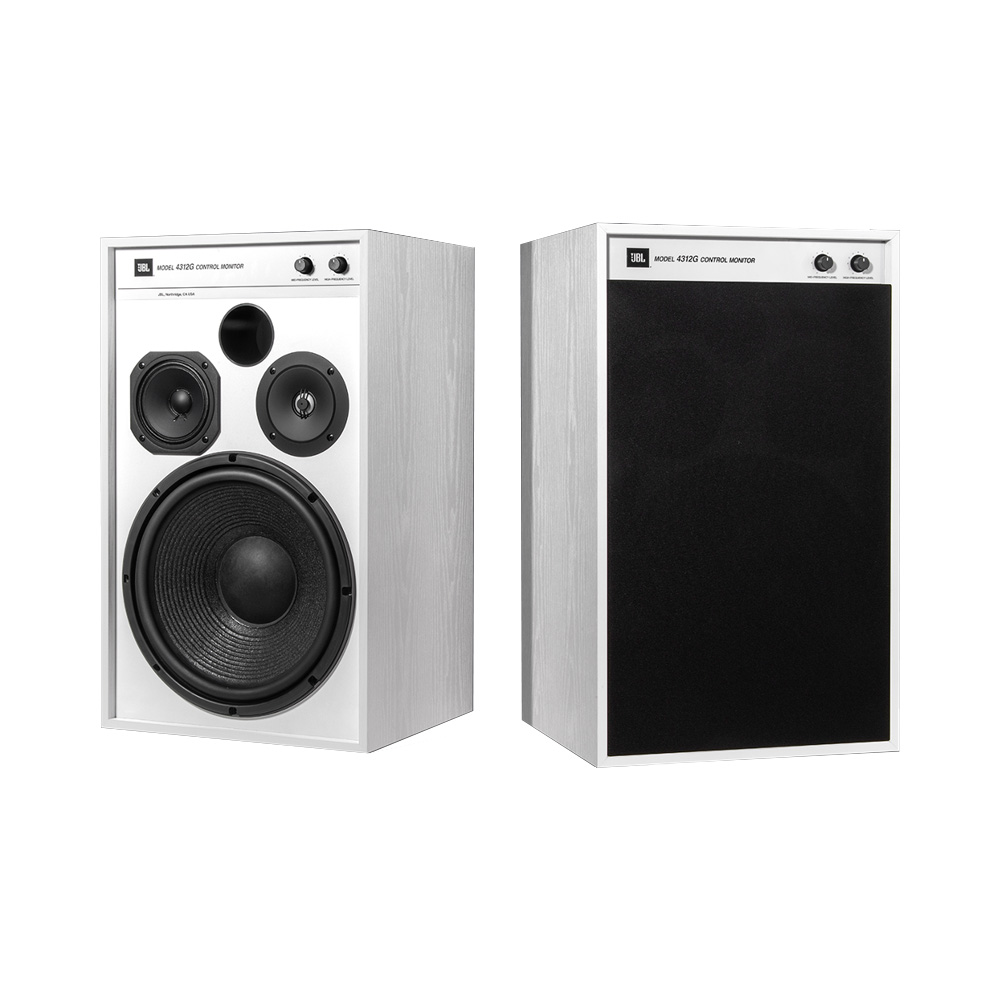

The JBL 4312G is a 3-way, high-performance compact studio monitor in the iconic JBL configuration dating back to 1968. The latest in line of top-notch bookshelf speakers inspired by the legendary Model 4310 Control Monitor, the 4312G delivers thundering bass, with dynamic and clear highs for a thoroughly enjoyable audio experience.

Categories: , ,

Description

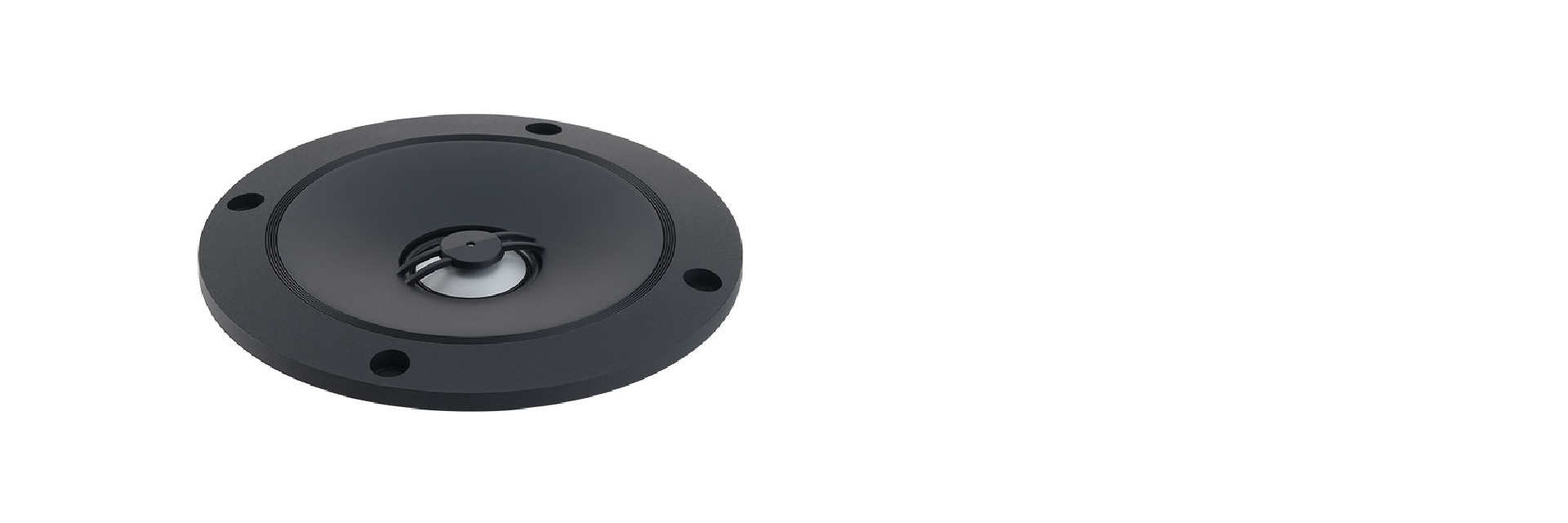

1-inch Magnesium-Aluminum alloy dome tweeter mated to acoustic lens waveguide.

1-inch Magnesium-Aluminum alloy dome tweeter mated to acoustic lens waveguide.

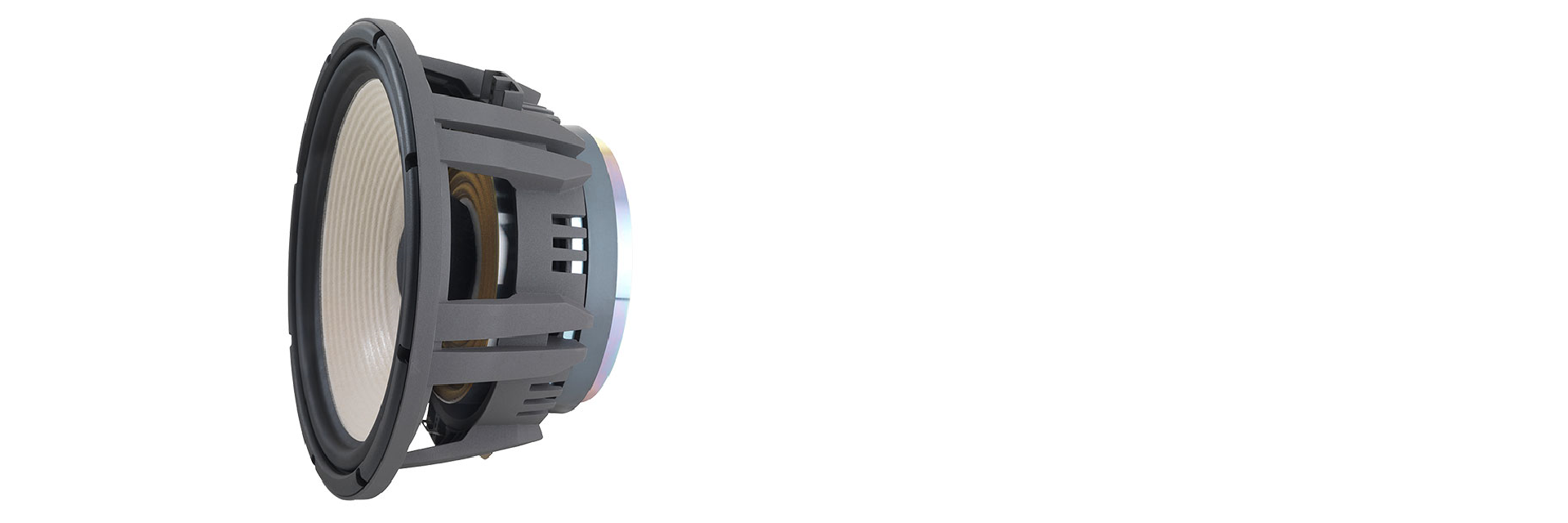

12-inch (300mm) cast-frame, white pure-pulp cone woofer with front-firing tuned port.

12-inch (300mm) cast-frame, white pure-pulp cone woofer with front-firing tuned port.

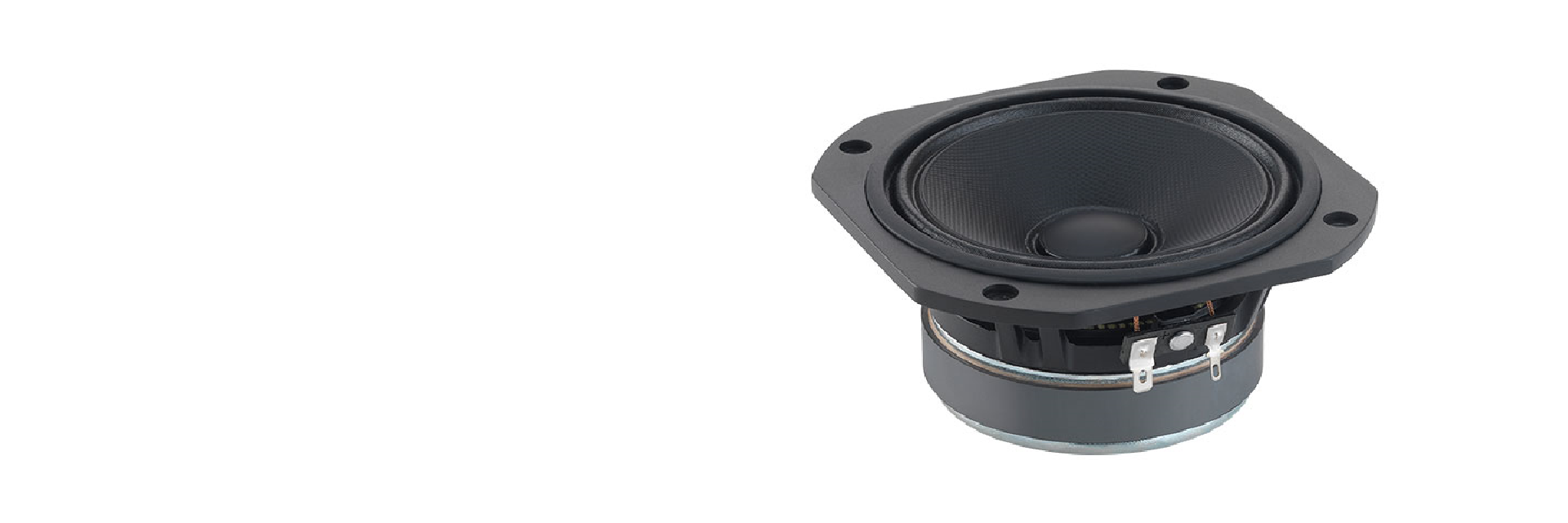

5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.

5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.

General Specifications
Low Frequency Transducer300mm (12″) pure pulp cone woofer
Mid Frequency Transducer125mm (5″) polymer-coated pure pulp cone
High Frequency Transducer25mm (1″) Magnesium/Aluminum allow dome tweeter with waveguide
Recommended Amplifier Power10~200W RMS
Frequency Response(-6dB) 44Hz~40kHz
Sensitivity(2.83V@1m) 90dB
Nominal Impedance6 Ohm
Crossover Frequencies640Hz, 5kHz
Enclosure TypeBass-reflex via front-firing port

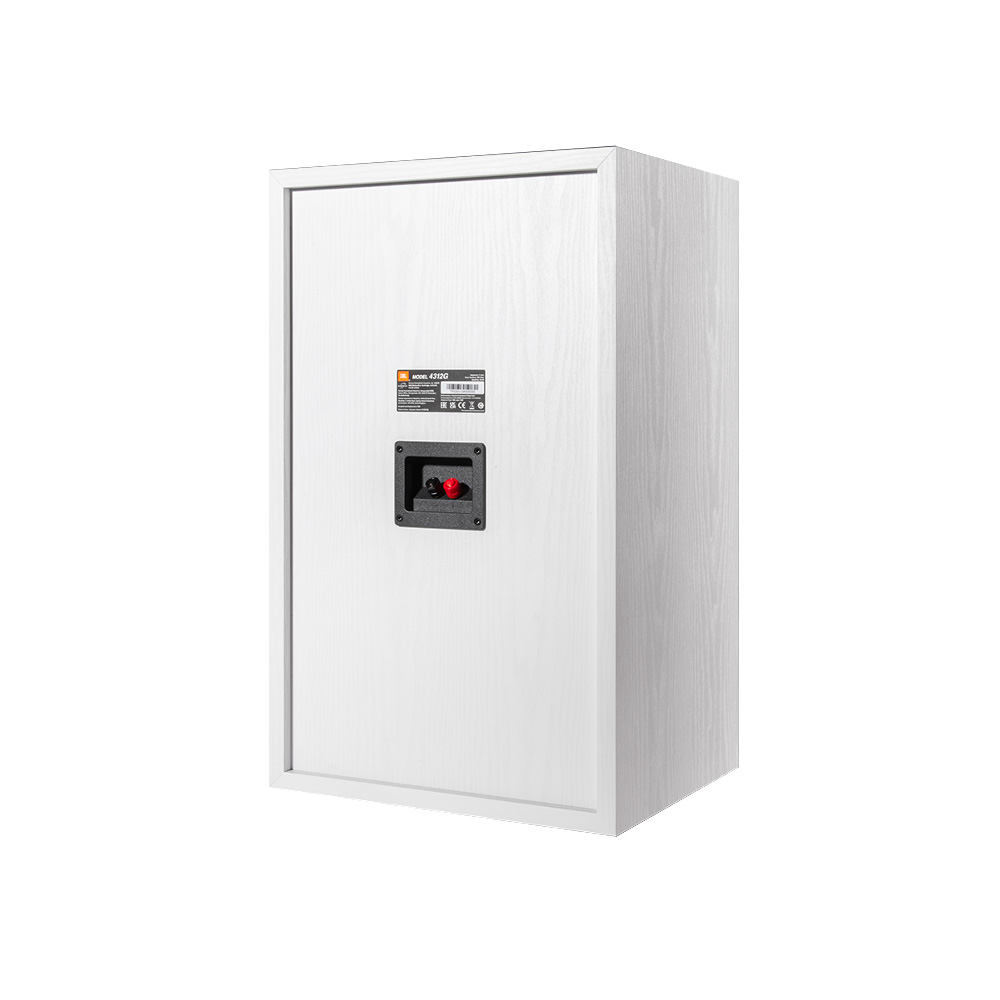

Inputs5-way Binding Posts
FinishesWhite Woodgrain with Black Cloth Grille
Dimensions (Wx H x D)362 x 597 x 305mm
(14.25″ x 23.5″ x 12″)
Weight23.8kg (52.4 lbs) each
