| General Specifications |
| 5.1.4 channel | Yes |
| Power supply | 100 – 240VAC, -50/60Hz |
| Battery charge time | 3 hours |
| Total speaker power output (Max. @THD 1%) | 820 W |
| Main Soundbar output power (Max. @ THD 1%) | 400 |
| Surround speakers output power (Max. @THD 1%); 2 x 60W | Yes |
| Subwoofer output power (Max. @THD 1%); 300 | Yes |
| Soundbar transducer |
4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter |
| Surround transducer (per piece) | up-firing full-range + 0.75″ (20mm) tweeter |
| Subwoofer transducer | 10″ |
| Operating temperature | 0°C – 45°C |
| Standby for Soundbar (when all wireless connections are deactivated) | < 0.5W |
| Networked standby (Soundbar) | < 6.0W |
| Networked standby (Subwoofer) | < 2.0W) |
| Time to standby | < 10 minutes |
| This equipment complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. The Soundbar unit is considered as networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality) as it provides wireless network access point for two wireless Surround speakers and one wireless Subwoofer. | Yes |
| Audio Specifications |
| HDMI In | 1 |
| HDMI eARC | 1 |
| HDMI HDCP version | 2.3 |
| 103dB | Yes |
| 34Hz~20KHz | Yes |
| 1 Optical, Bluetooth, Chromecast, AirPlay2, USB | Yes |
| Dimensions |

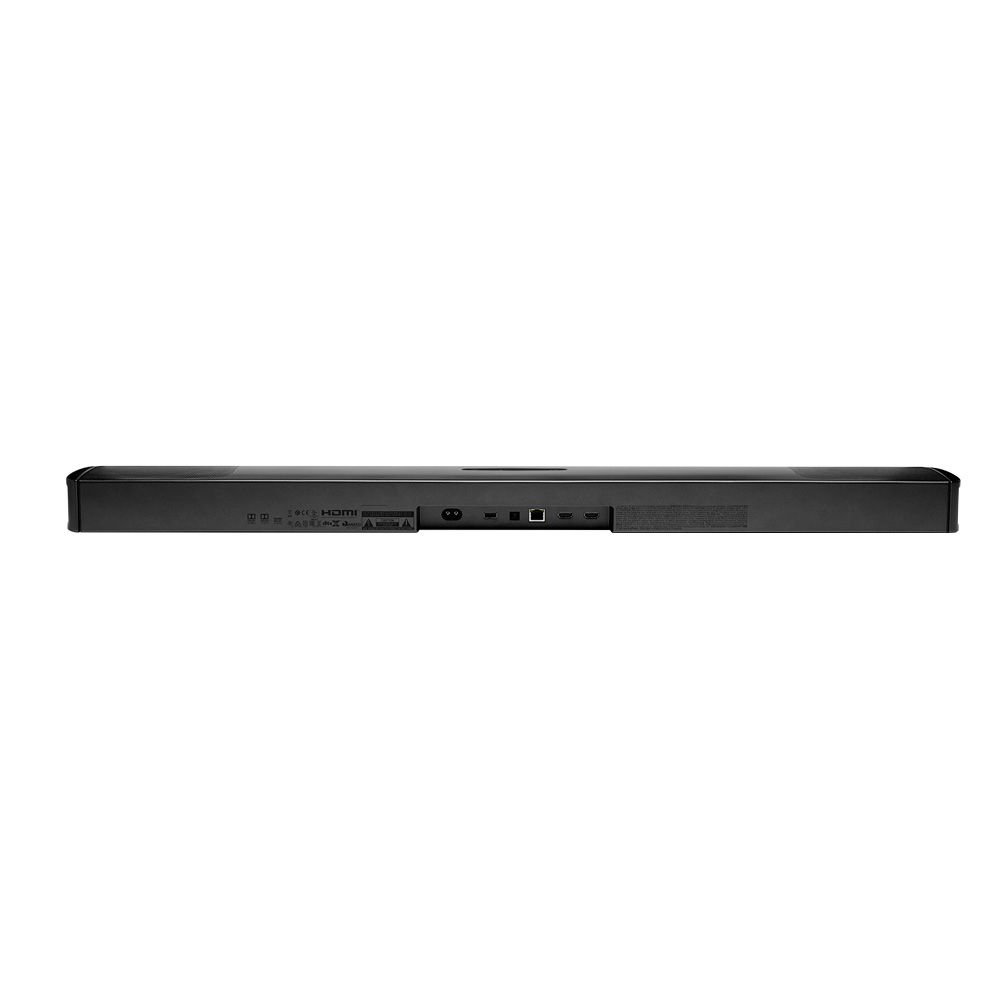

| Soundbar dimensions (WxHxD) | 884 x 62 x 120 (mm) / 34.8” x 2.4” x 4.7” |

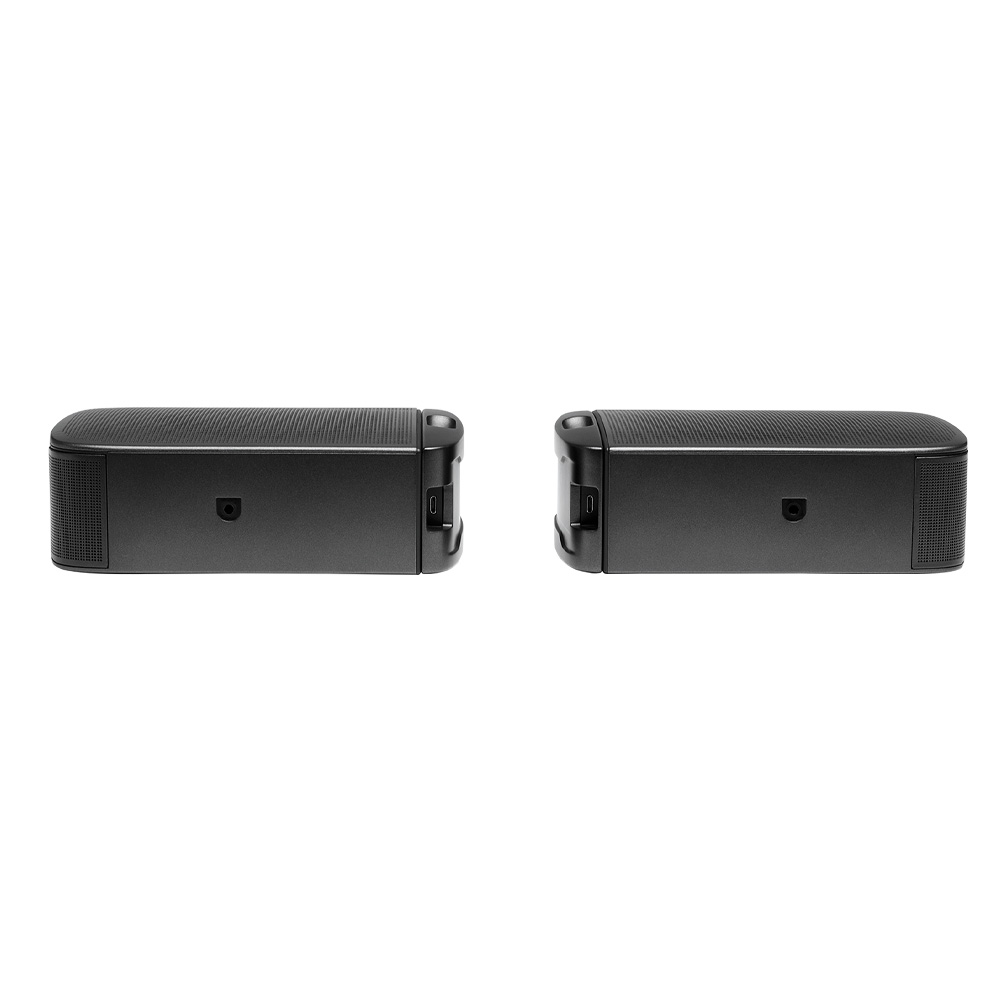

| Detachable surround speaker, per piece | 173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7” |
| Subwoofer dimensions (WxHxD) | 305 x 440 x 305(mm) / 12.0″ x 17.3″ x 12.0″ |
| Soundbar weight | 3.64 kg/ 8.0 lb |
| Detachable surround speaker | 0.72 kg x 2/ 1.6 lb x2 |
| Subwoofer weight | 11.10 kg / 24.5 lb |
| Control and Connection Specifications |
| USB port | Type A |
| USB rating | 5V / 500mA |
| Supported file format | MP3 |
| MP3 codec | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
| MP3 sampling rate; 16 KHz – 48 KHz | Yes |
| MP3 bitrate | 80 kbps – 320 kbps |
| USB Port; (USB playback is available in US version. For other versions, USB is for Service only) | Yes |
| Bluetooth version | 4.2 |
| Bluetooth profile | A2DP V1.2/ AVRCP V1.5 |
| Bluetooth frequency range; 2402MHz-2480MHz | Yes |
| Bluetooth Max. transmitting power | 13dbm (EIRP) |
| Modulation Type | GFSK, π/4 DQPSK, 8DPSK |
| Wi-Fi network |
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz) |
| 2.4G Wi-Fi frequency range | 2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
| 2.4G Wi-Fi Max. transmitting power | 20 dBm (EIRP) |
| Modulation Type | DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM |
| 5G Wi-Fi frequency range | 5.15 – 5.35 GHz, 5.470-5.725 GHz, 5.725 – 5.825 GHz |
| Modulation Type | QPSK, BPSK, 16QAM, 64QAM, 256QAM |
| 5G Wireless frequency range | 5180.0 – 5240.0MHz (Except Europe), 5725.0 – 5825.0MHz |
| 5G Max. transmitting power | 13 dBm (EIRP) |
| Modulation Type | QPSK |
