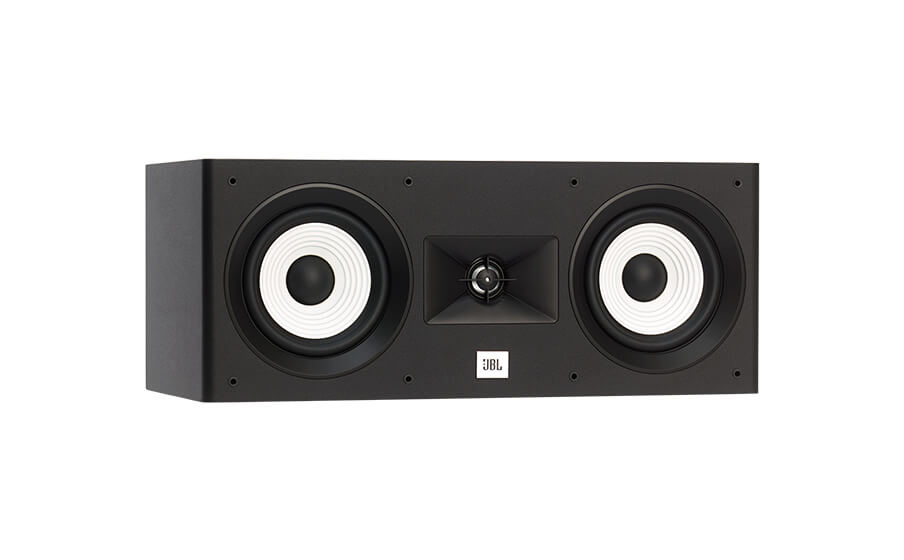

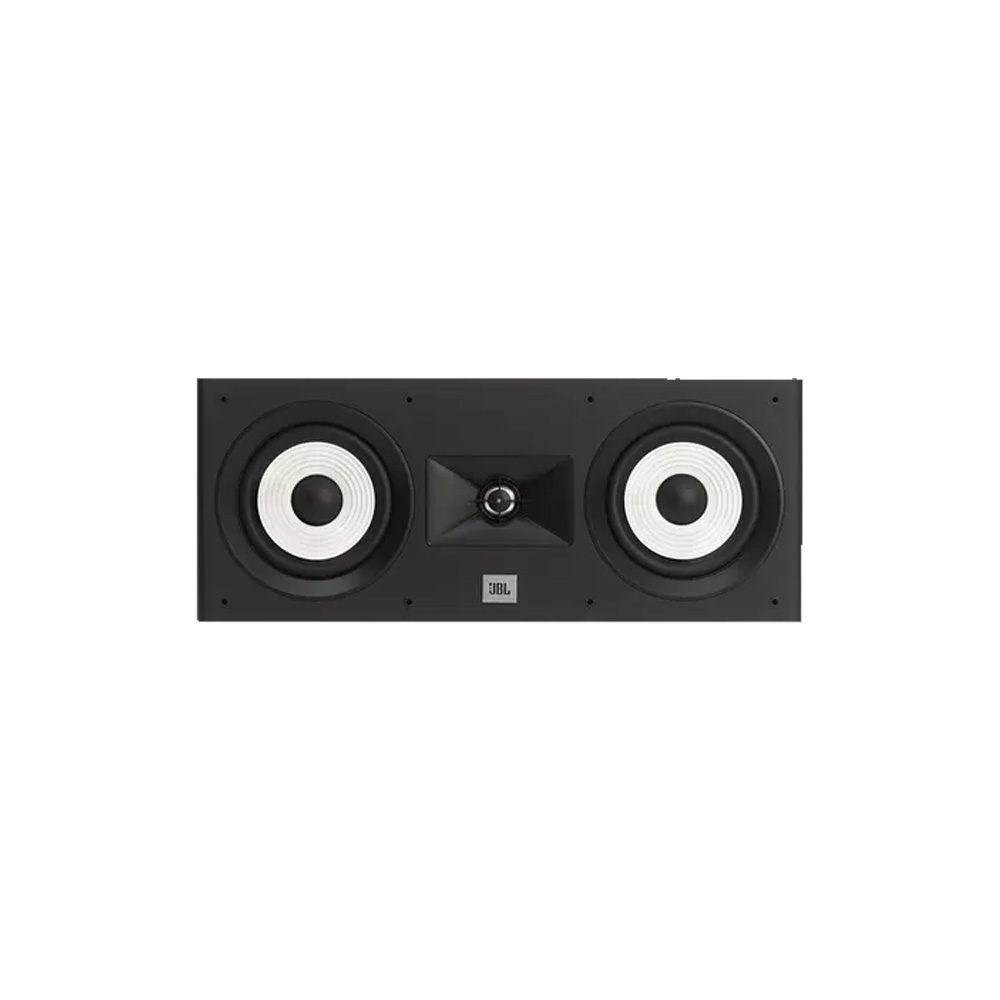

JBL Stage A125C

Dual 5.25-inch (133mm) 2-way Center Channel Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A125C is the 5.25-inch 2-way center channel loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 5.25-inch (133mm) Polycellulose cone woofers for signature JBL bass.

Categories: , ,

Description

 Dual 5.25-inch (133mm) Polycellulose Low-Frequency Woofer

Dual 5.25-inch (133mm) Polycellulose Low-Frequency Woofer

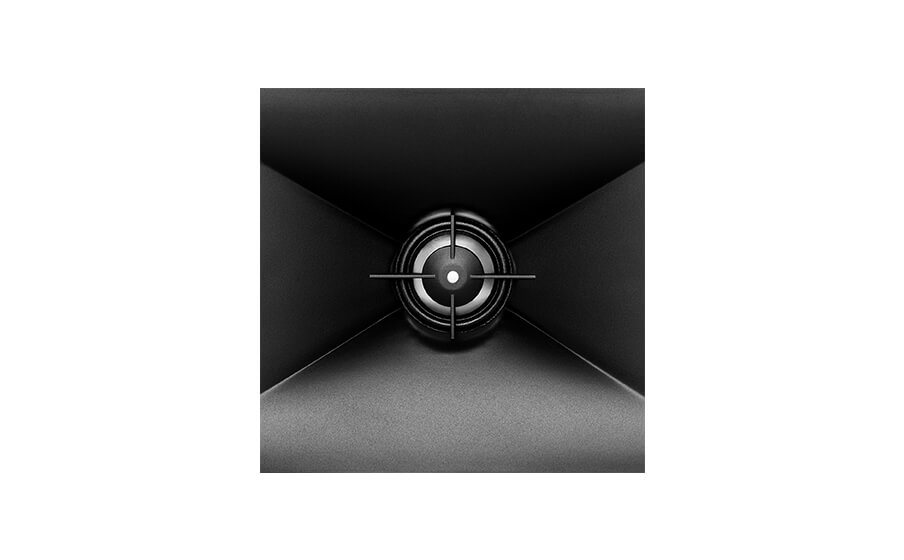

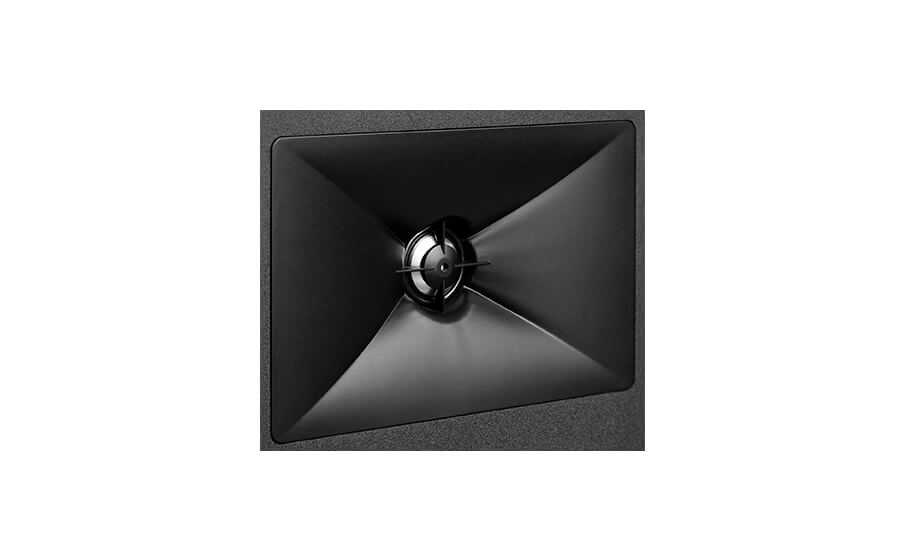

New High Definition Imaging (HDI) Waveguide

New High Definition Imaging (HDI) Waveguide
 1-inch (25mm) Aluminum Dome Tweeter

1-inch (25mm) Aluminum Dome Tweeter


2 way, dual 5.25″ woofer, 1″ aluminum tweeter center loudspeakerYes
Dual 5.25″ (133mm) Polycellulose Low-Frequency Woofer
Yes
New High Definition Imaging (HDI) Waveguide
Yes
1” (25mm) Aluminum Dome Tweeter
Yes
Recommended Amplifier Power
20 – 150W
Frequency Response
75Hz – 40kHz
Sensitivity 88dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
2.6kHz
Enclosure Type
Sealed
Dimensions (W x D x H)
469 x 220 x 190mm
Weight17.53 lbs (7.95kg)
