JBL Stage A130

5.25-inch (133mm) 2-way Bookshelf Loudspeaker

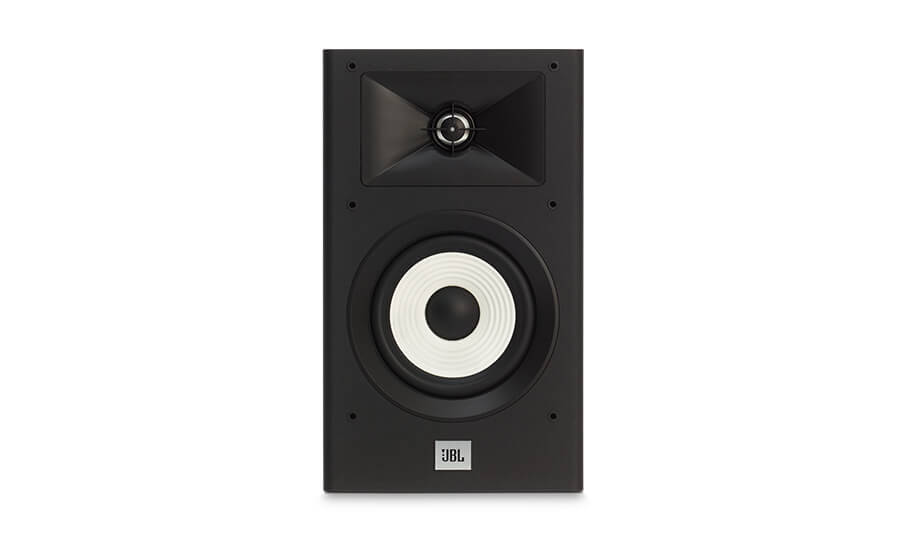

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A130 is the 5.25-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 5.25-inch (133mm) Polycellulose cone woofers for signature JBL bass.

Categories: , ,

Description

 JBL



5.25-inch (133mm) Polycellulose Low-Frequency Woofer

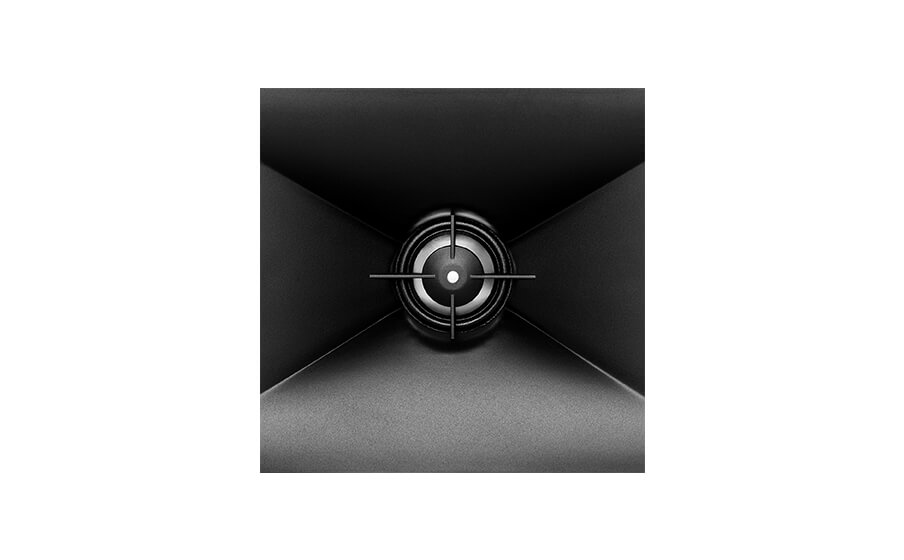

New High Definition Imaging (HDI) Waveguide

New High Definition Imaging (HDI) Waveguide
 1-inch (25mm) Aluminum Dome Tweeter

1-inch (25mm) Aluminum Dome Tweeter



2 way, 5.25″ woofer, 1″ aluminum tweeter bookshelf loudspeakersYes
5.25″ (133mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 125W
Frequency Response55Hz – 40kHz
Sensitivity86dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies3.2kHz

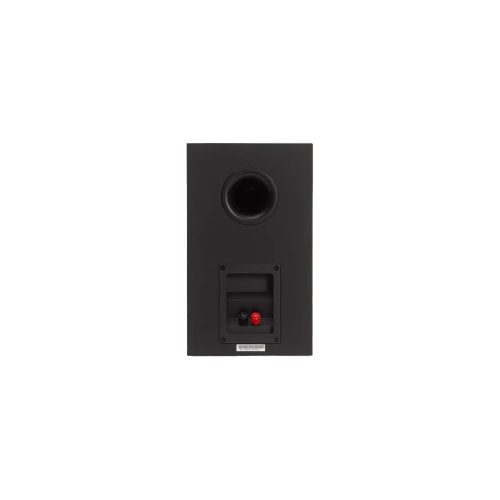

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)190 x 230 x 321mm
Weight (each)12.02 lbs (5.45kg)
