JBL Stage A170

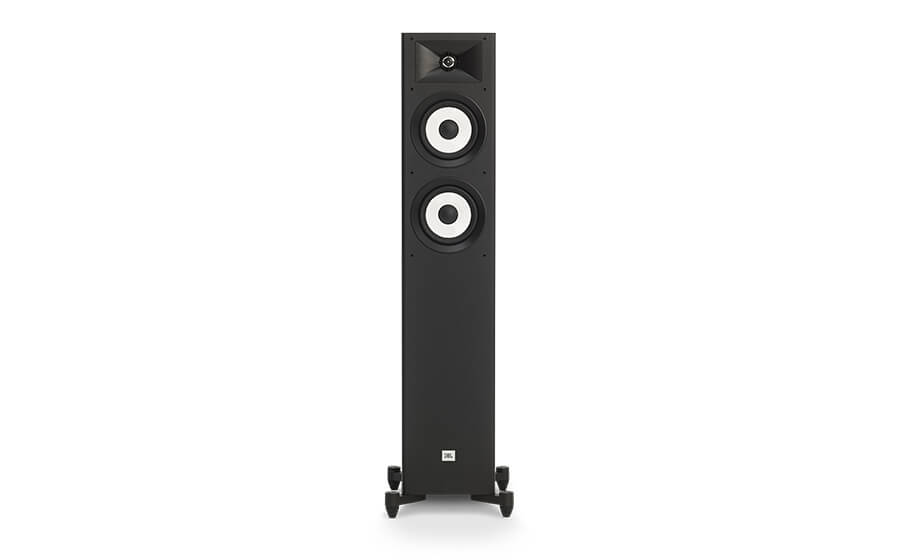

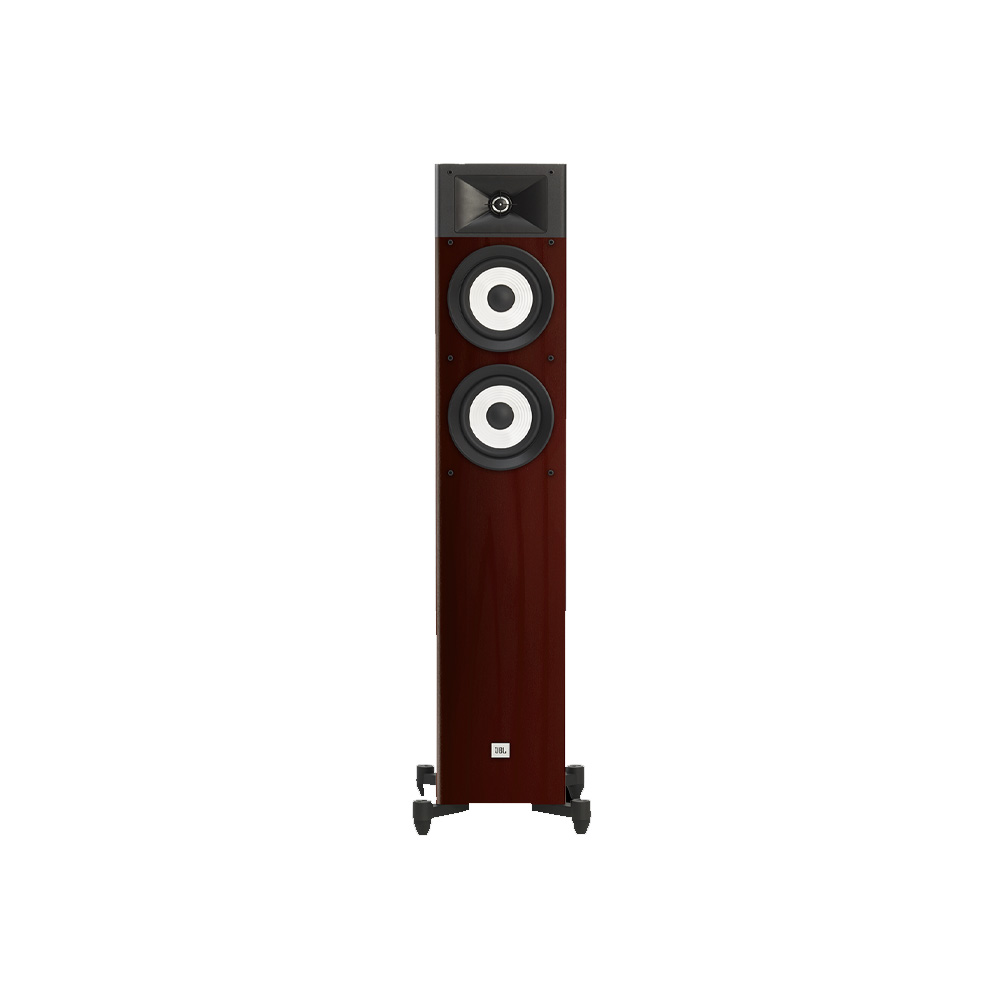

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A170 is the most compact floorstanding loudspeaker of the JBL Stage Series. The narrow footprint features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 8-inch (200mm) Polycellulose cone woofers for signature JBL bass.

Categories: , ,

Description

 2 x 5.25-inch (133mm) Polycellulose Low-Frequency Woofer

2 x 5.25-inch (133mm) Polycellulose Low-Frequency Woofer

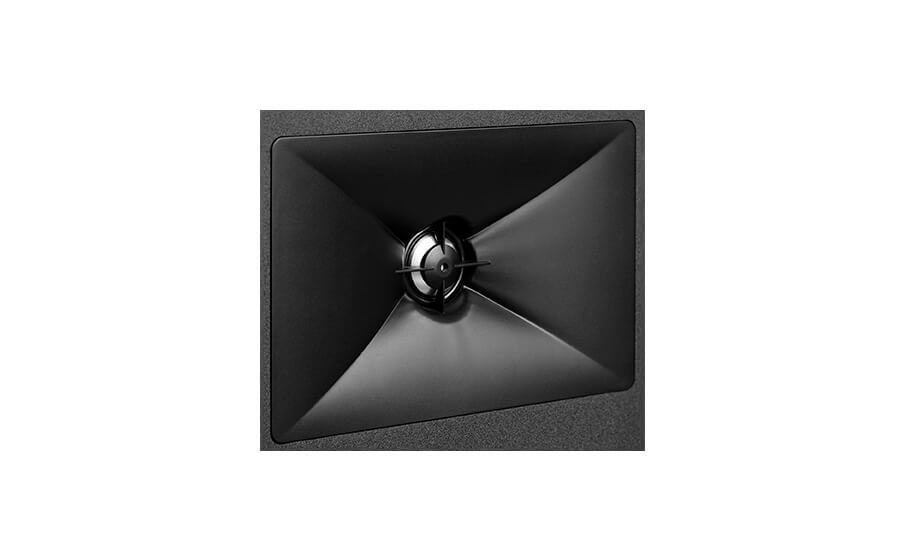

New High Definition Imaging (HDI) Waveguide

New High Definition Imaging (HDI) Waveguide
 JBL

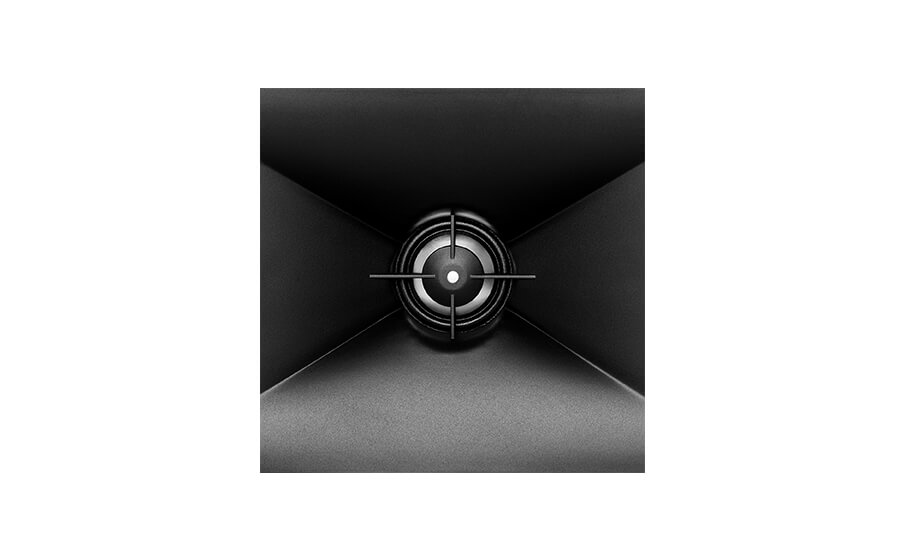

1-inch (25mm) Aluminum Dome Tweeter



2.5 way, dual 5.25″, 1″ aluminum tweeter floor standing loudspeakerYes
2 x 5.25″ (133mm) Polycellulose Low-Frequency WooferYes
New High Definition Imaging (HDI) WaveguideYes
1” (25mm) Aluminum Dome TweeterYes
Recommended Amplifier Power20 – 200W
Frequency Response44Hz – 40kHz
Sensitivity89dB @ 1M, 2.83V
Nominal Impedance6 Ohms
Crossover Frequencies1.8kHz, 2.8kHz

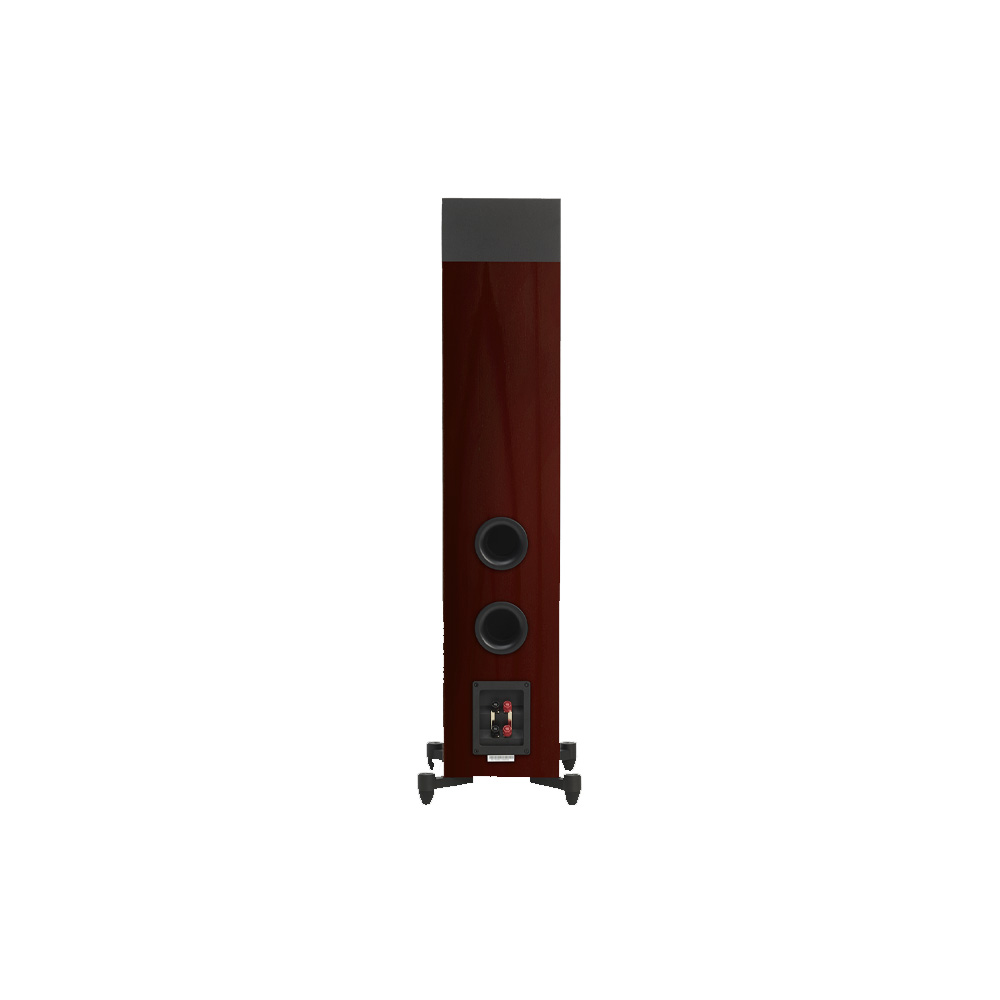

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)190 x 255 x 930mm
Weight31.61 lbs (14.34kg)
