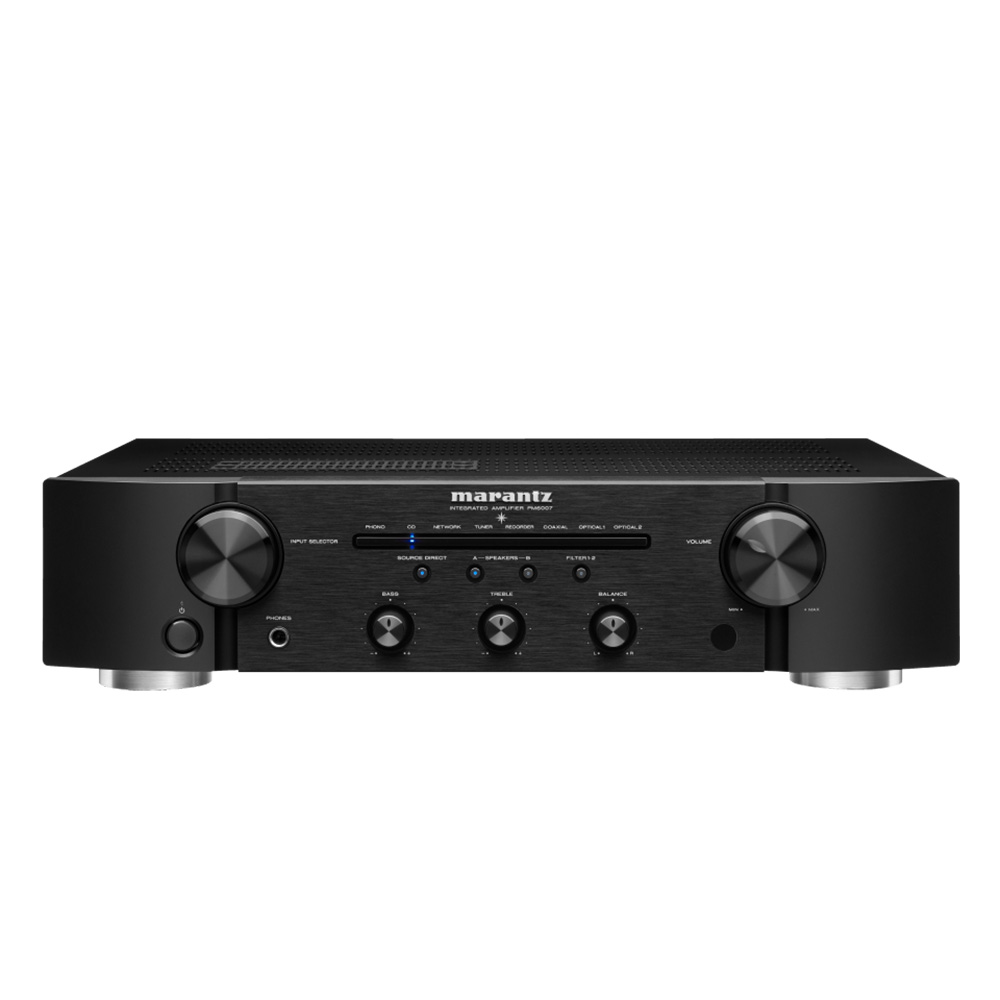

Marantz PM6007

Marantz PM6007

The PM6007 delivers Marantz’ most musical sound and is an ideal choice for those ready to take the next step in their 2-channel Hi-Fi system. Powered by a Toroidal power transformer and customized block capacitors, the PM6007 integrated amplifier delivers 45 watts (8ohm, 20Hz-20kHz). You can easily connect both analog and digital sources or connect your turntable to the built-in phono MM pre-amp with FET input.

  • Take your next step in Hi-Fi
  • Meticulously and masterfully tuned
  • Wide range of connectivity
  • An updated audio experience
  • Digital filter modes for Optical/Coaxial input
  • Built to perform
  • Marantz proprietary HDAM-SA3 circuit
  • Advanced Thermal Compensation
  • Customized components for a more refined sound
  • Integrated phono input
  • Enjoy deeper bass with a subwoofer output
Categories: , ,

Description

Current Feedback Amplifier

The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.

Reference Quality D/A Conversion For Digital Input

The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.

High Current Power Supply

The power supply supports high current, high speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.

Toroidal Transformer

A Toroidal Transformer has several advantages over a normal EI core transformer. The highly efficient design delivers more power compared to the same size EI core transformer. In addition, the shape of the Toroidal Transformer delivers low electromagnetic radiation and mechanical vibration for better sound quality.
Features
Channels2
Current Feedback TopologyYes
Sample Rate digital In192 kHz / 24-bit
USB-A: DSD / WAV / FLAC / AIFF / ALACNo
USB-B PCM sample rateNo
Streaming audio from PCNo
Wi-Fi / Wired LANNo
Internet radioNo
DSD-Audio network streamingNo
Gapless PlaybackNo
HDAM versionSA3, SA2
Power Transformer: Toroidal / ElYes /No
High Grade Audio ComponentsYes
Customised ComponentsYes
Copper Plated ChassisNo
Others
Input buffer amp (all inputs / CD only)No / No
Source DirectYes
Power Amp directNo

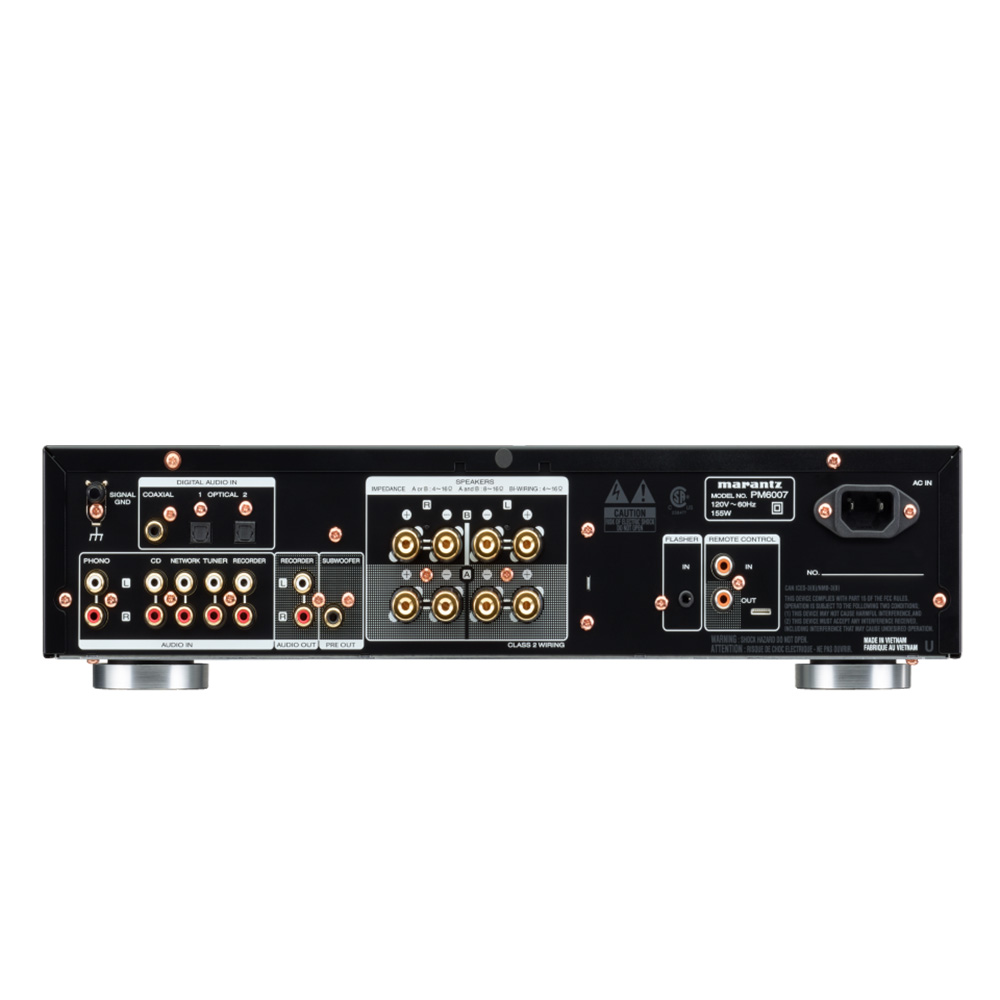

Inputs/Outputs
Audio Inputs5
Audio Outputs1
Power Amp Direct INNo
Pre-out / Main-insubwoofer / No
Number of terminals4
D-BusYes
Specifications
Power Output (8 / 4 Ohm RMS)45W / 60W
Frequency Response10Hz – 70kHz
Total Harmonic Distortion0.08%
Damping Factor100
Input Sensitivity: MM2.2 mV / 47 kOhm
Input Sensitivity: MCNo
Signal to Noise Ratio (MM / MC)83dB / No
Input Sensitivity: High Level200 mV / 20 kOhm
Input Sensitivity: Balanced High LevelNo
Signal to Noise Ratio: High Level102dB (2V input)
Input Sensitivity: Power Amp Direct INNo
Signal to Noise Ratio: Power Amp Direct INNo
General
Available ColorsBlack
Power Consumption in W155
Standby Consumption in W0.3
Auto Power offYes
Remote ControlRC004PMCD
Maximum Dimensions (W x H x D)439.42 x 104.14 x 368.3mm (17.3″ x 4.1″ x 14.5″)
Weight7.57 kg (16.7 lbs)
