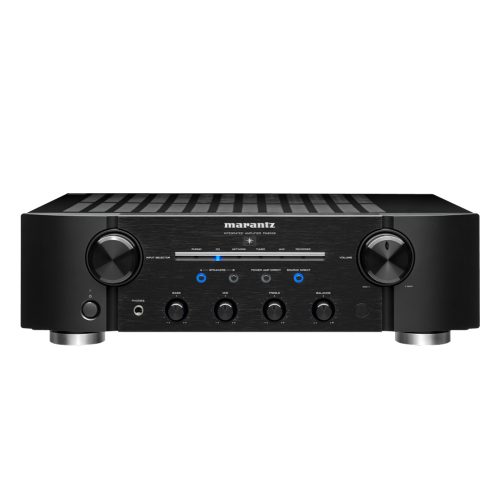

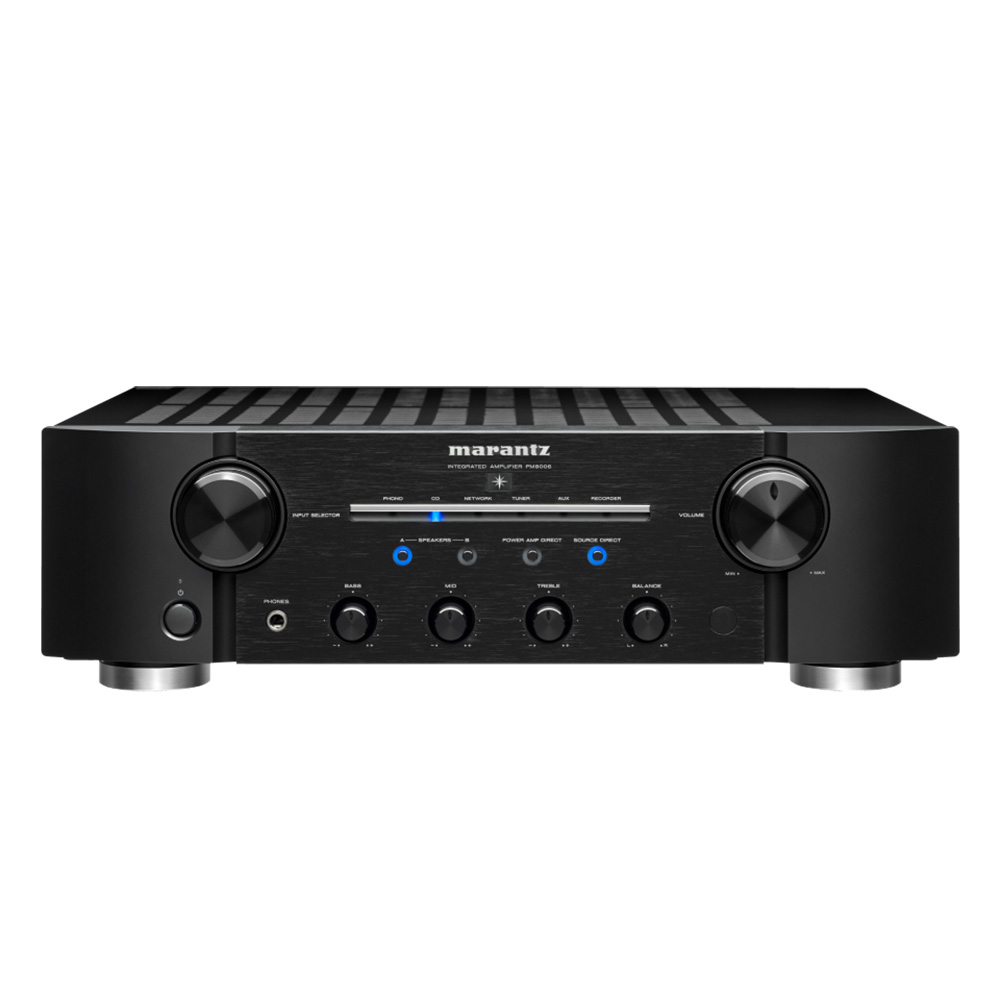

Marantz PM8006

Marantz PM8006

With a fully discrete current feedback design, the PM8006 integrated amplifier is perfect for audiophiles wanting both excellent music quality and flexible operation. It offers a powerful 2x 70W into 8 ohm, while the symmetrical circuits ensure optimal imaging. To ensure the most involving musical experience, the amplifier uses a new Marantz-designed electric volume control for high linearity and best-in-class channel separation and to make the most of vinyl replay there’s the brand-new Marantz Musical Phono EQ phono preamp stage, designed to get the purest signal from beloved vinyls by minimized noise levels.

  • Integrated for Maximum Power
  • Smooth Volume Control
  • Marantz-Pure Vinyl
  • Smoother More Marantz Sound
Categories: ,

Description

Current Feedback

Current Feedback amplification is a well-known, Marantz-original circuit technology, thoughtfully designed to match the requirements of Super Audio hi-res music for wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited, generating a very low phase shift. Marantz Current Feedback amplifiers reduce the need for phase compensation by minimizing Negative Feedback (NFB). This simplifies the signal path and results in a high through-rate, excellent transient response and superb sonic transparency across the full bandwidth. Unlike conventional Voltage Feedback topology, Current Feedback also makes the power amplifier insensitive to difficult loudspeaker loads.

Marantz HDAM Technology

Marantz developed its own discrete circuit boards called Hyper-Dynamic Amplifier Modules, or HDAMs, to replace the chip based amps used elsewhere. Using discrete surface mount components with short mirror-image left and right signal paths, HDAMs outperform the regular integrated Op-amps dramatically in Slew Rate and noise level. The result is much more dynamic, accurate and detailed sound. Over the years, Marantz has developed different HDAMs to fit the particular requirements of players and amplifiers. The PM8006 uses the high-grade SA3 version.

Marantz Musical Phono EQ

For a long time, Marantz integrated amplifiers have featured high-quality phono stages. We’ve elevated our commitment to vinyl with the Marantz Musical Phono EQ stage, as seen in the PM8006 amplifier. Enjoy the very best playback of all music sources, be they digital or analog. Marantz Musical Phono EQ uses two-stage amplification, allowing less gain per stage for lower distortion. The PM8006 combines Marantz HDAM technology with JFETs (junction gate field-effect transistors) in the input stage, providing high input impedance that eliminates the need for AC coupling capacitors and simplifies the signal path, vastly improving the signal purity overall.

Toroidal Transformer

A Toroidal transformer offers several advantages that derive from its efficiency and power capability. The shape of it lends to low levels of electromagnetic radiation and mechanical vibration, producing improved sound quality over what you might experience with dated transformer models.
Features
Channels2
Current Feedback TopologyYes
Sample Rate digital InNo
USB-A: DSD / WAV / FLAC / AIFF / ALACNo
USB-B PCM sample rateNo
Streaming audio from PCNo
Wi-Fi / Wired LANNo
Internet radioNo
DSD-Audio network streamingNo
Gapless PlaybackNo
HDAM versionSA3, SA2
Power Transformer: Toroidal / ElYes /No
High Grade Audio ComponentsYes
Customised ComponentsYes
Copper Plated ChassisNo
Others
Input buffer amp (all inputs / CD only)No / Yes
Source DirectYes
Power Amp directYes

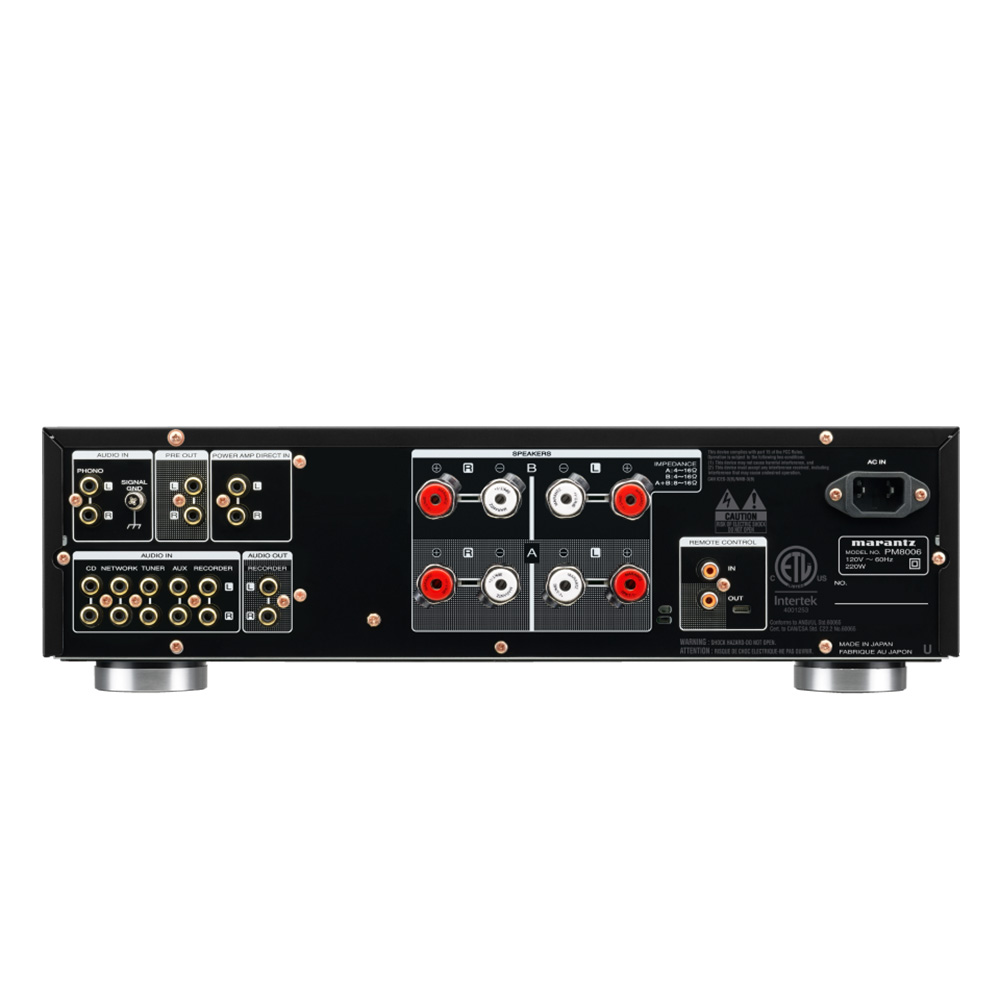

Inputs/Outputs
Audio Inputs6
Audio Outputs1
Power Amp Direct INYes
Pre-out / Main-in1 / No
Number of terminals4
D-BusYes
Specifications
Power Output (8 / 4 Ohm RMS)70W / 100W
Frequency Response5Hz – 100kHz
Total Harmonic Distortion0.02%
Damping Factor100
Input Sensitivity: MM2 mV / 47 kOhm
Input Sensitivity: MCNo
Signal to Noise Ratio (MM / MC)87dB / No
Input Sensitivity: High Level200 mV / 20 kOhm
Input Sensitivity: Balanced High LevelNo
Signal to Noise Ratio: High Level106dB (2V input)
Input Sensitivity: Power Amp Direct IN1.6V / 15 kOhm
Signal to Noise Ratio: Power Amp Direct IN125 dB
General
Available ColorsBlack
Power Consumption in W220
Standby Consumption in W0.2
Auto Power offYes
Remote ControlRC001PMND
Maximum Dimensions (W x H x D)442 x 128 x 379mm
Weight12kg
