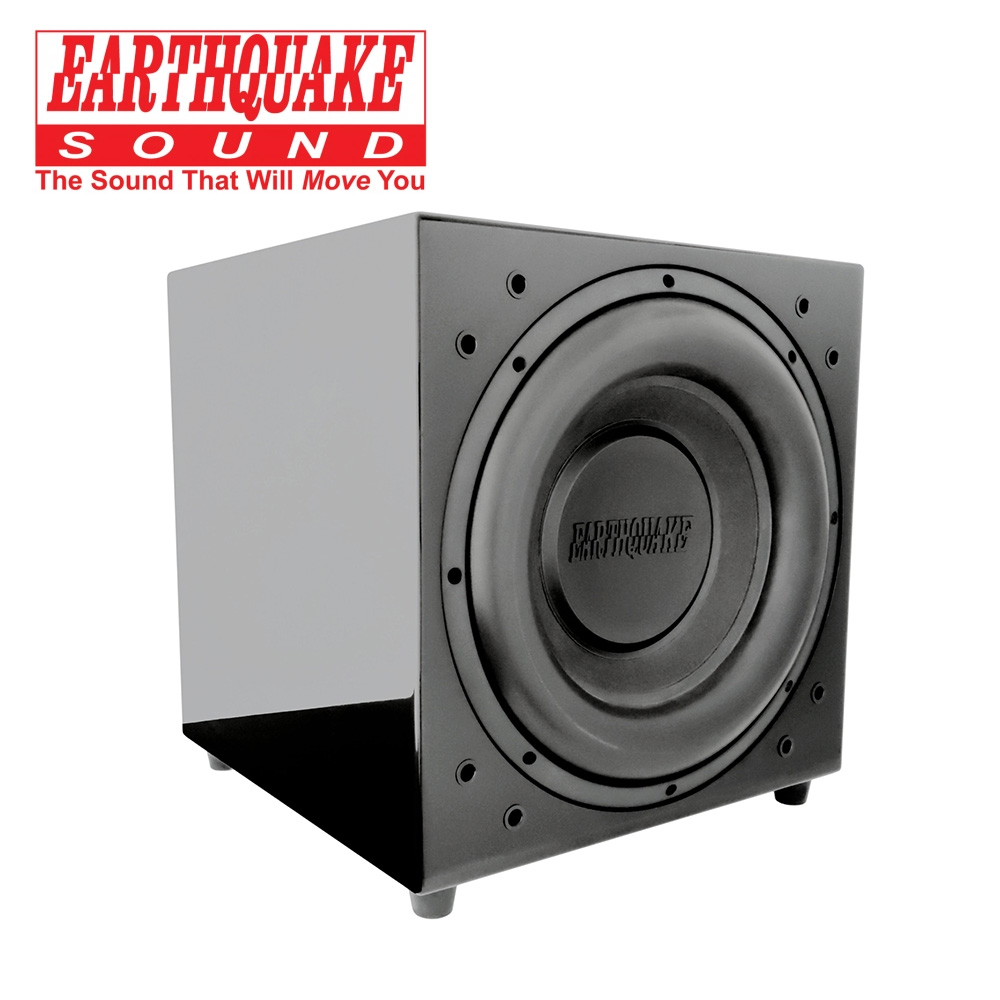

MiniMe DSP FF-15

Expanding on our great MiniMe series of subwoofers, the all new MiniMe DSP 15 utilizes Earthquake’s advanced class “D” circuitry with over 90% efficiency plus the added benefits of DSP control through mobile devices. Complicated and professional room tuning is now made possible right at your finger tips through a mobile app allowing the user to dial in this MiniMe exactly to the room that it is placed in.

In order to optimize sound and clarity on a subwoofer, it must be tuned properly to its environment. Through an automated room correction process that the iWoofer™ Pro app offers, you will get the customized performance that you deserve and achieve the maximum amount of SPL and a more linear response for your home theater. Up to a 48dB/octave crossover is also available within the application for a steep frequency cutoff.

The MiniMe DSP FF-15 not only sounds amazing, but it also features stunning looks with its finely finished deep multi-layered black piano lacquer and high gloss clear coat. When it comes to elegance and performance, the MiniMe DSP FF-15 has set the bar and will dish out room rumbling bass for your home theater enjoyment.

Description

Built-in 1000 Watts MAX High Efficiency Class “D” Amplifier
15″ Long Throw Premium Active Driver
15″ Patented SLAPS-15v2 Passive Radiator System
Dual 3″ (76mm) diameter Kapton voice coil
DSP Control Through Mobile App
Nominal Impedance: Dual 4-ohm
Frequency Response: 18–115Hz
Crossover Frequency: 40–160Hz

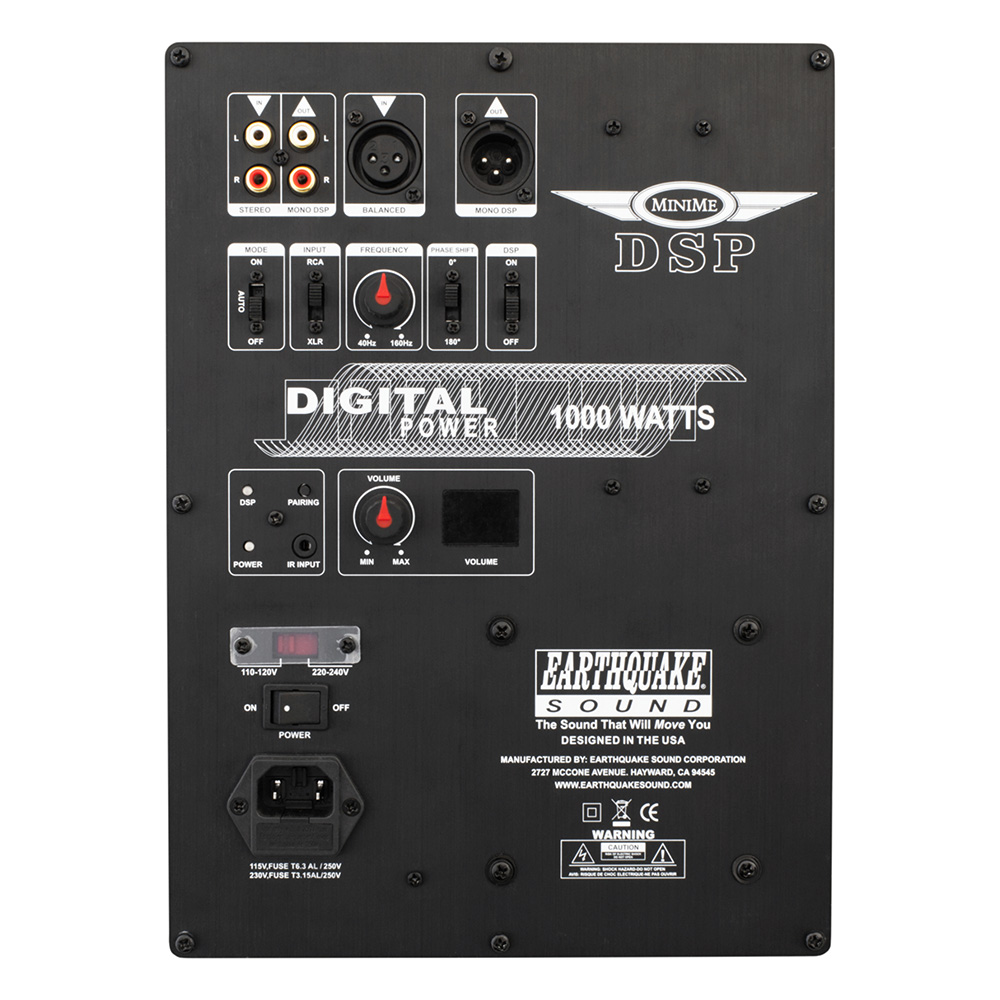

0–180° Phase Adjustment Switch
Automatic Signal-Sensing
Auto Room Correction (iWoofer™ Pro only)
3-Way Auto/On/Off Mode Switch
DSP On/Off Selector Switch
XLR and RCA Input Selector Switch
SHS (Sub-harmonic Synthesizer)
Selective Variable Crossover
Sub Operation Switch For Different Ranges
Operation Status LED Light
Low Level RCA Inputs and Outputs
Fully Balanced XLR input
Mono DSP XLR Output
Remote & Remote eye Included
Grilles Included
High Gloss Black Piano Lacquer Finish
Dimensions
H x W x D: 18″ (458mm) x 17.6″ (448mm) x 21.25″ (540mm)
Weight: 75 lbs (34 kgs)
