MiniMe DSP P63B

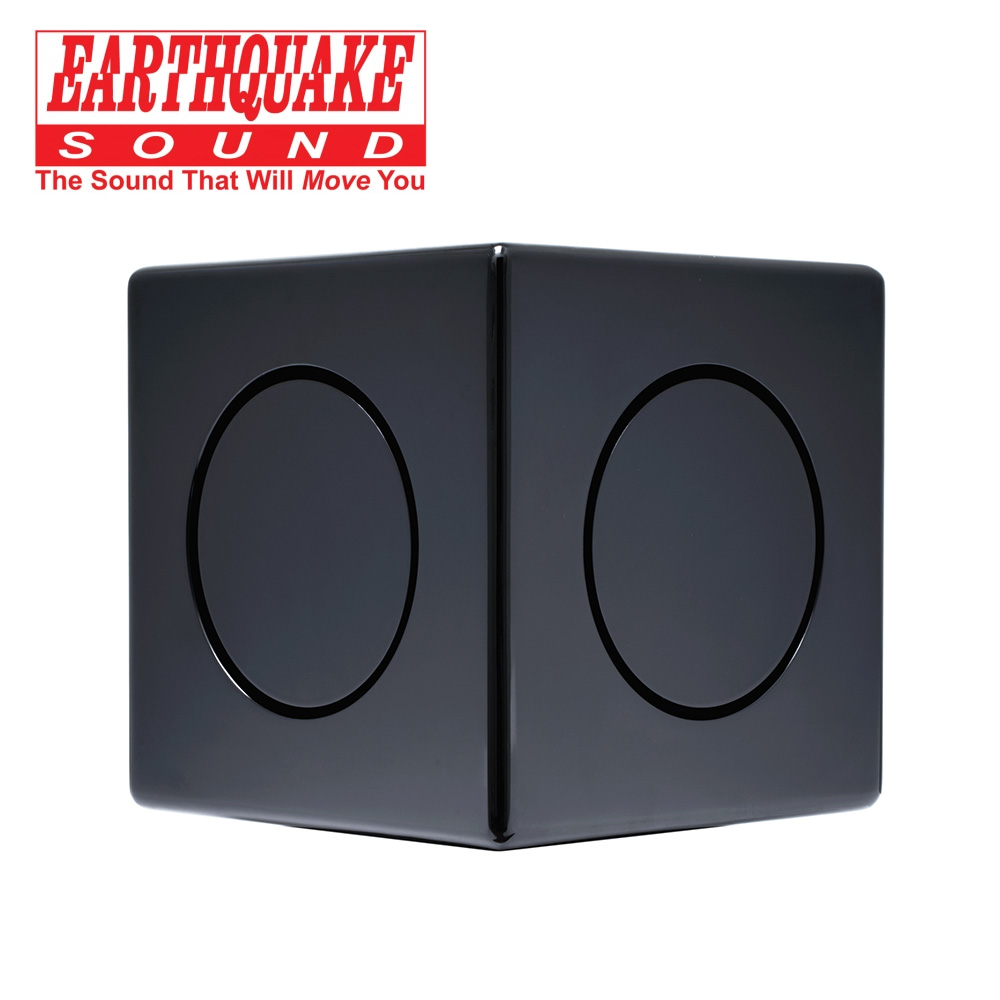

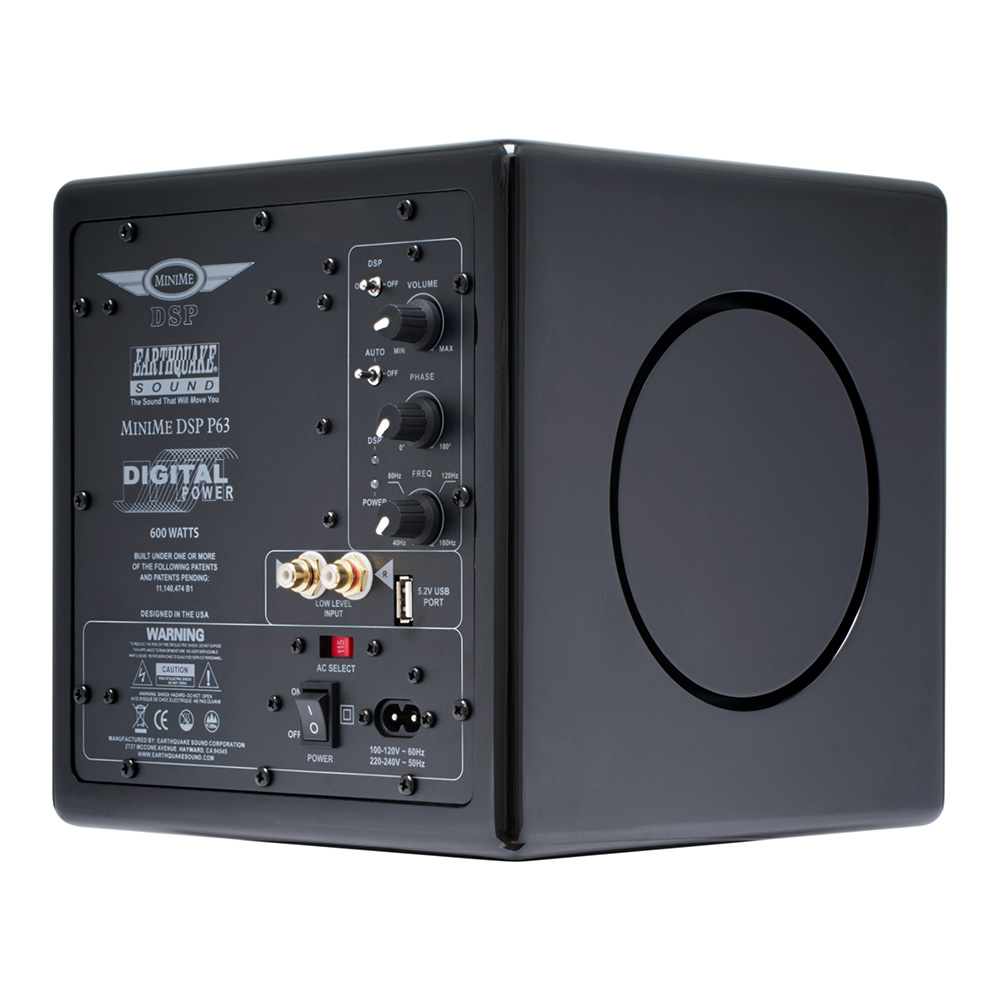

The Earthquake Sound MiniMe DSP P63 is a micro-sized, ultra-powerful subwoofer that is elegantly crafted in a high gloss piano finish with stunning modern grille-less flush-mounted drivers on three sides. The MiniMe DSP P63 was developed for those who love music and movies without bulky AV equipment that takes up valuable floor space. At less than 9 inches cubed, the MiniMe DSP P63 is easy to position on a low shelf, beneath a table, behind furniture, or in a corner.

The remarkable performance of the MiniMe DSP P63 is accomplished through the symbiotic relationship of the inverted 6.5″ premium XLT active driver and inverted dual opposing 6.5″ passive bass radiators coupled with the massive power output of a 600 watts peak Earthquake enhanced Class D amplifier. Implementing dual passive radiators drastically increases the system’s capability and efficiency, resulting in ultra-low frequency reproduction at louder sound levels than any manufacturer of this size.

Description

Micro form factor allows for a variety of placement options
Sleek grille-less modern design offers a high aesthetic acceptance factor
3x the radiating surface area for impactful bass response
Built-in advanced Earthquake class D amplifier for high output and efficiency
Single inverted 6.5″ active driver with patented edge overlapping suspension
Dual inverted opposing passive radiators with patented edge overlapping suspension
Anti-wobble cone construction and reinforced dust caps
Multi-path Optocoupler Protection Circuitry
Full DSP control through a mobile app
Auto Room Correction (iWoofer™ Pro only)
SHS (Sub-Harmonic Synthesizer)
Up to 25 bands of parametric EQ
On The Fly Variable Q EQ
Variable low pass filter

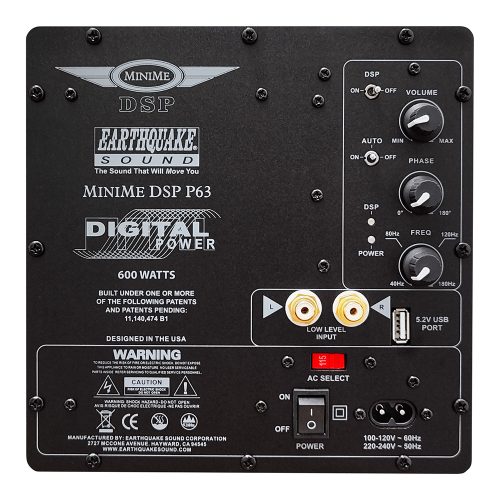

Low-level RCA inputs
0–180° phase adjustment control
3-way Auto/On/Off mode switch
DSP On/Off selector switch
Volume Control
Power, signal, and DSP LED indicators
Built-in 5.2V USB power port
Rubber stabilizing feet
110V/220V AC selector
High gloss black piano lacquer finish
Dimensions (HxWxD)8.75″ (222mm) x 8.75″ (222mm) x 9″ (229mm)
Weight13.84 lbs (6.27 kgs)
Amplifier Power600W peak dynamic
Frequency Response30Hz–160Hz
Crossover Frequency40Hz–180Hz
Nominal Impedance4-Ohm
