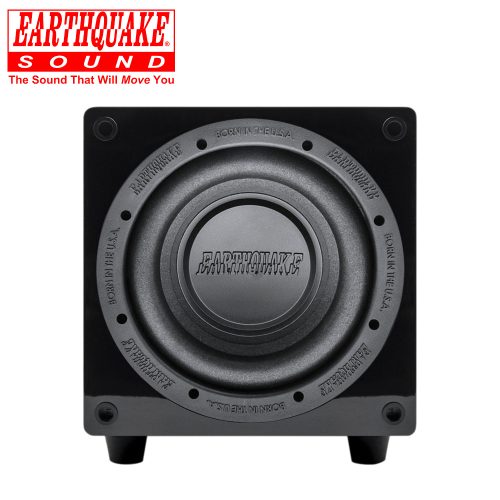

MiniMe DSP P8B

With the continued success of the Earthquake MiniMe DSP series of home subwoofers, Earthquake felt that a smaller sibling was in order to help compliment the line. The all new MiniMe DSP P8 utilizes Earthquake’s unique class “D” circuitry with over 90% efficiency with the added advantage of DSP control through mobile devices. Complicated and professional room tuning is now made possible right at your finger tips through a mobile app allowing users to tune the MiniMe DSP P8 for flexible subwoofer placement in any room.

Like the 10, 12, and 15 inch models, the DSP P8 offers users some of the same great performance and features like 600 watts of brute peak power output, high-EMF XLT active driver, and redesigned 8 inch mass tuned SLAPS-M8 passive radiator with increased excursion potential.

Description

Built-in high efficiency class D amplifier
Premium high-EMF XLT active driver
Patented SLAPS-M8 passive radiator system
Built-in Digital Signal Processor (DSP) for enhanced bass performance
Automatic signal sensing
Auto room correction (iWoofer™ Pro only)

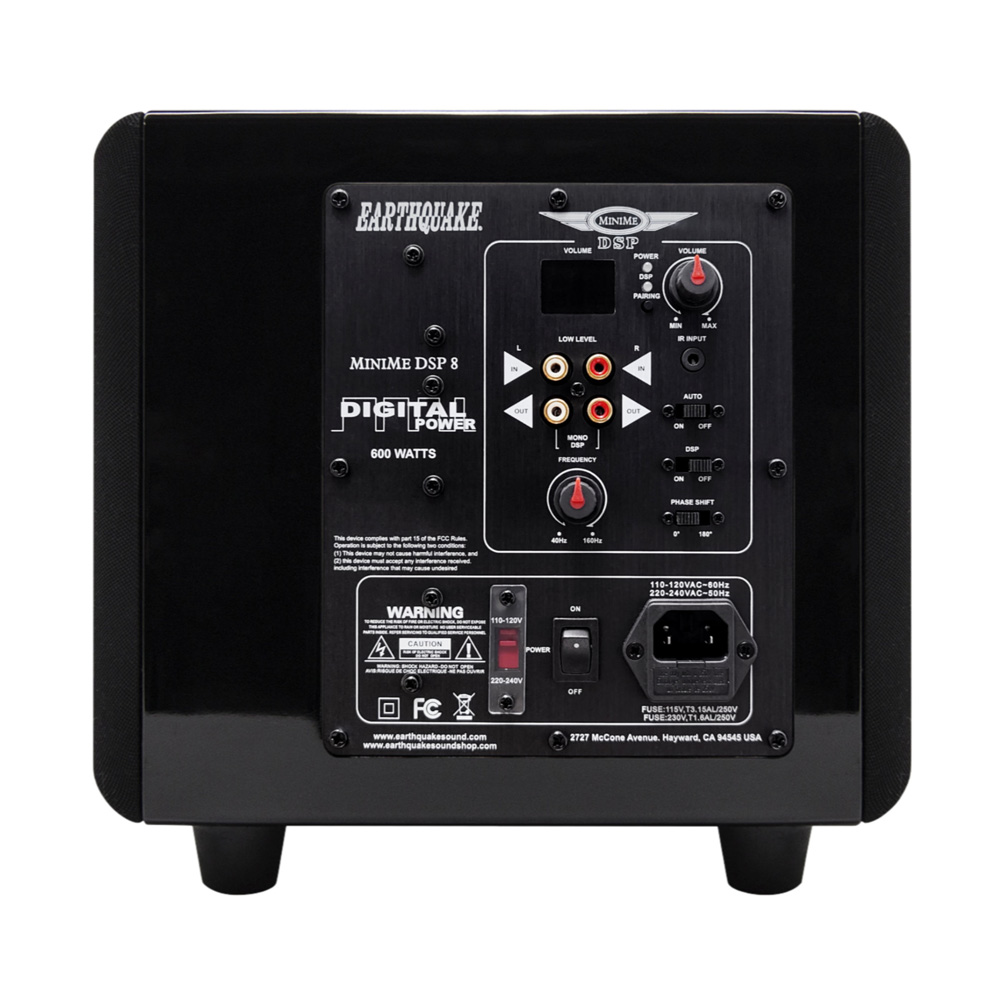

3-Way Auto/On/Off mode switch
DSP On/Off selector switch
SHS (Sub-harmonic Synthesizer)
Selective variable crossover
0–180° phase adjustment
Sub operation switch for different ranges
Operation status LED indicator
Low level RCA inputs
RCA Mono DSP output
Remote & remote eye included

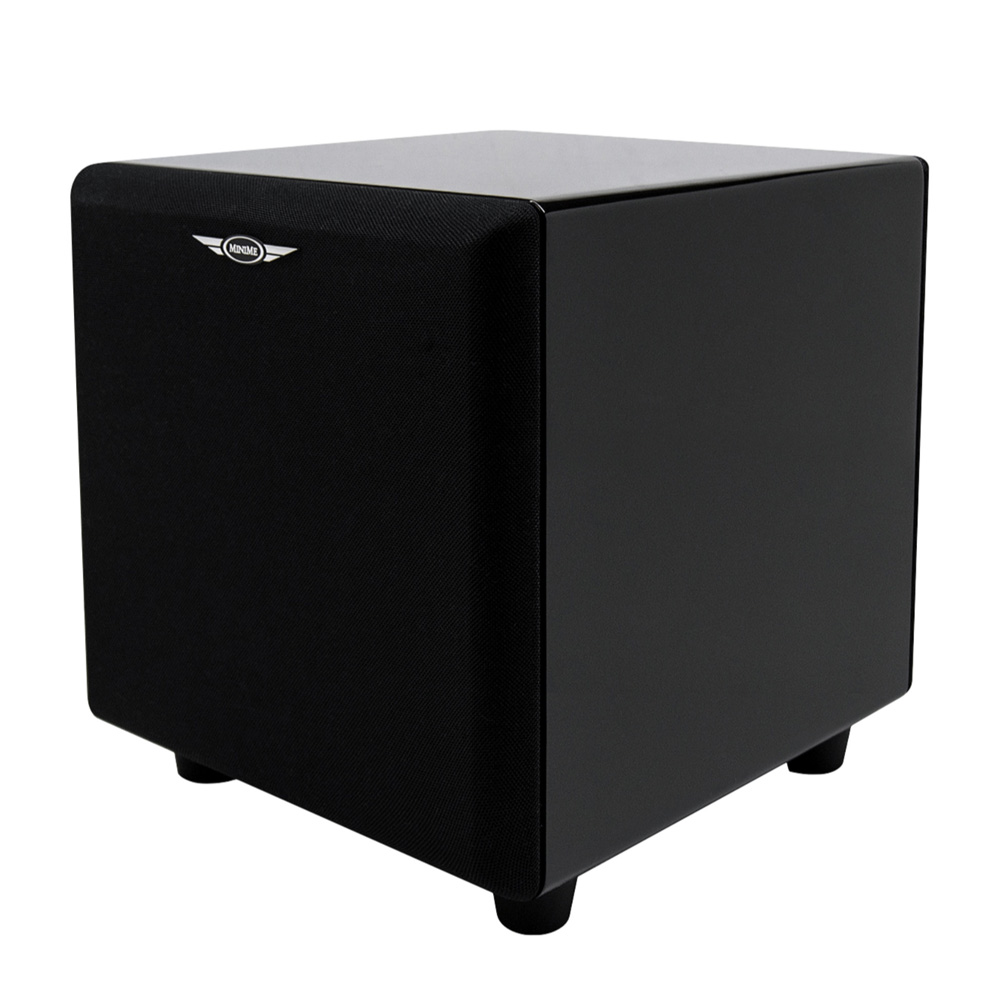

Removable grilles included
High gloss black piano lacquer finish

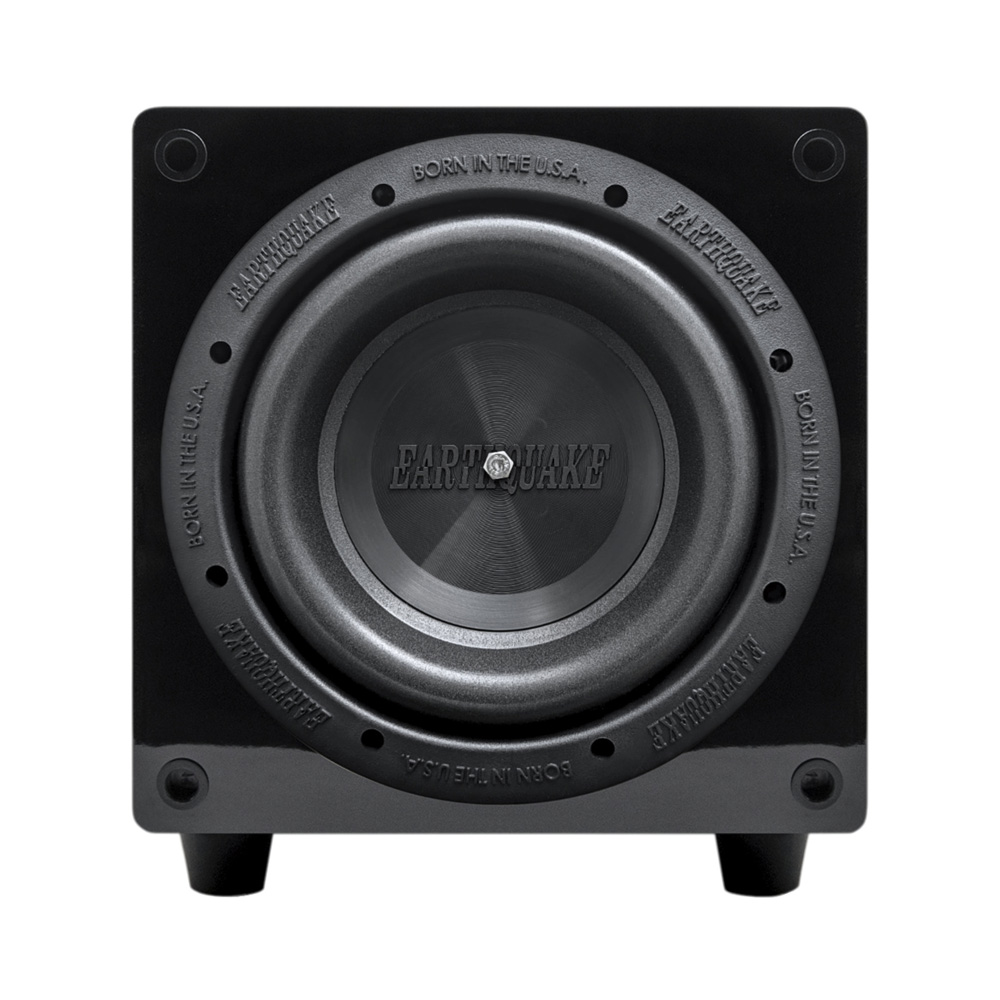

Driver Size: 8″ active driver
8″ SLAPS passive radiator tuned to 27Hz with 160g added mass
Amplifier Power: 300 WRMS / 600W peak dynamic
Frequency Response: 25–160Hz
Crossover Frequency: 40–160Hz
Nominal Impedance: 8 Ohm
Input Impedance: 20 kOhm
Enclosure Type: Ported with passive radiator
DIMENSIONS
Includes feet, grilles, and knobs
H x W x D: 11ʺ (278mm) x 10.43ʺ (265mm) x 11.41ʺ (290mm)
Weight: 18.2 lbs (8.25 kgs)
