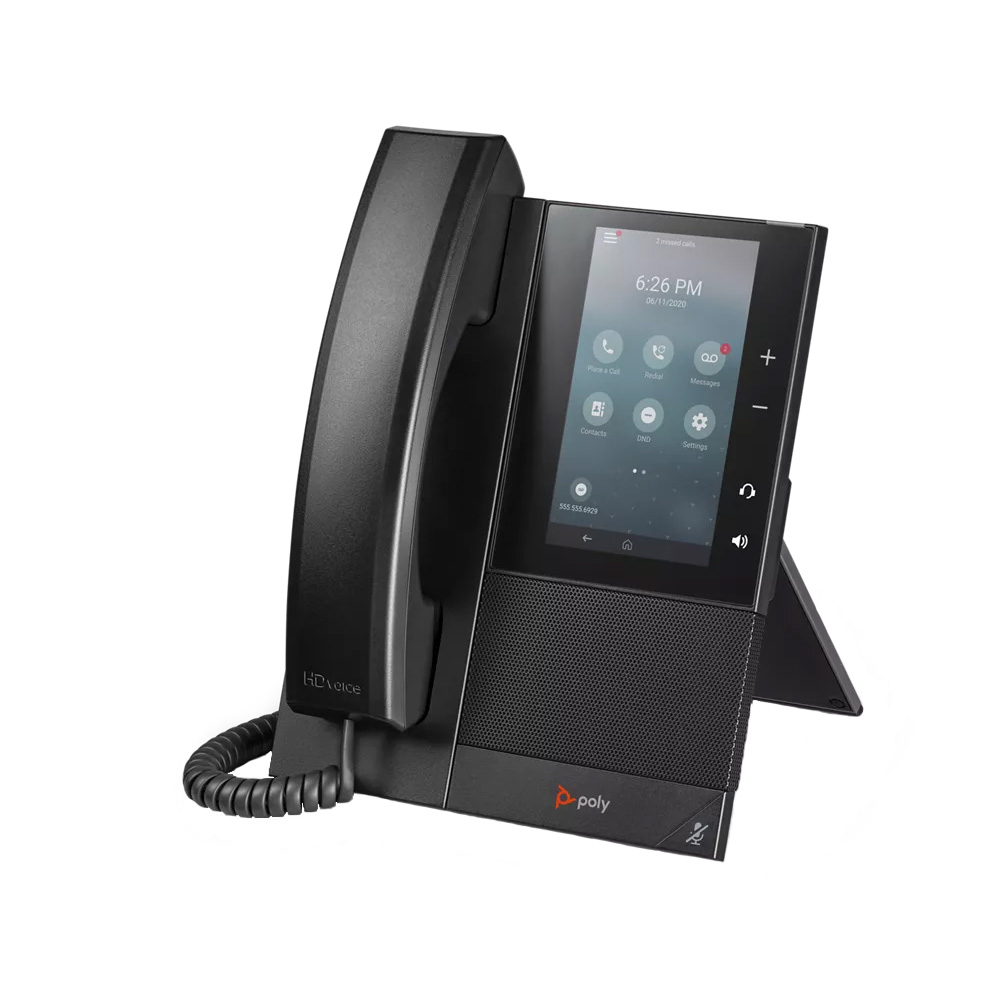

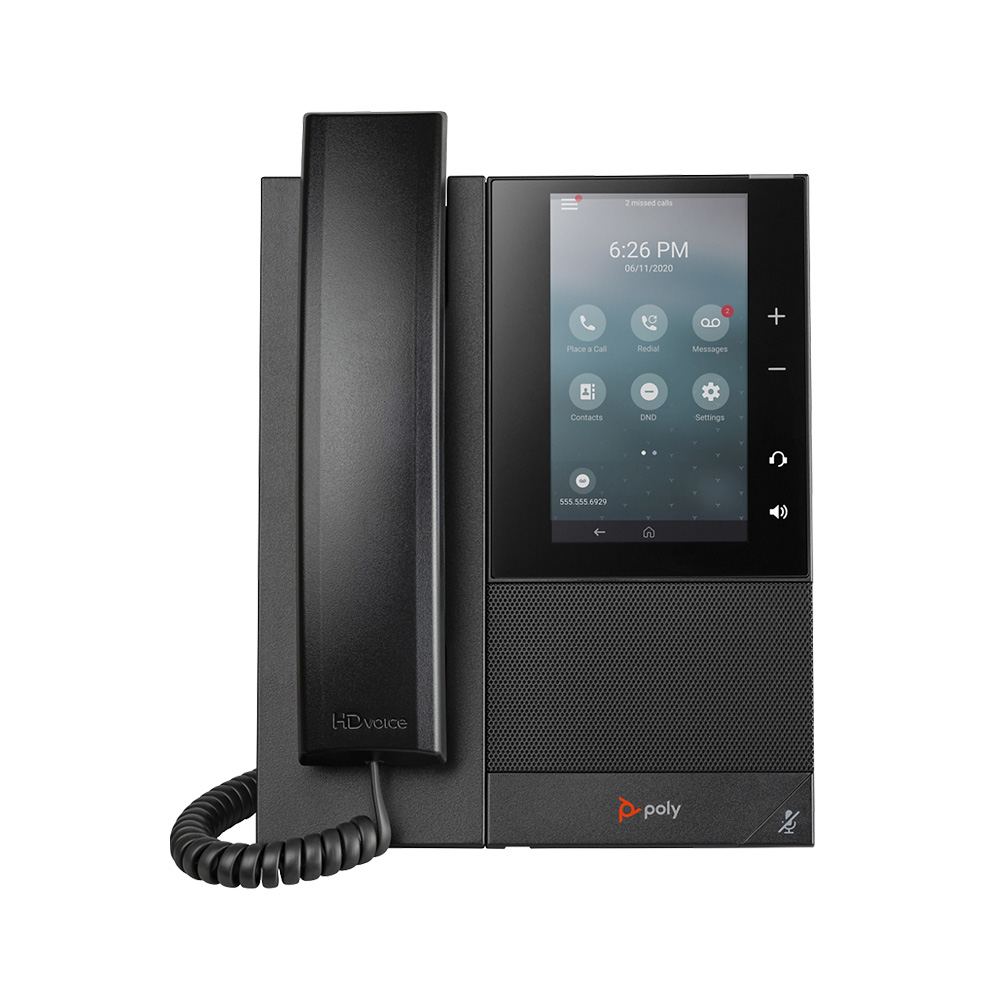

Polycom CCX 500/505

Meet the new standard in desktop touch screen phones with integrated WiFi. The Poly CCX 505 Business Media Phone has workers feeling confident they’ll sound professional on every call. No word or inflection is missed, thanks to legendary audio quality, Poly HD Voice, and Poly Acoustic Clarity. And let’s hear it for Poly Acoustic Fence technology. It eliminates background noise to keep calls quiet wherever it’s noisy — from home offices to call centers.

By design, the phone is simple and intuitive to use — with one-touch-access to your contacts and meetings. So users can get right to work. IT will be a fan too. Robust provisioning and management capabilities take the headache out of telephony deployment and support.

• Models choices supporting Open SIP or native Microsoft Teams.
• Easy to install anywhere with integrated WiFi.
• Color touchscreen operation with 5-inch multi-touch LCD display.
• Hear every nuance with Poly HD Voice and Poly Acoustic Clarity.
• Eliminate distracting background noise with Poly Acoustic Fence technology.
• Full duplex speakerphone operation with world-class echo cancellation
and Poly NoiseBlockAI technology.
• Powerful chipsets to support next-generation features.
• Headset options to suit any style (Bluetooth®, USB, RJ9).

Categories: ,

Description

User Interface FeaturesGesture-based, multitouch-capable touchscreen
5″ color LCD (720 x 1280 pixel)
9:16 aspect ratio Screensaver
Voicemail support
1 USB type-A port (2.0 compliant) for media and storage applications
1 USB type-C port (2.0 compliant) for media and storage applications
Audio FeaturesPoly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
Poly Acoustic Clarity technology
providing full duplex conversations, acoustic echo cancellation, and background noise suppression
TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
Frequency response — 100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
Headset and Handset CompatibilityDedicated RJ-9 headset port
Compliant with ADA Section 508 Subpart B 1194.23 (all)
Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
Compatible with commercially-available TTY adapter equipment
USB headset support
Bluetooth headset support
Network and Provisioning SIP protocol support
SDP
IEFT SIP (RFC 3261 and companion RFCs)
Two-port gigabit Ethernet switch
10/100/1000 Base-TX across LAN and PC ports
TCP
PowerBuilt-in auto sensing IEEE 802.3af Power over Ethernet (Class 0) 13 W (Max)
External universal AC/DC adapter
(optional), 48 VDC @ 0.52A (25 W)
Operating ConditionsTemperature: 0 to 40 °C (+32 to 104 °F)
Relative humidity: 5% to 95%
(non-condensing)
Storage Temperature-40 to +70 °C (-40 to +160 °F)
Comes WithConsole
Handset with handset cord
Network (LAN) cable – CAT 5E
Setup sheet
Package Size (W x H x D)178 x 216 x 52mm (7.0″ x 8.5″ x 2.0″)
Weight1.28kg (2.82 lbs)
