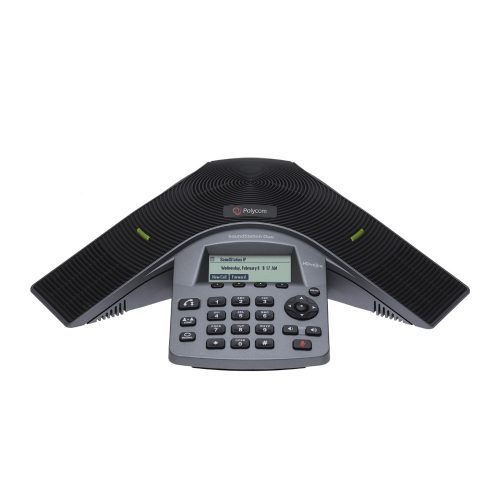

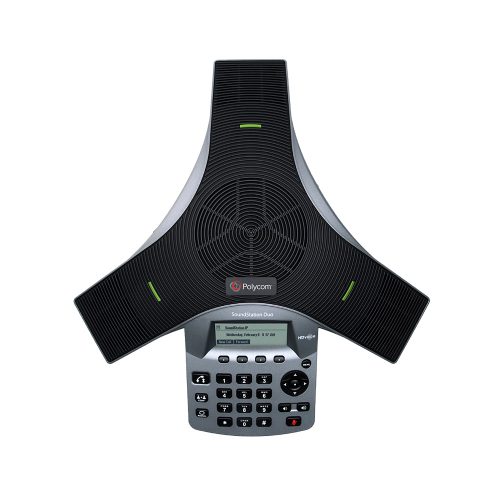

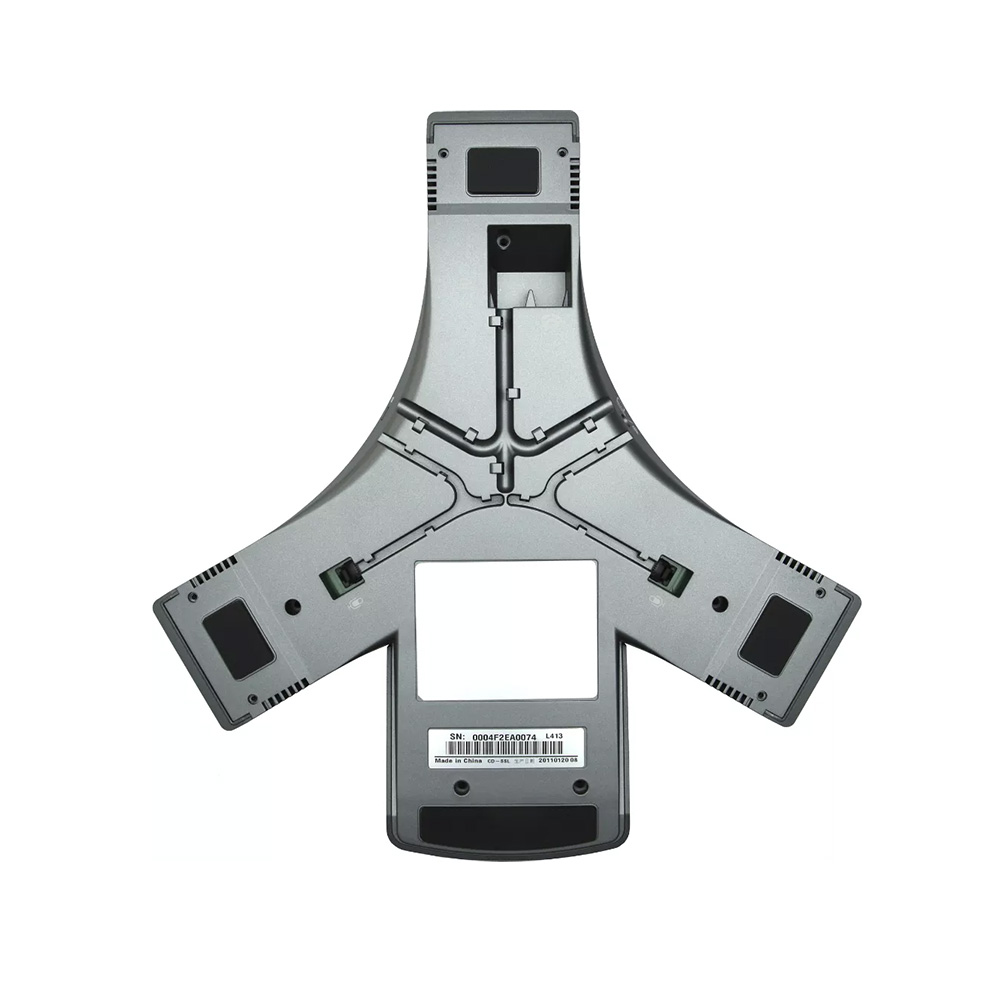

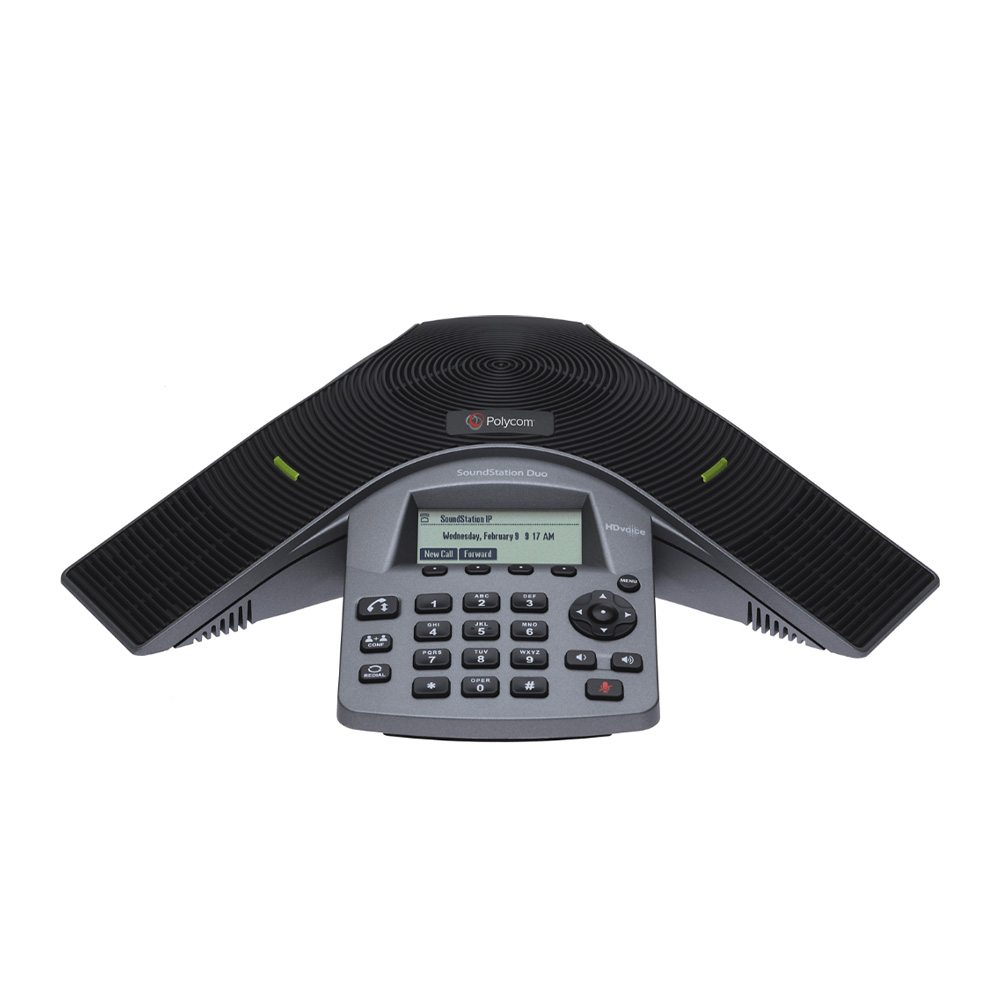

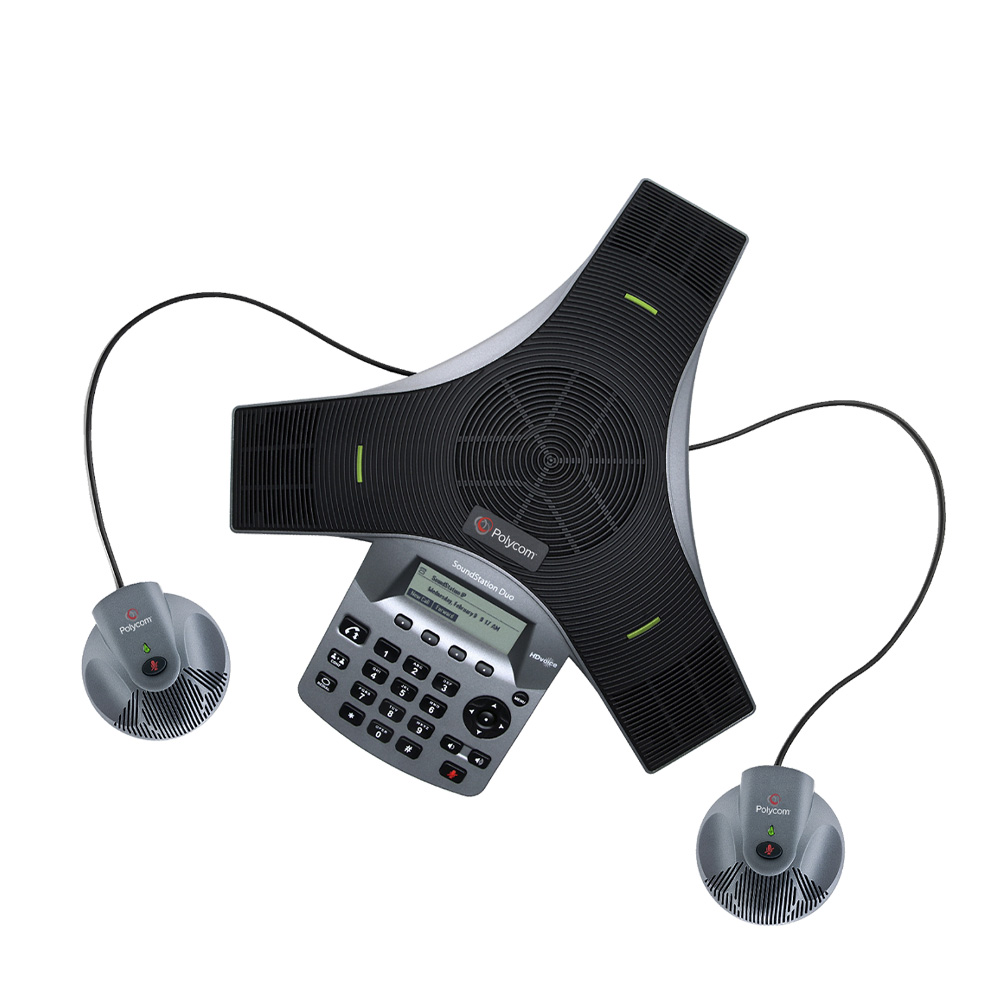

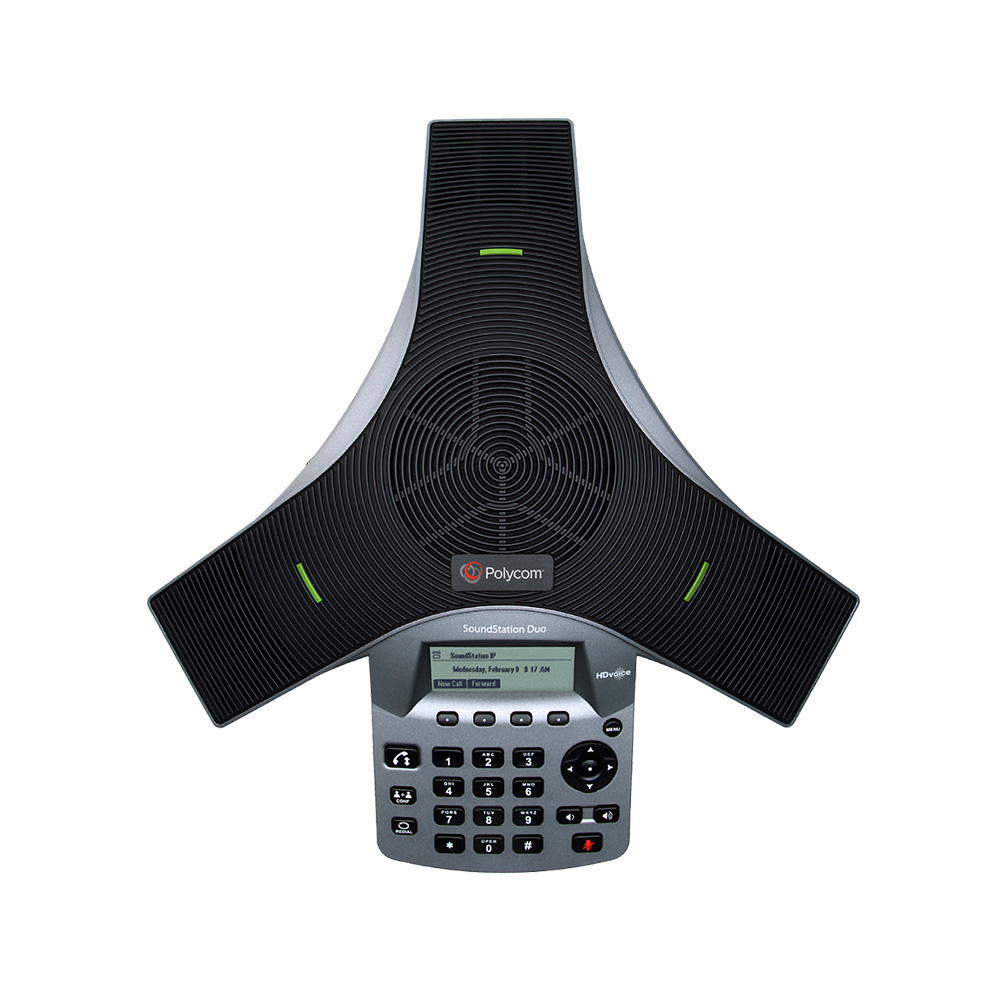

Polycom SoundStation Duo

The obvious choice for crystal clear group audio conferencing

Large organization or small, thousands of conference rooms or just one, you have a need to bring dispersed teams, business partners, and customers together to communicate and collaborate. Conference phones from Polycom have become the de facto standard for connecting groups of people across multiple locations. With the Polycom® SoundStation® Duo conference phone, Polycom has taken the concepts of group productivity tool and standard office workhorse to a new level for small to midsize rooms, delivering the ultimate in deployment flexibility, ease of use, and audio quality.

Unrivaled investment protection with the broadest connection options

Whether you currently have a traditional analog connection or have already migrated to Voice over IP (VoIP) telephony, the Polycom SoundStation Duo conference phone works. In VoIP environments, the SoundStation Duo delivers the most robust standards-based interoperability in the industry.

Lower cost of deployment and administration

Setting up the SoundStation Duo for analog operation is as simple as plugging it in. In open SIP-based VoIP environments, a web-based tool assists with setup and facilitates online software upgrades. A large backlit display with broad multi-language support offers call information and context sensitive call functions.

Crystal-clear voice conferencing with no compromises

Backed by Polycom’s legendary audio technology, the SoundStation Duo phone delivers remarkably clear voice quality. From Polycom® HD Voice™ technology and full-duplex audio to the latest in echo cancellation and resistance to mobile phone and wireless device interference, the SoundStation Duo conference phone delivers unrivaled group conferencing experiences without distractions.

Categories: ,

Description

PowerIEEE 802.3af Power over Ethernet
External universal AC power supply: 100 – 240V, 24V, 0.5A, 2.5mm DC plug
Audio Features3 cardioid microphones: 200 – 7000Hz
Loudspeaker frequency response: 220 – 7000Hz
Volume:
-Adjustable to 86 dB at 0.5m peak volume
InterfacesEthernet 10/100 Base-T
Two-wire RJ-11 analog PBX or PSTN interface
2.5mm connection port
Network and provisioningIP Address Configuration:
– DHCP and Static IP
Web portal for individual unit configuration
and online software upgrade
QoS Support—IEEE 802.1p/Q tagging
(VLAN), Layer 3 TOS and DSCP
Protocol supportIETF SIP (RFC 3261 and companion RFCs)
Environmental conditionsOperating temperature: 0–40° C (32–104° F)
Relative humidity: 20 – 85% (non-condensing)
Storage temperature: -30 – 55°C (-22 – 131°F)
Phone dimensions (W x H x D)327 x 64 x 346mm (12.9″ x 2.5″ x 15.6″)
Phone console weight0.74kg (1.62 lb)
