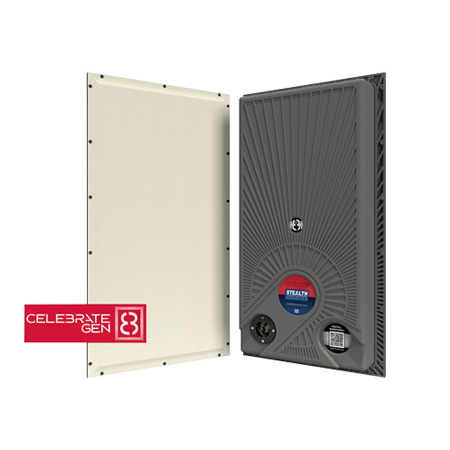

Stealth Acoustics Invisible Speakers L-RAD430

3-Way 8th Generation Invisible Loudspeaker

The Stealth Acoustics “The LineaRadiance 430 (L-RAD 430)” is a 3-way speaker with dual 8” woofers mounted on an all-new 16” x 30” frame, delivering astounding results!

The L-RAD 430 loudspeaker system becomes completely invisible after installation in a wall or ceiling, and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for nonstandard wallboard finishing materials. Advanced finishing methods such as veneer treatments may be supported using special techniques.

The Stealth Acoustics L-RAD 430 incorporates dual acoustically coupled high quality low profile, high-power 8” cone woofers, a 30mm direct coupled neo-magnet mid-frequency driver, and a 25mm direct coupled neo-magnet high-frequency driver. Advanced internal materials allow for smooth frequency extension from 20 kHz down to 35 Hz. The L-RAD 430 contains two independent protection circuits (high/mid-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.

Description

Frequency Response:
35Hz to 20kHz
Power Capacity:200 watts RMS

100 watts minimum recommended power
Protection:Two independent self-resetting devices
(high/mid- and low-frequency)
Sensitivity:83 dB (1 watt / 1 meter)
System Impedance:8Ω nominal
Driver Components:High frequency:1″ (25 mm) neodymium driver
Midrange frequency:1⅛” (30 mm) neodymium driver
Low-frequency:Two 1½” (38 mm) voice coil 8″ (203 mm)
woofers, 20 oz. (567 gr) ceramic magnet
Polar Dispersion:170 degrees vertical and horizontal

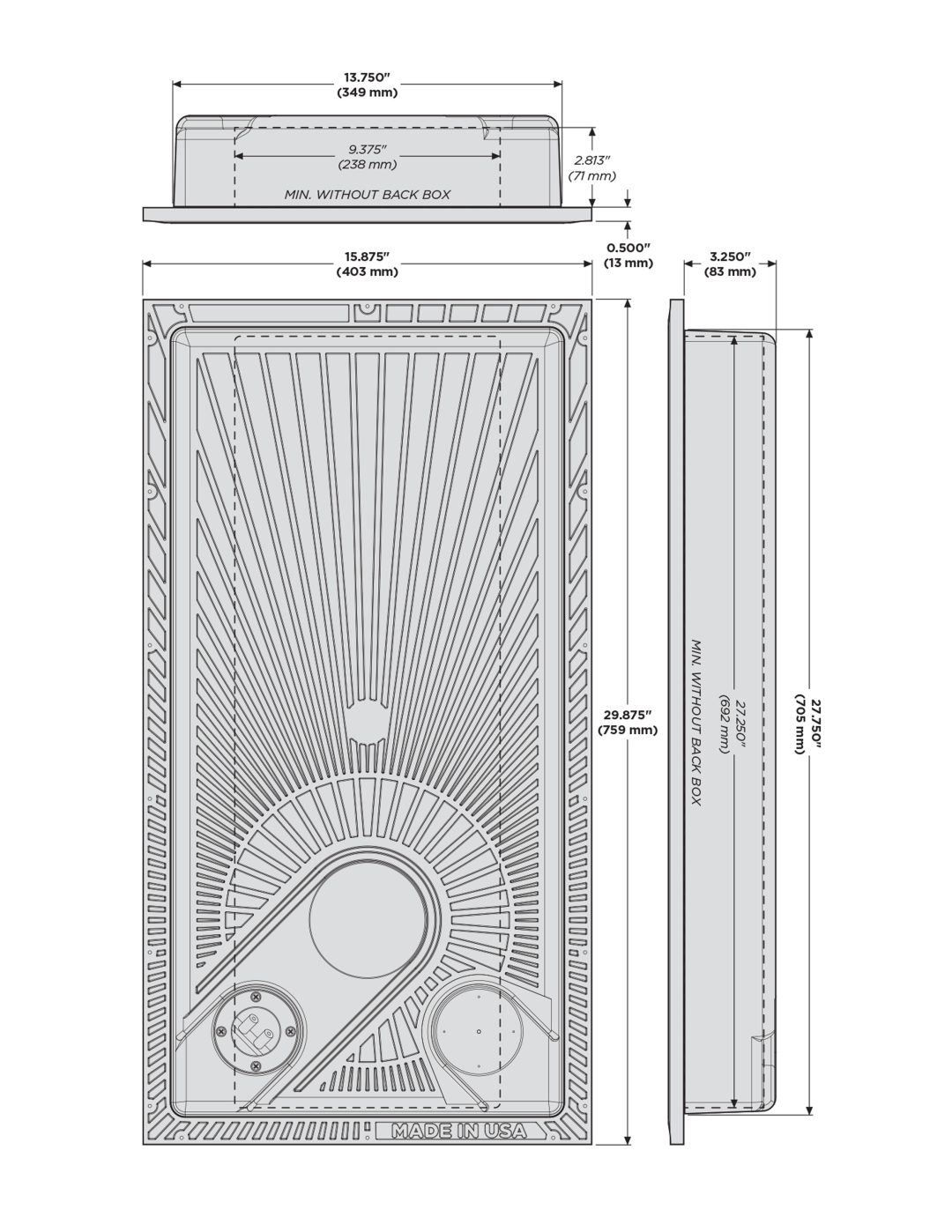

Dimensions:W15⅞” (403 mm)
H29⅞” (759 mm)
Mounting Depth:3¼” (83 mm)

2 13/16” (72 mm) with back box removed
Product Weight:26 lbs. (11.8 kg)
Shipping Weight:355 lbs. (25 kg) per pair

30 lbs. (13.6 kg) per single
Included Accessories:Mounting shims

Mounting screws
Optional Accessories:SA2400-MKII Stealth Acoustics High Current
2-Channel Amplifier with DS

PS-30 PlaceSaver™

MBX-30 UL Listed
Metal Back Box

MBA-30 UL Listed Metal Back Box – Adjustable

MBC-30 Concrete Back Box

SK-1 Shim Kit
