Triad 2.0 Passive Soundbar with 4″ Woofers (Each)

Triad Passive Soundbars elevate the Triad audio experience with upgraded technology and aesthetics. With new 5″ and 6″ driver offerings in addition to previous 3″ and 4″ sizes, three configuration options, custom lengths up to 86″ to fit nearly any size display, and six expertly designed colorways, the new Passive Soundbars deliver the high-end sound that Triad is known for with a visual statement that commands attention. Give your customers beautifully designed color options for common décor palettes or choose custom veneer and paint to display proudly or hide easily for an immersive home theater experience. The new Passive Soundbars elevate Triad’s reputation for performance and aesthetics, delivering an audio experience that looks as good as it sounds.

Categories: ,

Description

Triad Passive Soundbars Perfectly Match the Width of Any TVPERFECTLY MATCH THE WIDTH OF ANY TV

Triad soundbars can be ordered in 1/8″ length increments up to 86″ to match the width of nearly any TV on the market.



Triad Passive Soundbars Perfectly Match the Width of Any TVFULLY CUSTOMIZABLE FINISH OPTIONS

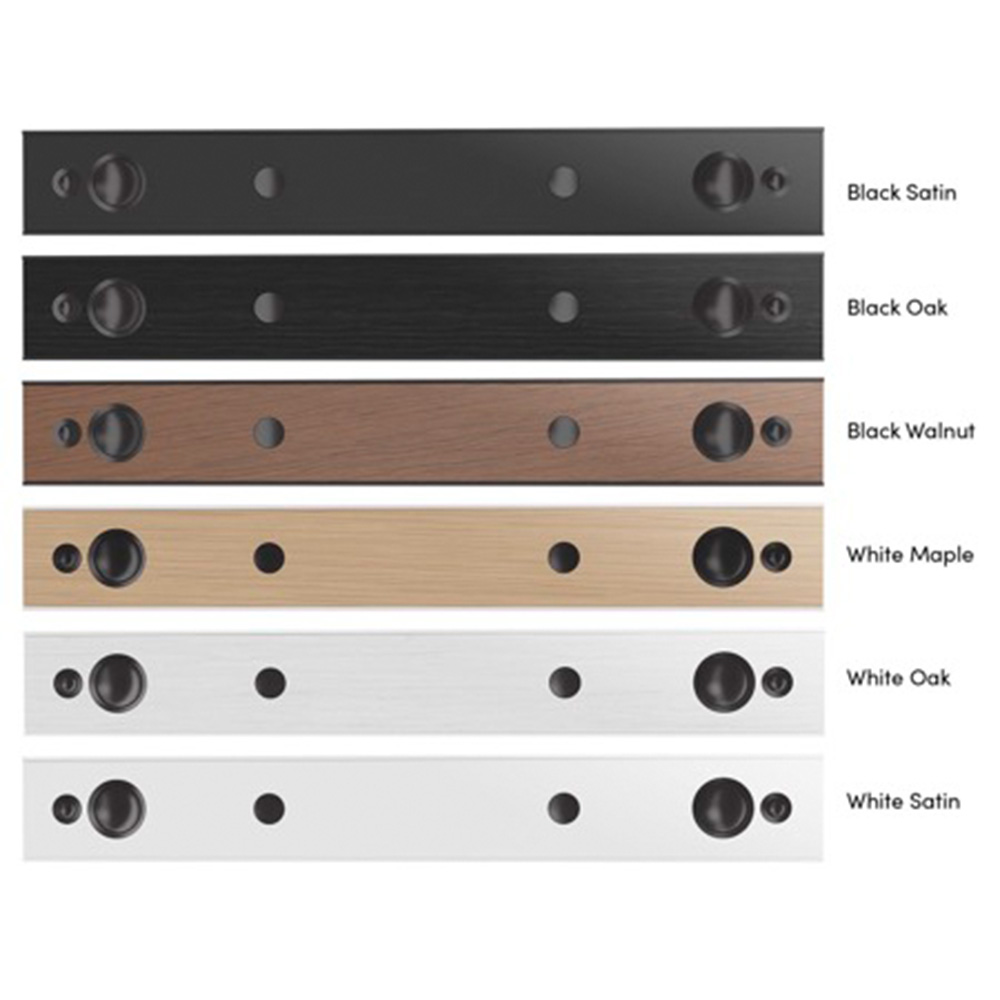

Select from one of six beautiful pre-designed colorway combinations, or customize the cabinet and baffle finish for the perfect look. Paint and veneer matching is available.*

*Charges may apply



Triad Passive Soundbars Built-to-Order, Made in the USABUILT-TO-ORDER, MADE IN THE USA

Fully engineered, premium MDF enclosures are precision crafted and built to order on-site in our Portland, OR manufacturing facility.



Triad Passive Soundbars Easy Mount InstallationEASY MOUNT INSTALLATION

With flexibility for vertical or horizontal orientation, the included Easy Mount brackets make straight-on mounting simple and safe. Achieve perfect placement that matches the display width without moving the display or surrounding décor, often with a single installer.



Triad Passive Soundbars Classic Triad VoicingCLASSIC TRIAD VOICING

Triad Passive Soundbars feature top-shelf crossover components and are timbre-matched to achieve the coveted Triad sound. Seamlessly integrate Passive Soundbars with other Triad speakers for consistent tonal quality and high-end performance throughout the project.



Triad Passive Soundbars Three Configuration OptionsTHREE CONFIGURATION OPTIONS

Choose 1.0, 2.0, or 3.0 configurations to build the perfect soundbar for the job. Passive Soundbars can be used as left, right or center channels when mounted horizontally or vertically around a display.

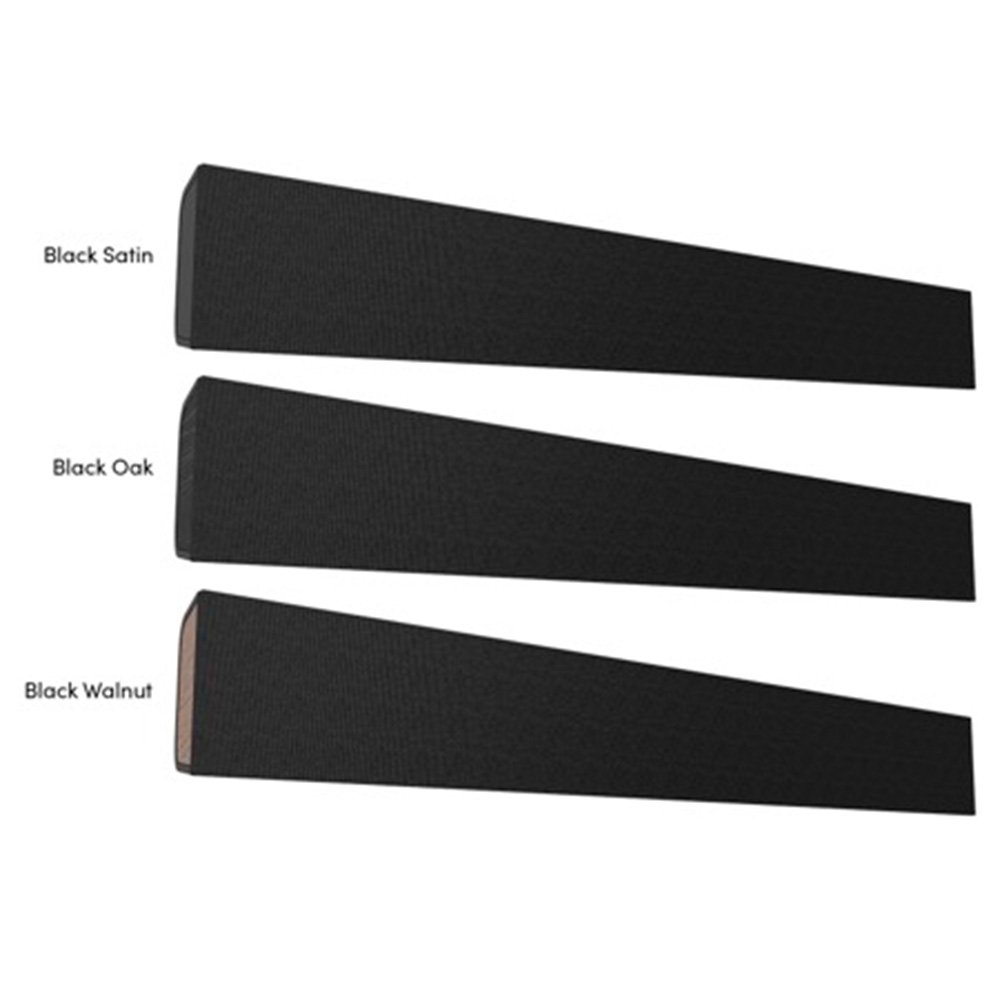

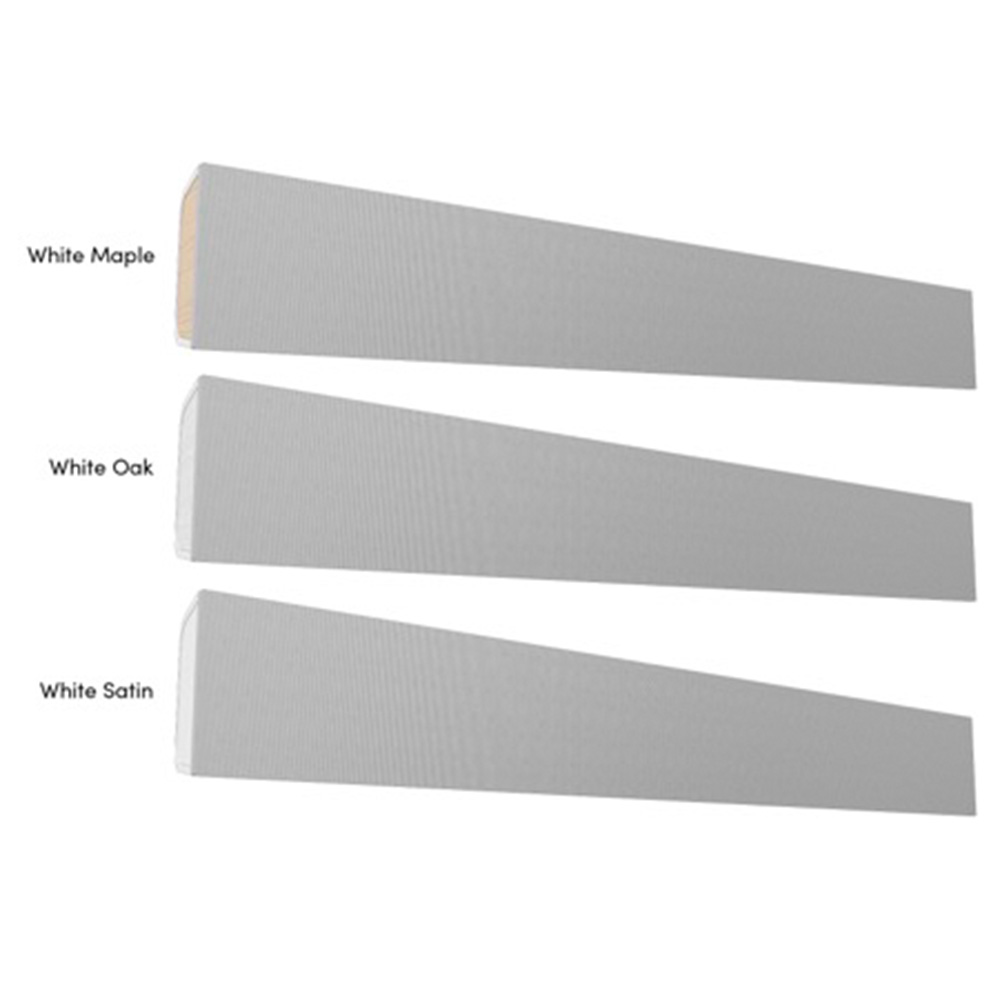

Triad Passive Soundbars Removeable Magnetic GrilleREMOVABLE MAGNETIC GRILLE

A timeless look with modern influence, the industrial design of the Triad Passive Soundbars makes them worthy of showcasing with or without the magnetic grilles installed.



Triad Passive Soundbars Serviceable DesignSERVICEABLE DESIGN

In the unlikely event of an issue that requires servicing of the product, all soundbars are serviceable on-site with replacement components, which reduces downtime for your customers.

Dimensions (H x D)171 x 89mm (6.75″ x 3.5″)
Minimum Length1117.6mm (44″)
Maximum Length2184.4mm (86″)
Weight per speaker w/ grilleVaries by size
Frequency Response (+/- 3dB)125Hz – 23kHz
Nominal Impedance6 ohms
Minimum Impedance5 ohms
Crossover Frequency2700Hz
Crossover Type / SlopeLinkwitz-Riley / 12 dB
Max SPL (AES75/1m)96dBZ
Power Handling (Peak)140W
Power Handling (RMS CTA-426B)70W
Recommended Amplifier Power50W – 150W
Sensitivity (dB @ 2.83V/1m)83dB
Woofer Size102mm (4″)
Woofer Cone MaterialAluminum
Woofer Surround MaterialRubber
Voice Coil Diameter25mm (1″)
Magnet TypeFerrite
Speaker Connection TypeSpring Loaded Binding Posts
Tweeter Size28mm (1.1″)
Tweeter MaterialTextreme
