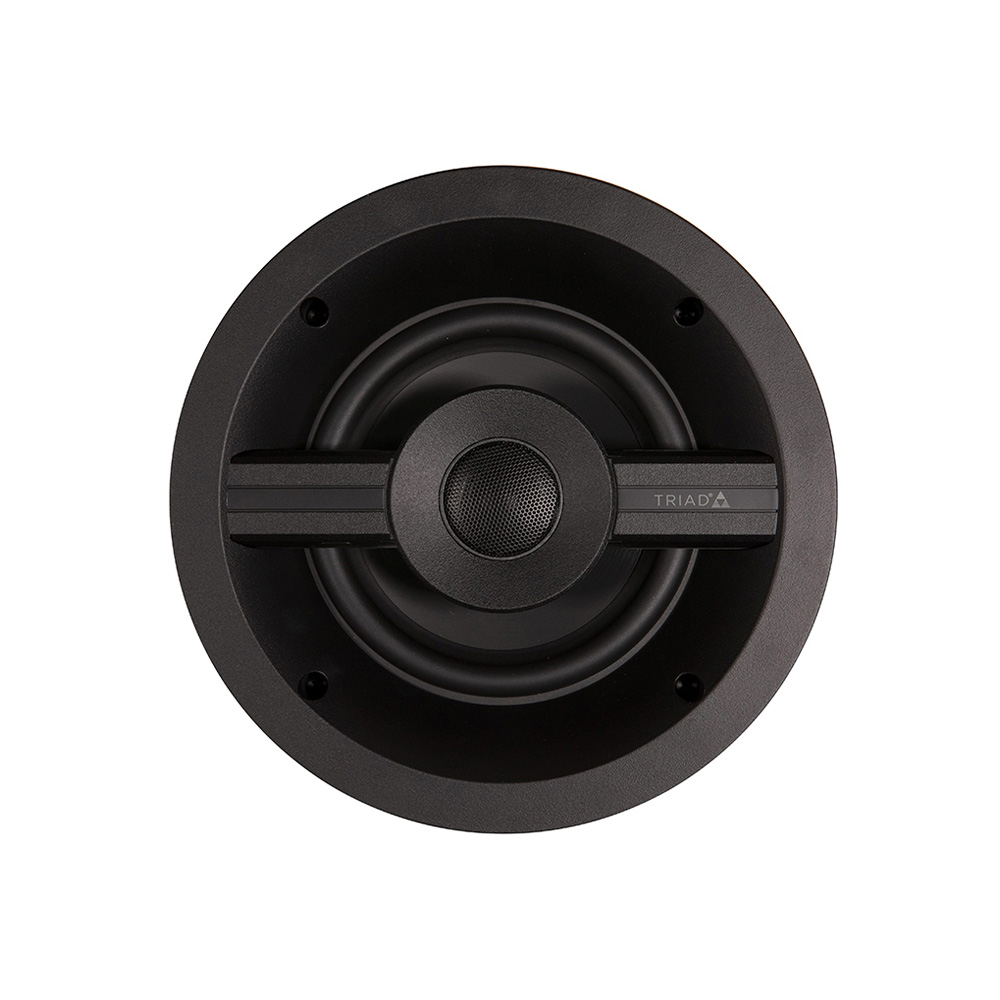

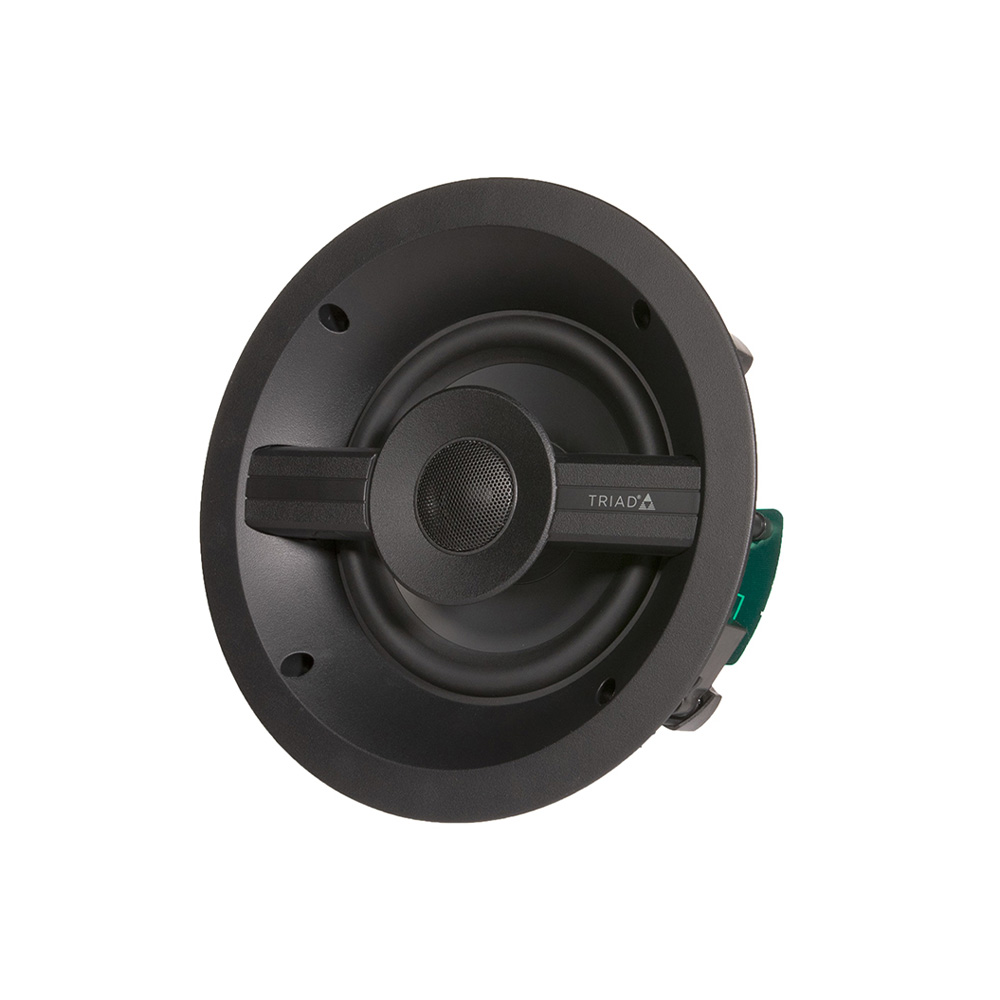

Triad Speaker IC61 In-Ceiling Loudspeaker

Triad’s IC61 speaker provides a high-quality multi-room audio option for builders, contractors, and homeowners seeking an affordable, whole-home audio solution without sacrificing sound quality. The speaker’s polypropylene woofer and 3/4″ aimable cloth dome tweeter offer long life, installation flexibility, and crystal-clear sound.

All Distributed Audio Series 1 speakers are voice / timbre matched—allowing homeowners to mix and match speakers within the series to meet the needs of each room while providing identical tonal qualities throughout the home.

Distributed Audio Series 1 speakers ship with white, round, frameless grills that are low profile and look great. The grill attaches to the speaker via hidden neodymium magnets embedded in the speaker baffle for fast installation and a snug custom finished fit. Custom paint-matched round or square grills are available separately and painted at the factory for a perfect finish that blends seamlessly with any interior design.

Description

Polypropylene woofer
Polypropylene, a non-absorbent, water-resistant material with inherently high internal dampening, is ideal for the wide-ranging uses of architectural in-ceiling, in-wall, and outdoor speakers.

Pivoting tweeter
With up to 10 degrees of movement, the pivoting tweeter delivers high-quality audio to the listener’s position and offers flexible installation options.

Voice matched
All Distributed Audio Series 1 speakers are voice matched—allowing homeowners to mix and match speakers within the series to meet the needs of each room while providing identical tonal qualities throughout the home.

Magnetic mounting
Low-profile frameless grills attach to the speaker with hidden neodymium magnets for fast installation and a snug fit.
Custom paint-matching is available.

Easy install
Using a tried-and-tested traditional Triad mounting system with reinforced threaded brass inserts, the Distributed Audio Series installs in seconds and will stay snug to the mounting surface for the life of the system.

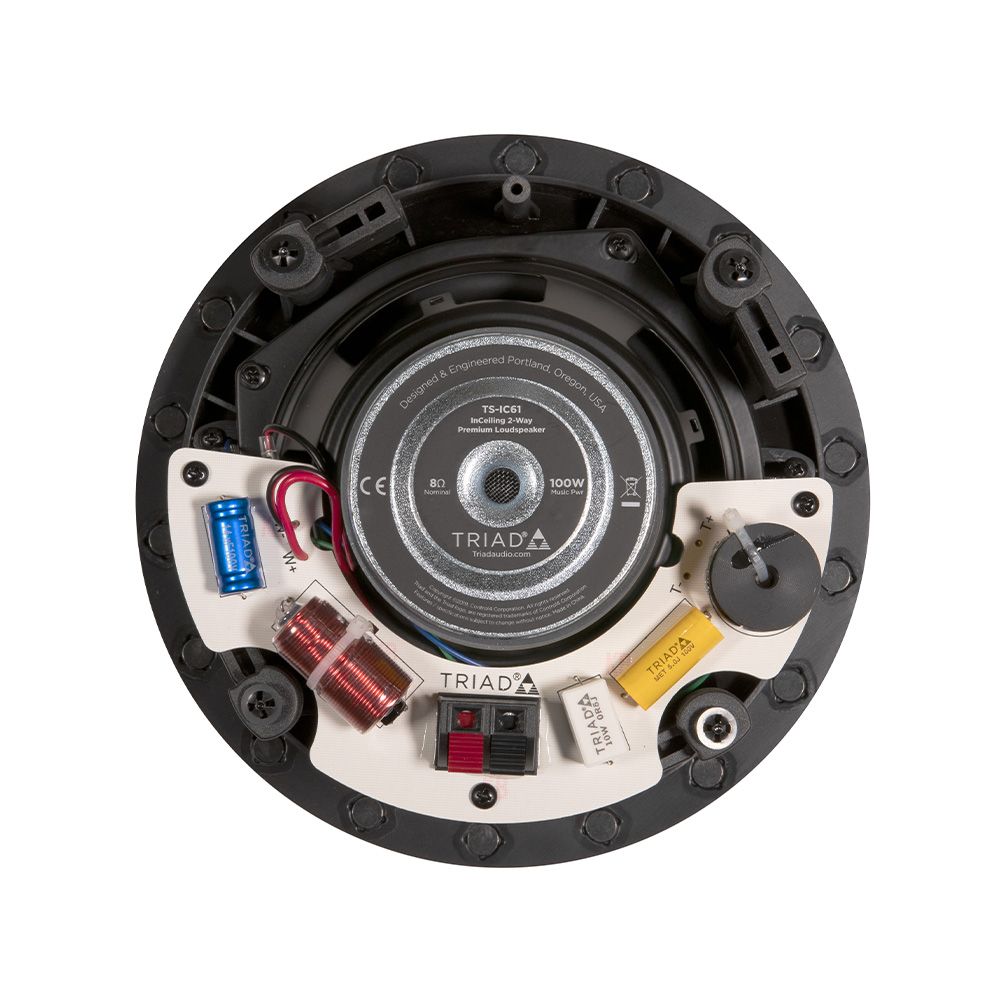

High quality spring clamps make connecting speaker wires simple and quick, while the magnetic frameless grill fits flush to the mounting surface with ease. Additionally, the tweeter bridge doubles as a durable handle, making it easier to hold during installation.

Components
Tweeter size19mm (3/4″)
Tweeter typeCloth dome
Woofer size165mm (6-1/2″)
Woofer typePolypropylene
Performance
Maximum Power100W
Recommended amp power5 – 100W
Maximum SPL108dB
Impedance (nominal)8 ohm
Impedance (minimum)5 ohm
Sensitivity (dB @ 2.83V, 1m)88dB
Frequency Response (+/- 3dB)54Hz – 21kHz
Dispersion (8K/-6dB)100°
Dimensions
Hole cutout diameter200mm (7-7/8″)
Speaker diameter230mm (9-1/16″)
Grill diameter233mm (9-3/16″)

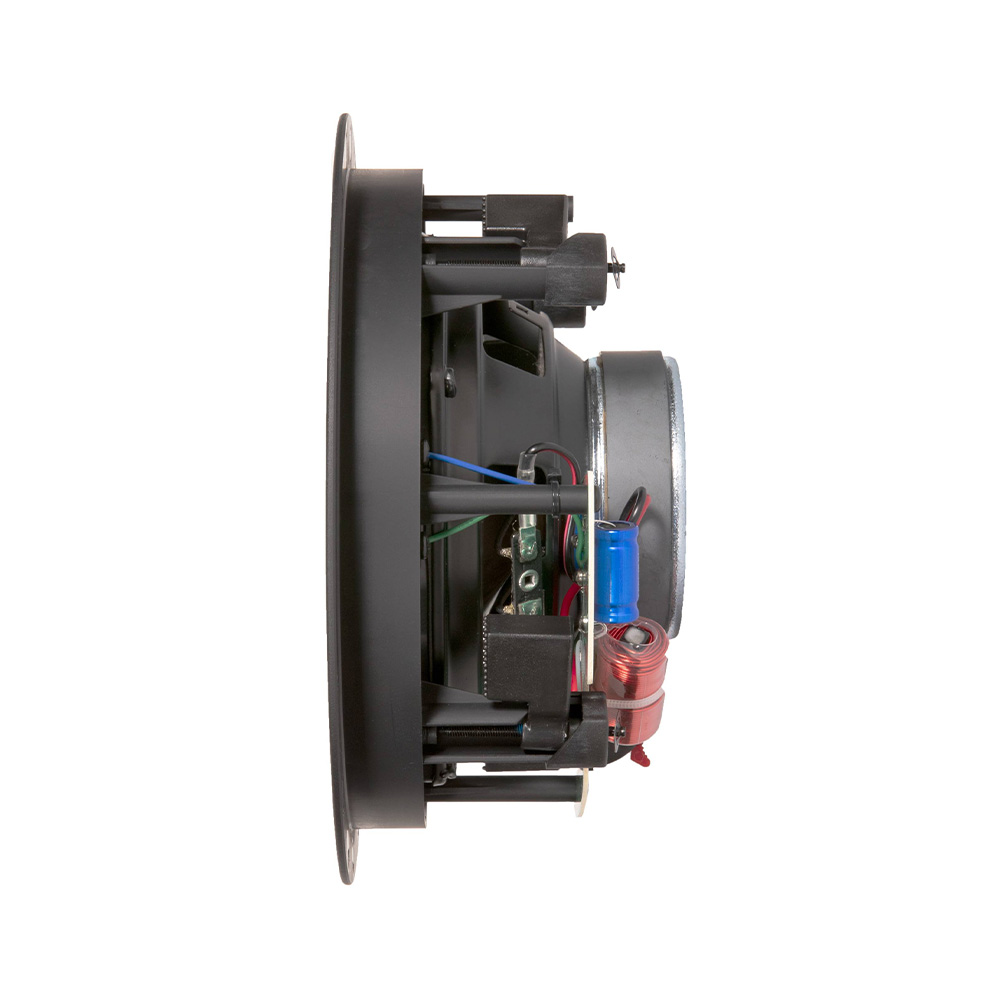

Mounting depth101mm (4″)
Product weight1.80kg (3.95 lbs)
Grill materialMetal Perf-Frameless
