Pivoting tweeter
With up to 10 degrees of movement, the pivoting tweeter delivers high-quality audio to the listener’s position and offers flexible installation options.
Poly-mica woofer
Mica-infused polypropylene offers a strengthened cone material with increased rigidity and a high stiffness-to-weight ratio—while still maintaining the dampening properties of a traditional polypropylene woofer.
Voice matched
All Distributed Audio Series 2 speakers are voice matched—allowing homeowners to mix and match speakers within the series to meet the needs of each room, while providing identical tonal qualities throughout the home.
Magnetic mounting
Low-profile frameless grills attach to the speaker with hidden neodymium magnets for fast installation and a snug fit.
Custom paint-matching is available.
Easy install
Using a tried-and-tested traditional Triad mounting system with reinforced threaded brass inserts, Distributed Audio Series speakers install in seconds and will stay snug to the mounting surface for the life of the system.

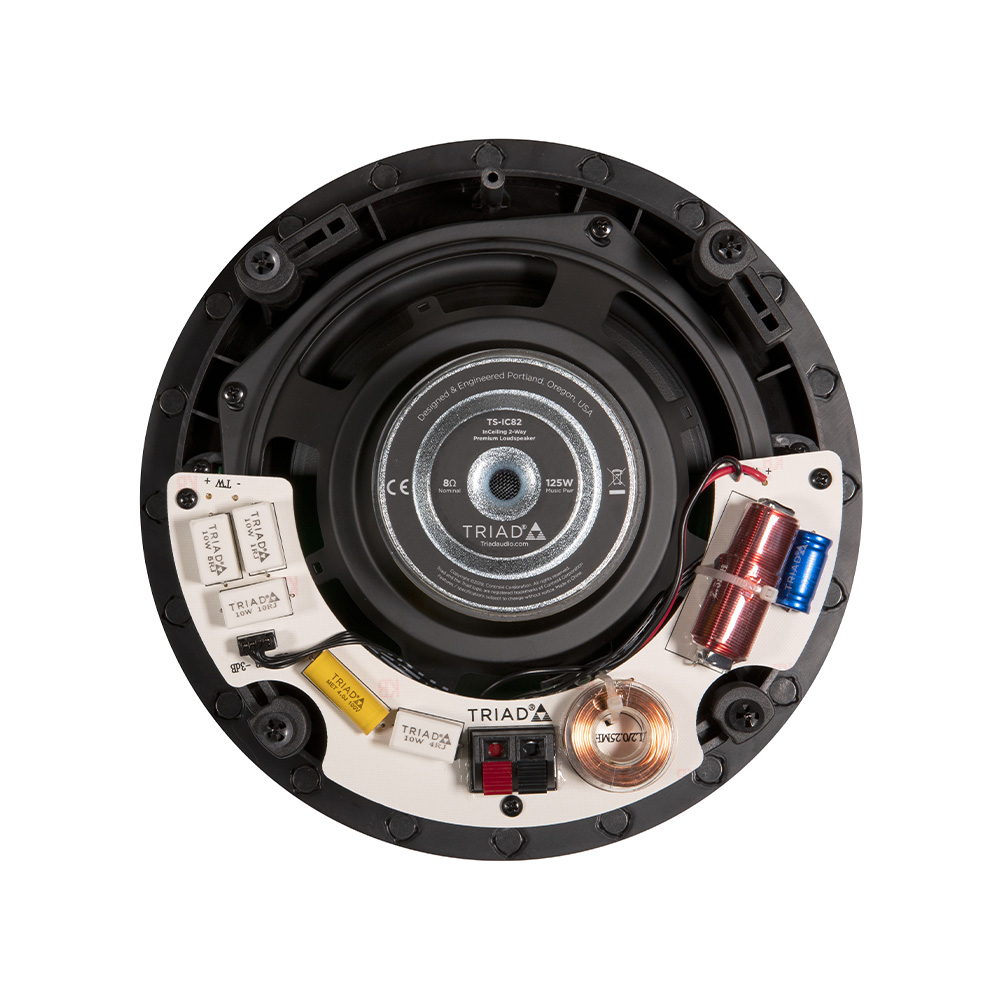

High-quality spring clamps make connecting speaker wires simple and quick, while the magnetic frameless grill fits flush to the mounting surface with ease. Additionally, the tweeter bridge doubles as a durable handle, making it easier to hold during installation.
Components | |
Tweeter size | 25mm (1″) |
Tweeter type | Tetoron® dome |
Woofer size | 203mm (8″) |
Woofer type | Poly-mica |
Performance | |
Maximum Power | 125W |
Recommended amp power | 5 – 125W |
Maximum SPL | 110dB |
Impedance (nominal) | 8 ohm |
Impedance (minimum) | 6.5 ohm |
Sensitivity (dB @ 2.83V, 1m) | 89dB |
Frequency Response (+/- 3dB) | 44Hz – 22kHz |
Dispersion (8K/-6dB) | 100° |
Dimensions | |
Hole cutout diameter | 241mm (9-1/2″) |
Speaker diameter | 271mm (10-11/16″) |
Grill diameter | 274mm (10-13/16″) |
Mounting depth | 111mm (4-3/8″) |
Product weight | 2.11kg (4.65 lbs) |
Grill material | Metal Perf-Frameless |
