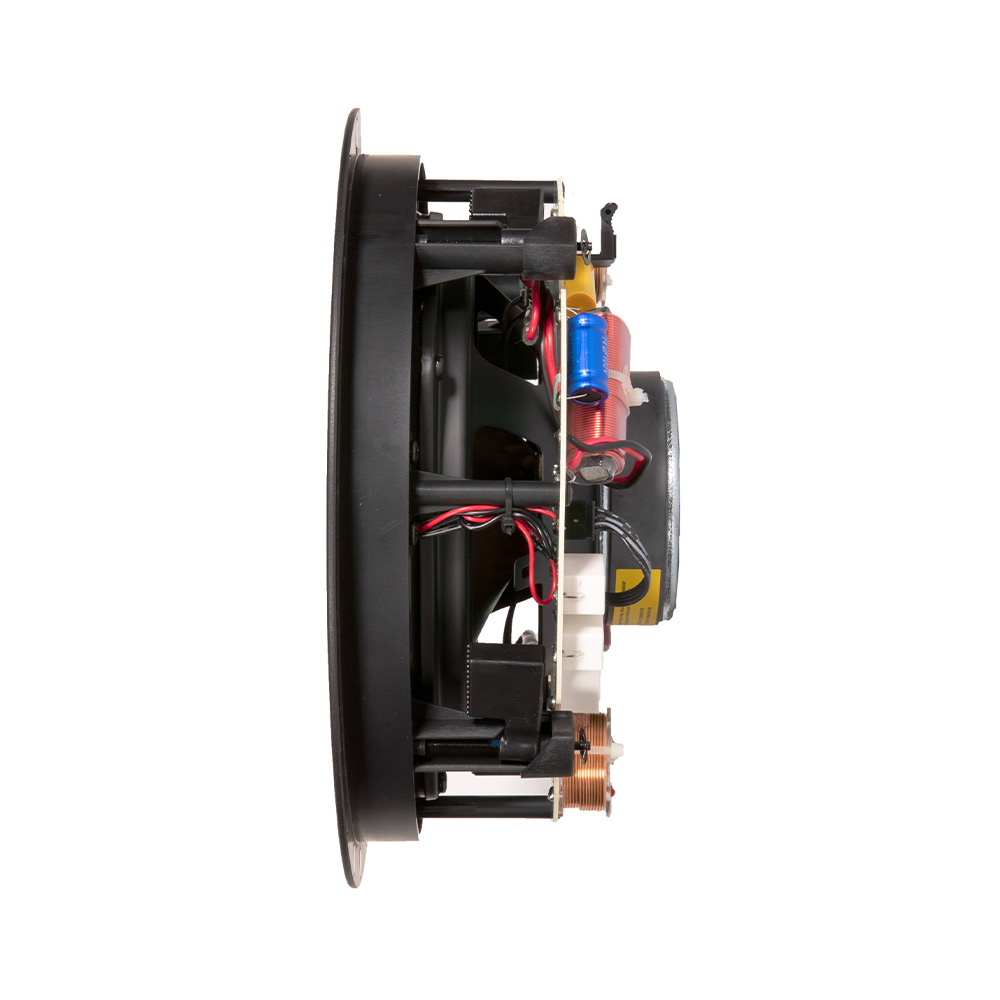

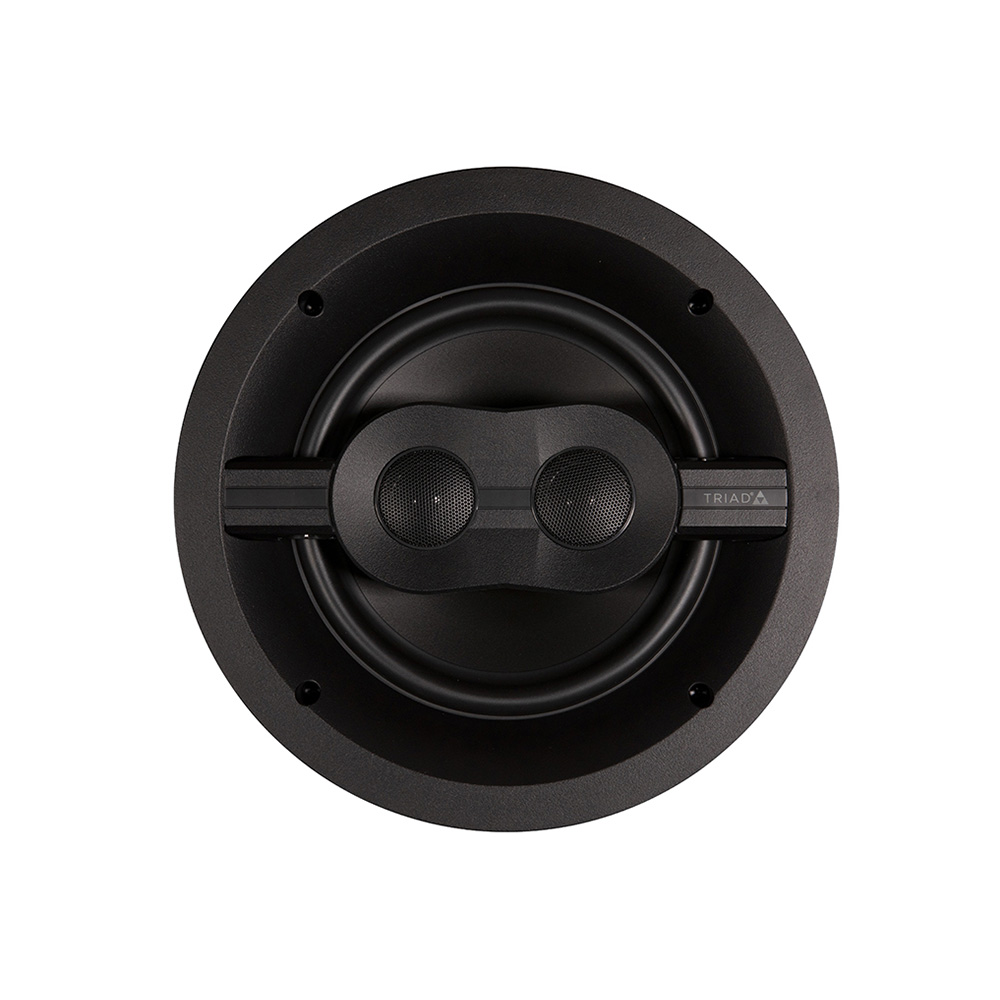

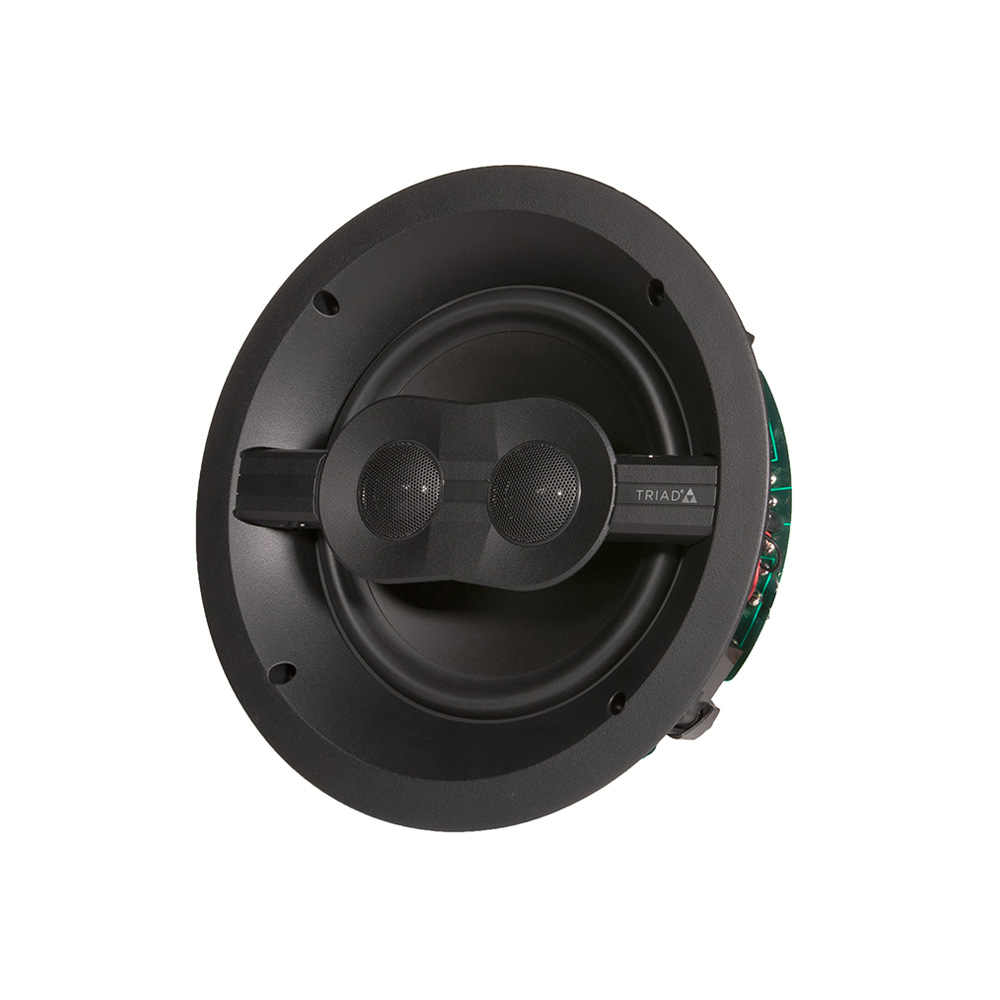

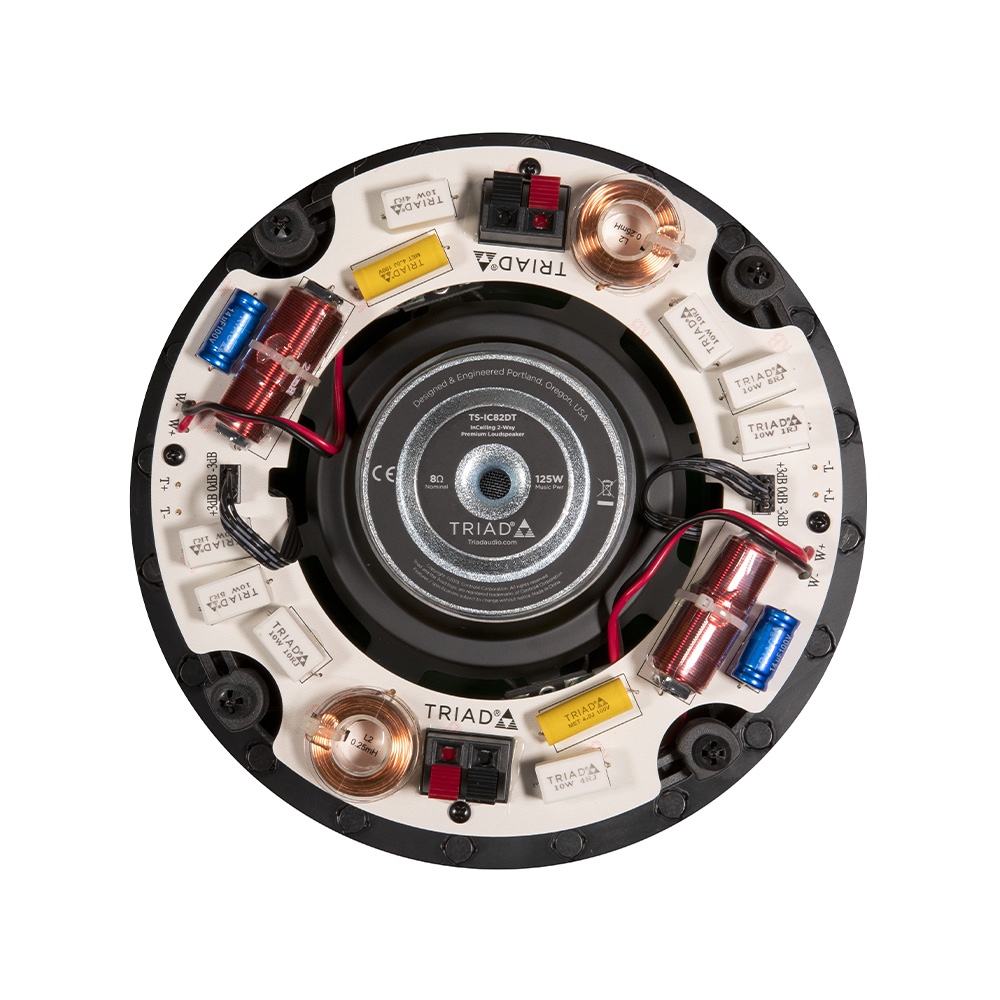

Triad Speaker IC82DT In-Ceiling Loudspeaker

Triad’s IC82DT speaker offers homeowners the refined, musical quality of Triad speakers for their whole home. This speaker is built around a reinforced poly-mica woofer for superior bass and aimable Tetoron-dome tweeters for a full, natural sound.

All Distributed Audio Series 2 speakers are voice / timbre matched—allowing homeowners to mix and match speakers within the series to meet the needs of each room while providing identical tonal qualities throughout the home.

The Triad IC82DT incorporates dual tweeters and a woofer with dual voice coils into a single speaker design, perfect for delivering stereo sound into smaller rooms.

Distributed Audio Series 2 speakers ship with white, round, frameless grills that are low profile and look great. The grill attaches to the speaker via hidden neodymium magnets embedded in the speaker baffle for fast installation and a snug custom finished fit. Custom paint-matched round or square grills are available separately and painted at the factory for a perfect finish that blends seamlessly with any interior design.

Description

Dual tweeters
The Triad IC82DT incorporates dual tweeters and a woofer with a dual voice coil into a single-speaker design, perfect for delivering stereo sound into smaller rooms.

Pivoting tweeter
With up to 10 degrees of movement, the pivoting tweeter delivers high-quality audio to the listener’s position and offers flexible installation options.

Poly-mica woofer
Mica-infused polypropylene offers a strengthened cone material with increased rigidity and a high stiffness-to-weight ratio—while still maintaining the dampening properties of a traditional polypropylene woofer.

Voice matched
All Distributed Audio Series 2 speakers are voice matched—allowing homeowners to mix and match speakers within the series to meet the needs of each room, while providing identical tonal qualities throughout the home.

Magnetic mounting
Low-profile frameless grills attach to the speaker with hidden neodymium magnets for fast installation and a snug fit.
Custom paint-matching is available.

Easy install
Using a tried-and-tested traditional Triad mounting system with reinforced threaded brass inserts, Distributed Audio Series speakers install in seconds and will stay snug to the mounting surface for the life of the system.
High-quality spring clamps make connecting speaker wires simple and quick, while the magnetic frameless grill fits flush to the mounting surface with ease.
Additionally, the tweeter bridge doubles as a durable handle, making it easier to hold during installation.

Components
Tweeter size25mm (1″)
Tweeter typeTetoron® dome
Woofer size203mm (8″)
Woofer typePoly-mica
Performance
Maximum Power125W
Recommended amp power5 – 125W
Maximum SPL110dB
Impedance (nominal)8 ohm (each channel)
Impedance (minimum)6.5 ohm (each channel)
Sensitivity (dB @ 2.83V, 1m)89dB
Frequency Response (+/- 3dB)44Hz – 22kHz
Dispersion (8K/-6dB)100°
Dimensions
Hole cutout diameter241mm (9-1/2″)
Speaker diameter271mm (10-11/16″)
Grill diameter274mm (10-13/16″)
Mounting depth111mm (4-3/8″)
Product weight2.48kg (5.45 lbs)
Grill materialMetal Perf-Frameless
