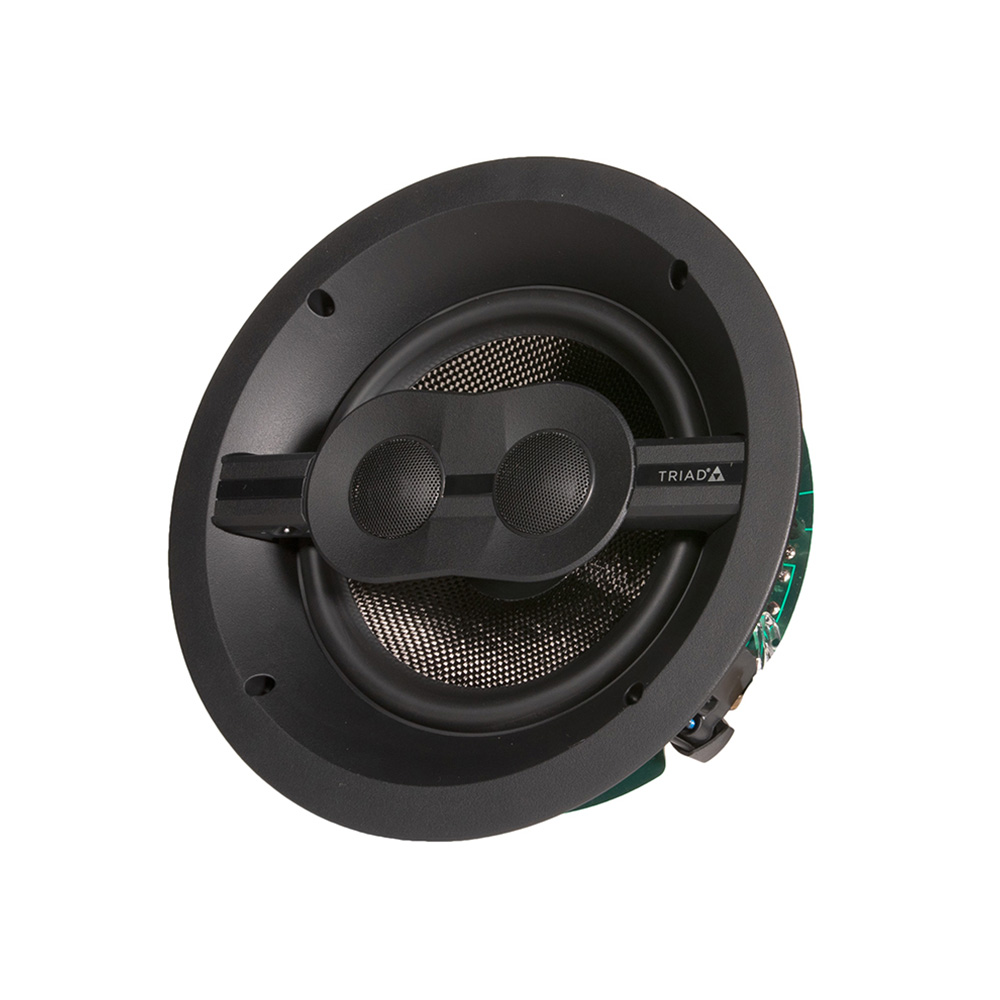

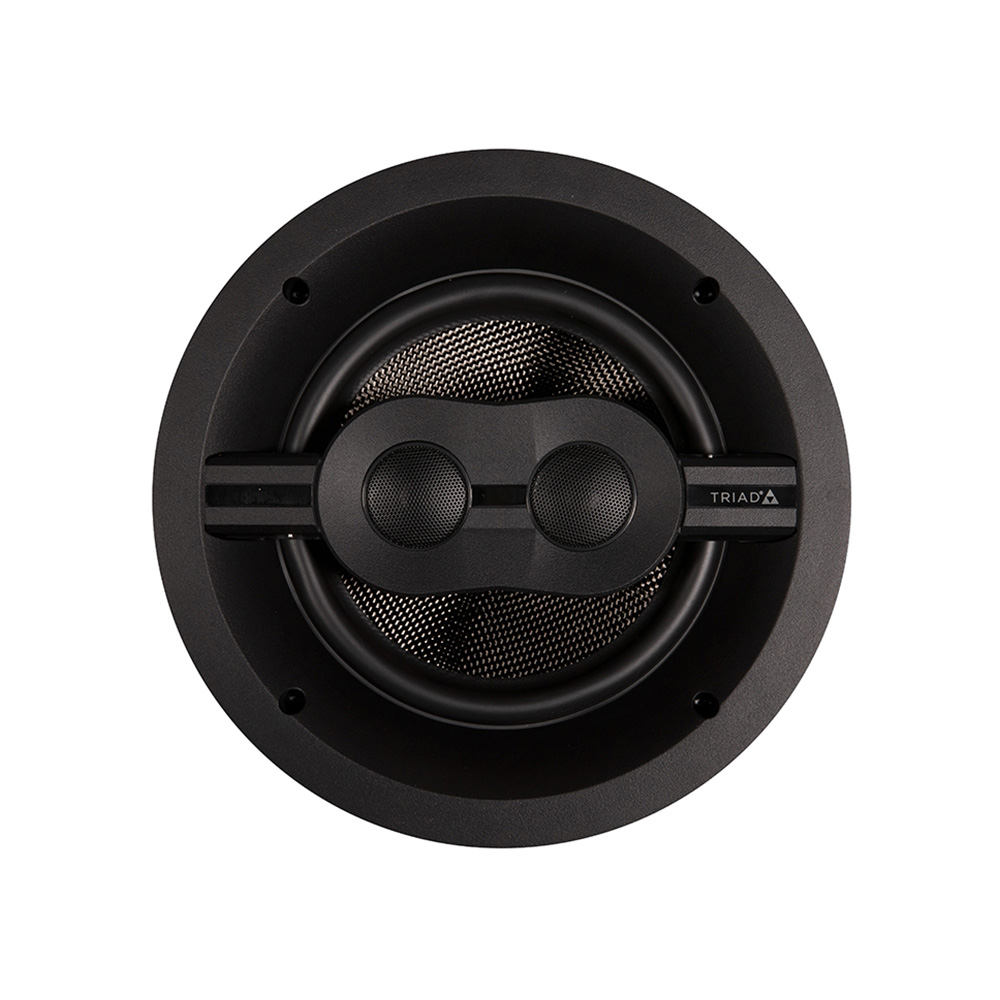

Triad Speaker IC83DT In-Ceiling Dual Tweeter Loudspeaker

Triad’s IC83DT speaker is engineered for music enthusiasts who are looking for exceptional sound in every room. This speaker utilizes a woven carbon-fiber woofer for superior bass response and durability. A one-inch silk dome tweeter offers smooth, high-frequency sound and is aimable to offer greater installation flexibility.

All Distributed Audio Series 3 speakers are voice / timbre matched to the other in the series—allowing homeowners to choose the right size of speaker for each room while delivering identical tonal qualities throughout the home.

The Triad IC83DT incorporates dual tweeters and a woofer with dual voice coils into a single speaker design, making it the perfect choice for delivering stereo sound into smaller rooms.

Distributed Audio Series 3 in-ceiling speakers ship with white, round, frameless grills that are low profile and look great. The grill attaches to the speaker via hidden neodymium magnets embedded in the speaker baffle for fast installation and a snug custom finished fit. Custom paint-matched round or square grills are available separately and painted at the factory for a perfect finish that blends seamlessly with any interior design.

Description

Dual tweeters
The Triad IC83DT incorporates dual tweeters and a woofer with a dual voice coil into a single-speaker design, making it the perfect choice for delivering stereo sound into smaller rooms.

Carbon-fiber woofer
One of the strongest and lightest materials used in woofer design, carbon fiber provides a responsive and durable driver for the ultimate musical performance and delivers outstanding bass and mid-bass response.

Pivoting tweeter
With up to 10 degrees of movement, the pivoting silk dome tweeter delivers high-quality audio to the listener’s position and offers flexible installation options.

Voice matched
All Distributed Audio Series 3 speakers are voice matched to the other in the series—allowing homeowners to choose the right size of speaker for each room while delivering identical tonal qualities throughout the home.

Magnetic mounting
Low-profile frameless grills attach to the speaker with hidden neodymium magnets for fast installation and a snug fit.
Custom paint-matching is available.

Easy install
Using a tried-and-tested traditional Triad mounting system with reinforced threaded brass inserts, Distributed Audio Series speakers install in seconds and will stay snug to the mounting surface for the life of the system.
Additionally, the tweeter bridge doubles as a durable handle, making it easier to hold during installation.

Components
Tweeter size25mm (1″)
Tweeter typeSilk dome
Woofer size203mm (8″)
Woofer typeCarbon fiber
Performance
Maximum Power1240W
Recommended amp power5 – 140W
Maximum SPL113dB
Impedance (nominal)8 ohm (each channel)
Impedance (minimum)6.5 ohm (each channel)
Sensitivity (dB @ 2.83V, 1m)91dB
Frequency Response (+/- 3dB)43Hz – 23kHz
Dispersion (8K/-6dB)100°
Dimensions
Hole cutout diameter241mm (9-1/2″)
Speaker diameter271mm (10-11/16″)
Grill diameter274mm (10-13/16″)
Mounting depth111mm (4-3/8″)
Product weight3.68kg (8.1 lbs)
Shipping weight2.5kg (5.5 lbs)
Grill materialMetal Perf-Frameless
