Yamaha Bookshelf-Speakers NS-333

Yamaha Bookshelf-Speakers NS-333

2-Way Acoustic Suspension Speaker System. The EF (Elliptical Form) Series feature Waveguide horns, PMD (Polymer-injected Mica Diaphragm) woofers and highest quality internal Monster Cable wiring for total enjoyment of digital movie sound and music sources, plus elegant Yamaha traditional piano finish cabinets.

  • High sensitivity and wide dynamic range for contemporary digital sources
  • Waveguide horn allows the sound field to be shaped and controlled for optimal spatial expression in home theater environments
  • PMD (Polymer-injected Mica Diaphragm) cone woofer combines high-performance materials and design for extreme accuracy
  • Highest quality internal Monster Cable wiring
  • High frequency response dome tweeter delivers clear, natural highs
  • Beautiful Yamaha piano finish with elegant elliptical form
Categories: , ,

Description

Two Way Bass Reflex Bookshelf Speaker System

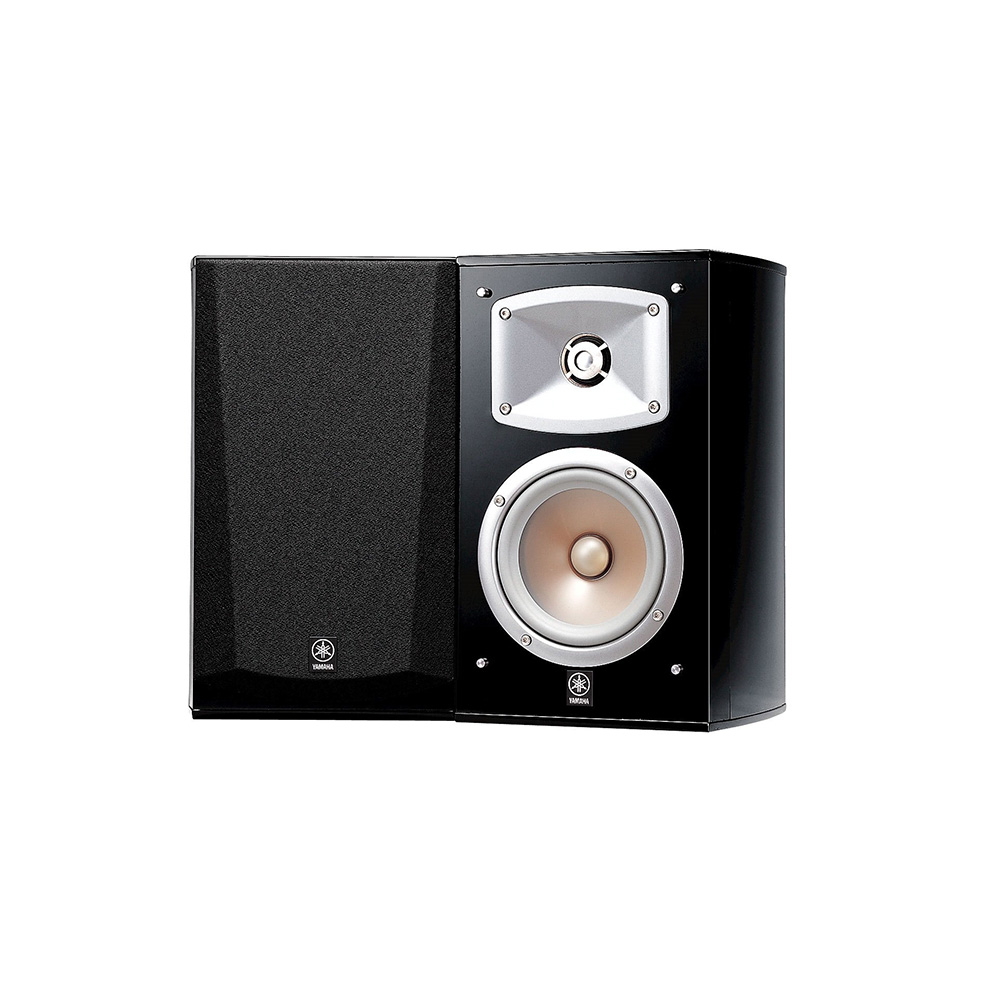

Yamaha’s NS-333 speaker system has been designed specifically for home theater applications. The bookshelf speaker is a bass-reflex design that can be used for main or surround channels and incorporates a 5″ Polymer-Injected Mica Diaphragm (PMD) cone woofer and a 1” aluminum dome tweeter. For improved imaging, the tweeter utilizes Yamaha’s exclusive waveguide horn.



Waveguide Horn

Unlike most homes, movie theaters use sound absorbing materials on walls and ceilings. The result is that the sound reaching your ears is the sound wave produced by the speakers rather than reflected off the walls. Yamaha has created wave guides that greatly reduce reflected sound and increase the proportion of directly generated sound waves reaching your ears. The result is a clear and precise sense of sound direction and placement.



Internally Wired with Monster Cable™

Yamaha has chosen to ensure optimum sound quality by internally wiring some of the components with Monster Cable™. This ensures a clean, clear signal from the crossover network to the speaker driver.



Magnetic Shielding

The speaker is magnetically shielded, so it can be placed on a TV or video monitor without degrading the picture via stray magnetic fields.



Performance Enhanced by a Handsome Cabinet

The EF series speakers are enclosed in an Elliptical Form cabinet with a high gloss black piano finish, which provides solid construction with minimal sound diffraction.



New Grill Design

New grill design and grill cloth provide an attractive and acoustically transparent protective cover for the drivers.

Type2-Way Bass-ReflexSpeaker System
Woofers13cm PMD cone
Tweeter2.5cm aluminium dome with Waveguide horn
Frequency Response60 Hz-35 kHz
Nominal Input Power60 W
Maximum Input Power150 W
Sensitivity87 dB/2.83 V/1 m
Crossover Frequencies3 kHz
Impedance6 ohms
Dimensions (W x H x D)200 x 320 x 213 mm
Weight5.5 kg/unit
