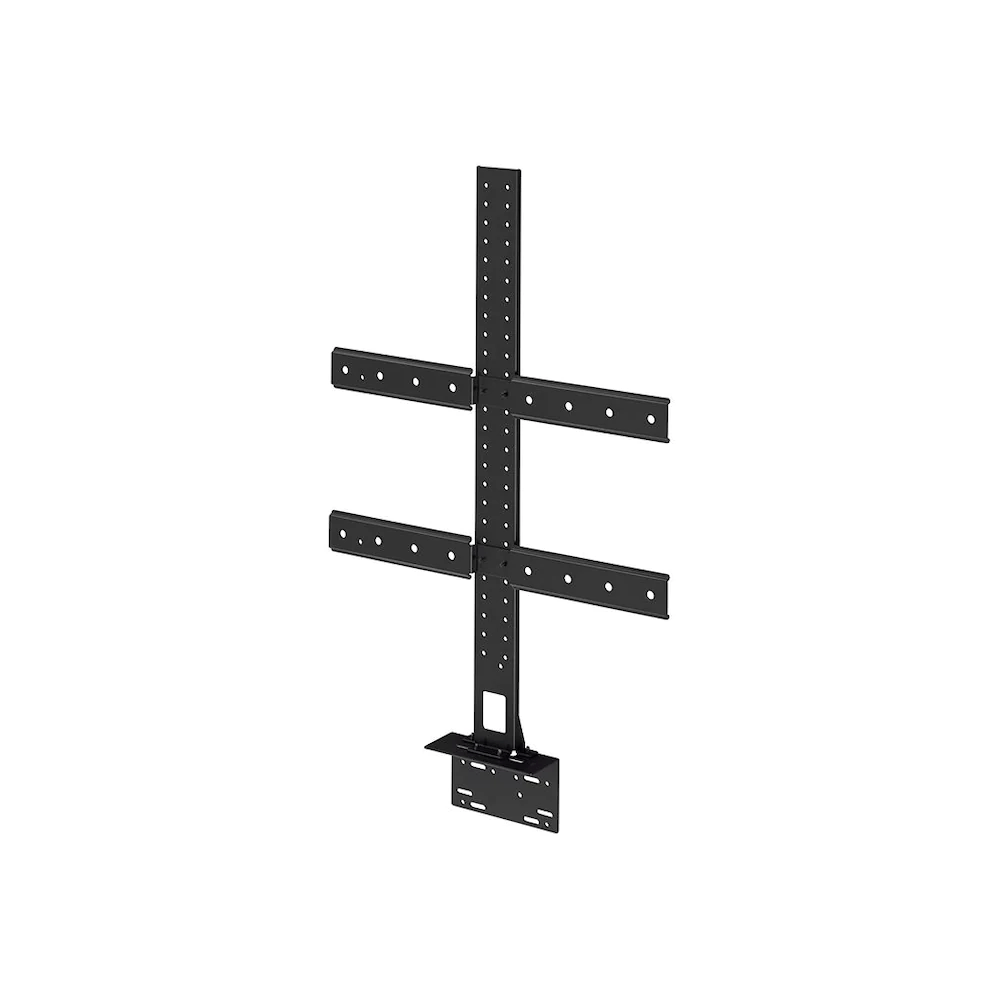

Yamaha BRK-TV1 TV mount Bracket for CS-800/CS-500

Yamaha BRK-TV1 TV mount Bracket for CS-800/CS-500

  • VESA compatible mounting.
  • All-in-one appearance.
Categories: ,

Description

CS-800:

Yamaha

･ Utilizes the included wall mount bracket for easy install.

･ For use with display screens 48-70inches.

･ CS-800 cannot be placed on top of display.

CS-500:

CS-500:

･ Utilizes the BRK-WL1 (not included).

･ For use with display screens above

BRK-TV1
General
DimensionsDimensionsW 440 mm × D 54 mm × H 700 mm
WeightWeight1.6 kg
AccessoriesAccessoriesSpacer x 4, Screw (M4 × 10 mm) × 12, Screw (M6 × 12 mm) × 4, Screw (M6 × 30 mm) × 4, Screw (M8 × 15 mm) × 4, Screw (M8 × 35 mm) × 4, Flat washer (M6) x 4, Spring washer (M6) x 4, Flat washer (M8) x 4, Spring washer (M8) x 4
Supported Display SizeSupported Display SizeInstallation under display: 48 inches – 70 inches, Installation above display: 48 inches – 60 inches
