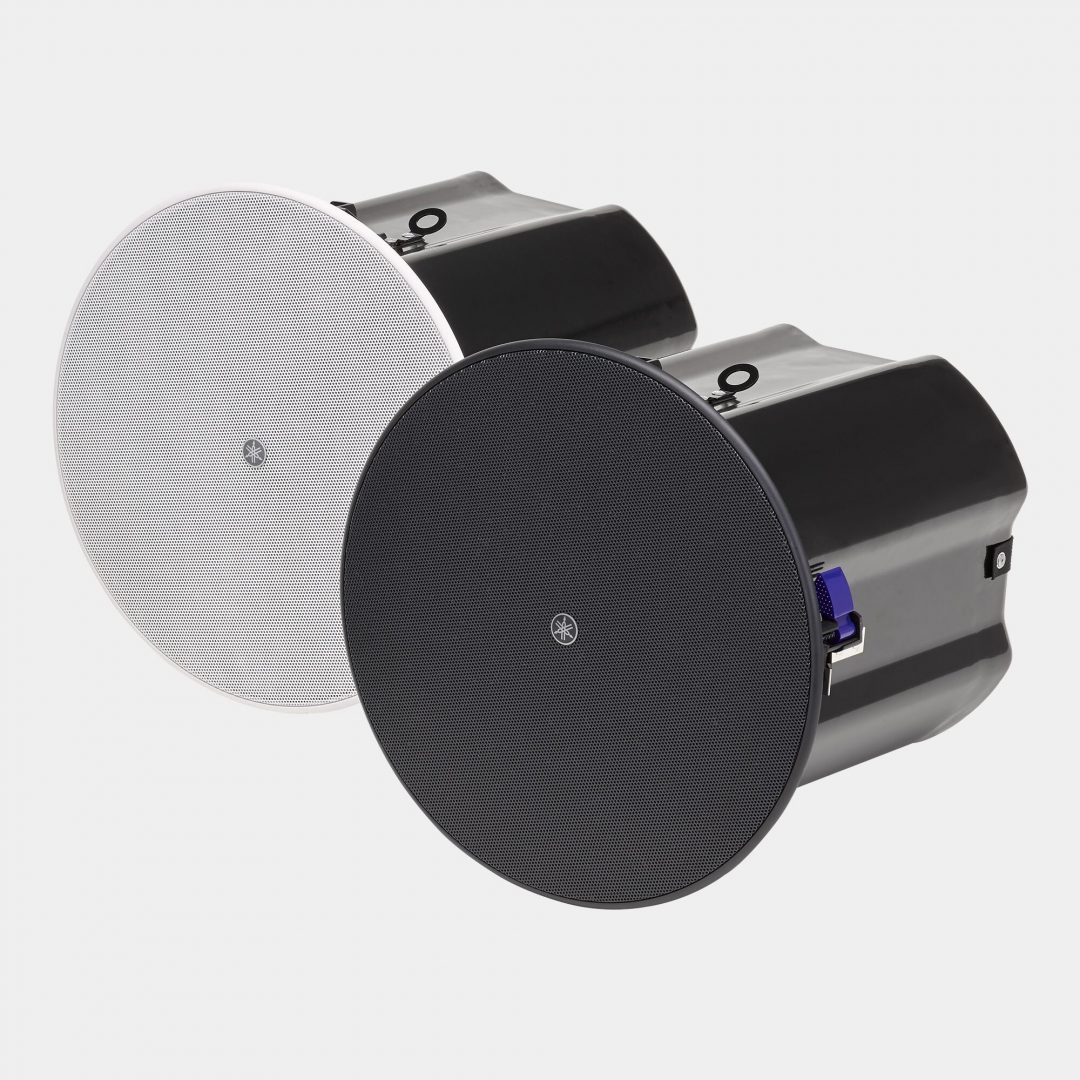

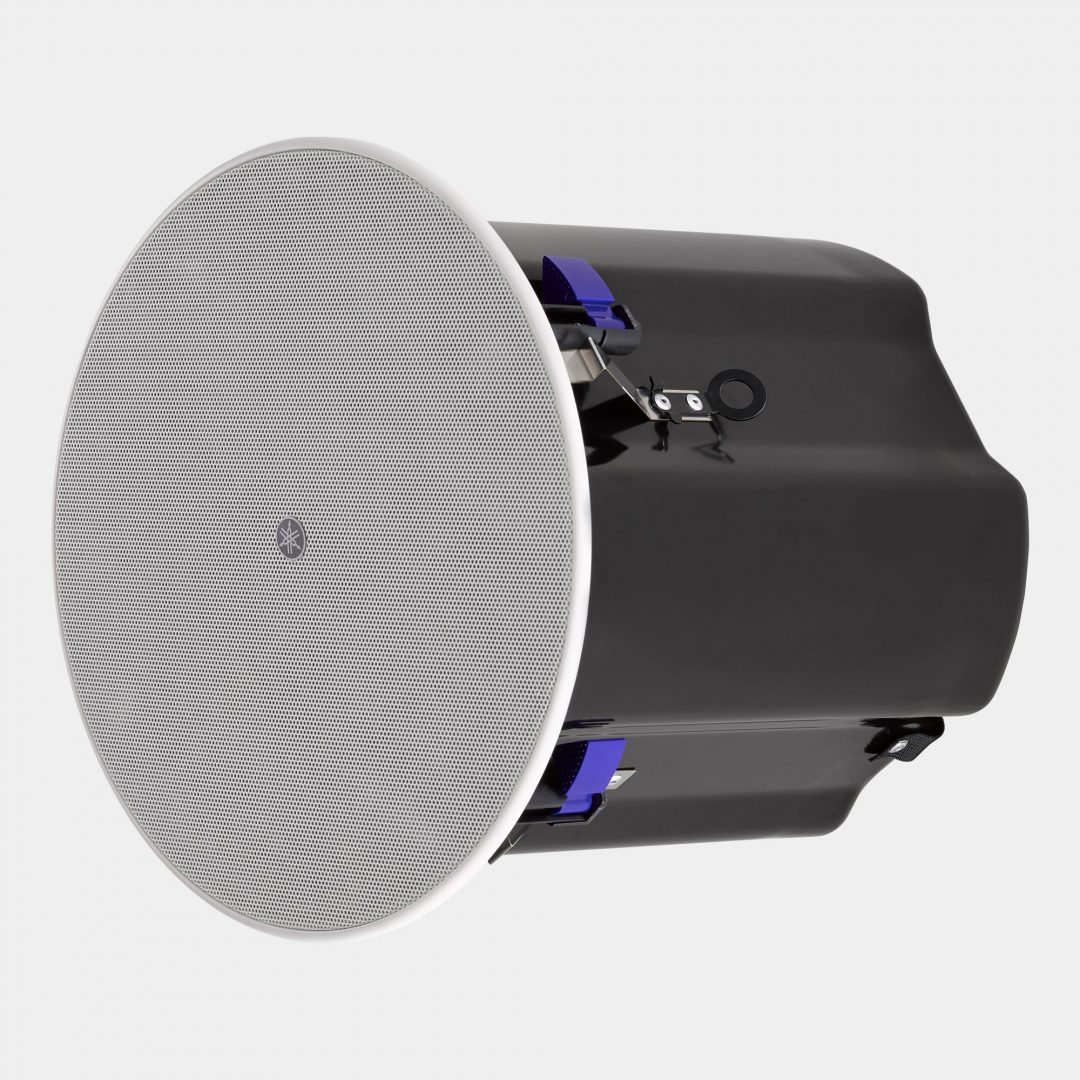

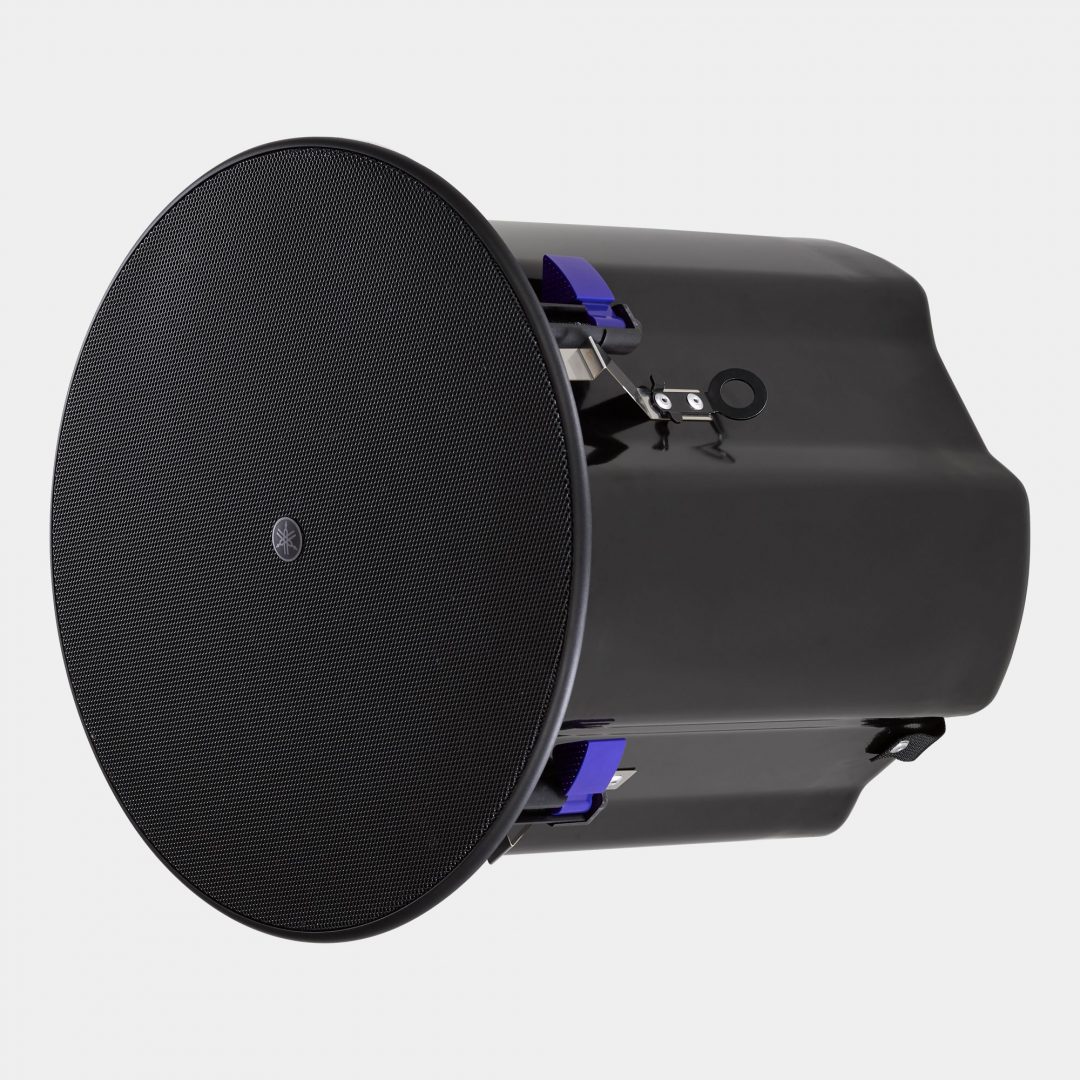

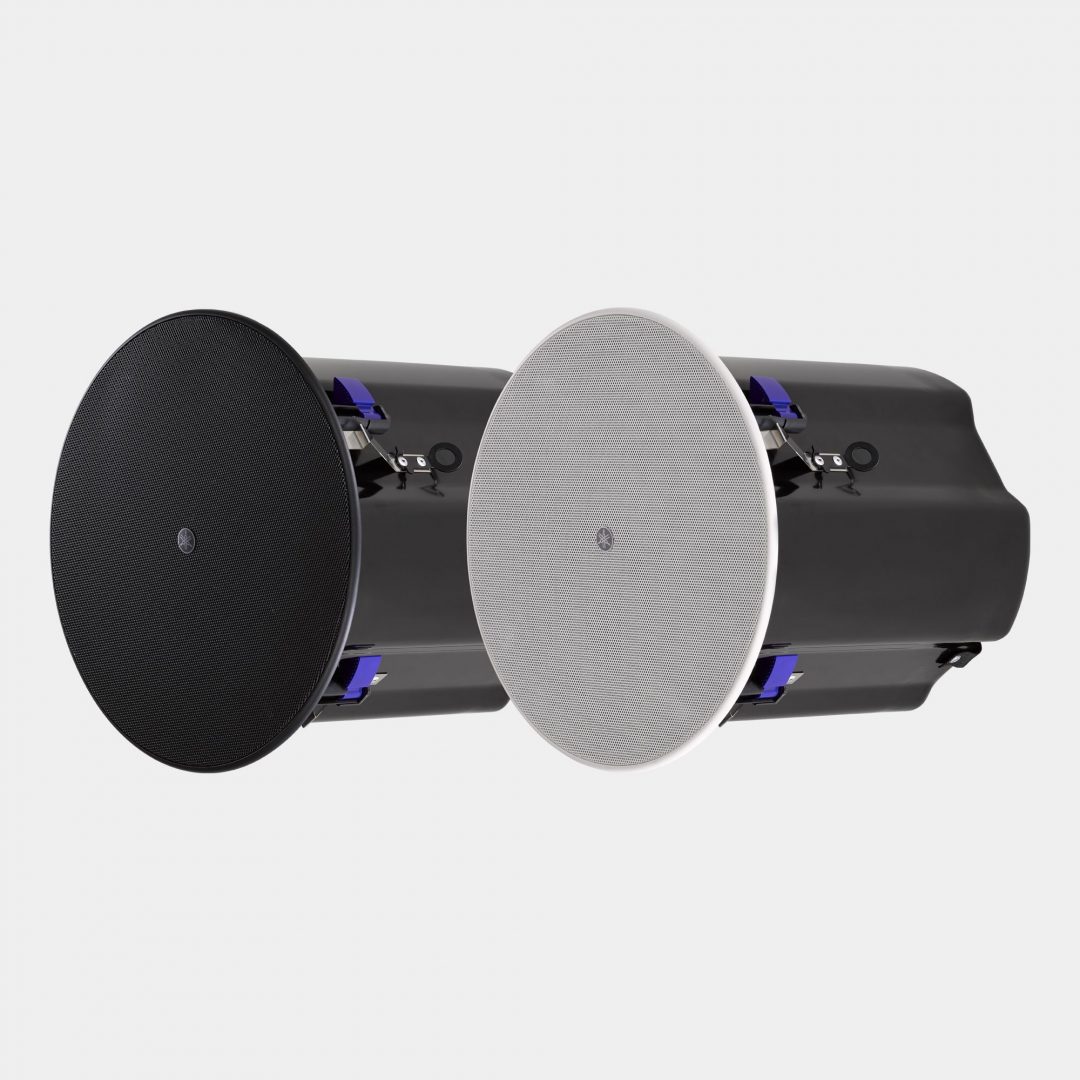

Yamaha Ceiling Subwoofer VXC Series “S model” VXC8SB / VXC8SW

VXC series “S model” ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures.

  • Sound and size ideally matched to the VXS and VXC series
  • Band-pass design ensures smooth, distortion-free low-frequency extension
  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening

Description

A Choice of Models for All Low-frequency Needs

Luxurious bass response can enhance musical presence and realism in a big way. The enclosures of VXC series S models incorporate a band-pass design to reduce unwanted vibrations and noise, making it possible to achieve a higher SPL.

Band-pass structure of VXC8S

Yamaha

Smart Design for Safer, Faster Installation

The VXC-S ceiling speakers come with smart mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

Carrying Band

Anti-Drop Tab

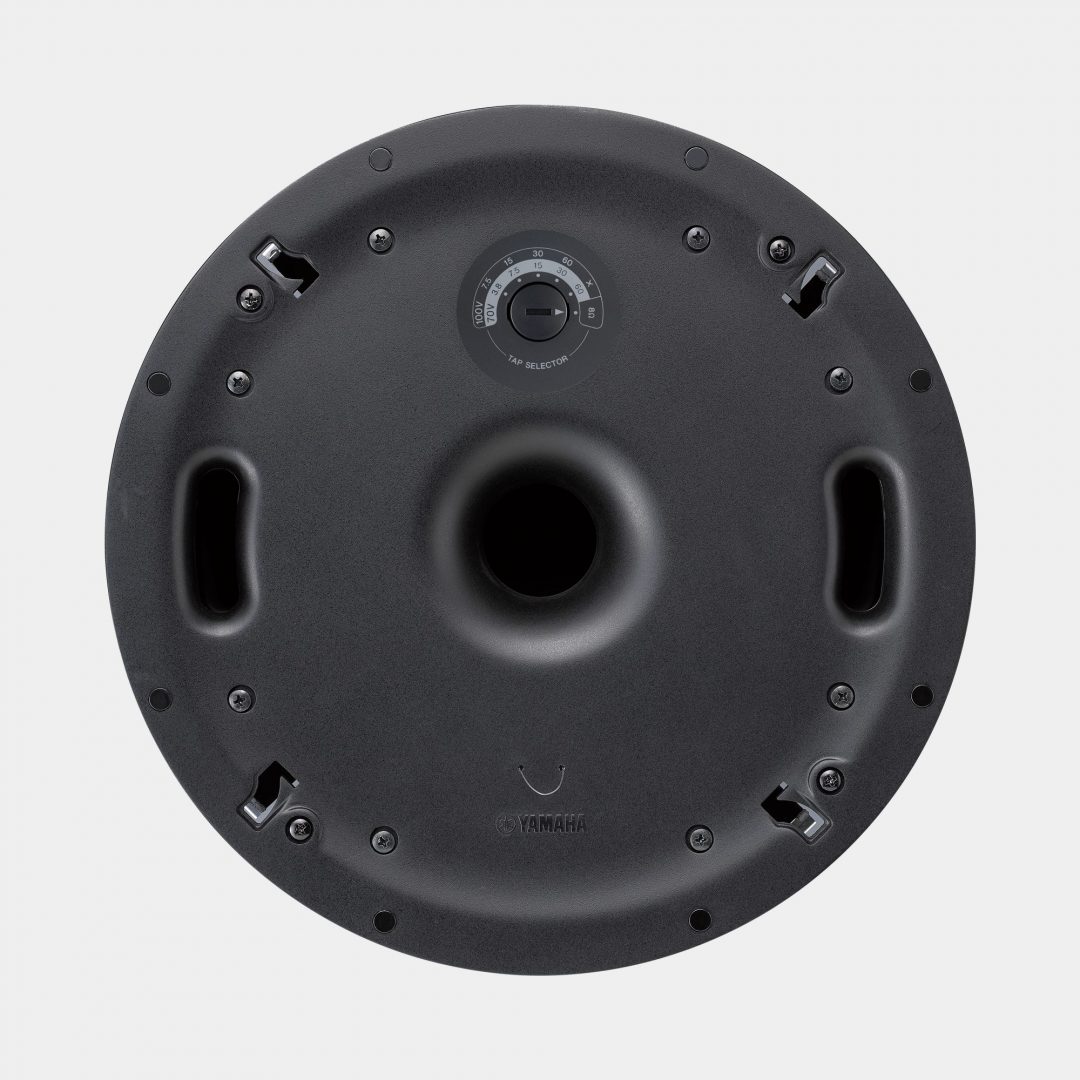

Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.

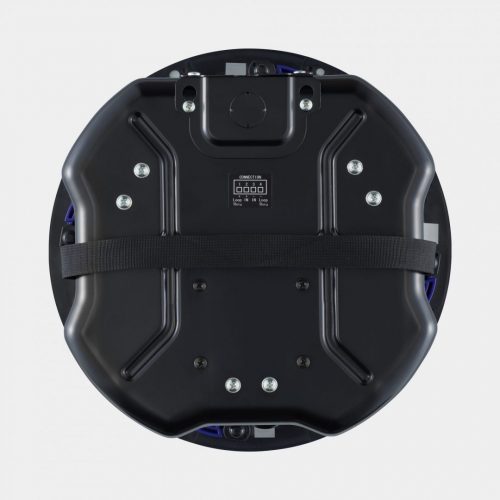

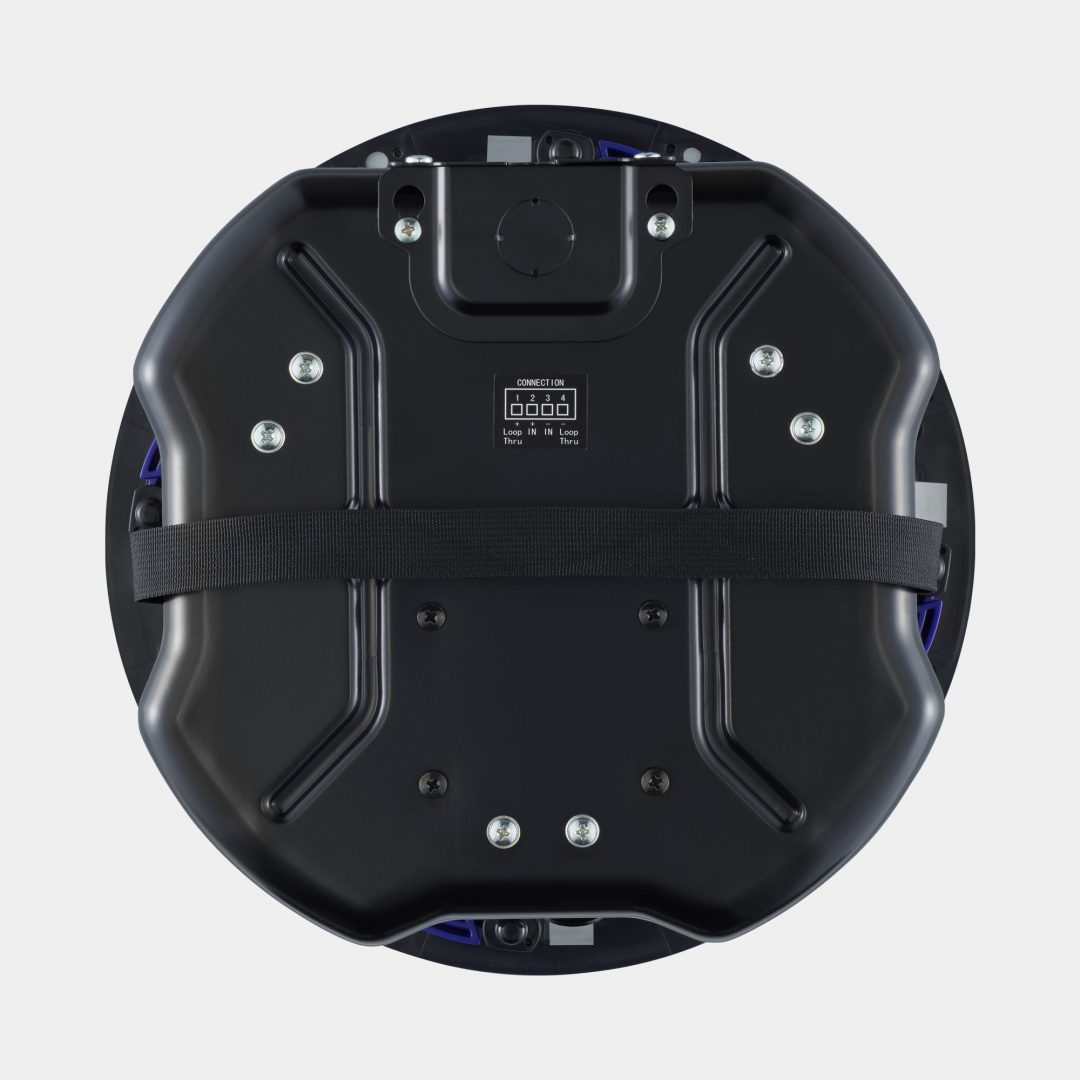

A built-in “carrying band” not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.

An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.

Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

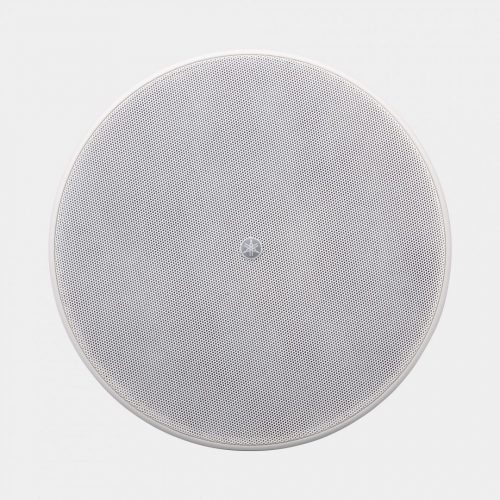

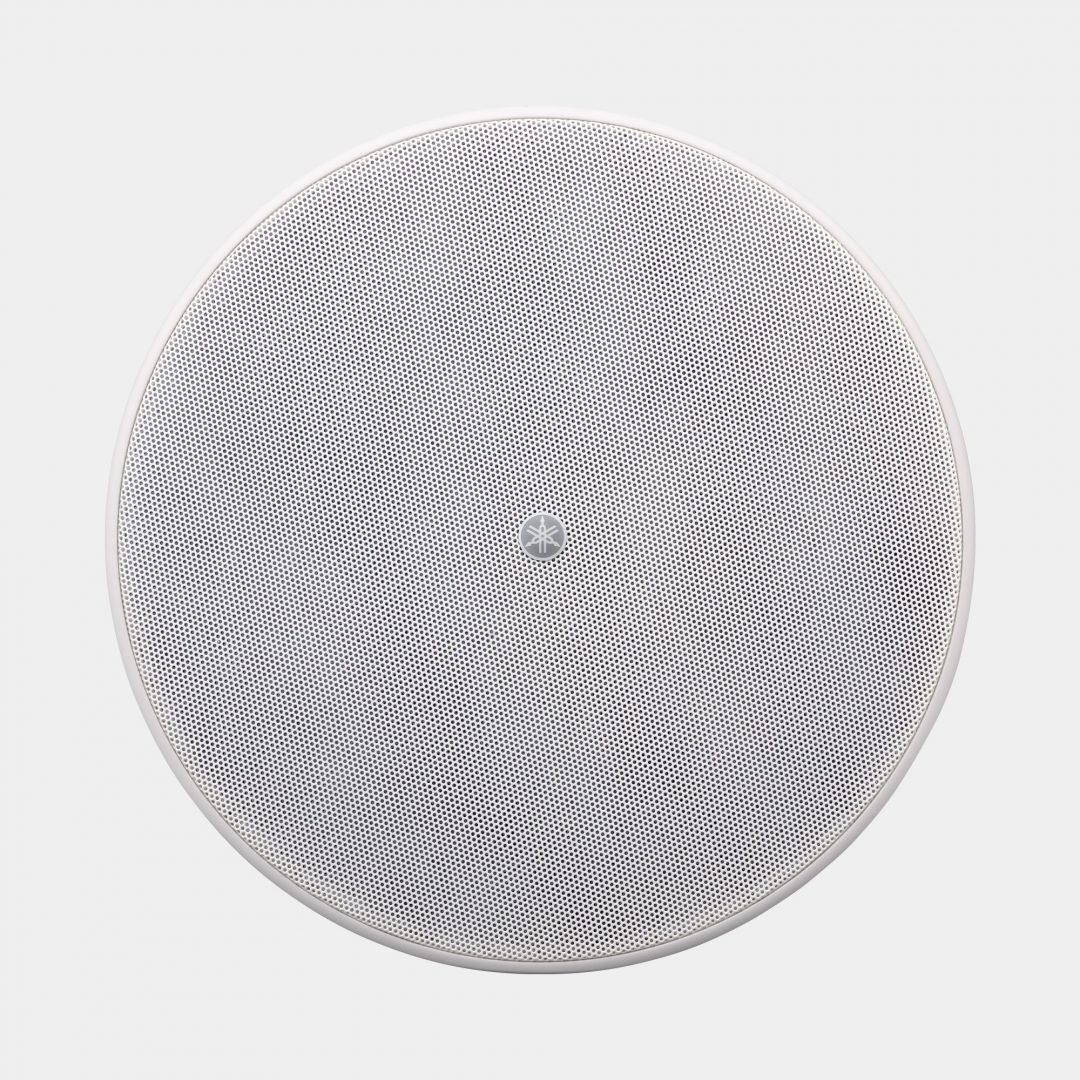

The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

The supplied grilles can be painted any color to match interior decor.

Speaker typeBand-pass type Subwoofer
Frequency range (-10dB)44 Hz – 200 Hz (Half-space 2π)
Nominal coverage
ComponentsLF8″ Cone
Power ratingNOISE100 W
PGM200 W
PEAK400 W
Nominal impedance8 Ω
Transformer taps100V60 W, 30 W, 15 W, 7.5 W
70V60 W, 30 W, 15 W, 7.5 W, 3.8 W
SPLSensitivity (1W; 1m on axis)88 dB SPL (Half-space 2π)
Peak (Calculated)114 dB SPL (Calculated, 1m)
I/O connectorsEuroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Protection circuitLoad protectionFull-range power limiting to protect network and transducers

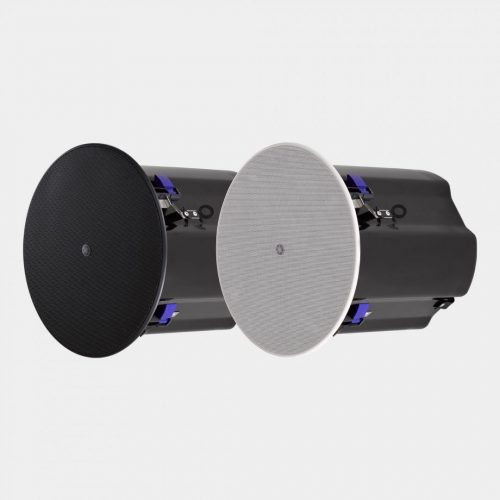

FinishVXC8SB: Black (approx. Munsell N3), VXC8SW: White (approx. Munsell N9.3)
DimensionsDiameter324 mm (12-13/16″)
D314 mm (12-23/64″)
Net weight8.7 kg (19.2 lbs)
Cutout sizeØ285 mm (Ø11-7/32″)
Required ceiling board thickness5 mm – 37 mm
AccessoriesCutout Template
PackagingSingle package
CertificateUL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance
OthersConduit tube: Ø15.4 mm – Ø21.3 mm
OptionsAB-C8S: O-ring + Tile Rail kit
