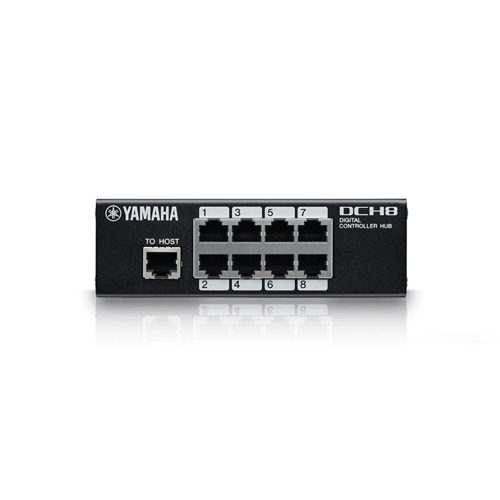

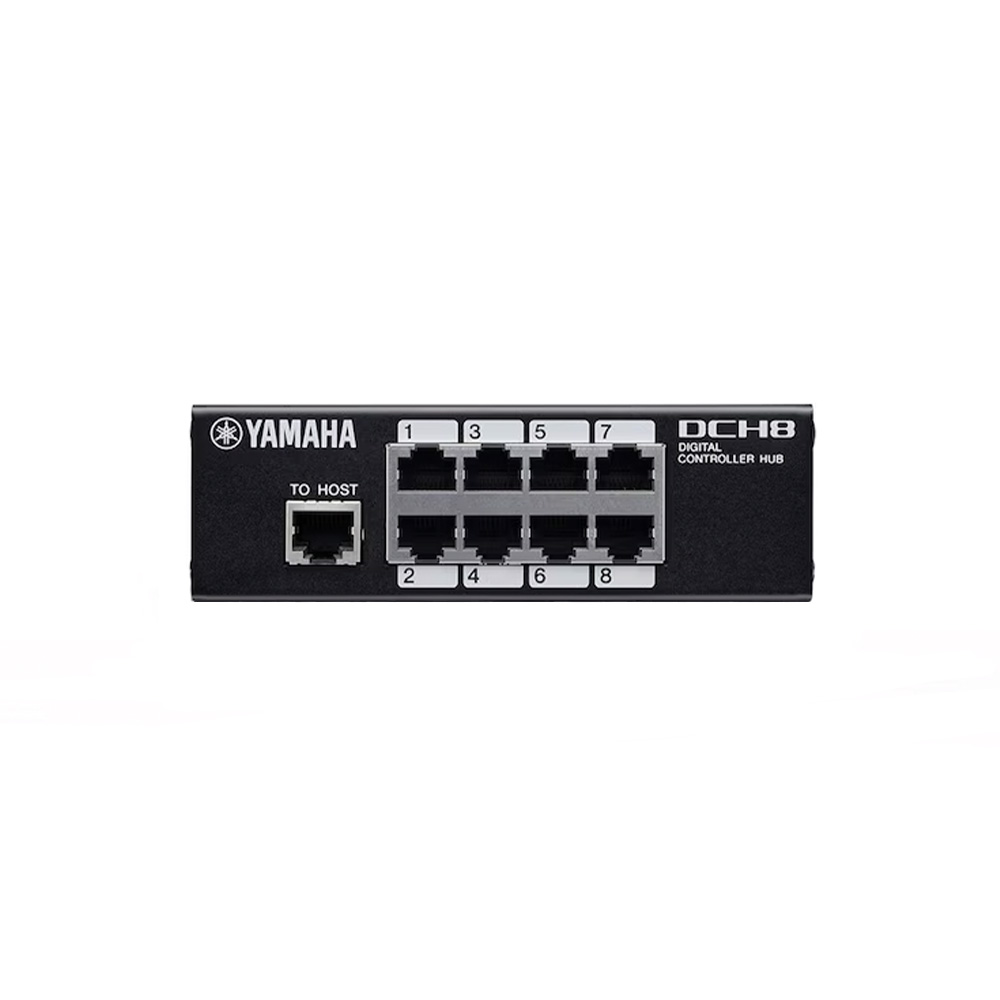

The DCH8 functions as a relay device between the host device and DCP series, allowing a combination of star and daisy-chain connections. Power is supplied via the CAT5e cable from the host device, simplifying cabling and allowing flexible device layout.　The distance between the host device and the furthest control panel must be less than 200 meters. Screw holes for the mounting flanges are provided on both the rear and sides, for flexible mounting in a variety of situations. Rack mount screws not supplied. The DCH8 Digital Controller Hub allows control lines for up to eight DCP series Digital Control Panel units to be connected to a Yamaha MRX7-D signal processor or MTX series matrix processor. Divides the control line from host devices such as the Yamaha MTX/MRX series into up to 8 lines.

Yamaha has released a brand new addition to the Commercial Installation Solutions family! The DCH8 Digital Controller Hub enables control lines for up to eight DCP series Digital Control Panel units to be linked to a Yamaha MRX7-D signal processor or MTX series matrix processor. The DCH8 serves as a relay device between the host device and DCP series, enabling a combination of star and daisy chain connections. Power is provided through the CAT5e cable directly from the host device, simplifying cabling and enabling versatile device layout. The distance between the host device and the furthest control panel needs to be less than 200 meters. Screw holes for the mounting flanges are supplied on both the rear and sides, for flexible mounting in a number of situations. Rack mount screws are not supplied.
