Yamaha Portable PA Systems STAGEPAS 100BTR

Yamaha Portable PA Systems STAGEPAS 100BTR

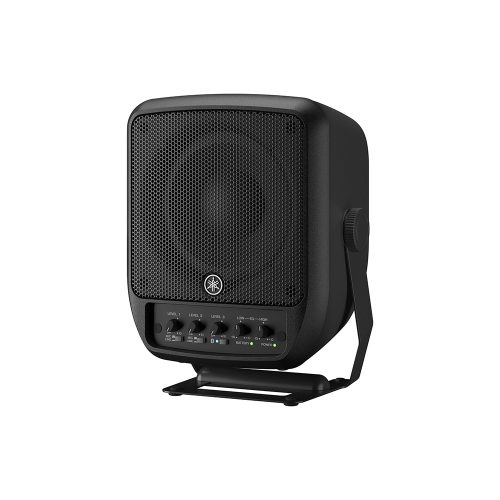

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery

  • 100 W Class-D amplifier
  • 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
  • 3-channel mixer (2 monaural mic/line + 1 line)
  • Equipped with a 2-band master EQ
  • Compatible with Hi-Z input (Channel 2 only)
  • Equipped with mix-out
  • Carrying handle doubles as an adjustable stand
  • Compatible with audio accompaniment over Bluetooth
Categories: , ,

Description

EXPAND YOUR RANGE, EXTEND YOUR REACH

The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Coming in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience with the full expression of your performance.

Yamaha STAGEPAS 100: EXPAND YOUR RANGE, EXTEND YOUR REACH





Compact design. Big sound.

Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.

Start the show in seconds

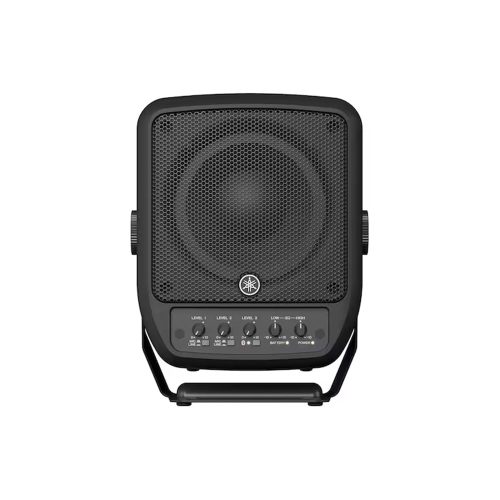

With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you’re ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.






“A PA in the palm of your hand”

With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.





6 Hours of non-stop performance

Yamaha STAGEPAS 100: 6 Hours of non-stop performance

The STAGEPAS 100BTR is compatible with large-capacity lithium-ion batteries capable of up to 6 hours of continuous operation, delivering reliable performance in environments where there is no power source available.

Multipoint Bluetooth® connectivity

Yamaha STAGEPAS 100: Multipoint Bluetooth® connectivity

The STAGEPAS 100 also comes equipped with multipoint supported Bluetooth functionality adding even more convenience to your set up and operation with wireless connection for music/ audio playback using smartphones and tablets.

The right direction

Yamaha STAGEPAS 100: The right direction

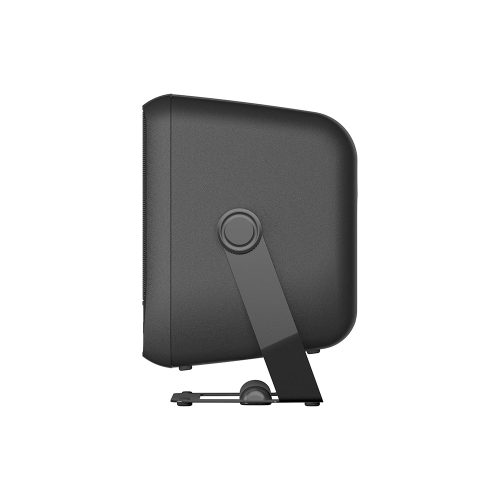

Easily control your coverage area with the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.

Mounting possibilities

Yamaha STAGEPAS 100: Mounting possibilities

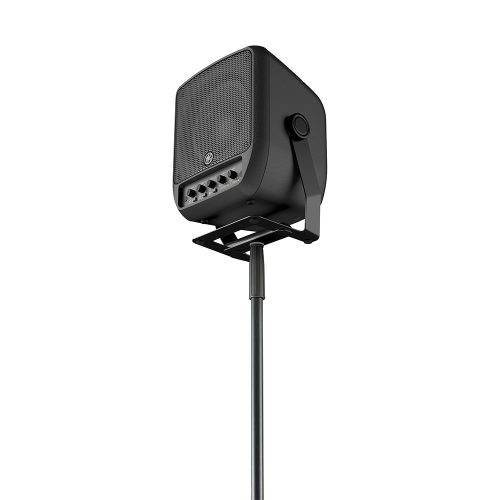

The handle of the STAGEPAS 100 also features a 3/8″ diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.

Whenever. Wherever.

Yamaha STAGEPAS 100: Whenever. Wherever.

The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.

Type2-way Bi-amp Powered Speaker with mixer

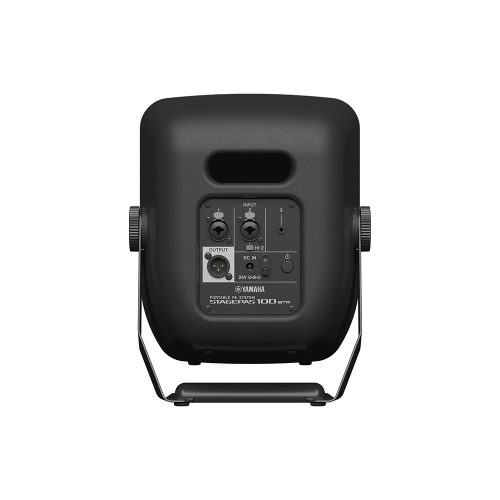

I/OInputsINPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
OutputsOUTPUT: XLR3-32 (INPUT 1-3 mix)
BluetoothVer.5.0, A2DP (SBC, AAC), Class 1
Mixing capabilityMixing channels3
Input channel functionsHi-Z: CH2
Output channel functions2 Band EQ
General specifications
Speaker typeCoaxcial speaker with compression driver
Frequency range (-10dB)70 Hz – 20 kHz
Coverage areaH90ﾟ x V90ﾟ
Crossover1.8 kHz (FIR-X)
Maximum output level (1m; on axis)120 dB SPL *1
ComponentsLF6.5″ Cone, 1.7″ voice coil
HF1″ throat compression driver, 1.4″ voice coil
Amplifier classClass-D
Power ratingDynamic100 W (LF: 93 W, HF: 7 W)
CoolingNatural convection (no fan)
Power consumption10 W (Idle), 30 W (1/8 power)
Power requirements100-240 V 50/60 Hz
BatteryTypeRechargeable Lithium ion battery pack
Capacity60 Wh
Operating TimeMaximum 6 hours, 1/16 power continuous 5 hours
Charging TimeApprox. 2.5 hours
Cabinet materialPlastic (PP)
HandleBottom x1 (Rotatable)

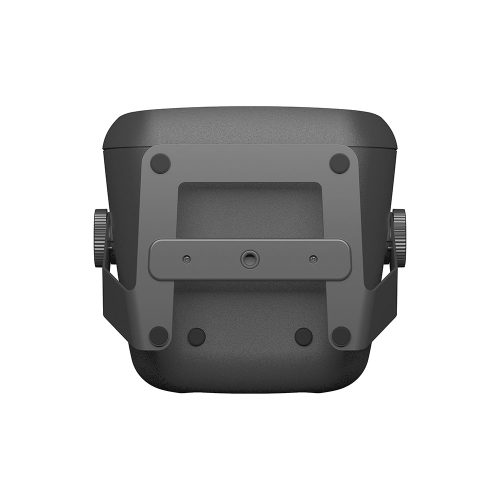

Flying and mounting hardware1 × 3/8″, depth 12 mm (center of handle)
Dimensions (W x H x D)239 x 310 x 215 mm (9.5″ x 12.3″ x 8.5″), with handle
Weight5.5 kg (12.1 lbs), without AC adaptor
AccessoriesPower cord x 1, AC adaptor (PA-500) x 1
OptionsCarrying bag: BAG-STP100
