Yamaha VS Series VS4

Description

Easily adaptable to virtually any environment with its sleek, compact and functional design

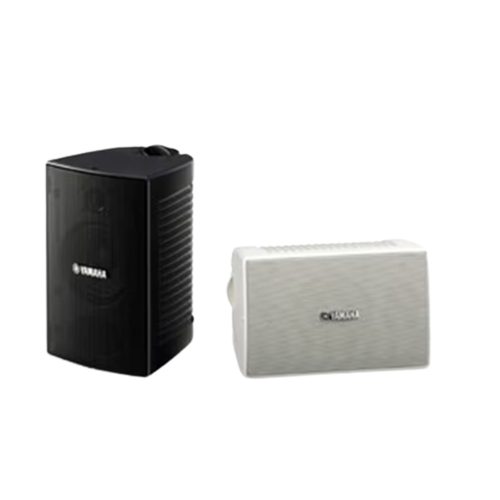

The VS Series’ smart and compact construction makes them well suited to locations where interior design is a consideration. Black and white models are available to choose from to match your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, allowing them to be used outdoors under cover.

Internal transformer allows operation in 70V or 100V distributed sound systems

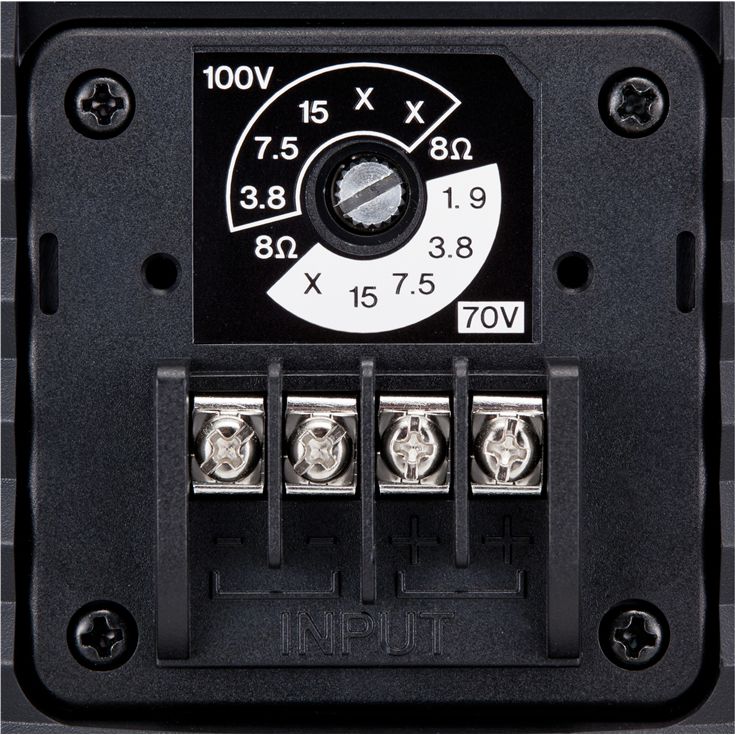

Tap selector switch is located on the rear panel to select the power tap of 70V/100V line distributed system or 8Ω sound system. The setting can be easily adjusted by rotating the tap selector with a screwdriver. The terminals and tap selector can be protected using the supplied cover.

Flexible setting of the speakers with the dedicated U-brackets

The speakers are supplied with dedicated, color-matched brackets for fast and easy installation. The brackets can be set either horizontally or vertically, depending on where you want to mount the speakers.

Yamaha
Frequency range (-10dB)100Hz – 20kHz
Nominal coverageH110
V110
ComponentsLF4″(100mm) cone driver
HF1″(25mm) balanced dome tweeter
Crossover15kHz
Power ratingNOISE15W
PGM30W
PEAK60W
Nominal impedance
Transformer taps100V15W, 7.5W, 3.8W
70V15W, 7.5W, 3.8W, 1.9W
SPLSensitivity (1W; 1m on axis)88dB SPL
Peak (Calculated)106dB SPL (60W)
I/O connectors2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm)
ShapeRectangular
Cabinet materialHIPS, 94-HB

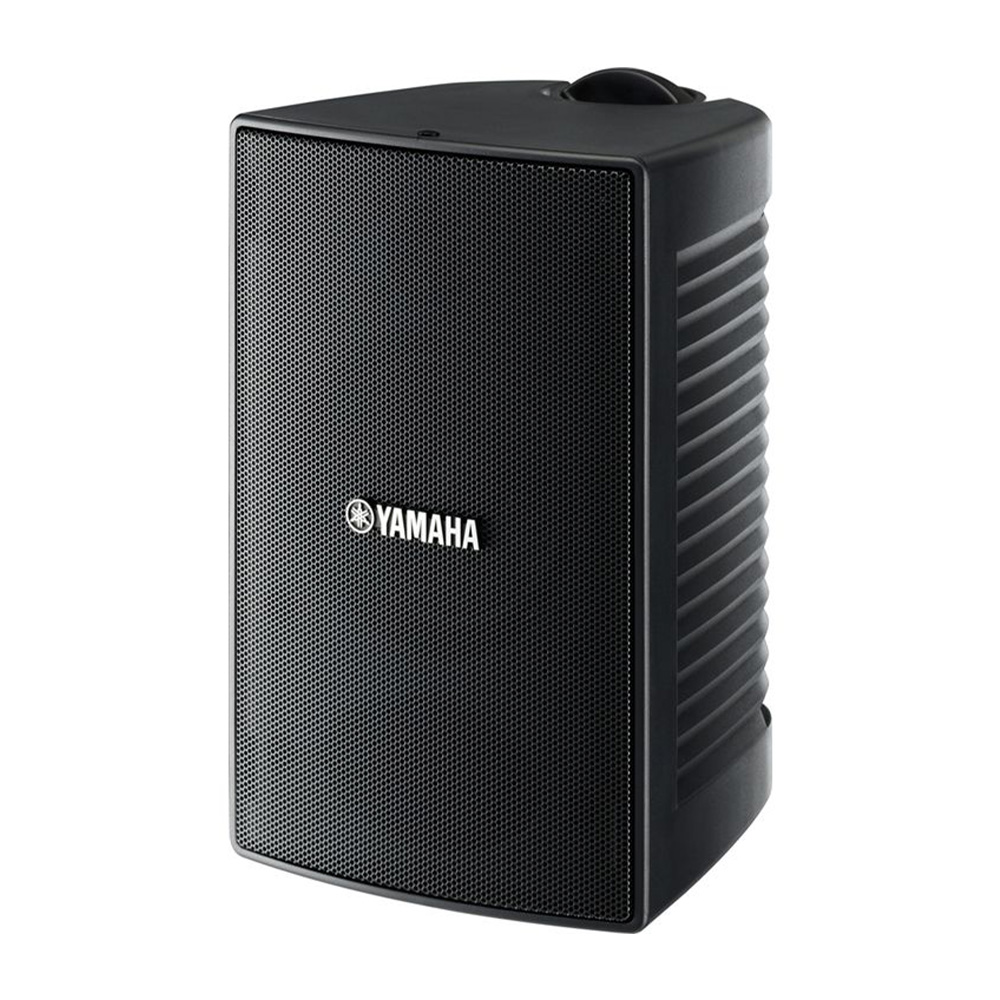

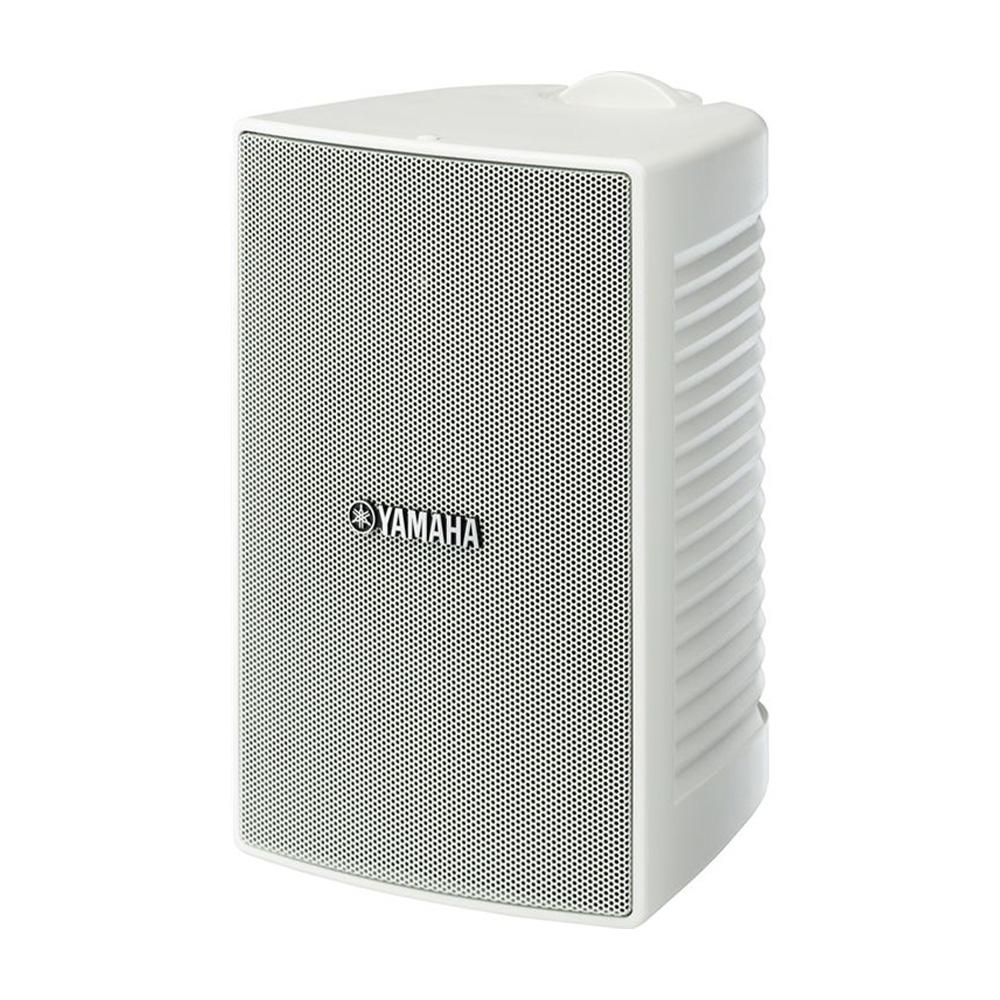

FinishVS4: Black, VS4W: White
Flying and mounting hardwareU-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)
WaterproofIEC60529 IPX3 splash proof rating
DimensionsW152 mm (6″)
H243 mm (9 9/16″)
D172 mm (6 3/4″)
Net weight1.9kg (4.2lbs)
AccessoriesU-bracket, Owner’s Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS
